Locate the belt drive assembly immediately–it’s the most frequent failure point in these models. Reference the internal schematic (typically found in section 3A of the service manual) to confirm the belt’s path around the drum, motor pulley, and tensioner. Misalignment here causes excessive wear, leading to premature belt breakage or inconsistent rotation. Replace with OEM belt #12001788Z for optimal tension and durability.
Inspect the rear bulkhead gasket next. This sealing component prevents lint from escaping into the cabinet, which can obstruct airflow and trigger thermal cutoff trips. If compressed or cracked, order part #AP4153500–verify compatibility with your model’s serial number range before installation. Clean the mating surfaces thoroughly to ensure proper adhesion of the new gasket.

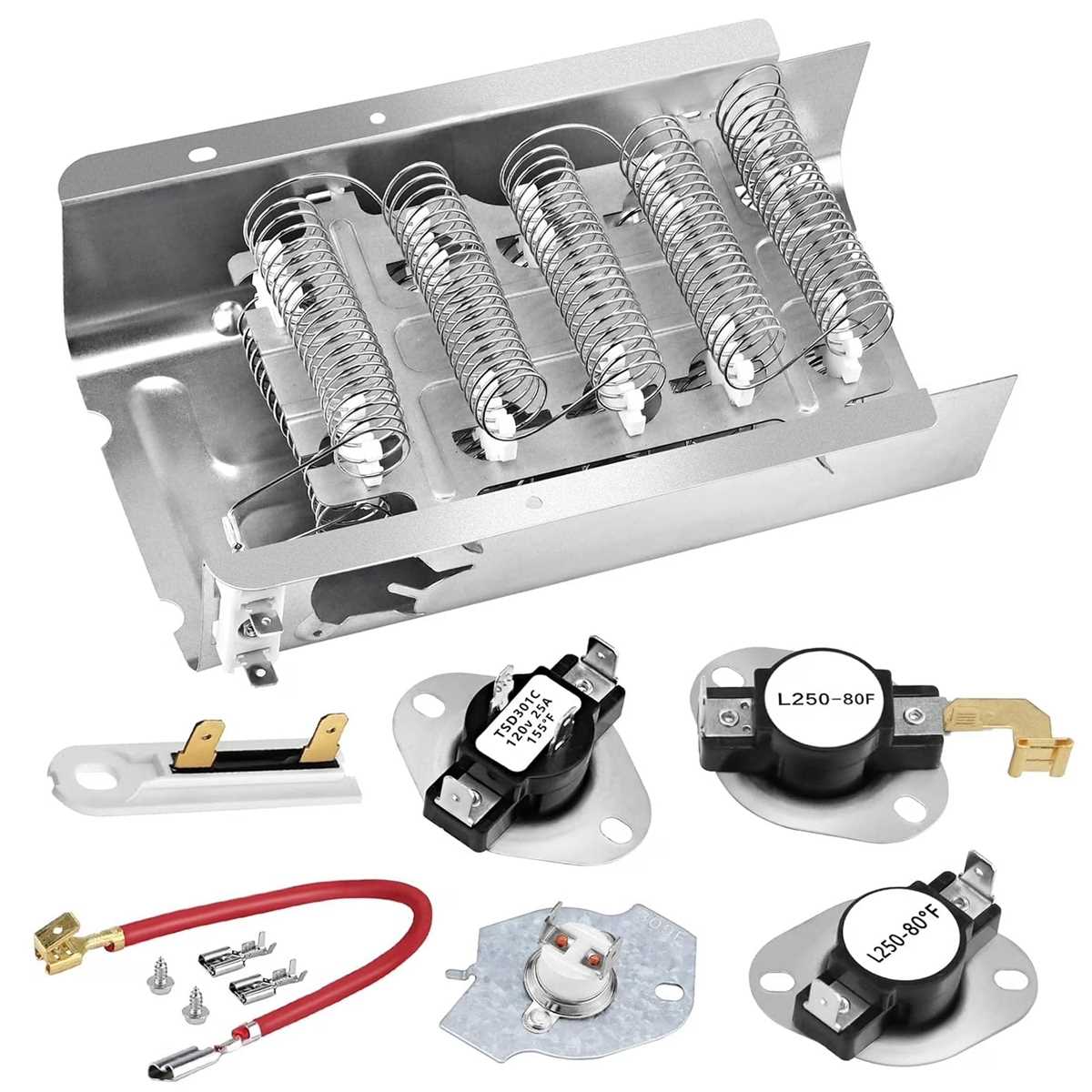

The heating element assembly demands attention if cycles run cold. Check resistance across the terminals with a multimeter; readings between 10–50 ohms indicate normal function, while infinite resistance confirms failure. Replace the element (#279838) if defective–disconnect power and discharge capacitors before handling. Inspect the blower housing simultaneously, as clogged or detached impeller blades (part #5303281163) restrict airflow and force extended drying times.

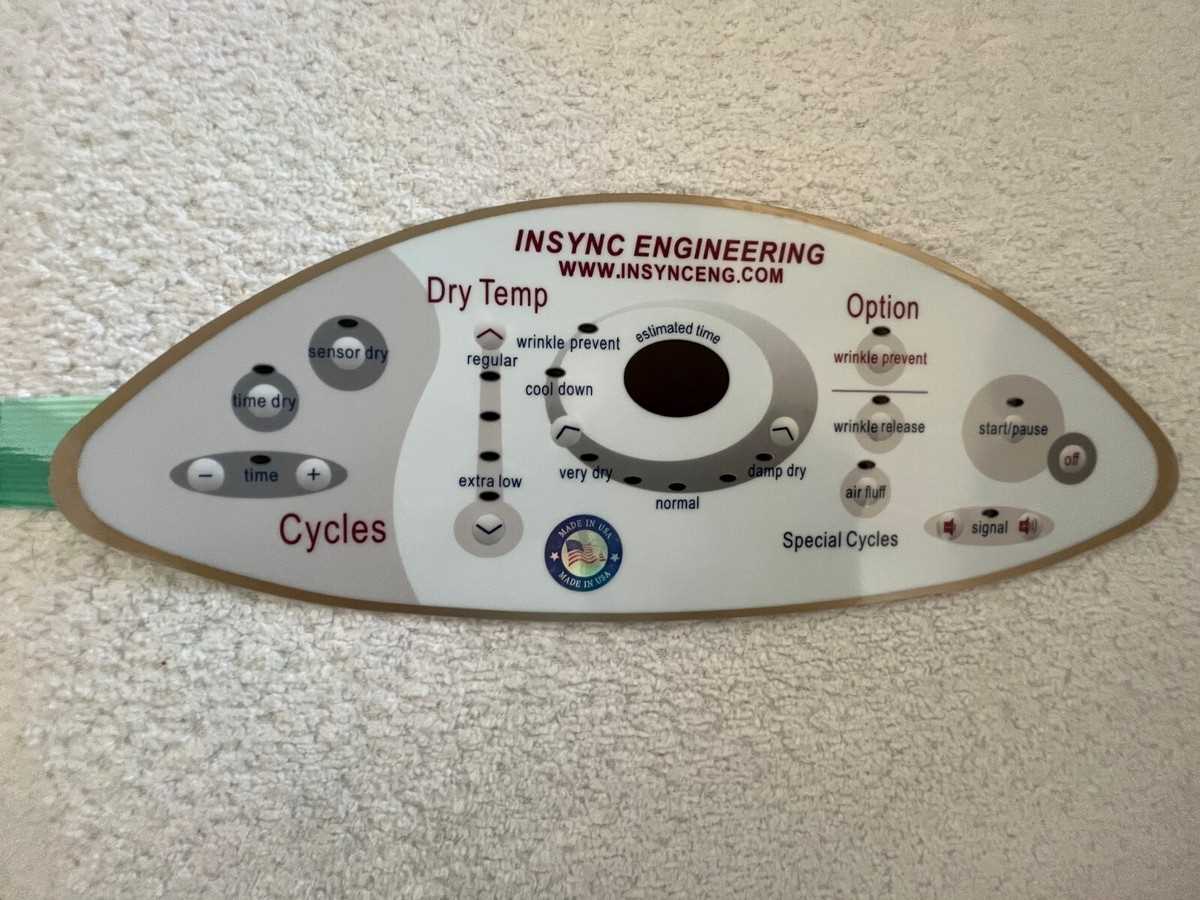

For electronic control boards, focus on the power relay first. Burnt contacts or swollen capacitors (visible on visual inspection) disrupt voltage delivery, causing erratic operation or complete shutdown. Swap the control board (#W10155051) if diagnostics (using the tech sheet’s error codes) point to EEPROM corruption. Always update firmware post-replacement to prevent recurrence of glitches.
Leverage the exploded view illustrations in the manual’s appendix to cross-reference each component’s placement. Label removed fasteners by size and location–common M5 and M6 screws are easily confused, leading to stripped threads. Store parts in sequential order if performing staged repairs to minimize reassembly errors.

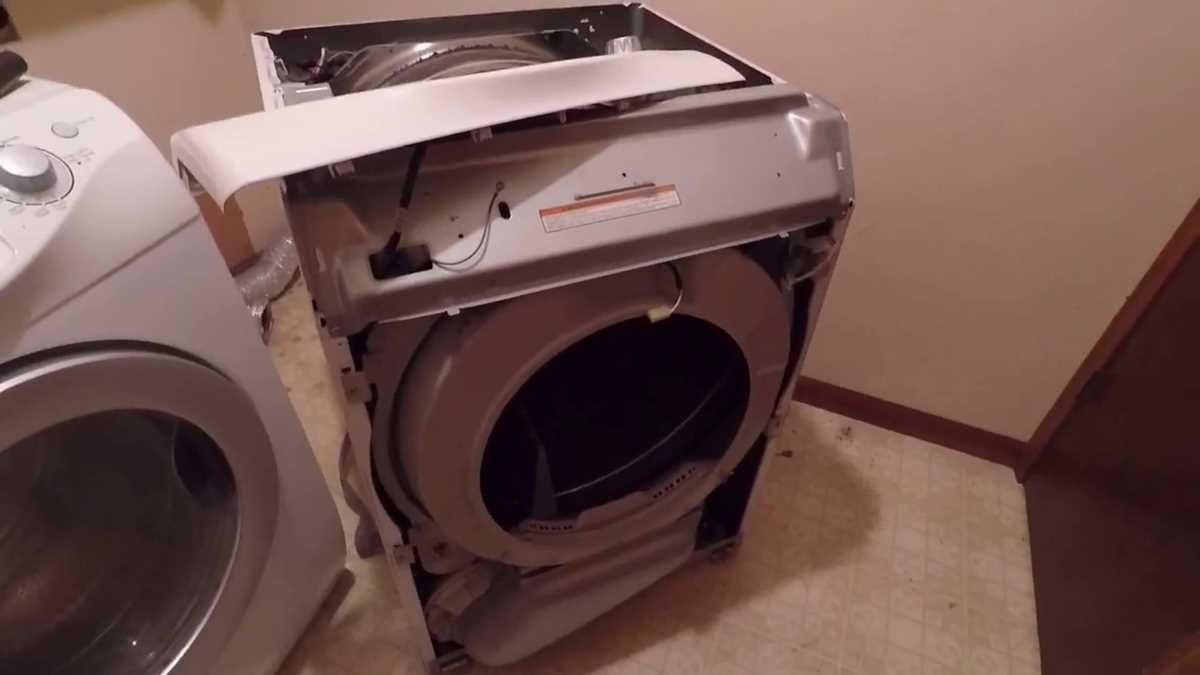

Understanding Your Laundry Appliance’s Component Layout
Locate the belt routing guide first–this schematic reveals how the drum rotation system interlinks. The drive belt wraps around the motor pulley, then stretches over the idler wheel before securing around the cylinder’s rear rim. Misalignment here causes uneven wear or squeaking, so verify tension after reassembly.
Examine the thermal fuse placement near the blower housing–it cuts power if airflow overheats the internal cavity. Test continuity with a multimeter before assuming other failures; a blown fuse often mimics motor or control panel malfunctions. Replace it only with an OEM-approved component to prevent voiding safety certifications.
Identify the moisture sensor strips inside the front bulkhead–they signal when fabrics reach target dryness. Clean these electrodes with isopropyl alcohol every 50 cycles to remove lint buildup that skews readings. Bent sensors require gentle straightening with needle-nose pliers, avoiding force that cracks the ceramic coating.
The tumbler roller axles need periodic lubrication with high-temperature lithium grease–spray directly onto the shafts after removing end caps. Crunching noises during operation indicate dry bearings, leading to premature drum track misalignment. Reapply grease every six months for longer service life.
Check the exhaust vent assembly for obstructions before blaming the heating coil–restricted ducts trigger automatic shutoffs even when coils function. Disconnect power, unclamp the vent tube, and feed a rigid coil-cleaning brush through to remove lint cakes that standard vacuum attachments miss.
Replace the lint screen seal if torn–this foam strip prevents debris from bypassing filtration. Peel away the old seal completely, then press the new adhesive-backed strip into the groove around the door frame, ensuring flush contact with no gaps.
Diagnose control board issues by accessing the service mode–refer to the tech sheet taped inside the back panel. Shorting test points with a jumper wire bypasses sensors for isolated troubleshooting. Flashing LED patterns indicate specific fault codes; cross-reference these with the digital manual for precise remedies.
Finding the Precise Schematic for Your Laundry Appliance
Check the appliance’s data plate first–it’s usually inside the door frame, on the rear panel, or along the side edge. The model number (e.g., MDE5500AYW) is critical; schematic databases use these exact strings to filter results.
Visit the official manufacturer’s support portal and enter the full model identifier. Avoid truncated or partial codes–databases will often return generic or incorrect schematics if even one character is omitted.
For older appliances released before 2010, schematics may reside in archived PDF manuals. Use Boolean search operators: input the model plus "service manual" OR "repair diagram" -thirdparty to exclude reseller pages.
Cross-reference the schematic by comparing known components with the visual layout. If the diagram shows a belt tensioner at position 12 o’clock but your unit has it at 3 o’clock, discard that schematic–it belongs to a different revision.
| Model Prefix | Typical Schematic Source |
|---|---|
| MAH* | Download from Brand’s Europe legacy portal |
| MDE* | Direct PDF link on Brand’s North America archive |
| MGE* | Contact customer service–manual often sent via email |
Library Genesis (libgen.is) maintains scanned copies of discontinued product manuals. Search the full model string there if official sources yield no results–use filters for file type PDF and language English.
After identifying the correct schematic, print or save a local copy immediately. Web portals frequently update or remove outdated diagrams, leaving you without reference later.
Verify fuse placement, heating element terminals, and drum roller locations against the diagram’s numbered callouts. A single misaligned component callout means the schematic belongs to another unit variant.
Step-by-Step Breakdown of Key Components in the Appliance Schematic
Begin by locating the drum support rollers on the right side of the exploded view–typically labeled as items #12 and #14. These components, measuring 2.5 inches in diameter, reduce friction as the cylinder rotates. Replace both rollers simultaneously, even if only one shows wear, to maintain balance. Use a 5/16-inch socket to remove the mounting bolts and a flathead screwdriver to pry off the retaining clip.
Next, identify the blower housing (positioned near the rear panel, usually #37). This assembly directs airflow through the venting system and requires a Torx T25 driver for disassembly. Check the impeller for debris accumulation–excessive lint here reduces drying efficiency by up to 30%. Rotate the impeller by hand after cleaning to confirm smooth operation; hesitation indicates bearing wear requiring full replacement.
Examine the thermal fuse (highlighted in red, often #59) mounted on the heater box. This single-use safety device cuts power if temperatures exceed 180°F (82°C). Test continuity with a multimeter; a reading above 0 ohms confirms functionality. If blown, inspect the exhaust duct for obstructions–restricted airflow is the primary cause of failure, not the fuse itself.
- Heating element: Inspect coils for breaks (visible as darkened or separated sections). A partial failure extends drying time but may not trip the thermal cut-off.
- Idler pulley: Spin by hand–grinding noises indicate worn bearings. Lubrication isn’t recommended; replacement is the only viable solution.
- Door switch: Activate with the door open. A click without power interruption suggests a faulty latch mechanism, not the switch.
For the control board (item #78), document wiring positions with photographs before disconnecting. Heat damage appears as discolored solder joints–use flux and a 40-watt soldering iron to reflow suspect connections. Replace resistors showing bulges or cracks, following the resistance values printed on the component (typically 10kΩ or 47kΩ).
Reassemble in reverse order, torquing all fasteners to 12-15 inch-pounds. Pay special attention to the belt tensioner–the belt should deflect no more than ½ inch when pressed mid-span. Run a diagnostic cycle (hold “Dry Level” and “Cycle Signal” buttons simultaneously for 5 seconds) to verify all sensors and actuators respond correctly before restoring power.
Locating Component Swaps with Schematic Guides and Serial Codes
Start by matching the appliance’s serial plate to the exploded view linked on the manufacturer’s service portal. Enter the exact model identifier–typically a 10-12 digit alphanumeric string–into the search field to pull the correct breakdown. This avoids mismatches, as similar machines often share visual layouts but require distinct part numbers for belts, sensors, or thermal fuses.
Trace each labeled section in the illustrated guide back to the physical unit. On the drum assembly side panel, for example, mark the heater housing bracket (labeled H-7) before removing it–this ensures reinstallation aligns with the motor pulley paths. Cross-reference doubtful connections with a multimeter, probing for continuity on wiring harnesses marked W-3A versus W-3B.
Steps to Verify Fitment
Compare the original component against the replacement using three key metrics: dimensional specs, mounting holes, and electrical rating stamps. A snap ring for an idler roller may appear identical but vary in groove depth by 0.5mm–enough to cause misalignment. Note thread pitch on screws; 8-32 fasteners won’t secure a flange designed for 10-24 hardware.
Leverage the color-coded legend on the schematic–black for ground wires, red for power circuits–to prevent shorts when swapping control boards. If the new relay switch lacks a matching terminal layout (e.g., spade vs. bullet connectors), modify the harness adapter using heat-shrink butt splices rated for 105°C.
Documenting for Future Repairs
Photograph disassembly sequences with a smartphone, focusing on obscure linkages like the lint chute’s twist-lock mechanism. Annotate images with callouts for tension spring hook positions–critical when reassembling drum baffles. Store these alongside the model-specific PDF breakdown in cloud storage; retrieval time drops from 20 minutes to 3 minutes during repeat servicing.
