To locate the drive shaft within a telescopic cutting device, first detach the lower housing by removing the retaining screws–typically four, positioned symmetrically around the base. Use a T25 Torx driver for secure models or a flathead screwdriver for older units. The shaft connects the motor assembly to the cutting head via a splined coupling; verify its integrity by rotating it manually–resistance or grinding indicates wear and requires replacement. Spare shafts should match the original OEM specifications: 3/8-inch pitch, 7 teeth for most professional-grade models.
Inspect the gear housing next. Remove the two 10mm bolts securing it, then pry it open using a plastic wedge to avoid damaging the gasket. The inner gears–often a pair of helical-cut steel pinions–should mesh smoothly without excessive play. If teeth are chipped or stripped, replace the entire housing; partial repairs compromise alignment and accelerate failure. Lubricate new gears with lithium-based grease (NLGI Grade 2) before reassembly to prevent premature corrosion.
The throttle trigger assembly operates through a cable-and-spring mechanism. Disconnect the cable at the carburetor end by lifting the locking tab, then trace it upward to the handle. Check for fraying near the curved housing–common failure points occur 3 inches from the trigger due to repeated bending. Replace the cable if slack exceeds 1/4 inch when fully engaged; use pre-stretched, vinyl-coated cables for durability.
For the cutting blade, secure the bar in a vice with the nose facing upward. Clean the oil ports with compressed air and verify none are obstructed–blockages cause overheating within 12–15 minutes of operation. Sharpen teeth using a 5/32-inch round file at a 30-degree angle, maintaining the original raker depth (0.025 inches). Replace the bar if grooves exceed 0.05 inches; worn bars increase kickback risk by 40%.
Maintaining Your Extendable Pruning Tool: Key Components Guide
Start by locating the cutting head assembly–typically secured with two hex bolts (8mm or 10mm). Loosen these with a compatible wrench, then gently remove the housing to access the blade arbor and sprocket. Inspect the arbor for debris accumulation, which can reduce efficiency by up to 15%. Clean it with a brass brush if residue exceeds 1mm buildup. Replace the sprocket if teeth show wear beyond 0.5mm, as this directly impacts chain engagement and cutting precision.
Critical Wear Items and Replacement Intervals
| Component | Material | Standard Lifespan | Wear Indicator |
|---|---|---|---|
| Drive link chain | High-carbon steel | 8–12 hours of use | 0.7mm reduction in tooth height |
| Guide bar | Alloy steel | 20–25 hours | Groove depth under 0.6mm |
| Sprocket | Case-hardened steel | 30–40 hours | Teeth height below 4.2mm |
| Air filter | Foam/paper composite | 10–15 hours | Visible discoloration or dust saturation |
Disassemble the throttle linkage by removing the cotter pin at the carburetor arm–examine the spring tension, which should require 3–4 kg of force to engage fully. A weakened spring (testing under 2.5 kg) causes inconsistent RPM output, leading to uneven cuts. Lubricate the pivot points with synthetic grease (NLGI Grade 2) sparingly; excess attracts abrasive particles. For the fuel system, drain old gasoline if stored longer than 30 days, as stale fuel leaves varnish deposits that clog the 0.3mm jets in the carburetor.
Check the shaft coupling by rotating it manually–it should move smoothly without lateral play (max 0.3mm tolerance). If play exceeds this, inspect the rubber damping elements for cracks; replace if any are found, as they absorb vibrational stress that otherwise transfers to the operator’s hands. When reassembling, torque all fasteners to manufacturer specifications: blade arbor bolts at 12–15 Nm, shaft clamps at 8–10 Nm, and the cutting head housing at 18–22 Nm. Over-tightening risks shearing threads or warping components, while under-tightening leads to premature loosening during operation.
Locating Critical Elements of Your Tree-Trimming Extension Tool
Begin by examining the cutting head–its bar and chain are primary wear items. Measure the bar length; standard sizes range from 8 to 12 inches. Check the chain tension by lifting it at the midpoint: it should pull away slightly but retract when released. Loose chains risk derailing; overly tight ones accelerate bar wear.
Inspect the power source next–most models use a two-stroke engine requiring a precise fuel mix (typically 50:1 gasoline to oil). Verify the spark plug condition; electrodes should be clean and gaps set to 0.020 inches. A fouled plug causes misfires and poor performance.
Observe the shaft connection points where the engine meets the cutting assembly. Look for retaining clips or bolts securing these joints. Corrosion or loosened fasteners here compromise structural integrity during operation. Apply thread-locking compound when reassembling.
Identify the throttle control mechanism–usually a trigger on the rear handle. Ensure smooth engagement; sticky triggers may signal internal cable fraying. Lubricate the cable housing with dry lubricant if resistance is felt. Check the throttle return spring for tension; weak springs prevent full cutoff.
Assess the handle assembly for cracks or stress marks, especially where it meets the extension pole. Reinforced fiberglass poles are common, but damage near stress points can lead to catastrophic failure. Wipe down handles with mild detergent to remove sap buildup, which degrades rubber grips over time.
Locate the oiler if equipped–typically a small reservoir near the bar. Fill with bar-and-chain oil (never motor oil) before each use. Clogged oiler ports starve the chain of lubrication, causing excessive heat and premature wear. Test by running the tool and observing oil flow onto the bar.
Finally, check the safety features: chain brakes (triggered by front handguard movement) must engage instantly, and the throttle lockout should prevent accidental startup. Replace any worn or malfunctioning components immediately–compromised safety elements increase injury risks during operation.
How to Interpret a Technical Guide for Long-Handle Pruning Tools

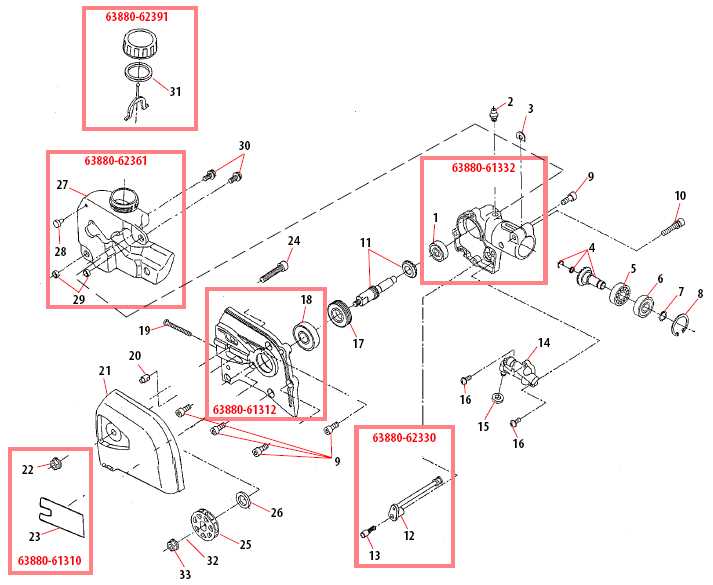

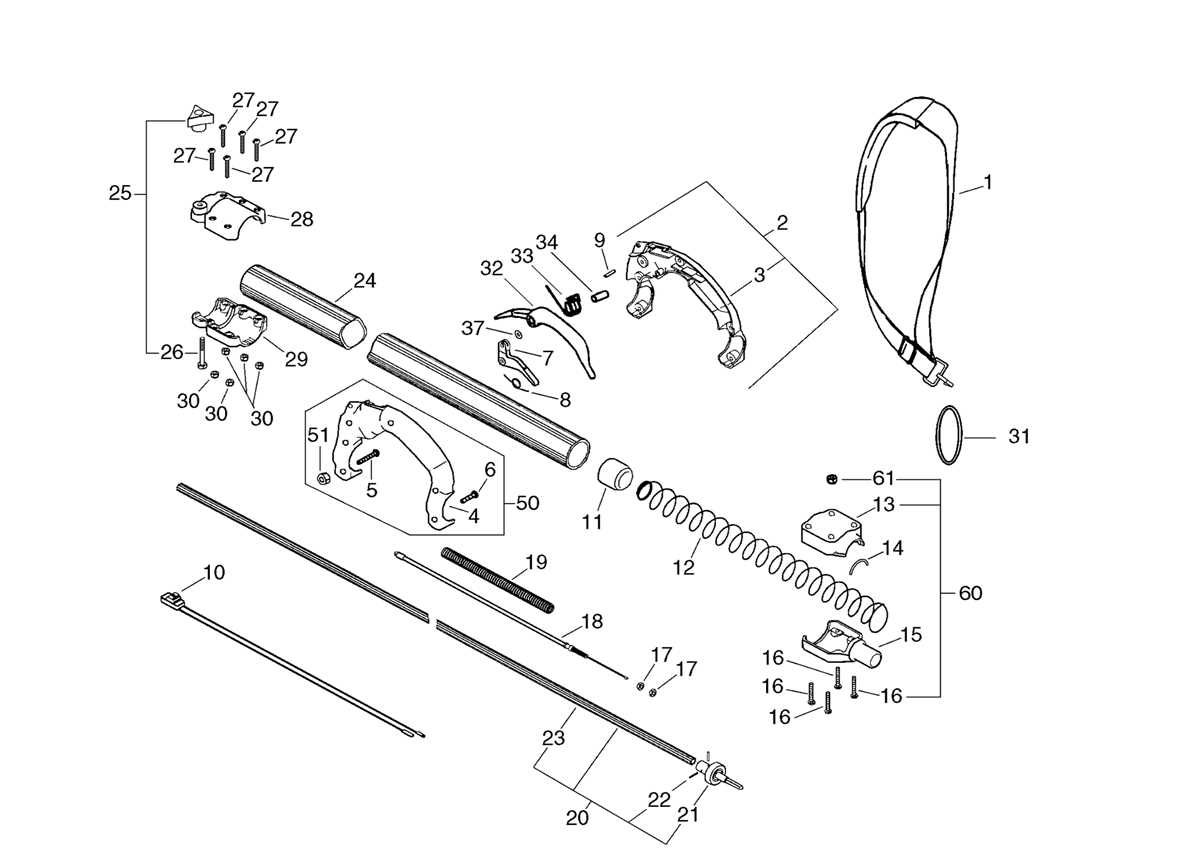

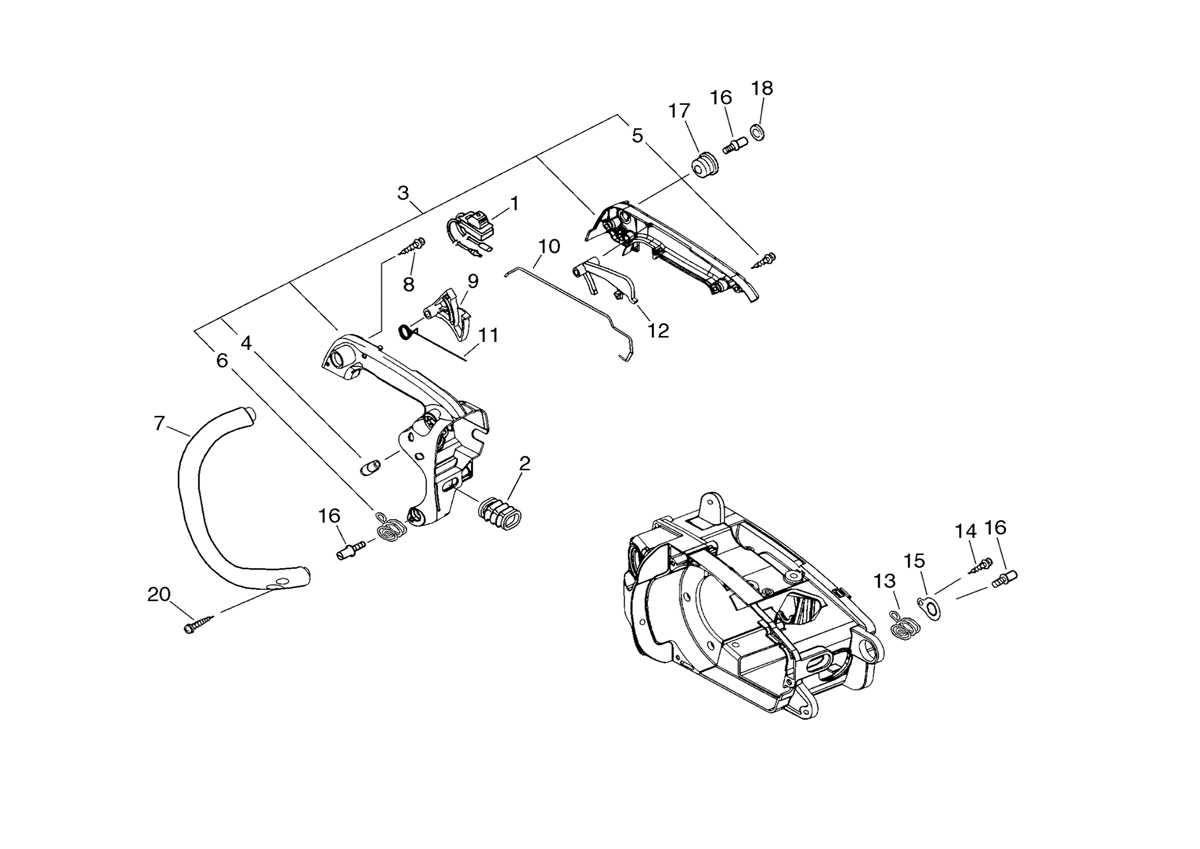

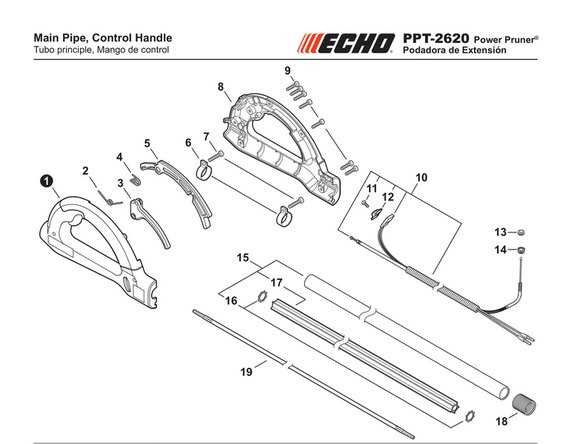

Locate the exploded view section first–it’s typically near the back of the manual or labeled as the “assembly reference.” Identify the primary components by their numbered callouts, which match a legend listing descriptions like “cutting bar,” “drive mechanism,” or “handle collar assembly.” Cross-reference these numbers with the part names in the legend to avoid misidentifying similar-looking pieces, such as screws versus bolts or plastic guards versus metal housings.
Examine the orientation of each piece in the illustration. Items drawn with dashed lines indicate internal or hidden components, while solid lines show external parts. For example, a clutch assembly may appear as an outer ring with a dotted inner gear, revealing how it meshes with the power source. Note any directional arrows or rotation symbols–these mark movement paths or installation angles, critical for reassembly without forcing parts into incorrect positions.
Key Details to Verify Before Disassembly
- Check for color-coded elements: manufacturers often use red, blue, or yellow highlights to denote wear items (e.g., chains, sprockets) or safety-critical pieces (e.g., trigger locks).
- Measure the length of fasteners: a 10mm bolt won’t replace an 8mm one even if they appear identical in the guide.
- Look for torque specifications next to screws–over-tightening can strip threads on aluminum casings.
Trace the flow of energy through the diagram. Start at the power input (e.g., the motor) and follow the sequence: drive shaft → clutch → gear reduction → cutting attachment. Disruptions in this chain (like a missing spacer) will cause malfunction. Compare the guide’s sequence with physical disassembly; deviations often signal damaged or missing pieces not accounted for in the original document.
Troubleshooting with the Guide
- Isolate the issue: if the chain binds, focus on the tensioning system’s callouts rather than the trigger assembly.
- Compare the guide’s “common failures” inset (if available) against your tool–look for wear patterns on the diagram’s shaded areas.
- Use a multimeter on electrical circuits if the guide includes wiring schematics; probe connections at the points marked with voltage symbols.
- For hydraulic models, locate fluid pathways–blocked ports or degraded seals will be illustrated with cross-sectional cutaways.
Key Components to Replace in Extendable Pruning Tools and Where to Find Them
Start by inspecting the cutting bar–the elongated metal guide that supports the chain. This element endures the most wear, especially along its grooves where the drive links glide. If the bar shows uneven wear, deep grooves, or signs of overheating (blueish tint), swap it out immediately. Locate this beneath the sprocket cover, secured by two mounting bolts. Always match the replacement’s gauge and length to the original; mismatched bars force the chain to stretch prematurely and increase kickback risk.
Next, examine the chain sprocket. This gear, hidden behind the clutch assembly, drives the cutting element. Look for chipped teeth, uneven wear, or excessive play. Replace when teeth lose 30% of their original height or if the chain skips under load. The sprocket’s location requires removing the clutch drum, which often means detaching the starter assembly first. Use a spanner wrench to hold the crankshaft while unscrewing the center bolt to avoid damaging the engine’s internals. Opt for a hardened steel sprocket if your unit sees heavy use; softer alloys wear faster in sandy or gritty conditions.
- Air filter: Check every 5 operating hours. Tap out loose debris, then wash with warm soapy water if the element is foam. Dry completely before reinstalling to prevent engine flooding. The filter sits in a plastic housing under the top cover, fastened by a single latch or screw. Neglect here leads to increased fuel consumption and premature piston wear.
- Spark arrestor screen: Remove carbon buildup every 10 hours with a stiff wire brush. This mesh guards the muffler outlet and is critical for fire safety. A clogged screen starves the engine, causing hard starts and power loss. Locate it inside the muffler by removing the outer cover–usually two bolts.
- Anti-vibration mounts: Inspect rubber grommets between the engine and shaft tube. Cracked or brittle mounts transmit excessive vibration, straining the user’s hands and accelerating bearing wear. These are press-fit into the tube assembly; replacement kits include the grommets and metal sleeves.
The drive clutch–a centrifugal mechanism triggered by engine RPM–often fails silently. Symptoms include the chain spinning too slowly or failing to engage despite high revs. Disassemble by removing the spark plug, locking the piston with a rope, then unscrewing the clutch hub (left-hand thread). Replace the clutch shoes if they’re thinner than 3mm or show glaze on the friction surfaces. Pair a new clutch with fresh springs to ensure consistent engagement; weak springs cause sluggish cutting performance.
For electrical issues, test the ignition coil with a multimeter set to 20kΩ. Probe the coil’s terminals; readings should fall between 4–6kΩ (primary) and 8–15kΩ (secondary). Deviations indicate a failed coil, located adjacent to the flywheel under a metal cover. When replacing, ensure the new coil’s gap to the flywheel is 0.3mm (use a feeler gauge). Misalignment here causes intermittent spark, leading to erratic engine behavior. Secure all wiring connectors tightly–vibration loosens them, creating frustrating mid-operation shutdowns.
