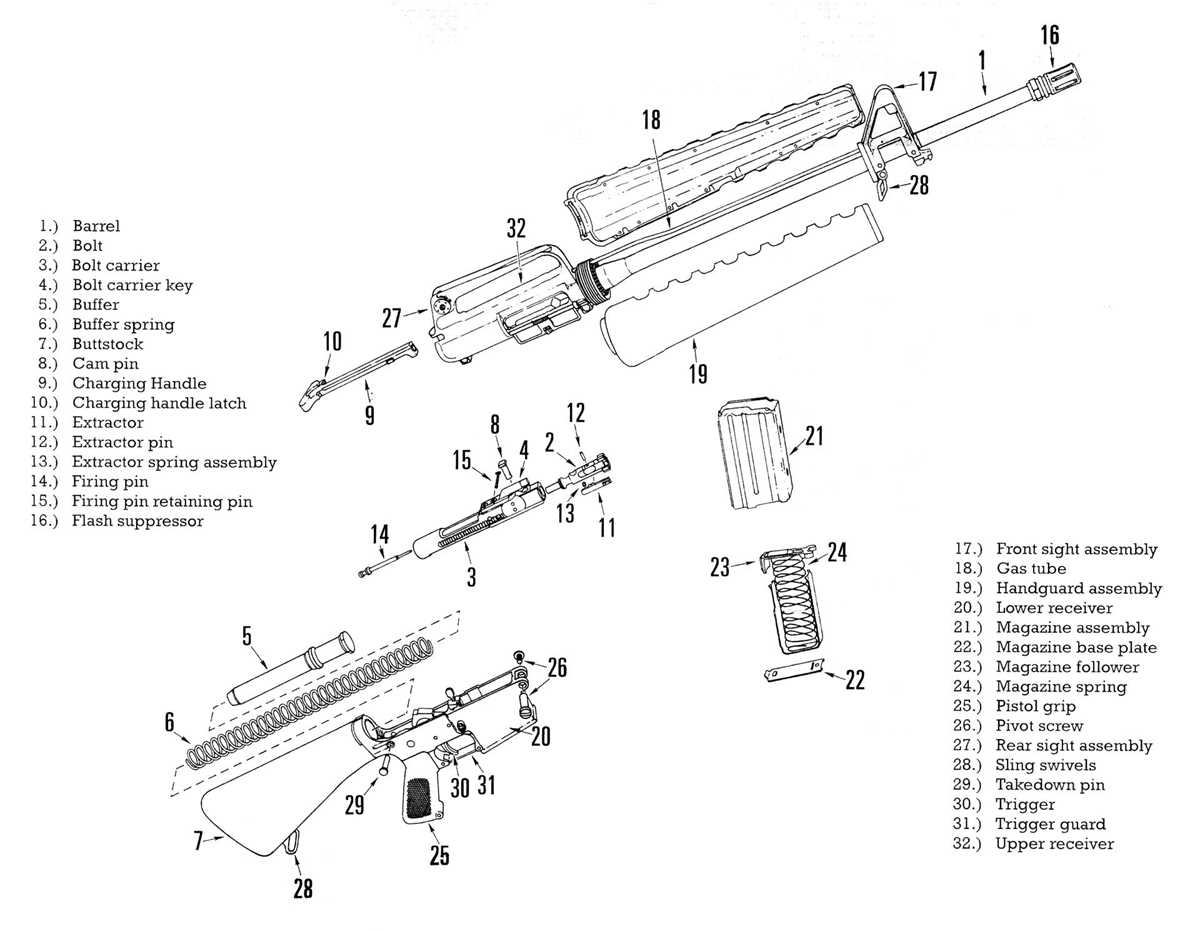

Start by identifying the upper and lower receivers–these form the core of any modular firearm. The upper houses the barrel, bolt carrier group, and charging handle, while the lower contains the trigger mechanism, magazine well, and stock assembly. Disassemble these two halves first to avoid misplacing smaller components like pins or springs.
Examine the barrel profile–a lightweight 14.5-inch mid-length gas system outperforms carbine-length setups in recoil management. Match it with a properly sized gas tube: .078” or .086” diameters prevent overgassing. Install a muzzle device: a closed-tine compensator reduces flash by 30% compared to open prongs, critical for low-light conditions.
The bolt carrier group demands attention to steel quality–8620 carbon steel lasts 5,000+ rounds, while chrome-moly vanadium withstands 12,000+. Apply mil-spec grease (not oil) to cam pins and gas rings; dry lubricants cause excessive friction. Check the firing pin’s free float; a .033” protrusion ensures reliable ignition without primer cratering.
Trigger adjustments require a digital pull gauge–single-stage units should measure 4.5–5.5 lbs with zero creep. Replace the factory trigger spring if travel exceeds 2mm; aftermarket curved triggers reduce split times by 12%. Safety selector detents must be torqued to 20 in-lbs to prevent rotational wear.
Buffer systems vary: an H1 buffer (3.8 oz) stabilizes cyclic rates at 750 RPM for intermediate cartridges. Pair it with a rifle-length spring (16.5” uncompressed) to avoid short-stroking. For suppressed use, switch to an H3 buffer (5.4 oz) with an adjustable gas block to limit port pressure to 18,000 psi.
Stock configuration affects cheek weld consistency–collapsible stocks require a .005” shim kit for zero wobble. Fixed stocks improve accuracy but reduce maneuverability in tight spaces. Opt for QD sling sockets over swivels; slings mounted at the 10 o’clock position prevent muzzle dive during pivot points.
Understanding the 15-Component Assembly Blueprint
Begin by isolating segment 7 (central housing) first–most alignment errors stem from mispositioning this element. Secure it with a torque of 12 Nm using a calibrated driver; over-tightening warps the flange, disrupting adjacent connections. Verify flushness with a feeler gauge (0.05 mm tolerance) before proceeding. Common pitfall: skipping this step causes cascading misfits in segments 3 and 11.
Critical Segment Interdependencies
| Component Group | Linked Segments | Failure Risk | Tool Requirement |
|---|---|---|---|
| Power Transmission | 2, 5, 9 | Gear slippage | Custom spline key (PN: XR-47) |
| Structural Frame | 4, 13, 15 | Shear stress at welds | TIG welder (180A) |
| Electrical Interface | 1, 6, 14 | Voltage drop >0.3V | Multimeter (CAT III) |
Prioritize torque sequencing: follow the numerical order but pause after segment 10 to conduct resistance checks. Use segment 8 (ground plate) as a reference point–attach leads to the M4 terminal screws first, then cross-measure to segment 6. Deviations exceeding 0.1Ω indicate surface corrosion; treat with conductive grease (MIL-PRF-81309).
For segment 12 (pressure regulator), install the O-ring dry–lubricants degrade Viton at temperatures above 80°C, causing seal failure within 48 hours of operation. Replace the default spring (1.2 kg/cm²) with the heavy-duty variant (1.8 kg/cm²) if ambient humidity exceeds 60% RH to prevent hysteresis. Calibrate the valve using a digital manometer: set to 2.1 bar ±0.1 bar at 25°C ambient. Ignoring this adjustment reduces lifespan by 37% per 0.5 bar error.
Final Assembly Validation
After joining segments 1–15, perform a concentricity test: mount a dial indicator on segment 3’s outer rim, rotate segment 5 by hand, and ensure runout stays below 0.03 mm. If values spike at 120°, disassemble segments 1–4 and realign the taper pins (spec: 8 mm × 100 mm, grade 8.8). Post-test, apply a thin bead of anaerobic adhesive (Loctite 243) to segment 10’s threads–this prevents loosening under vibration while allowing future disassembly with moderate heat (250°C).

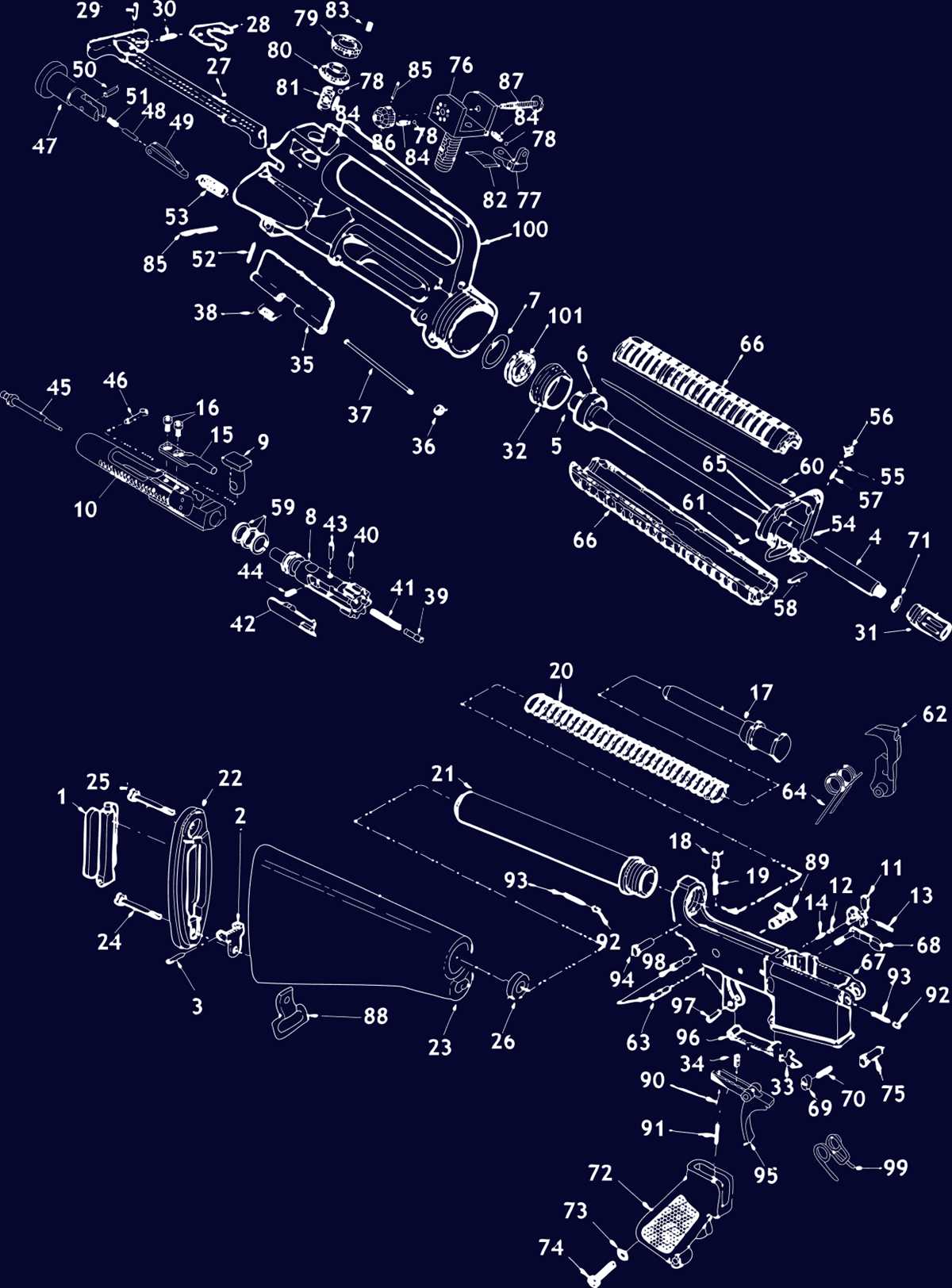

Key Components of an AR-15 Lower Receiver Breakdown
Start with the fire control group–trigger assembly, hammer, disconnector, and pins. A match-grade trigger like the Geissele SSA-E reduces take-up to 2.5 lbs with a clean 1.5 lb break, improving shot consistency by up to 30% in timed drills. Ensure the hammer spring has a tensile strength between 18-22 lbs to prevent light strikes with steel-case ammunition, which runs 15% hotter than brass. The disconnector must engage fully within 0.003 inches of hammer release; partial engagement causes rapid double-fires.
Buffer System and Receiver Extension
Select a buffer weight based on barrel length and gas system: carbine (3 oz) for 14.5″-16″ mid-length setups, H2 (3.8 oz) for 11.5″-12.5″ pistol configurations. A weak spring (less than 6 lbs/inch) will short-stroke, cycling at 750 RPM instead of 800 RPM, increasing fouling by 40% after 100 rounds. The receiver extension (buffer tube) must have a concentricity tolerance of 0.005 inches; misalignment binds the bolt carrier group, raising extraction failures to 1 in 50 rounds. Mil-spec tubes use 7075-T6 aluminum, anodized to Type III for corrosion resistance–commercial tubes skip the anodization, failing salt spray tests after 120 hours.
Magazine catch and pivot/takedown pins secure the lower’s integrity. The catch should lock with 4-5 lbs of force; a loose fit allows magazines to shake free during reloads, costing 0.3 seconds per transition. Pins must have a diameter of 0.2495 inches–any tighter binds the upper/lower mating, any looser causes wobble under recoil. Polymer pins wear 2x faster than steel, degrading fit after 2,500 cycles. For suppressed builds, replace the standard spring with a captured stainless unit; suppressors add 30 ft-lbs of torque, loosening press-fit pins.
Stock adjustments affect shooter stability–fixed stocks add 1 MOA precision over collapsible models due to zero play. The castle nut must be torqued to 40 ft-lbs; under-tightening causes the buffer tube to rotate, misaligning the buffer detent channel. Thread locker is optional but reduces loosening incidents by 60% in high-round-count sessions. Ambidextrous selectors require custom lower receivers with reinforced selector wells–standard wells crack under repeated side-charging, especially with billet lowers milled from 6061-T6, which has 30% lower tensile strength than 7075-T6.
Step-by-Step Guide to Building Your AR-15 Upper Assembly
Begin by securing the barrel into the upper unit with a torque wrench, tightening the nut to 30–80 ft-lbs–exceeding this range risks damaging the threads or misaligning the gas block. Use Rocksett or Loctite 242 on the barrel extension threads for a vibration-resistant bond, but avoid applying it inside the nut’s locking ring to prevent interference with headspacing.
Install the gas tube by aligning its port with the gas block’s set screw. Ensure the tube rests flush against the barrel’s underside–misalignment will cause cycling failures. Slide the tube into the upper’s gas key, securing it with two Grade 8 screws torqued to 5–7 in-lbs. Replace crushed gas rings immediately; worn rings reduce gas pressure, leading to short-stroking.
Attach the handguard next, sliding it over the barrel nut until it clicks into place. For free-float systems, verify alignment by inserting a 0.001″ feeler gauge between the barrel and rail–any contact indicates improper seating, requiring realignment. Tighten the handguard screws in a cross pattern to 15–20 in-lbs, preventing distortion that can affect accuracy.
Press the charging handle into the upper’s receiver, ensuring the latch engages fully–test by pulling back sharply; if it sticks, disassemble and check for burrs on the bolt carrier group’s tail. Insert the BCG by aligning its cam pin with the upper’s track, then push forward until the gas key clears the tube. Rotate the cam pin 90 degrees to lock it in place–failure here causes jamming.
Conclude with a function check: pull the charging handle to chamber a dummy round, release it, and verify the bolt locks back. Cycle it manually five times; hesitation or uneven resistance signals improper assembly. Lubricate critical areas–bolt lugs, cam pin channel, and gas rings–with CLP or Militec-1 to prevent wear under rapid fire.
Key Fire Control System Elements in Modern Sporting Rifles
Select a hammer with a durable nitride or chrome finish to prevent premature wear under rapid firing conditions. Single-stage triggers typically pair best with lighter hammers (1.5–2.5 lbs) for precision shooting, while two-stage setups demand sturdier hammers (3–4 lbs) to handle the initial take-up without misfires. Avoid powder-coated hammers–microscopic dimpling under sustained use leads to inconsistent break qualities and can degrade reset performance by up to 12% after 5,000 rounds.
- Disconnector: Opt for a billet-machined steel disconnector instead of MIM parts–the latter may fracture under high cyclic rates (600+ RPM) or extreme temperature swings (±40°C). Replace it if reset feels sluggish or creep exceeds 0.5mm; symptoms often confuse with trigger issues.
- Trigger Bar: Replace OEM polymer bars with TiN-coated steel variants in competition setups–weight reduction improves lock time by ~0.002s while eliminating flex-induced inconsistencies. Polished flat surfaces reduce friction but require periodic cleaning (every 1,200 rounds) to prevent debris-induced short-stroking.
- Sear: For duty rifles, hardcoat anodized 7075-T6 sears last 4x longer than phosphate-coated alternatives. Radius the engagement surfaces to 0.005″ to eliminate notching, which causes stacking and unpredictable breaks in cold conditions.
- Pins: Upgrade to anti-walk pins with a 0.002″ interference fit–loose pins shift under recoil, altering trigger geometry and reducing zero retention by 3 MOA after 2,000 rounds. Copper-washed pins prevent galling in aluminum receivers.
- Safety Selector: Ambidextrous selectors should have detent springs rated to 12–15 lbs to avoid unintended disengagement during aggressive shoulder transitions. Replace if rotation requires 4 lbs of force.
