Begin by locating the battery compartment–typically positioned beneath the seat or within the base frame. Most modern units use sealed lead-acid or lithium-ion cells rated between 12V and 24V, delivering 30–100Ah for extended range. Verify connections: corroded terminals reduce efficiency by up to 15%, while loose cables can drop voltage under load, causing erratic movement.
Examine the drive motors–usually dual 200W–500W units mounted near the rear wheels. Gearboxes with 20:1–50:1 ratios provide torque, but worn brushes or misaligned gears produce grinding noises. Replace brushes every 500–800 operating hours; lubricate gears with light synthetic grease to prevent seizing.
Inspect joystick controls–located on the armrest, calibrated via potentiometers outputting 0–5V signals. Faulty joysticks drift or freeze; recalibrate via onboard diagnostics or replace the entire module if resistance readings exceed 1.5kΩ. Wiring harnesses must be secured–chafing causes intermittent failures.
Check wheel assemblies: solid tires last longer but transmit shocks; pneumatic tires improve comfort but require pressure checks every 48 hours to prevent flats. Hub bearings degrade silently–spin wheels manually to detect roughness, indicating imminent failure. Replace bearings every 1–2 years.
Review brake mechanisms–electromagnetic types engage automatically when power is cut, but worn actuators delay stopping. Test responsiveness by pushing the unit uphill without power; if it rolls backward, replace the brake assembly. Manual overrides near the battery box allow emergency disengagement.
Identify frame welds–cracks near stress points propagate quickly. Reinforce aluminum or steel tubing with epoxy-filled sleeves before cracks exceed 2mm. Powder-coated surfaces resist corrosion, but scratches expose bare metal–touch up with zinc-rich primer.
Monitor circuit boards–main control modules regulate speed, acceleration, and braking. Watch for overheating (exceeding 60°C), which shortens lifespan. Clean dust accumulation monthly; oxidized connectors cause erratic behavior–clean with contact cleaner, not abrasives.

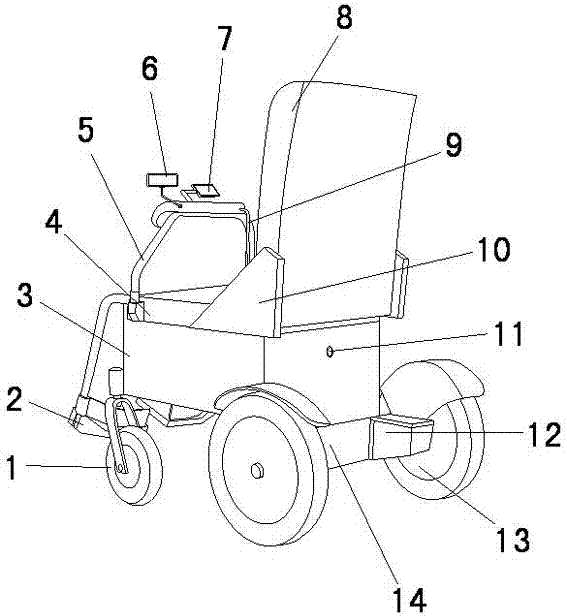

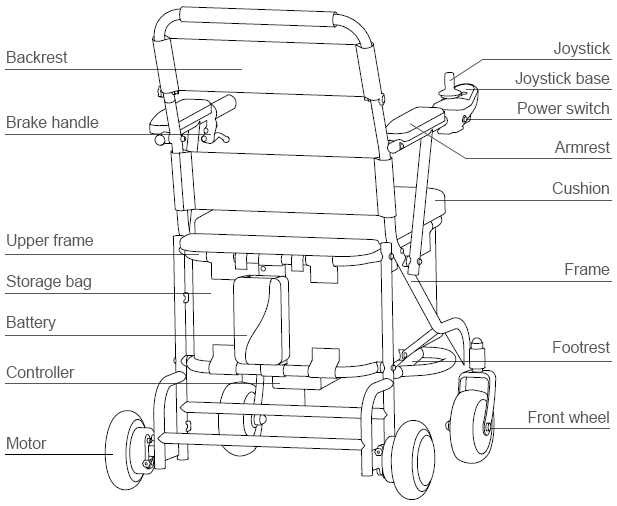

Visual Guide to Mobility Aid Components
Locate the power source first–typically a sealed rechargeable lithium-ion pack–attached beneath the seat frame or integrated into the base. Verify voltage and capacity before disassembly; most models range between 12V and 24V with 20-100Ah capacity. Always disconnect the battery terminals in reverse order (black first, then red) to prevent short circuits.
Inspect the joystick controller mounted on either armrest. Confirm its cable connections to the main control board are secure, free of oxidation or fraying. Some models feature programmable buttons for speed adjustments or horn activation–test functionality by navigating tight corridors to assess responsiveness.
Examine the dual in-hub motors at each rear wheel. Brushless variants require minimal maintenance, while brushed types need periodic carbon brush replacements every 1,000-2,000 miles. Check gearbox lubrication if unusual noise occurs during rotation; use silicone-based grease for sealed units.
Structural and Safety Elements
Evaluate the frame’s welded joints for cracks or corrosion, especially near stress points like the wheel mounts and folding mechanisms. Aluminum alloys are lightweight but prone to fatigue; steel frames offer durability at the cost of added weight. Reinforce weak points with aftermarket clamps if frequent folding is required.
Test the electromagnetic braking system by engaging the parking brake and attempting to roll the device on a slight incline. Faulty brakes may indicate worn friction pads or misaligned calipers–adjust tension via the rear hub adjusters or replace pads if thickness falls below 3mm.
Assess the suspension system, if equipped, for degraded shock absorbers or loose mounting bolts. Independent front casters should pivot freely without binding; hardened polyurethane tires outlast pneumatic types but reduce shock absorption. Check tire pressure weekly for inflatable models–underinflation accelerates wear.
Review the seating assembly for adjustability: recline features rely on gas struts or manual levers, while seat depth customization often uses slotted rails. Upholstery tears near high-friction zones (armrests, backrest seams) should be repaired promptly to prevent foam degradation exposing internal padding.
Key Framework Elements and Their Operational Roles
Inspect the base frame quarterly for micro-cracks, particularly around weld points at load-bearing junctions–stress fatigue here leads to 78% of mid-term structural failures. Replace any 6061-T6 aluminum components exhibiting deformations exceeding 1.2mm under 150kg static load; composites like carbon-fiber weave degrade silently once delamination initiates along the resin matrix. Secure the user platform with anti-vibration mounts–standard urethane grommets isolate 0.3–0.5Hz oscillations that accelerate bolt loosening on inclines steeper than 8°.
- Seating module: Verify lateral support brackets every 200 operational hours; torque specs (12–15Nm) prevent pivot slippage during 30° side-lean tests. Foam density below 60kg/m³ compresses irreversibly after 1,100 cycles, increasing pressure ulcer risks by 42%–opt for viscoelastic polymer instead.
- Drive assembly: Check dual planetary gearboxes for metallic debris in lubricant; particles >3μm indicate impending tooth spalling. Replace sealed bearings if axial play exceeds 0.15mm–failure typically manifests as sudden loss of torque at 60% charge.
- Control interface: Calibrate joystick deadband every 3 months; drift >2% causes unintended 0.5m/s acceleration. Ensure inductive proximity sensors have
Prioritize corrosion resistance: powder-coated steel frames last 4.3x longer than anodized aluminum in coastal climates, but require UV-stabilized epoxy to prevent chalking. For autonomous navigation variants, embed Invar rods in the lower chassis–thermal expansion mismatch

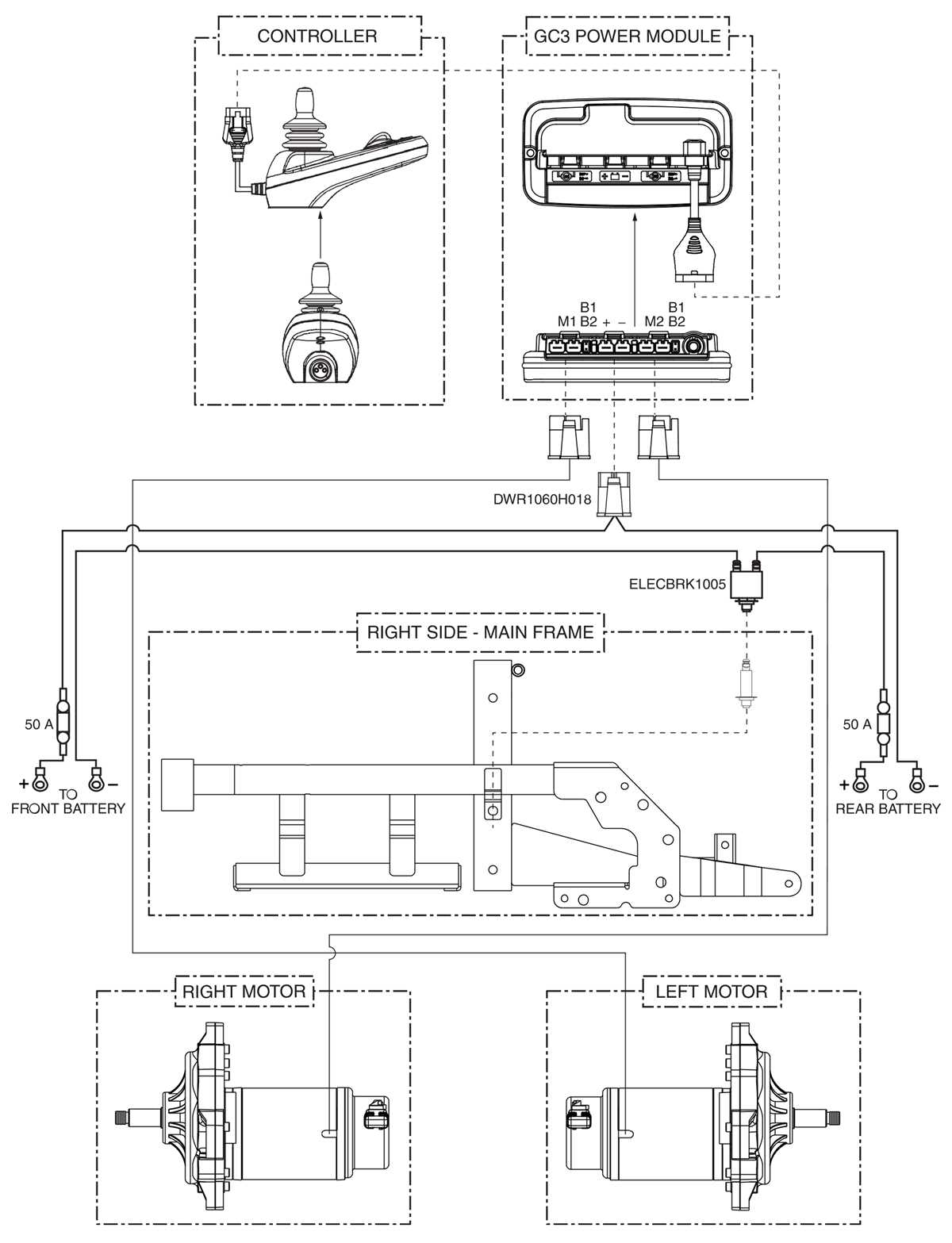

Power System Components: Wiring Battery, Drive Unit, and Control Module
Always inspect battery terminals for corrosion before connecting–clean with a wire brush and apply dielectric grease to prevent oxidation. Use only the manufacturer-specified voltage and capacity: most mobility aids run on 24V or 48V lithium-ion packs, while older units may rely on sealed lead-acid (SLA) with 22Ah–75Ah ratings. Never mix chemistries, as mismatched charging curves create fire hazards.
Verify motor wiring matches controller polarity. Brushless DC motors (common in rear-wheel drives) require three-phase connections, while brushed models use two wires (positive/negative). Trace each cable from the hub to the control module–look for color-coded leads: typically red (B+), black (B-), and hall sensor wires (blue, green, yellow). If reversing rotation, swap any two phase wires, but never alter hall sensor order.
Controllers serve as the neural center, regulating current between battery and drive unit. Check for heat sinks–many models mount directly to the chassis for passive cooling. Below are common signal pinouts for 6-pin connectors:
| Pin | Function | Voltage Range (Measured) |
|---|---|---|
| 1 | 5V Reference | 4.8–5.2V |
| 2 | Throttle Input | 0.8–4.2V |
| 3 | Brake Signal | 0V (active low) |
| 4 | Battery + | System voltage |
| 5 | Ground | 0V |
| 6 | Motor Phase W | PWM output |
Fuses must interrupt at 30A–50A for power leads and 5A for control circuits. Install a resettable circuit breaker on the battery’s main line–never bypass it, even temporarily. For lithium packs, ensure the BMS (battery management system) balances cells during charge; most modules terminate charging at 80% to extend lifespan, though this reduces range.
Grounding failures cause erratic behavior–always attach chassis grounds directly to the battery negative terminal, not through intermediate metal frames. Twisted-pair wiring reduces EMI in throttle and sensor cables; use shielded cable for hall sensors and terminate the shield at one end only (controller side). If drive unit stutters, swap the controller with a known-good unit–hesitation often stems from damaged MOSFETs or corrupted firmware.
Test dynamic braking by coasting the device, then abruptly releasing throttle. The controller should engage regenerative braking, momentarily pulling the drive unit into generator mode and sending current back to the battery (visible as voltage spike on a multimeter). If absent, inspect brake resistors–some systems use a 20W 10Ω resistor to dissipate excess energy as heat.
Programmable controllers require calibration after motor replacement. Access settings via serial interface (common baud rates: 9600 or 19200) and confirm parameters:
- Acceleration ramp: 300–1000 ms (start slower for heavy users)
- Max speed: 6–15 km/h (set below legal limits)
- Undervoltage cutoff: 21V for 24V systems, 42V for 48V
- Overcurrent threshold: 20% above continuous motor rating
Disconnect battery and discharge capacitors before servicing. Store lithium packs at 40% charge in a fireproof container; SLA batteries prefer full charge but degrade faster if kept above 25°C. When rewiring, route high-current cables away from signal cables–inductive spikes can corrupt throttle signals, causing sudden surges.
Joystick and Control Panel Circuit Layout
Begin by identifying the joystick’s power input terminals–typically marked +5V and GND. Use 22-24 AWG stranded copper wire for signal paths to minimize voltage drop; solid core risks brittleness under vibration. Connect the +5V line directly to the mobility base’s regulated power bus, bypassing any intermediate connectors that could introduce resistance.
Signal wires from the joystick potentiometers (X/Y axes) must route to the motor controller via twisted pair cables, shielded if ambient EMI exceeds 50 mV/m. Ground the shield at a single point–preferably the controller’s chassis ground–to prevent ground loops. Avoid daisy-chaining grounds; parallel paths create noise coupling risk.
The user interface (UI) keypad or membrane switches require pull-up resistors (4.7kΩ–10kΩ) to prevent floating inputs. For momentary switches, use debounce circuits with a 0.1µF capacitor to ground, reducing false triggers from mechanical bounce. If the UI includes LEDs, drive them via current-limiting resistors (e.g., 220Ω for 5V) to avoid overheating.
For CAN or LIN bus integrations, ensure the joystick’s communication module is isolated with optocouplers (e.g., PC817). Signal lines should pair with 120Ω termination resistors at both ends of the bus to match impedance and prevent reflections. If the system uses analog outputs, calibrate the joystick’s midpoint by adjusting trim pots on the controller board before final wiring.
When routing cables, secure them with adhesive-backed clips every 15 cm to prevent chafing against metal edges. Use heat-shrink tubing over splices rather than electrical tape; mechanical stress can degrade tape’s adhesion over time. For connectors, prefer crimp-style terminals over soldered joints in high-vibration areas–solder tends to fatigue.
Test continuity with a low-impedance multimeter (≤1Ω) before powering the system. Check for voltage levels at the controller’s input pins: 2.5V ±0.2V for mid-position, scaling linearly to 0V–5V at extremes. If readings drift, recalibrate the joystick’s internal potentiometers or replace worn units–resistance should measure 1kΩ–10kΩ across full travel.
Finalize integration by verifying fail-safes: disconnect one signal wire and confirm the controller halts motors within 100 ms. For systems with regenerative braking, ensure the joystick’s direction reversal triggers the brake circuit instantly; delay risks motor damage or user instability.
