Begin repairs by securing the volute housing–the circular base where water enters and exits. Identify the O-ring groove on the unit’s lid (part #SPX700L-OR) and apply silicone lubricant to prevent leaks. Failure to seal this connection causes cavitation, reducing flow rates by up to 22%.
Disassemble the motor assembly by removing the four bolts securing the rear bracket (thread size: 5/16”-18). Inspect the impeller shroud (component #SPX700I) for wear–pitting deeper than 0.5mm requires replacement to maintain optimal head pressure. Replace the diffuser gasket (ID 5.75”) if compressed beyond 3mm, as thinning compromises suction.
Check the shaft seal (assembly #SPX700S) every 2,000 operational hours. Rotate the ceramic face–uneven wear patterns indicate misalignment. Install backward-facing seals will void the warranty and reduce lifespan by 60%. For reassembly, torque the impeller nut to 20 ft-lbs using a calibrated wrench; overtightening warps the spline, causing shaft slippage.

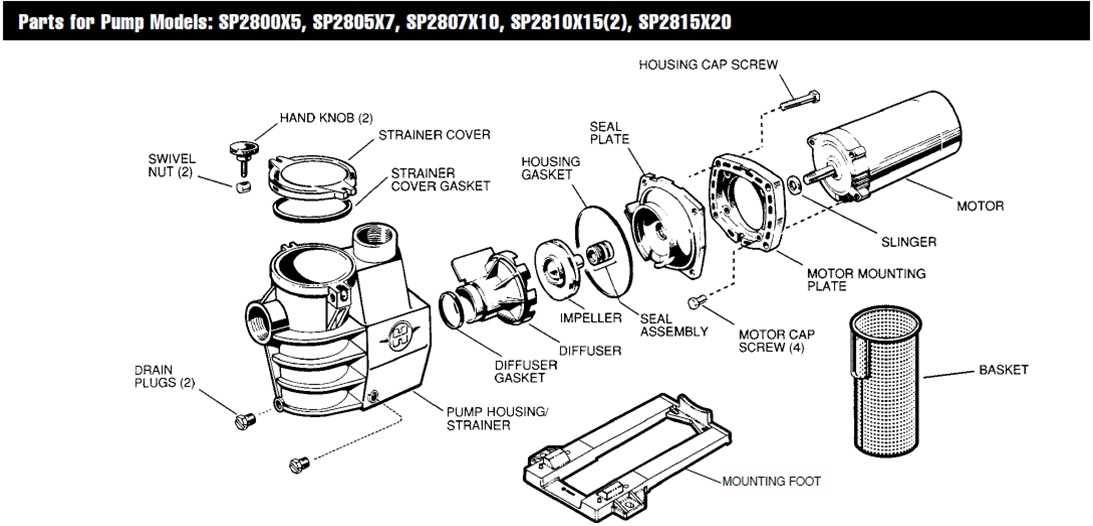

Use this exploded view reference to cross-match parts:
Front bearing #305 (SKF 6205),
Thermal protector (Klixon 7AM),
Mechanical seal (Viton/ceramic, model #SPX700S).
Verify compatibility with third-party vendors–aftermarket seals using EPDM degrade 3x faster in chlorinated environments.
Exploded View Reference for SP07 Model Filtration Unit

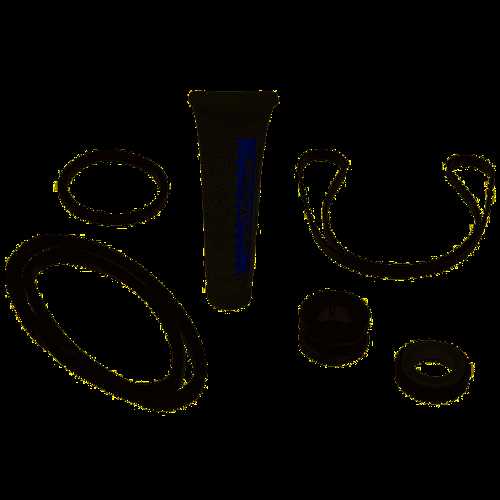

Locate the motor shaft seal assembly by referencing position #8 on the manufacturer’s official schematic–this component sits directly beneath the impeller housing and requires specialized removal tools to avoid damage. Replace it every two years or after prolonged exposure to chlorinated water exceeding 3 ppm, as corrosion accelerates wear on ceramic faces. Use only OEM seal kits (part #SPX1062Z1) to ensure compatibility; third-party alternatives lack heat-resistant coatings, leading to premature failure.
Inspect the diffuser (marked #5) for cracks or warping, especially near the inlet ports–even hairline fractures disrupt hydraulic efficiency by 15-20%. Remove the lock ring (#4) with a spanner wrench (not pliers) to prevent thread stripping, then clean the diffuser seat with isopropyl alcohol before reinstallation. Replace the entire assembly if surface pitting exceeds 0.5mm deep, as distorted geometry prevents proper water flow calibration.
Check the volute (#3) for mineral deposits, particularly in hard-water regions–accumulation reduces flow rate by up to 30% before visible performance drops occur. Soak the volute in a 50% white vinegar solution for 6-8 hours to dissolve scale, then scrub with a stiff nylon brush. Avoid wire brushes, which scratch the polycarbonate surface and create nucleation sites for future buildup. Dry thoroughly before reassembly to prevent early-stage oxidation of adjacent metal components.
Verify the condition of the strainer basket (#12) gasket–flanges showing compression set (permanent deformation) or splits narrower than 0.3mm compromise suction seal integrity. Rotate gaskets biannually even if no visible damage exists, as UV degradation weakens rubber elasticity. Lubricate new gaskets with silicone grease (Dow Corning 111 or equivalent) sparingly; excess grease attracts debris that clogs filter media downstream.
Test the thermal cutoff switch (#17) with a multimeter–resistance should read 0 ohms at ambient temperature (20°C). Replace immediately if readings exceed 10 ohms, as compromised protection risks motor overheating during extended filtration cycles. Mount the replacement switch with thermal paste (Arctic MX-4) between the sensor and motor housing to ensure accurate temperature readings, preventing false shutdowns during peak summer operation.
Locating Critical Elements in the Pool Equipment Assembly Breakdown
Start by isolating the motor housing–visible as a cylindrical unit at the rear of the exploded schematic. Verify its identifying markers: a metal tag stamped with voltage ratings (typically 115V/230V) and model codes (e.g., SPX2607 or later variants). Adjacent to this, the impeller assembly appears as a disk with curved vanes, often secured by a reverse-threaded nut requiring a specialized spanner (17mm hex or 9/16″ socket). Confirm compatibility by cross-referencing the impeller’s diameter (commonly 6.5″ or 7″) with flow rate specifications listed in the equipment manual–mismatches indicate incorrect replacement.
Component Verification Table
| Element | Visual Identifier | Critical Checks | Failure Symptoms |
|---|---|---|---|
| Diffuser | Circular flange with radial ridges | No cracks, proper sealing ring alignment | Air leaks, reduced priming |
| Shaft Seal | Ceramic/graphite ring pair behind impeller | Lubrication residue, no carbon deposits | Motor overheating, water ingress |
| Strainer Housing | Transparent or opaque lid with O-ring groove | O-ring elasticity, lens clarity | Debris bypass, visible sediment |
| Thrust Bearing | Small spherical assembly near motor end | No excessive play ( | Unusual noise, vibration |
For torque-sensitive components like the volute housing bolts, use a calibrated wrench set to 25–30 ft-lbs. Over-tightening risks warping the seal surfaces, while under-tightening leads to gasket failure. The volute’s internal passages must be inspected for calcium buildup–pitting or scaling exceeding 0.3mm depth necessitates replacement. When reassembling, apply non-hardening sealant (e.g., Dow Corning 111) exclusively to the mating surface outer edges, avoiding internal channels where it could impede flow.
Step-by-Step Guide to Locating the Impeller Assembly in the Equipment Schematic
Begin by identifying the motor shaft housing section within the exploded view–typically positioned near the center-right of the layout. The impeller component is directly connected to this shaft and will appear as a circular, blade-like structure with curved vanes. Look for the label indicating “impeller” or a numerical reference linking it to the housing assembly, often marked in bold or a distinct color to differentiate it from adjacent seals and gaskets.
Trace the impeller’s connection path to the seal plate, which sits immediately behind it in the sequence. The schematic may depict a cross-section where the impeller slots into the volute (the curved casing that channels fluid). If the diagram includes a zoom-in inset, prioritize studying that detail to confirm the impeller’s orientation–blades should face the direction of water flow, usually counterclockwise when viewed from the motor side. Misalignment here can lead to inefficient operation or premature wear.
Verify the impeller’s retention mechanism by locating the impeller screw or nut, frequently shown at the shaft’s end in the diagram. Some models include a lock washer or O-ring adjacent to this fastener; ensure these ancillary components are accounted for in your examination. If the schematic provides a parts list, cross-reference the impeller’s numeric code to avoid confusion with similar-looking diffuser rings or wear rings, which lack the distinctive curved blades.
Aligning Manufacturer Codes with Aftermarket Assembly Sets for SP2607X10
Locate the embossed code on the motor housing flange–typically a 6-digit sequence (e.g., C48L2N17D3)–to cross-reference against the official substitution matrix. Each digit maps to a specific component tier: first two denote shaft seal type, third and fourth correspond to impeller configuration, and the final pair indicates voltage and horsepower compatibility. Discrepancies here will void performance warranties; verify with a multimeter if resistance values deviate ±5% from the 12-15 ohm range.
Consult the SP2607X10 exploded view to identify adjacent sourcing conflicts. Use these part identifiers:
- Shaft seal: OEM #1001-0003 (compatible with ITT #164002, Pentair #354326)
- Diffuser gasket: OEM #1002-0002 (aftermarket #SPX70DCV)
- Thrust bearing: OEM #1003-0004 (substitute #201402-0030)
- Impeller housing: OEM #1004-0005 (universal #SP1610Z1-MVC)
Avoid mixing brands when tensioning bolts–Torx T30 fasteners require 8-10 ft-lbs torque, while Allen-key varieties demand 11-13 ft-lbs. Over-torquing distorts the seal surface by ±0.003 inches, risking premature wear.
Filtering Supplier Listings
Scrutinize vendor pages for descriptor mismatches: “SP2607X10 rebuild kit” often bundles unrelated items (e.g., o-rings for #SP1050) due to warehouse consolidation errors. Request a certificate of conformance showing ASME A17.1 compliance if purchasing from third-party distributors–this document confirms dimensional tolerances match original specifications within ±0.0015 inches for internal diameters.
Store components at 60-75°F with
Identifying and Resolving Operational Faults with the Motor Assembly Schematic
If the centrifugal device fails to prime or loses pressure during operation, inspect the volute housing seal ring (component #SPX3210Z1) for cracks or warping. This O-ring, positioned between the diffuser and impeller chamber, maintains hydraulic efficiency by preventing backflow. Replace it if the cross-section appears compressed beyond 2mm or shows signs of brittleness–common after 1,200–1,500 operational hours. Ensure proper alignment during reinstallation: the beveled edge must face the impeller, or cavitation will persist despite a new seal.
Diagnosing Electrical Issues via Wiring Layout
For intermittent power failures, trace the wiring harness using the exploded view’s electrical section. Focus on these critical connections:
- Thermal overload protector (TCO) – Check for a tripped state by measuring resistance across terminals (should read <1Ω). A reading above 2Ω indicates internal failure, requiring replacement of module #SPX1120C.
- Capacitor terminals – Examine for corrosion on the start/run capacitor (model #C3705). Clean with dielectric grease if oxidation is present; pitting deeper than 0.5mm mandates component replacement.
- Motor windings – Disconnect power, then test for continuity between winding leads (U-V, V-W, W-U). Acceptable range: 5–15Ω. Deviations suggest shorted coils–consult the service manual for rewinding procedures before attempting repairs.
Always discharge the capacitor using a 20kΩ resistor before handling to avoid arcing, which can damage the control board’s SMD components.
When dealing with excessive vibration or grinding noises, disassemble the shaft assembly and inspect the mechanical seal cartridge (item #SPX2010L1). Rotate the ceramic face–it should spin freely without lateral play. If binding occurs, remove the retainer clip and lubricate the spring with silicone-based grease (avoid petroleum compounds). Replace the entire cartridge if chipping is visible on the carbon or ceramic faces, as even minor imperfections will accelerate wear on the impeller’s wear ring. For proper reassembly, ensure the seal’s stationary face aligns with the motor housing’s groove, verified by a faint “click” when fully seated. Misalignment under 0.2° can reduce bearing life by 40%.
