Start with the propeller shaft assembly–inspect the splines for wear before disassembly. Misalignment here accelerates bearing failure. Replace seals if corrosion exceeds 0.5mm depth; standard O-rings may degrade sooner under saltwater conditions. Use a torque wrench (45-50 Nm) when reinstalling the nut to prevent thread stripping.
Examine the gimbal housing bore for pitting. If damage exceeds 1.5mm in diameter, machine the surface or install a sleeve kit–aftermarket kits often include oversized bearings. Verify the shift cable adjustment: a 3mm free play at the lever prevents premature engagement of the clutch cones. Lubricate the universal joints with marine-grade grease every 50 hours; neglect leads to seizure, especially in high-load applications.
Check the trim cylinders for hydraulic leaks. Rebuild kits require precise bleeding; follow the service manual’s sequence to avoid air pockets. Replace anodes if they’re below 50% intact–zinc alloys corrode faster in brackish water. For the upper gear housing, verify the shim stack thickness; incorrect shims cause binding or noise. Use a micrometer to measure bearing preload (0.02-0.05mm), as approximations lead to premature wear.
When sourcing replacements, match part numbers exactly–aftermarket alternatives may not meet OEM torque specs. For the exhaust elbow, replace gaskets if warped; failure causes overheating. Inspect the bellows for cracks; reinforcing clamps should be tightened to 12-15 Nm. Document each step–photos of shim positions prevent reassembly errors.
Understanding Marine Sterndrive Component Breakdowns
Begin by identifying the serial number on your propulsion unit–typically etched on the transom assembly or upper gear housing. This number directs you to the exact schematic for your model year and configuration. Manufacturer-issued service manuals (available through official distributors) group assemblies by function, not physical location, which simplifies troubleshooting. For instance, Model SX-A variants separate the trim sender from the hydraulic pump section, while D4-D6 models integrate both into a single exploded view.
Use the following table to cross-reference common component assemblies with their typical failure points and replacement intervals. Note that values assume standard recreational use–commercial or high-load applications may require adjustments.
| Assembly Group | Key Subcomponents | Failure Indicators | Recommended Service Interval | Critical Torque Specifications (Nm) |
|---|---|---|---|---|
| Upper Gear Housing | Propeller shaft, pinion gear, bearing set | Whining noise, excess play, leakage at seal | 300 engine hours or 3 years | 120–140 (drive flange bolts) / 50–60 (pinion nut) |
| Trim Cylinder | Rod, gland, piston seals, fluid reservoir | Sticking, slow response, hydraulic weep | Check seals annually; full rebuild every 500 hours | N/A (clamp force 25–35 Nm) |
| Exhaust Elbow | Water-jacketed passages, gasket, thermostat | Overheating alarm, corrosion buildup | Inspect every 100 hours; replace gasket with each removal | 40–50 (elbow mounting bolts) |
When sourcing replacements, prioritize OEM-specified alloys–aftermarket upper housing castings often lack corrosion-inhibiting coatings, leading to premature pitting in saltwater. Propeller shafts require precise machining tolerances (±0.02 mm on spline fit); verify this with caliper measurements before installation. A torque wrench calibrated to within 3% accuracy is mandatory for critical fasteners–relying on “feel” risks galling on aluminum components.
Electrical Wiring Layout Considerations
Schematics label wiring harnesses numerically: “C-3” denotes the trim sender circuit on D-series units, while “C-7” corresponds to the shift interrupt safety switch. Color-coding follows ISO 4141-3 (tracer stripes added every 150 mm), but corrosion can obscure markings–use a multimeter on continuity mode instead of visual identification. Replace the entire harness if insulation resistance drops below 50 kΩ when tested at 500 V DC, as partial repairs often introduce intermittent faults.
Install sacrificial zinc anodes on both the transom plate and gimbal ring–alloy mix should be 99.9% pure zinc for maximum protection. Position anodes at least 10 mm away from adjacent metal surfaces to prevent shielding; check their condition every 75 operating hours. Anode depletion beyond 50% requires immediate replacement to prevent galvanic corrosion attacking chrome-molybdenum gears, which costs 4–6 times more to repair than preventive maintenance.
Locating Critical Elements in a Marine Stern Drive Exploded Schematic
Start with the upper gear housing assembly–item #3245678 on most illustrations–since it distributes torque through the propeller shaft and contains the bevel gears. Verify the zerk fitting (commonly labeled #3245690) is present; missing grease points here lead to premature wear. The thrust washer (#3245712) sits directly beneath the propeller flange; check for scoring or brass residue that indicates alignment issues.
Inspect the shift cable linkage–marked #3245843–for corrosion at the pivot ball joint interface. A seized linkage prevents smooth engagement of forward or reverse gears. Replace the O-ring (#3245857) if the surface appears glazed or flattened; compromised seals cause water intrusion into the lower unit, accelerating internal corrosion.
Propeller Hub and Exhaust Pathway Examination
Examine the rubber hub insert (#3245923) inside the propeller blades. Radial cracks or deformation demand immediate replacement–failure under load ejects the hub entirely, leaving the vessel stranded. Behind the hub sits the exhaust tube (#3245965); discoloration or pitting signals excessive back pressure, often traced to a clogged water passage or failed impeller (#3245988).
The anodes (#3246012 and #3246029) attach externally and inside the lower casing–verify they show no more than 50% depletion. Ignored anodes accelerate galvanic corrosion through the drive leg, affecting gaskets (#3246103) and seals (#3246115). Use dielectric grease on mating surfaces during reassembly to prevent moisture ingress and ensure consistent electrical conductivity.

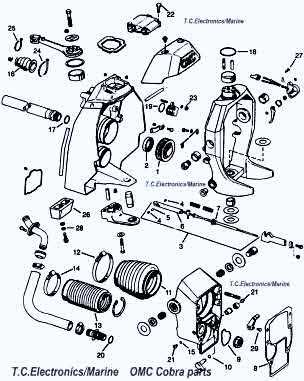

How to Interpret Marine Stern Assembly Schematics
Locate the legend first–it decodes symbols and numerical identifiers. Each number corresponds to a component listed in the adjacent catalog section, where names, material specs, and sometimes torque values are detailed. Ignore generic labels like “housing” or “shaft”; focus on precise terms (e.g., “dual-cone bearing” or “anodic zinc insert”) that indicate exact functions and compatibility.
- Trace lines connecting elements–they reveal assembly hierarchy. Solid lines show direct attachments; dashed lines indicate intermediate gaskets or seals.
- Note color codes if present: red often marks high-wear items requiring frequent inspection, while blue signals corrosion-prone zinc hardware.
- Cross-reference component numbers with the manufacturer’s service bulletin for updates or superseded items.
Check for exploded-view insets. These isolate sub-assemblies like the gimbal ring or propeller hub, showing spatial relationships that flat schematics omit. Measure key dimensions (e.g., spline count, flange diameter) before ordering–replacements must match within 0.1mm tolerances to prevent misalignment or premature wear.
Key Wear Components for Sterndrive Systems and Where to Find Them
Replace the bellows assembly every 3–4 years or after 300 hours of operation–whichever comes first–to prevent catastrophic water intrusion. The bellows lies between the transom shield and the lower gear housing, secured with stainless clamps; corrosion around the clamp area often indicates imminent failure. Use OEM-spec materials; aftermarket rubber compounds degrade faster under UV and ethanol-blended fuels. Keep a spare onboard; a torn bellows can sink the boat in under 30 minutes while underway.
Anodes corrode at different rates depending on salinity; inspect zincs every 50 hours in saltwater, every 100 in brackish, and 150 in freshwater. The trim-tab anode sits on the port side of the lower unit, while the propeller shaft zinc threads onto the shaft just forward of the prop hub. A depleted anode exposes raw metal, leading to rapid pitting of the housing; replace when 50% consumed. Never paint anodes; even light coatings reduce effectiveness by 60–80%.
Impellers deteriorate from dry starts and overheating; swap the water pump impeller every 200 hours or two seasons. Access it through the top of the lower gear case by removing four cap screws–stuck impellers often shear the drive peg, so gently pry the old one out with needle-nose pliers. Check the housing wear plate; deep grooves require replacement. Always lubricate the new impeller with marine-grade grease before installation to prevent vane damage during startup.
Shift cables fray internally without visible signs; test responsiveness monthly by cycling gears at idle. A sluggish shift indicates imminent failure–replace cables in pairs, routing fresh cables along the original path to avoid kinks. Universal joints inside the upper gear housing require grease every 100 hours; failure results in lost steering and potential hydro-lock. Mounting hardware–mounting ring, tilt pin, and gimbal bearing–wear unevenly; inspect for play annually with a dial indicator.
Propellers suffer from cavitation and impact; inspect blades for nicks after grounding. A single nick reduces efficiency by 8–12% and increases vibration. Store a spare matched to the engine’s WOT range; over-propping causes overheating, under-propping loses thrust. Sacrificial nylon thrust washers behind the prop hub wear down; replace at first sign of metal-on-metal contact. Carry a spare prop nut kit including cotter pins–lost propellers lead to engine overspeed and catastrophic gear failure.
