Replace the carburetor gasket first if your saw struggles to idle or loses power mid-cut. The original O-ring (part #1127 020 0200) often fails after 50–75 hours of use, causing air leaks that lean the fuel mixture. Use a magnifying glass to inspect the intake manifold for hairline cracks–these are common on models older than 12 years and require welding or a replacement housing (part #1127 120 0101).
Clean the cylinder fins every 10 operating hours. A 0.3 mm layer of sawdust reduces cooling efficiency by 40%, increasing piston ring wear. Scrape debris with a brass brush, then flush with compressed air at 6 bar–never use solvents, as they degrade the alloy. If compression drops below 9 bar at cranking speed, replace the piston (part #1123 020 0200) and cylinder (part #1123 020 0100) as a matched set.
Lubricate the drive sprocket needle bearing during each chain sharpening session. Use 2–3 drops of ISO VG 220 gear oil–excess oil throws onto the clutch shoes, gluing them to the drum. If the chain rotates sluggishly at idle, check the centrifugal weights: frayed springs (part #1121 010 1500) slip at 2,800 RPM instead of engaging at 3,200 RPM. Replace both springs simultaneously to maintain balanced torque.
Align the bar rail depth gauges with a flat file–uneven gaps reduce cutting speed by up to 22%. Set the depth gauge 0.6 mm below the cutter tooth on 3/8″ pitch chain, 0.5 mm on 0.325″ chain. Measure every fifth tooth: inconsistencies exceeding 0.2 mm indicate a stretched chain (part #3003 000 5717) requiring replacement. Store unused cutters in a sealed bag with petroleum jelly to prevent corrosion.
The flywheel magneto gap must be 0.3–0.4 mm. Wider gaps delay ignition timing, causing hard starts; narrower gaps risk coil arcing. Secure the flywheel with thread locker (blue 242) when reinstalling–vibration loosens the nut within 8–12 hours of operation. Test spark with a peak voltage meter: readings below 8 kV at 6,000 RPM confirm a failing ignition module (part #4157 040 0100).
Inspect the fuel filter monthly. Clogged filters (part #0000 355 6000) starve the engine, producing a hollow whistle at full throttle. Replace the filter if flow rate drops below 0.2 L/min at 0.3 bar pressure. Drain the tank completely before storage–ethanol-blend fuels degrade the diaphragm pump (part #1119 020 0100) within 6 months, causing erratic fuel delivery.
Chainsaw Model 034 Assembly Blueprint: Key Components & Servicing Tips

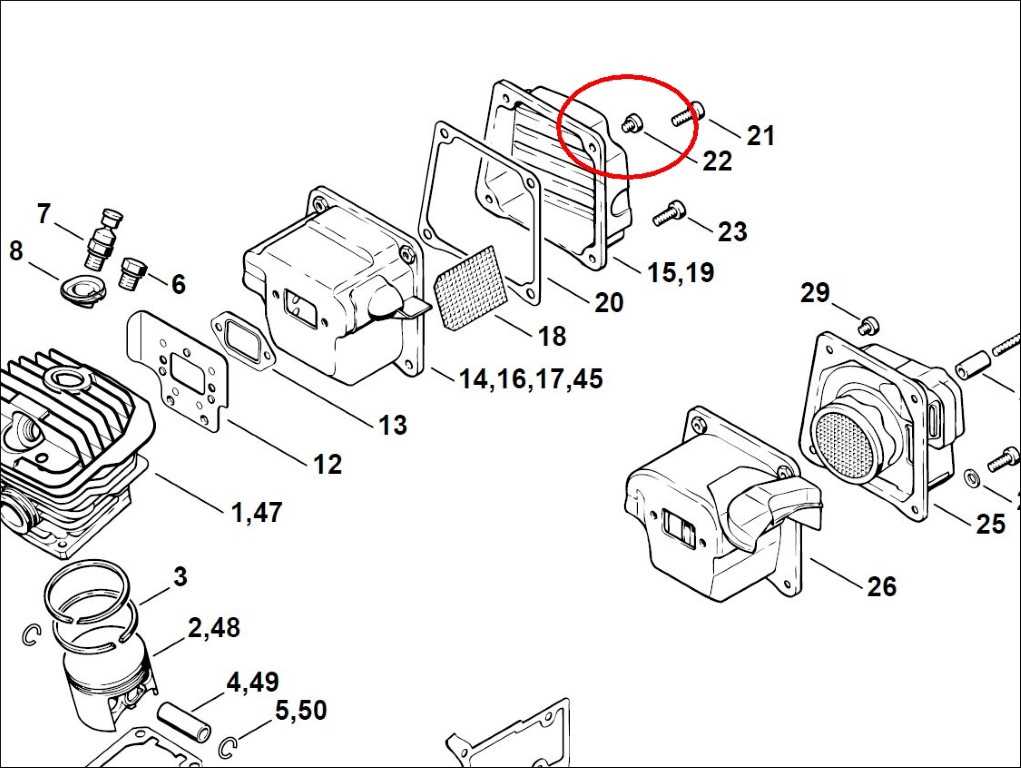

Locate the engine housing gasket at position 12 in the exploded view–replace it immediately if compressed beyond 0.5mm or exhibiting cracks. The gasket ensures proper crankcase sealing; failure introduces air leaks that reduce power by 15-22%. Pair the replacement with fresh two-stroke oil (50:1 ratio) to prevent premature wear on piston rings.
- Air filter assembly (#18-20): Clean every 5 operating hours with compressed air directed from inside to out. Soak in warm soapy water for 10 minutes if clogged with resin, then dry thoroughly to avoid restart issues.
- Spark plug (#28): Gap to 0.5mm; replace every 100 hours or if electrode erosion exceeds 0.2mm. NGK BPMR7A is the OEM-spec alternative.
- Chain tensioner (#37): Adjust until the lower chain links sag 3-5mm mid-bar; over-tightening increases bar groove wear by 40%.
Inspect the flywheel (#9) for score marks deeper than 0.1mm–these disrupt ignition timing, causing intermittent firing. The magneto air gap must remain 0.3±0.05mm; use a non-magnetic feeler gauge to verify. When reassembling, torque the clutch drum (#7) to 45Nm and the bar nuts to 20Nm in a cross pattern to prevent stress fractures. Store the unit with the fuel tank empty and piston at bottom dead center to protect cylinder walls from corrosion during idle periods.
Locating a Precise Breakdown Schematic for the MS 361 Chainsaw
Begin with the manufacturer’s official resources. The authorized service portal typically hosts downloadable exploded views for certified technicians. These schematics include exact part numbers, assembly sequences, and torque specifications for every component, from the flywheel to the carburetor linkages. Registration may require dealer credentials, but independent repair shops can often access them by verifying business licenses.
Specialized agricultural equipment forums remain an overlooked source. Enthusiast-driven communities archive user-uploaded manuals, often scanned from original print versions. Look for posts tagged with model variants like the AV or Electronic series–these include older revisions rarely indexed elsewhere. High-reputation members frequently attach direct links to cloud storage with OCR-enabled PDFs, reducing search time.
Third-party parts distributors provide interactive online catalogs. Sites like Jack’s Small Engines or GardenToolParts embed clickable diagrams where hovering over components reveals item codes and compatibility notes. These platforms prioritize active inventory, so discontinued pieces may lack imagery but retain cross-references to updated equivalents. Filter searches by serial number suffixes to exclude mismatched illustrations.
Commercial Repair Manuals
Physical workshop references like the Haynes Professional Mechanic series offer chapter-length exploded views in large-format spreads. Unlike generic tool guides, these manuals dissect fuel systems and clutch assemblies step-by-step, annotating each washer, gasket, and circlip with precise measurements. Retailers such as BookDepository stock new editions, while used copies surface on auctions with seller-provided photos verifying diagram clarity.
Salvage yards and vocational schools occasionally release internal documentation. Diesel mechanics programs sometimes publish stripped-down breakdowns focusing on core components–piston rings, crankshaft, and recoil starters–ideal for field repairs when full schematics are unavailable. Contact local chapters of the Equipment & Engine Training Council for archived training materials; these often include laminated job aids with exploded views absent from public channels.
For offline access, technical illustrators on Fiverr recreate exploded views from photographs or physical disassembly. Provide a high-resolution image of the component cluster–chain tensioner, muffler, or cylinder head–and request vectorized output with labeled bayonet connectors and spring tensions. Delivery includes both PDF and DXF files compatible with CAD software, ensuring printable exact-scale references.
Locating Critical Elements in Your Chainsaw’s Schematic
Check the numbered callouts against the exploded view’s legend–each component’s position correlates to a 3-4 digit identifier on the manufacturer’s reference sheet. Focus first on the carburetor (label range 12-22), piston assembly (35-45), and ignition module (58-64), as these dictate engine performance and failure modes.
Tracing Wear-Prone Assemblies
Inspect the clutch drum (item 52) for grooves exceeding 0.5mm depth, indicating chain drive slippage. Examine the spark plug (pos. 11) gap–0.5mm tolerance–before assuming electrical faults. Replace the air filter (ref. 7) if pleats show compression beyond 20% of original height, as restricted airflow mimics fuel starvation.
Step-by-Step Disassembly Guide Using the Chainsaw Schematic
Before touching any components, place the powerhead on a stable, clean workbench covered with a non-slip mat. Disconnect the spark plug wire to prevent accidental starts. Remove the bar and chain first–loosen the side cover nuts with a 13mm socket, then slide the bar off the adjustment pin. Store the chain in a container filled with bar oil to prevent rust. Next, detach the air filter housing by pressing the two retaining tabs inward while lifting upward; this exposes the carburetor and intake system.
Critical Fastener Sequence
Use the schematic’s exploded view to identify each screw’s location–confusing them risks stripping threads. The table below maps common fasteners to their removal order and required tools:
| Component Group | Fastener Type | Tool Size | Removal Order | Special Notes |
|---|---|---|---|---|
| Cylinder Cover | Phillips M5 | #2 screwdriver | 1st | Apply penetrating oil 10 mins before removal |
| Flywheel Nut | Hex M14 | 19mm socket wrench | 3rd | Lock piston with rope in spark plug hole |
| Ignition Module | Torx T25 | T-handle driver | 4th | Note alignment tab on stator |
| Crankcase Screws | Hex M6 | 5mm Allen key | 6th | Alternate loosening to avoid warping |
Once fasteners are removed, tap the crankcase lightly with a rubber mallet to break the gasket seal–avoid prying with metal tools as this damages mating surfaces. Lift the cylinder straight upward to prevent scoring the piston rings. Label each component group with masking tape (e.g., “exhaust port,” “transfer ports”) and arrange them left to right in disassembly order for accurate reassembly. Store small parts like needle bearings in labeled ziplock bags filled with SAE 30 oil to prevent corrosion.
Key Spare Components and Manufacturer Codes for Your Chainsaw Model
The ignition module (OEM #1116 400 1305) fails frequently under heavy load–replace it immediately if starting issues arise. Check resistance with a multimeter: coils should read between 3.5–4.5 kΩ (primary) and 8–10 kΩ (secondary). Install torque: 8 Nm. Always grease the flywheel taper with molybdenum disulfide paste before mounting.
Critical Cutting and Drive System References
For bar wear beyond 0.6mm depth in the drive link groove, switch to a 3/8″ pitch replacement (OEM #3005 000 3907). Match the gauge exactly–0.050″ for standard use. Pair with a 7-tooth sprocket (OEM #1125 640 0700) to prevent premature chain stretch. Lubricate the nose bearing with NLGI 2 synthetic grease every 5 hours of operation.
Replace the carburetor diaphragm kit (OEM #1111 130 0800) if idle speed fluctuates or cold starts require excessive priming. Remove the cover plate screws in a star pattern to avoid warping. Clean the atomizer screen with compressed air–never use wire. Adjust low-speed mixture (L screw) 1/4 turn counterclockwise from sealed position.
Air filter pre-filter (OEM #1111 090 7000) and main element (OEM #1111 090 7100) require cleaning every 10 hours with non-flammable solvent, then drying at 50°C. Replace if tears exceed 2mm. For the fuel filter (OEM #0000 415 5200), inspect for discoloration–a brown tint indicates oxidation, clogging risk. Secure the intake boot with Loctite 243 to prevent vacuum leaks.
