For accurate repairs on the TC3.3D variant, begin with the hydraulic system schematic. The main lift cylinder connects to port P1 on the rear valve block, while auxiliary circuits route through P2 and P3. Pressure regulators, marked V1 and V2, require 1800–2200 psi for proper function–verify with a gauge before replacing seals or hoses. The relief valve (part #87324028) often fails first under load; check for leakage at the base plate.
Access the engine assembly breakdown by removing the hood and side panels. The fuel filter (FF-22) sits adjacent to the injection pump, while the air cleaner system uses a two-stage dry element (AC-45X). Crankcase ventilation requires inspection every 200 hours–clogged breather valves (740192) cause excessive crankcase pressure and oil leaks at gaskets. The cooling system relies on a 16-inch belt-driven fan; measure belt deflection at 10–12 mm under 22 lbs of force.
Electrical wiring maps pinpoint fuse locations at the central junction box. Circuits for lights, ignition, and PTO share 10-amp fuses, while the glow plug system uses a dedicated 30-amp fuse (blade type). Trace wire colors–yellow with green stripe (YG) handles starter engagement, while solid red (R) powers the alternator output. For hydraulic controls, the solenoid valve (SV-11) connects via blue/white leads to the dash switch.
Transmission disassembly requires sequential removal of the rear axle housing. The differential uses 80W-90 gear oil and a limited-slip additive for optimal performance. Shims between the ring gear and carrier adjust backlash–target 0.15–0.20 mm. The drive shaft universal joints (UJ-32) need grease every 50 hours; dry joints cause vibration above 1200 RPM.
Understanding the Compact Tractor Component Layout
Begin by locating the engine assembly schematic on page 12 of the official service manual–this section details the serial-number-specific variations for fuel filters, oil coolers, and turbocharger mounts. Use the left-side exploded view (figure 4.3) to identify the hydraulic pump coupling; misalignment here often causes premature wear on the 12-tooth spline shaft.
Key Subsystems and Their Critical Spacers
For the front axle assembly, check the thrust washer thickness–0.8mm specifies the standard variant, while 1.2mm indicates the reinforced model common in highway applications. The rear differential (figure 7.1) requires periodic inspection of the pinion preload shim; incorrect stacking can reduce bearing life from 800 to under 300 operating hours.
Electrical troubleshooting should target the fuse block diagram (page 28). The 20-amp circuit labeled “Work Lights” frequently fails due to vibration-induced contact corrosion–replace with a marine-grade connector rated for 120°C continuous duty. Verify the transmission control valve adjustment screw torque at 18 Nm; overtightening distorts the spool bore, causing erratic shuttle shifts.
Hydraulic attachments require matching the auxiliary valve spool part number with the loader model. The TC-series uses a 425 mm stroke cylinder for the mid-mount mower deck; substituting with a 450 mm version disrupts linkage geometry and voids the PTO engagement interlock.
Common Wear Points and Replacement Intervals
Track the steering cylinder seals condition every 250 hours–internal leaks drop hydraulic pressure below 13.8 MPa, noticeable as sluggish turning response. The seat suspension assembly uses a nitrogen-charged shock absorber; refill only with dry nitrogen to 800 kPa to avoid compressibility issues in sub-zero conditions.
Locating the Authorized Equipment Repair Guide for Model TC33D
Contact an accredited machinery dealer directly through their corporate portal. Major distributors like CNH Industrial maintain secured customer sections where verified owners obtain documentation after entering their equipment serial number and proof of purchase. This approach guarantees access to the latest technical specifications, safety notices, and component breakdowns.
Manufacturer-approved online marketplaces such as PartsDeal or MachineryLynx host downloadable service literature, though verification of authenticity–via watermarks, digital signatures, or embedded metadata–is critical. These platforms often provide instantaneous access, eliminating shipping delays inherent with physical manuals or dealer correspondence.
Independent agricultural equipment forums like TractorByNet or OrangeTractorTalks occasionally archive official files uploaded by experienced operators. These repositories risk hosting outdated or altered versions, so cross-referencing illustrations with factory recall notices or service bulletins is mandatory to prevent misinstalls.
Specialized technical libraries, including the University of Nebraska’s Tractor Test Laboratory digital collection, curate historically accurate repair guides. While primarily focused on legacy models, their databases sometimes include annotated revisions reflecting post-production adjustments, offering rare insights for obsolete assemblies.
Industrial suppliers targeting fleet managers–such as Fastenal, MSC Direct, or Grainger–index compatibility charts linking component codes to OEM-sourced PDF manuals. Search filters using equipment classification codes (e.g., “AG-TR-33D”) streamline retrieval, bypassing generic search engine clutter.
For immediate offline access, pre-owned electronic copies may surface on peer-to-peer networks or auction listings (e.g., eBay Documents category), though buyers must scrutinize file provenance to avoid counterfeit or truncated iterations. Encrypted ZIP archives with password protection typically signal authorized dealer distribution.
Critical Elements Highlighted in the Compact Utility Loader Powertrain Blueprint
Inspect the injector assembly first–misalignment or clogging here disrupts fuel atomization, causing uneven combustion and increased emissions. The schematic pinpoints each injector’s position relative to the cylinder head, allowing precise torque application during reinstallation. Replace copper washers every 500 hours; deformed seals fail to prevent compression leaks, leading to white smoke under load.
Primary Filtration and Fluid Dynamics
- Oil cooler core: Verify fin integrity–bent or corroded fins reduce heat dissipation by up to 18%, risking thermal runaway. The layout shows coolant ports threading directly into the block; cross-thread damage here mandates immediate replacement.
- Fuel-water separator: Drain sediment monthly. The exploded view isolates a one-way valve near the base–if restricted, unfiltered moisture enters the injection pump, accelerating pump wear.
- Air cleaner housing: The diagram marks a pressure tap for blowby diagnostics. Blockage here triggers false turbo boost readings; clean the orifice with compressed air at 30 psi.
The crankshaft pulley–marked in red on the blueprint–requires alignment within 0.5° of the harmonic balancer. Misalignment accelerates belt wear; use a straightedge and laser tool during tensioner adjustments. Replace the serpentine belt if grooves exceed 0.8mm depth; shallow grooves cause slippage, reducing alternator output by 12%.
Hydraulic and Electrical Interfaces
- Hydraulic pump mounting flange: The illustration specifies a torque sequence–skip any bolt, and flexing cracks the flange. Use Loctite 243 on M12 bolts; vibration loosens them over 200-hour intervals.
- Starter solenoid terminals: Corrosion here mimics battery failure–clean with baking soda solution, not wire brushes, to avoid damaging protective coatings.
- ECU connector pins: The diagram cross-references pin IDs with error codes. Resistive readings above 2Ω on pins 32-39 indicate frayed wiring–splice with heat-shrink crimps, not tape.
Locate the thermostat bypass pipe–buried beneath the intake manifold in the schematic. Cracks here allow coolant to mix with oil; pressure-test at 15 psi. Replace copper gaskets if flattened–they compress differently than aluminum, altering seal pressure. Reference the blueprint’s measurements before cutting new hoses; incorrect lengths create kinks, restricting flow by 22%.
Finding and Procuring Replacement Components for the TC33D Hydraulic Circuit
Begin with the official equipment manual–serial number plate on the frame’s right side identifies the exact model variant. Cross-reference this number with the manufacturer’s parts catalog (available via authorized dealers or their online portals) to isolate the correct hydraulic schematics. Variations exist between early and late production runs; verify boom, bucket, and auxiliary circuit diagrams before ordering anything.
Use the following breakdown to target components precisely:
| System Section | Key Components | OEM Reference Codes |
|---|---|---|

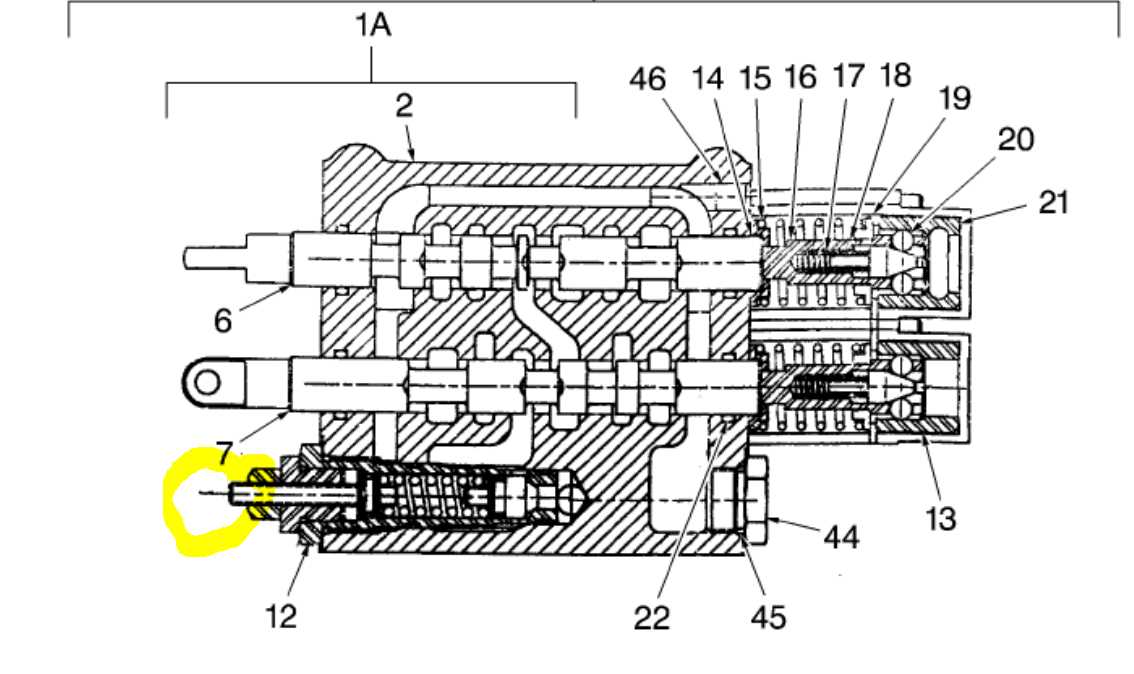

| Main control valve body | Spool, seals, springs | 300-0100-00, 300-0250-00 |
| Hydraulic pumps | Gear set, shaft, housing gasket | 400-1010-00, 400-1050-01 |
| Cylinders (boom/bucket) | Rod seals, piston rings, glands | 501-2000-10, 501-2010-12 |
| Auxiliary couplers | Quick-disconnect seals, dust caps | 600-0300-03, 600-0310-03 |
Third-party suppliers like Southeast Ag, Hydraulic Megastore, and Surplus Center list 95% compatible seals and fittings under alternative SKUs–compare material specs (nitrile vs. polyurethane) and pressure ratings (typically 2500 psi for this series). Avoid universal kits unless explicitly labeled for 3-point linkage applications.
Measure worn components directly–rod seals require ±0.02″ tolerance; piston rings must slide freely without binding. Record cylinder bore diameter (commonly 2.5″ or 3.25″), rod diameter, and stroke length. Standard metric fittings include JIC 37°, BSPP, or ORFS; confirm thread pitch with calipers before ordering adapters.
Prioritize purchasing from dealers offering same-day shipping for high-wear items (seals, springs) and allow 3-5 weeks for machined components (pump housings, valve bodies). Store hydraulic components in anti-static bags at 15-25°C to prevent seal degradation. Always replace filters (part code 700-0400-00) when servicing pumps or valves to prevent contamination.
Validate dealer stock by requesting batch numbers–counterfeit seals from unauthorized distributors often fail prematurely under load. Authentic parts carry holographic labels or QR codes linking to certification documents. For discontinued assemblies (auxiliary valves post-2018), consider reverse-engineered substitutions from Precision Hydraulics or Hydraulic Recon; ensure they match original porting and flow rates (12 GPM @ 1800 RPM).
Urgent Sourcing for Field Repairs
Mobile repair techs should carry a kit containing:
- Two sets of rod seals (size 2.5″ bore)
- Pump shaft gasket (400-1050-01)
- JIC 37° adapters (dash sizes -6, -8, -12)
- 250-mesh inline filter (700-0400-00)
- Thread sealant (Loctite 577 or Dow Corning Molykote)
For on-site diagnosis, use an infrared thermometer to detect overheating (>85°C at pump casing indicates impending failure). Pressure-test ports with a gauge (0-3000 psi range) to confirm proper relief valve setting (factory spec 2300 ±100 psi). If replacing a valve spool, note solenoid polarity–reversing wires causes erratic boom movement.
