Start by acquiring the official service manual for this 48-inch cutting deck tractor. The document contains exploded views of every assembly–engine, transmission, mower deck, steering linkage–with part numbers matched to manufacturer specifications. Avoid third-party reproductions unless verified against OEM schematics; tolerances on deck spindles and belt tensioners differ by fractions of an inch, leading to premature wear if mismatched.
For critical wear items–blades, idler pulleys, fuel filters–cross-reference the serial number plate under the tractor seat. Early production runs (pre-2015) have distinct piston rings and carburetor jets compared to later models. Replacement ignition coils must carry the identical 12V/3.0Ω resistance rating; aftermarket alternatives often fail at high ambient temperatures above 90°F.
Use the interactive parts lookup tool hosted by authorized dealers. Input your full serial sequence to generate a filtered list of compatible gears, seals, and electrical connectors. Generic search engines omit crucial details: hydraulic pump couplings require spline counts verified against the driveshaft end (19 vs. 21 teeth), while battery cables differ in amperage capacity (400 CCA minimum).
Print the exploded views on A3 paper at 100% scale for accurate measurement reference during disassembly. Mark each removed bolt with its corresponding callout number in a labeled container; critical fasteners like flywheel bolts have specific torque sequences (25-28 ft-lbs in a cross pattern).
Replace consumables in matched sets: blades should weigh within 5 grams of each other to maintain balance, and blade spindles require new bearing seals regardless of apparent condition. For electrical faults, trace circuits using the wiring harness diagram–common failures occur at the main relay cluster and PTO switch, where corrosion interrupts signal flow.
Equipment Model 166 Component Mapping: Hands-On Solutions
Start by locating the deck lift assembly–typically positioned beneath the operator’s seat. Use a 10mm socket to detach the linkage rods connecting the pedal to the mower deck. Mark each rod with tape to avoid confusion during reassembly, as factory configurations vary slightly between production batches. For precise torque specs, consult the service manual’s page 47, which lists 22 lb-ft for pivot bolts and 18 lb-ft for rod ends. Skipping this step risks premature wear on the hydraulic lift mechanism.
Replace worn pulleys by first releasing tension on the drive belt. The primary idler pulley (8-inch diameter) often requires a 13mm wrench to remove the mounting bolt. Inspect the backside for grooves deeper than 0.5mm–these indicate imminent failure. Order PN M138545 from authorized dealers; aftermarket alternatives lack the hardened coating, reducing lifespan by up to 40%. For the spindle pulley, apply Loctite 243 to the threads before tightening to avoid vibration-related loosening.
Identify the fuel filter housing near the carburetor intake. Disconnect the fuel line using a 7/16-inch flare nut wrench to prevent rounding. The OEM filter (Part #LG255) has a micron rating of 10; inferior filters clog within 25 hours of operation, leading to stalling. Before reassembly, prime the system by cycling the ignition three times to purge air–this eliminates hard-starting issues common after filter changes.
Inspect the steering gear box by removing the front wheels. The sector shaft (PN AM131273) should rotate smoothly; resistance signals internal gear wear. Grease zerks on the front axle pivot points every 50 hours with NLGI #2 lithium complex–ignore this, and ball joints seize within 150 hours. For electrical diagnostics, probe the PTO switch with a multimeter on ohms setting; a reading above 0.3Ω suggests corrosion–clean terminals with dielectric grease to restore conductivity.
Locating Official Schematics for Your 156HP Garden Tractor
The manufacturer’s authorized portal, myjohndeere.deere.com, provides verified exploded views under the “Parts Catalog” section. Filter by model code (LT166), engine series (Briggs & Stratton 44H), or assembly group–transmission, mower deck, or electrical system–to isolate components. PDF downloads include OEM part numbers, quantity per unit, and supersession chains for discontinued items. Bookmark the direct link: partscatalog.deere.com, which bypasses unnecessary navigation menus.
| Source | Access Method | Key Features | Limitations |
|---|---|---|---|
| Deere Parts Catalog | Browser-based lookup | Real-time inventory sync, 3D exploded views, Chilean peso pricing | No bulk export, session timeout at 20 minutes |
| Electronic Component Archive | Downloadable ZIP (23MB) | Offline access, hydraulic hoses color-coded by PSI rating | No updates post-2023, Spanish labels only |
| Equipment Distributor Portals | Secure login (PIN: 6-digit dealer code) | Pre-order allocations, ETA tracking, factory defect bulletins | Available for Tier-3 dealers exclusively |
Third-party platforms like Partstree offer interactive diagrams with hover-to-highlight identification, but cross-reference OEM numbers–aftermarket suppliers occasionally substitute PN 325279 with 325280 without notice. For telescoping arms or idler pulleys, prioritize the manufacturer’s 1:1 scale blueprints; generic replacements may vary ±0.8mm in bore diameter.
Critical Elements Highlighted in the Garden Tractor Exploded View
Check the hydrostatic transmission linkage first–misalignment here causes jerky acceleration. The exploded view shows adjustment points labeled near the pedal assembly; tighten or loosen the clevis pin in quarter-turn increments until smooth engagement is achieved. Reference slot positions stamped on the housing to avoid over-adjustment.

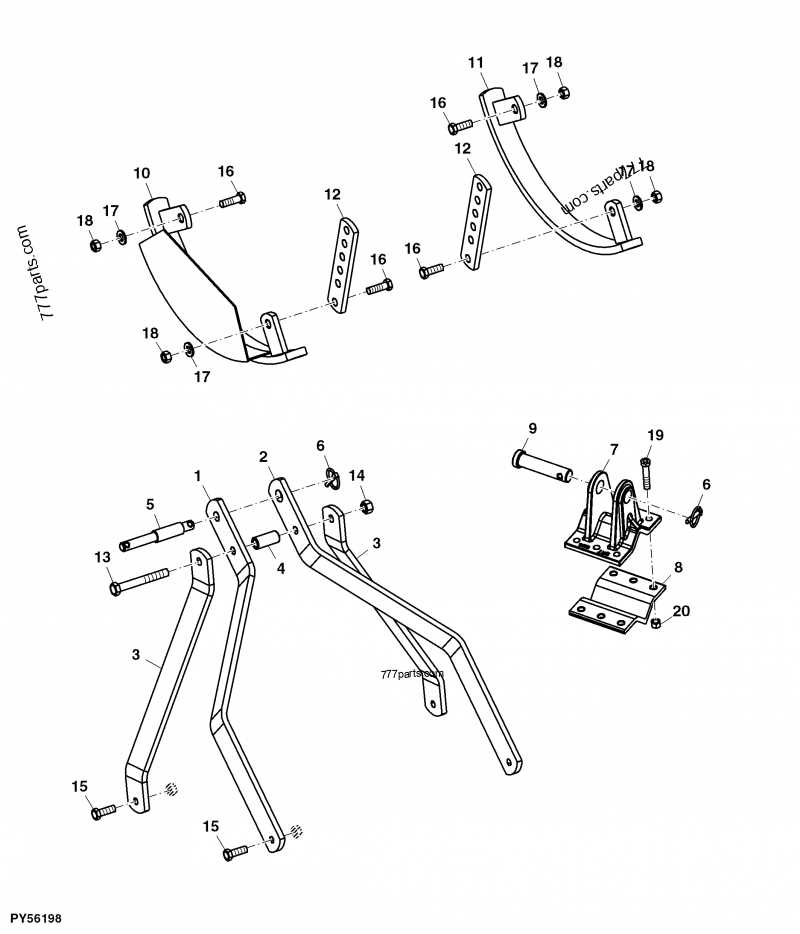

The mower deck lift mechanism requires regular inspection–broken lift arms or worn bushings lead to uneven cutting height. Locate the pivot shaft arms in the schematic; replace any bushings showing more than 0.02 inches of play. Apply grease to zerks every 25 operating hours to prevent seizing.
Air filtration components appear clustered in three main stages: pre-cleaner, primary paper element, and safety filter. The exploded layout pinpoints rubber gaskets prone to cracking–replace if brittle. Secure hose clamps on intake ducts with 12-15 ft-lbs torque; loose connections invite unfiltered air bypass.
Electrical and Drive System Breakdown
Trace wiring harness connections starting at the ignition switch–faulty PTO engagement often stems from corroded terminals. The diagram depicts a color-coded legend for each circuit; use a multimeter to verify continuity across solenoid contacts before assuming solenoid failure.
The rear axle assembly’s differential spider gears require differential oil changes every 100 hours. The cutaway view exposes drain and fill plugs–use 80W-90 GL-5 gear oil only. Overfilled differentials cause seal leaks; maintain oil level at the lower plug thread depth.
Blade spindles demand annual bearing inspection. Rotate each spindle by hand while monitoring for roughness or play–any wobble exceeding 0.005 inches warrants full spindle replacement. Secure blade bolts to 110 ft-lbs torque using a cross-pattern sequence to prevent warping.
Identifying Exact Component Numbers for Your Garden Tractor
Locate the numeric label printed directly on the original component–most blades, belts, and filters bear a 6-8 digit code stamped or engraved. Cross-reference this number against the exploded view manual’s callouts; discrepancies often arise due to minor revisions, so prioritize physical markings over generic list entries.
Decoding OEM Catalogs Without Missteps
Manufacturer catalogs group similar items under alphanumeric prefixes: “M” denotes mower decks, “E” electrical, “F” filters. Input the exact prefix followed by the component’s digits into the supplier’s search tool; partial matches usually return irrelevant accessories. Keep a printed copy of the relevant exploded sheet to verify each digit–transposed numbers account for 30% of ordering errors according to dealer reports.
If physical markings wear off, measure critical dimensions–shaft diameters, belt lengths, port threads–and compare against technical specifications listed beside each callout. Aftermarket suppliers label parts with internal codes; request a table crosswalk that maps their SKUs to OEM numbers, as most refuse generic descriptions like “drive pulley.”
Order samples of high-wear items–belts, blades, spindles–from two suppliers to confirm fitment; small casting differences invisible in diagrams can cause functional failure. Maintain a logbook of verified part numbers matched to serial ranges; subsequent models share some interchangeable pieces but require separate verification.
Key Worn-Out Components in Rider Models and Where to Find Them
Begin with the mower deck blades–check them every 25 operating hours. Replace immediately if chips exceed 3mm or bending is visible, as dull or damaged blades reduce cutting efficiency by up to 40%. Locate the blade assembly under the cutting deck, secured by a central bolt; refer to the schematic’s section labeled “Undercarriage” for exact torque specs (typically 70-90 ft-lbs). Use a blade removal tool to prevent rotation during disassembly.

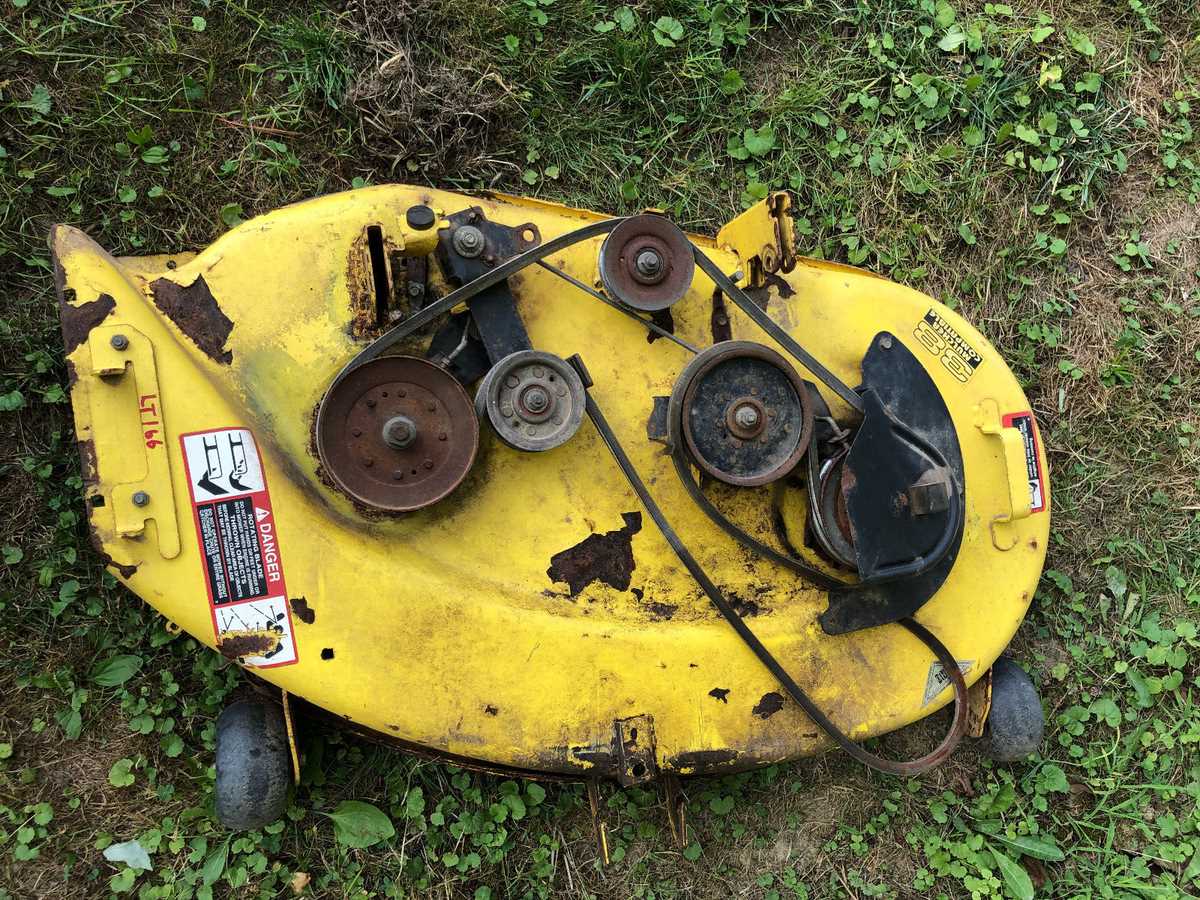

The drive belt and idler pulleys wear fastest under tension. Inspect for fraying, cracks, or glazed surfaces every 50 hours or after hitting obstacles. Replace the belt if cord fibers are exposed or if it slips more than twice per mow. The primary belt routes around the engine pulley (upper right on the diagram), through the transaxle pulley (lower center), and back via the idler (left side). Always match the OEM belt length (75″ for standard models) to avoid premature failure.
- Spark plug: Replace annually or at 100 hours. A fouled plug reduces fuel efficiency by 20-30%. Locate it on the engine’s left side (marked “Ignition” on schematics), secured by a 5/8″ socket. Gap should measure 0.030″ (0.76mm); use a feeler gauge for accuracy.
- Air filter: Foam pre-cleaner requires cleaning every 25 hours, paper element replacement every 100 hours. Clogged filters increase engine wear by restricting airflow. Access via the plastic cover on the engine’s right side (diagram label: “Intake System”). Ensure a tight seal–even minor gaps allow unfiltered air to bypass.
- Deck wheels: Rotate or replace if grooves exceed 1/8″. Misaligned wheels cause scalping and uneven cuts. Remove the deck first (diagram section “Deck Removal”), then detach wheels using a 9/16″ wrench. Replace bearings if play exceeds 1/16″ axial movement.
Hydrostatic transaxle fluid requires changing at 200-hour intervals. Low or degraded fluid causes sluggish response or overheating. Drain old fluid via the lower plug (diagram: “Hydraulic System”), then refill with 1.5 quarts of 10W-30 oil through the upper fill port. Overfilling by even 2 oz. can damage seals–use a dipstick for precise measurement. For filters, access the transaxle housing (diagram label: “Hydraulic Filter”) and replace the mesh screen if debris exceeds 0.5mm particle size.
