Start by identifying the core elements that ensure smooth operation in pressurized mechanisms. The barrel houses the internal structure, requiring precision-machined surfaces to prevent leaks and maintain pressure stability. Choose materials like high-strength steel or hardened alloys to withstand repeated cycling under load.
Examine the piston assembly–its sealing system directly impacts performance. Double-acting designs demand two sets of seals: one for pressure retention and another for contamination exclusion. Opt for polyurethane or nitrile seals depending on fluid compatibility and temperature ranges (typically -20°C to 80°C). Lubrication grooves in the piston head reduce friction and extend seal life.
The rod must balance strength and corrosion resistance. Chrome-plated surfaces (minimum 25 microns) prevent pitting in harsh environments, while polished finishes (Ra
Ports and mounting interfaces require attention to thread standards (SAE, BSPP) and positioning. Misaligned ports cause turbulence and pressure drops–ensure orientations match system flow rates (3–8 m/s recommended). Clevis, flange, or foot mounts should distribute loads evenly; calculate stress points using 1.5× safety factor for dynamic applications.
For end caps, prioritize burst pressure ratings 4× above operational limits. Integrated cushioning valves in the cap reduce shock loads by decelerating the piston; adjust needle valves for optimal damping without causing pressure spikes. Always pressure-test assembled units to 1.25× working pressure before deployment.
Replace components in matched sets to prevent wear imbalance. Keep a log of cycle counts (typical lifespan: 500,000–1M cycles) and monitor fluid contamination levels (ISO 4406 target: 18/15/12). Use micron filters (10 μm absolute) to protect seals from particulate damage.

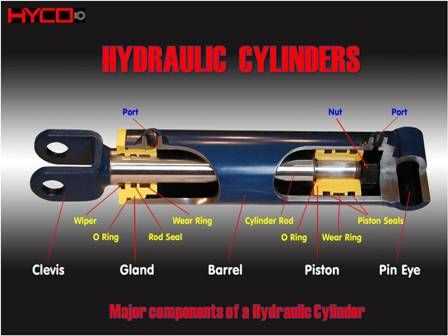

Key Components of Linear Actuators in Schematic Form
To accurately interpret a schematic of a force-generating linear mechanism, start by identifying the barrel–its internal bore diameter directly influences pressure capacity. Match this with the rod diameter: a 2:1 bore-to-rod ratio optimizes force output for most industrial applications, while ratios exceeding 3:1 risk seal extrusion under high loads. Replace seals if clearance exceeds 0.1mm to maintain system integrity.
- Barrel liners: Typically chromium-plated steel or nitrided surfaces; measure wear with a profilometer–values over 0.05mm Ra indicate replacement.
- Rod end: Ensure surface hardness exceeds 58 HRC; softer coatings increase scoring risk under dynamic loads.
- Piston: PTFE or bronze wear bands reduce friction; inspect for cold flow on bands–visible deformation signals polymer degradation.
- End caps: Threaded types require torque values within ±10% of OEM specs; flange-mounted variants use gaskets rated for 150% of operating pressure.
Seal selection hinges on pressure and velocity limits. U-cups handle static pressures up to 35 MPa but degrade above 0.5 m/s; use V-packing for velocities exceeding 1 m/s. Install wipers with a slight interference fit–0.2mm to 0.4mm–to prevent ingress of 40-micron contaminants, reducing bearing wear by 60%.
Ports should align with pump displacement curves: a 120 cc/rev pump pairs with 1/2″ NPT ports at 15 MPa; undersized ports create 30% pressure drop. Check directional valves for spool clearance–0.01mm to 0.02mm gap ensures lubrication without bypass. Mount accumulators within 1 meter of the actuator to absorb pressure spikes exceeding 20% of the working range.
- Pressure relief valves: Set to 1.2× maximum operating pressure; test annually–stiction below 0.3 MPa signals valve replacement.
- Cushioning: Position taper-type dampers at both ends for strokes over 500mm; a 15° angle slashes deceleration force by 40% compared to blunt designs.
- Fasteners: Grade 8.8 bolts for flange mounts; apply molybdenum grease to threads–reduces preload loss from vibration by 30%.
- Position sensors: Magnetostrictive types offer ±0.05% stroke repeatability; avoid inductive sensors–latency exceeds 50ms in dynamic cycles.

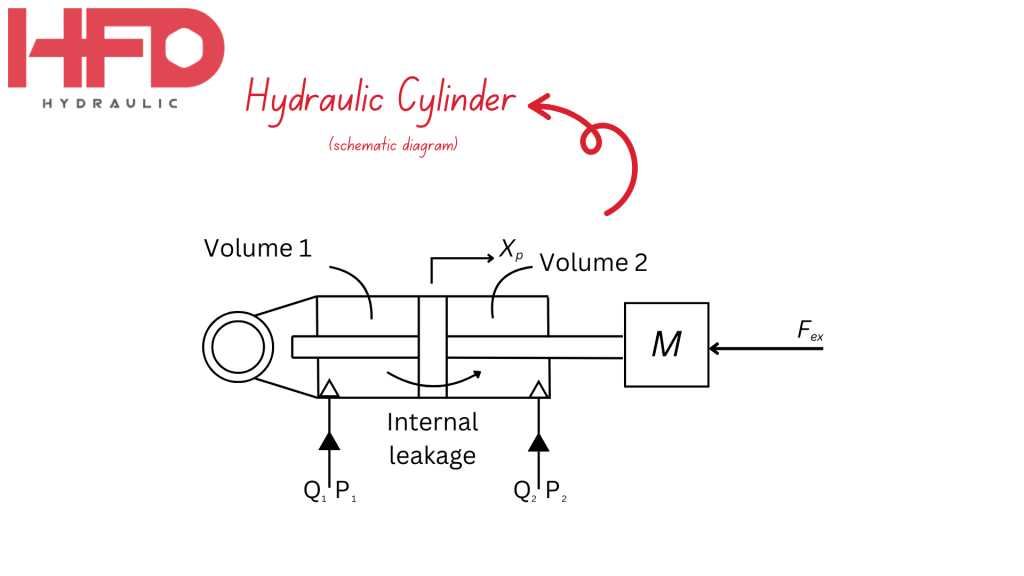

How to Map Key Elements on a Fluid Power Actuator Schematic
Begin by locating the barrel–the outermost tubular section on the drawing, typically drawn as a long rectangle with thick walls. Measure its internal diameter and wall thickness; these dimensions dictate load capacity and pressure ratings. Cross-reference with manufacturing specs: a 50mm bore with 5mm walls supports ~20 MPa, while 80mm with 8mm walls handles ~35 MPa. Label both ends–cap side (blind end) and rod side (gland end)–using arrows pointing to the respective ports.
Critical Internal Markings
| Component | Blueprint Symbol | Identification Tips |
|---|---|---|
| Plunger | Solid line inside barrel (ends with circular flange) | Check for two o-ring grooves; distance between them = stroke length |
| Piston | Dashed line near plunger flange | Note seal type–U-cup (triangle) or lip seal (rectangle) |
| Rod | Single solid line exiting gland | Look for chrome plating spec (e.g., 20–30 µm) near diameter annotation |
| Gland Assembly | Hexagonal shape at rod end | Count bolt holes; 4–6 bolts = high-pressure model |
Isolate the port connections next–annotate thread type (NPT, BSPP) and position. Inlet ports (larger diameter) lie on the cap side; outlet ports (smaller) on the gland side. Add pressure relief valve symbols (spring-loaded arrow) adjacent to the inlet port if the actuator includes built-in safeguards. For double-acting units, ensure both ports are labeled with directional arrows showing fluid flow paths during extension/retraction cycles.
Step-by-Step Guide to Illustrating a Linear Actuator Tube with Inlet Channels and Gaskets
Use calibrated 0.5mm mechanical pencil lead for precise linework. Sketch the tube’s outer boundary first, setting its length at 300mm (standard stroke range) and diameter at 80mm. Maintain strict proportionality: the tube’s wall thickness should be 10% of its diameter (8mm for this example). Mark inlet channels at 45° intervals along the circumference–begin with two primary ports positioned at 1/3 and 2/3 of the tube’s length from the cap end. Each port’s inner diameter should measure 12mm, with a 3mm counterbore for seal retention.
- Draw concentric circles for seals: start with wiper (outermost, 85mm diameter), followed by primary buffer (82mm), and secondary static seal (81.5mm).
- Render inlet paths as tapered ellipses where they intersect the tube’s curvature–use 1:4 depth-to-length ratio for visual accuracy.
- Apply 0.2mm cross-hatching within 3mm of all seal perimeters to indicate elastomeric compression zones.
- Finish with 0.1mm dimension lines spaced 5mm from edges, labeling port threads (M18×1.5) and tube tolerances (±0.05mm).
Common Mistakes When Documenting Piston Rod Assemblies in Schematic Layouts
Avoid omitting sealing elements like wipers and rod seals. Many schematics mistakenly reduce these components to generic symbols, obscuring critical details–material hardness, cross-sectional profile, or whether a double-lip design is used. Label each seal with its ISO designation (e.g., “AS 568-214”) and specify the elastomer grade (NBR, FKM, or polyurethane) directly on the layout. Include a short annotation for preload requirements if the seal relies on gland compression, as missing this data leads to improper reassembly during maintenance.
Misrepresenting the piston-rod interface causes confusion. Ensure the schematic distinguishes between threaded connections, welded joints, or tapered fits. A common error is depicting a uniform rod without indicating the stepped diameters critical for stress distribution. Add measured dimensions for each segment–particularly for chrome-plated sections–since neglecting these details forces technicians to disassemble units for verification, increasing downtime. Use distinct line weights: dashed for internal diameters, solid for external surfaces.
Failing to note rod coatings leads to corrosion failures. Specify whether the surface treatment is hard chrome (minimum 20 µm), ceramic, or a polymer composite. Annotate the Rockwell hardness (HRC) on the layout next to the rod symbol–skipping this step risks improper handling during storage or transport, where softer coatings scratch easily. Include a legend for wear indicators: mark areas prone to galling with cross-hatching if they interact with bronze bushings or PTFE guides.
Neglecting alignment tolerances for rod-eye attachments invites binding. Document the permissible angular misalignment (typically ±0.5°) and radial float values in millimeters. Highlight any spherical bearings or self-aligning rod ends with a dotted bubble callout, detailing their torque specs (e.g., “M24×2, 120 Nm”). Overlooking these annotations results in premature wear on pivot pins during cyclic loads, especially in articulating booms or steering actuators.
Inconsistent labeling of fasteners disrupts troubleshooting. Standardize bolt grades (e.g., “ISO 898-1 Class 10.9”) and torque patterns on the schematic–random abbreviations (“bolt 1,” “bolt A”) force manual cross-referencing. Place subdivisions for locknuts, Loctite applicaton zones, and cotter pins near their respective symbols. For split-pin holes, note the diameter tolerance (±0.05 mm) to prevent slippage under vibration. Without these details, reassembly errors multiply, risking rod detachment in high-pressure applications.
Precision Markings for Actuator Closures and Fixing Components
Use ISO 1219-1 symbols for end caps: a solid triangle at the closed side (▲) for blind ends and an open triangle (△) for ports. For flange mounts, apply a square (□) with diagonal lines indicating bolt patterns–two parallel lines for fixed flanges, a single diagonal for pivoting types. Ensure annotations include thread specifications (e.g., M12×1.5) and sealing standards (e.g., ISO 6149-1 for O-ring grooves). Position tolerance symbols (±0.1 mm) directly above dimension lines for alignment criticality.
Annotate trunnion mounts with a circle bisected by a horizontal line (⊖) and label radial load ratings in kilonewtons alongside. For clevis mounts, use a U-shaped outline with a perpendicular line through the center (⊪) and specify pin diameter (e.g., Ø20 mm) and hardness (HRC 45-50). Add hazard warnings for high-pressure caps using standardized symbols: an exclamation mark (!) inside a triangle for burst risk areas.
Layered Notation for Assembly Clarity
Separate primary and secondary markings on technical drawings. Primary layers include functional identifiers (e.g., “Rod End Port A”) and dimensional callouts; secondary layers show material codes (e.g., 34CrNiMo6) and surface finish symbols (Ra 0.8 µm). For composite caps, cross-reference subassembly diagrams with ballooned callouts linking epoxy cores to steel reinforcements.
Integrate QR codes in digital schematics linking to 3D models or torque specifications. For modular designs, use dashed boxes around variant components (e.g., sensor-ready caps) with suffixes like “-V2” in annotations. Color-code pressure zones: red for >350 bar, blue for return lines, and yellow for pilot circuits–consistent across all documentation.
Validate symbols against DIN 24347 for European compliance or NFPA T2.24.1 for North American systems. For custom mounts, create a legend table showing proprietary symbols alongside their ISO equivalents. Audit annotations quarterly to align with tolerancing updates (GD&T revisions) in ASME Y14.5-2018.
