For accurate repairs or maintenance, refer to the official exploded view schematic of this rear-wheel-drive unit. The manual–typically labeled 61ZGMC30E0–provides numbered breakdowns of the deck assembly, drive system, and engine internals. If the document isn’t available, cross-reference the model number stamped on the mower’s underside with online parts databases like Partstree or Jack’s Small Engines, which offer searchable inventories and compatibility filters.
Key assemblies to inspect include the drive belt (532174608), blade adapter (19020-ZL5-810), and deck housing bolts (90103-ZE1-000). Misidentification often occurs with aftermarket belts–ensure the replacement matches the original’s width (½ inch) and tooth count (84 teeth). For the engine, focus on the carburetor (16100-ZGMC-003) and air filter (17211-ZGMC-981), as these degrade faster under heavy use.
Ordering from authorized dealers reduces risks of counterfeit parts. OEM replacements carry specific identifiers: genuine components display precise casting marks and company logos on metal surfaces. If sourcing locally, verify the distributor’s return policy–some regions restrict refunds on electrical or engine-related items. For urgent repairs, prioritize suppliers with same-day shipping for common wear items like wheels (42710-ZGMC-A00) or spark plugs (XC22BP).
Use a torque wrench when reassembling critical components–blade bolts require 35-45 ft-lbs, while deck bolts demand 20-25 ft-lbs. Over-tightening risks thread stripping, particularly on aluminum engine blocks. Keep a magnetic tray to organize small fasteners during disassembly; lost hardware prolongs downtime. For long-term storage, lubricate metal surfaces with WD-40 Specialist Corrosion Inhibitor to prevent rust on exposed areas.
Guide to Engine Component Layout for HRR2169VKA Model
Locate the blade assembly under the deck by referencing position #12 on official service schematics–ensure the shear pin (part #72506-VE2-000) is intact before examining the drive belt. The belt, marked #11 on exploded views, connects the crankshaft pulley to the transmission, requiring tension adjustment if slippage occurs during operation. Verify the air filter housing (housing #17720-VL0-000) fits snugly over the carburetor intake; misalignment often causes erratic engine performance. For replacement, cross-reference components with OEM manual diagrams labeled “Section 5-1” to avoid aftermarket inconsistencies.
Critical Subsystems and Troubleshooting

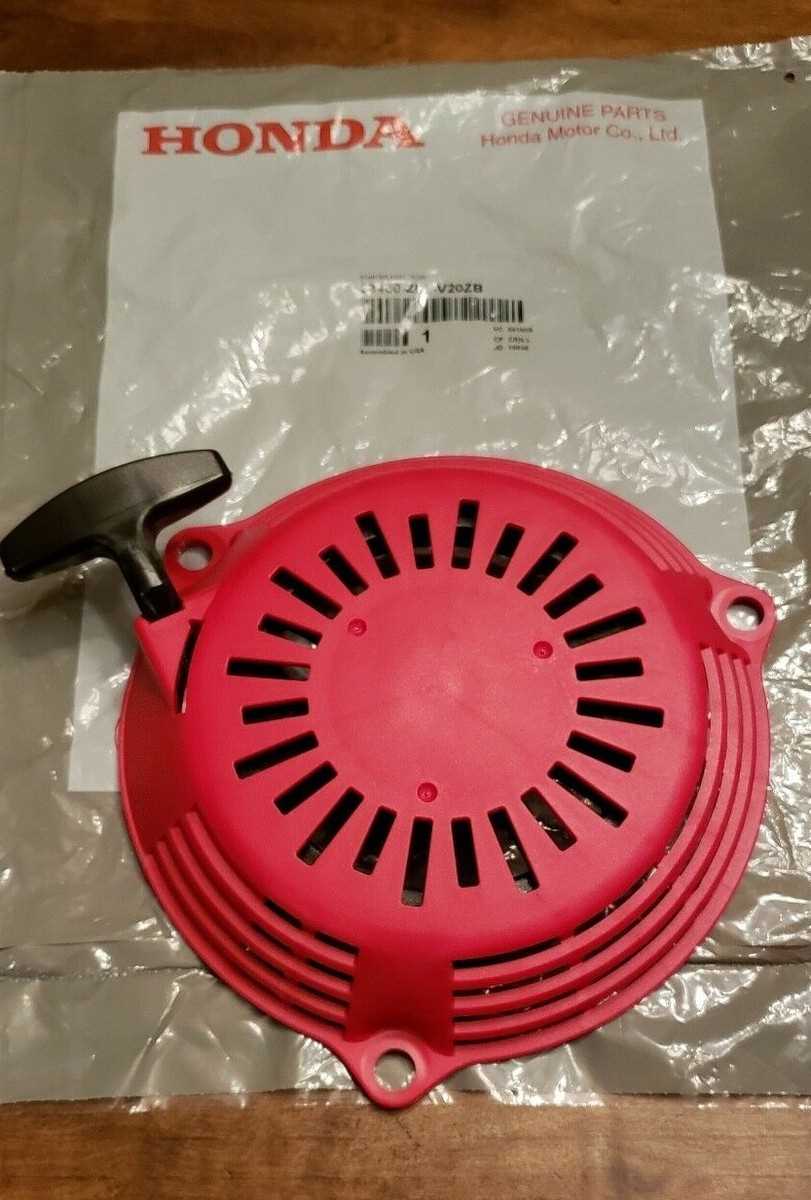

Inspect the flywheel key (item #90451-VE2-000) if the engine fails to start–shearing of this component disrupts ignition timing. The starter recoil (identified as #3 on most breakdowns) demands lubrication of internal gears with SAE 10W-30 oil every 25 hours of use; neglect accelerates wear on the starter clutch (part #28416-VE2-020). Fuel system service involves clearing the fuel line (tube #16411-VE2-305) of debris–use compressed air at 30 PSI to prevent clogging. Adjust the governor lever (arm #16680-VE2-305) by aligning it with the carburetor linkage; incorrect settings lead to stalling under load.
Locating the Authorized Exploded View Schematic for Your Mower Model
Start at the manufacturer’s service portal: powerequipment.honda.com/support/manuals-archive. Enter the serial number etched on the inner deck frame–typically ten digits starting with “MZ.” Filter for “Schematic” under document type; the exploded view appears as a high-resolution PDF download.
Alternate Sources with Verified Authenticity
Local dealers stock bound service manuals labeled “Shop Manual–Model HRR Series.” Request part number 61ZLH800; dealers can print the schematic section on-site. For immediate access, authorized distributors like mtdparts.com mirror the identical exploded view in their OEM documentation library–select “Walk-Behind Mowers” and drill down to the exact SKU.
Third-party repair sites (RepairClinic, eReplacementParts) host identical schematics, but verify the watermark matches the manufacturer’s branding. Avoid forums; user-uploaded diagrams often misalign fasteners or omit revision updates found only in current OEM files.
If the schematic remains elusive, email [email protected] with the subject “Schematic Request–Serial [insert digits].” Attach a photo of the ID plate; response time averages under 12 hours with a direct PDF link.
Critical Powerplant Elements in the Self-Propelled Mower Schematic
Begin troubleshooting by isolating the carburetor assembly–item #5 in the exploded view–since it regulates fuel-air mixture for consistent ignition. The brass float (sub-component #5A) must move freely; a stuck float causes flooding or hard starts. Replace the gasket (#5B) if compression tests reveal leaks.
Inspect the piston (#9) and cylinder bore (#8) every 50 operating hours. Scoring on the piston skirt indicates inadequate lubrication; switch to 10W-30 synthetic oil if using conventional blends. The crankcase (#12) houses the crankshaft (#11), whose bearing surfaces must show no pitting–grinding noises confirm failure, requiring immediate replacement.
The ignition module (#3) aligns directly behind the flywheel (#2). Misalignment by even 0.5mm disrupts spark timing; verify gap with a non-magnetic feeler gauge. The flywheel’s magnets (#2A) must be clear of debris–metal shavings degrade coil performance, reducing voltage output to 0.2V below spec.
Prioritize the valve train (#14–#19): intake and exhaust valves should seat with less than 0.1mm gap. Carbon buildup on the exhaust valve (#16) leads to pre-ignition; soak in acetone for 15 minutes, then brush with a nylon tool. The camshaft (#15) requires PTFE-based lubricant; petroleum jelly causes varnish that locks lobes.
The fuel pump (#7) operates via crankcase pulse pressure. Weak flow often stems from a torn diaphragm (#7C); test pulse output by disconnecting the outlet hose–pressure should exceed 4 psi at idle. Replace the inlet valve (#7B) if pulses feel sluggish.
- Air filter housing (#6): Check the pleated paper element (#6A) every 25 hours. A clogged unit increases intake temperature by 30°F, reducing power output.
- Muffler (#20): Cracked baffles (#20B) raise decibel levels by 12dB–verify weld integrity with a flashlight.
- Governor (#22): Adjust the spring (#22A) to maintain 3400 RPM under load; over-revving shears the gear teeth (#22B).
Finalize inspections at the oil sump (#23). Contaminants settle in the drain plug’s magnetic tip (#23C); document particle volume–more than 0.3g per 8 hours indicates excessive wear. Use a torque wrench to tighten the plug to 18 ft-lbs; overtightening strips threads, requiring a helicoil repair.
Finding Specific Cutting Deck Components with Your Mower’s Manual
Start by identifying the exploded view section of your maintenance guide, typically labeled under “blade housing” or “deck assembly.” Each component is numbered and matched to a corresponding list–cross-reference damaged or worn items directly with these numbers. For the HRR2169VKA model, focus on the lower right quadrant of the schematic where belts, spindles, and pulleys are illustrated; these fails most frequently under normal operating conditions.
Measure critical dimensions before ordering replacements–spindle shafts, for example, must match the original’s diameter (0.625 inches) and length (3.75 inches from base to top) to ensure proper blade alignment. Deviations of even 0.01 inches can cause vibrations or premature wear. Verify belt widths as well; the primary drive belt (Part #41401-VH7-670) measures 0.5 inches wide and 53 inches in length–substitutes must match these specs precisely.
Use a magnetic tray to organize small fasteners during disassembly–deck screws (Part #90009-VP6-000) and flange nuts (Part #90101-VH7-000) often roll into unreachable areas. Label each group by location: left spindle, right spindle, tensioner pulley. If the manual lacks torque specifications, apply 18-22 ft-lbs for spindle bolts and 12-15 ft-lbs for deck screws–over-tightening risks thread stripping in aluminum housings.
Check compatibility by comparing OEM numbers against aftermarket listings. Some vendors use proprietary codes (e.g., Oregon’s 580013 equates to the OEM deck belt); mismatches in tooth count or tensile strength negate warranties. For spindles, confirm bearing seals (Part #91002-VH7-000) are included–aftermarket units often omit these, leading to debris ingress and rapid failure.
How to Identify and Order Genuine Replacement Belts and Cutting Components
Locate the model number plate on the mower deck–typically stamped on a metal label near the rear discharge chute or under the grass bag mounting bracket. Cross-reference this number with the official manufacturer’s service manual to confirm the exact drive belt and blade specifications. For the HRR2169VKA model, the primary cutting blade measures 21 inches (53.3 cm) with a 0.157-inch (4 mm) thickness, while the drive belt follows part number 72531-VH-003, featuring a 1/2-inch (12.7 mm) width and 84.8-inch (215.4 cm) length.
Compatibility Checklist
| Component | OEM Part Number | Key Measurements | Verification Tip |
|---|---|---|---|
| Cutting Blade | 72501-VH-000 | 21″ (53.3 cm) length, 2-1/4″ (5.7 cm) width, 4 mm thickness | Check for laser-etched serial number on the blade’s underside |
| Drive Belt | 72531-VH-003 | 1/2″ (12.7 mm) width, 84.8″ (215.4 cm) length, 3/8″ (9.5 mm) pitch | Measure pulley spacing before installation to confirm fit |
| Self-Propel Belt (if applicable) | 72532-VH-003 | 7/16″ (11.1 mm) width, 48.8″ (124 cm) length | Inspect rear wheel pulley grooves for alignment |
Order directly from authorized dealers using the exact part numbers–avoid third-party marketplaces unless they provide a certificate of authenticity. Genuine components carry a holographic sticker on the packaging and often include a QR code linking to the manufacturer’s verification page. For blades, look for a balanced weight distribution (check by suspending the blade on a nail–it should rest horizontally). Belts should exhibit consistent tooth spacing without cracks or fraying; run a fingertip along the inner surface to detect imperfections. If substituting with aftermarket parts, verify the supplier’s return policy and ensure the dimensions match the OEM specifications within ±1 mm tolerance to prevent premature wear or deck misalignment.
