Start by locating the model number on the main housing–usually stamped on a metal plate near the chute or engine. This alphanumeric code, often 8-12 characters long, is critical for identifying compatible replacement pieces. Use the manufacturer’s official parts lookup tool instead of generic search results; third-party diagrams frequently omit small but vital elements like shear pins, auger belts, or impeller rings.
Check the gearbox first if the machine struggles to push snow. A worn drive disk or damaged friction wheel will cause slippage even with a fully charged battery or fresh fuel. Replace these with OEM components rather than universal aftermarket options–clearance tolerances differ by up to 0.5 mm, which affects engagement reliability. The auger assembly requires annual inspection; cracks in the housing start small but propagate quickly under impact loading from ice chunks.
Electrical systems demand attention if the starter engages but the motor doesn’t turn. Begin with the ignition switch and solenoid connections–corrosion here mimics a dead battery. If the issue persists, measure voltage across the motor brushes; readings below 10.5V under load indicate brush wear or failed armature windings. Lubricate all pivot points with lithium-based grease, avoiding petroleum distillates–these degrade rubber seals and cause premature failure in impeller bearings.
Order replacement shear pins in quantity; each pin costs less than $0.50 but saves hours of downtime. Store them in the machine’s handle grip container for immediate access. Always disconnect the spark plug or remove the battery terminal before working on rotating parts–auger blades retain momentum for 10-15 seconds after power cutoff, a frequent cause of hand injuries.
How to Locate Replacement Components for Your Winter Equipment
Start by identifying the model number engraved on the chassis near the engine or handle assembly–this alphanumeric code is critical for sourcing exact matches. If the label is worn, inspect the engine’s brand (Briggs & Stratton, Honda, or Tecumseh) and displacement (e.g., 208cc, 277cc) to narrow searches. Use manufacturer-issued schematics available on official dealer portals or repair databases like Partstree, Sears PartsDirect, or eReplacementParts; these often include exploded views separating augers, impellers, and housing assemblies. For outdated models, cross-reference part numbers with third-party suppliers such as Jack’s Small Engines–they archive obsolete components and offer compatibility charts.
Breakdown of Key Components in Exploded Views
- Auger Assembly: Verify blade count (2 or 4) and diameter (typically 20–30 inches). Polyurethane or steel designs require distinct shear pins (e.g., #496354 for standard pins, #496355 for heavy-duty).
- Drive System: Friction disks (#710739) and wheel gears (#532184198) wear faster in slush conditions–replace in pairs to prevent uneven torque distribution.
- Engine Components: Check carburetor kits (e.g., Briggs #808658) against fuel line age (ethanol-resistant lines like #71010300 degrade in 3–5 years). Throttle cables (#716498) snap under sub-zero stress; pre-lubricate with synthetic grease.
- Chute Controls: Crank handles (#799351) and deflector cables (#585959) corrode from road salt–upgrade to stainless-steel alternatives (e.g., #8110100).
Prioritize OEM components for high-wear items like gears and impellers, but consider aftermarket sources (e.g., Oregon or Stens) for belts and skid shoes–they offer 20–30% cost savings with comparable durability. Download PDF manuals from ManualsLib or ManualsOnline for dimensional references; measure shaft diameters (e.g., 0.75″ vs. 0.875″) before ordering bearings (#693242) or bushings (#719358). For expedited repairs, purchase a “universal shear pin kit” (contains 6–10 pins in 1/4″ and 5/16″ sizes) and keep spare spark plugs (NGK BPR4ES for most models) in your maintenance kit.

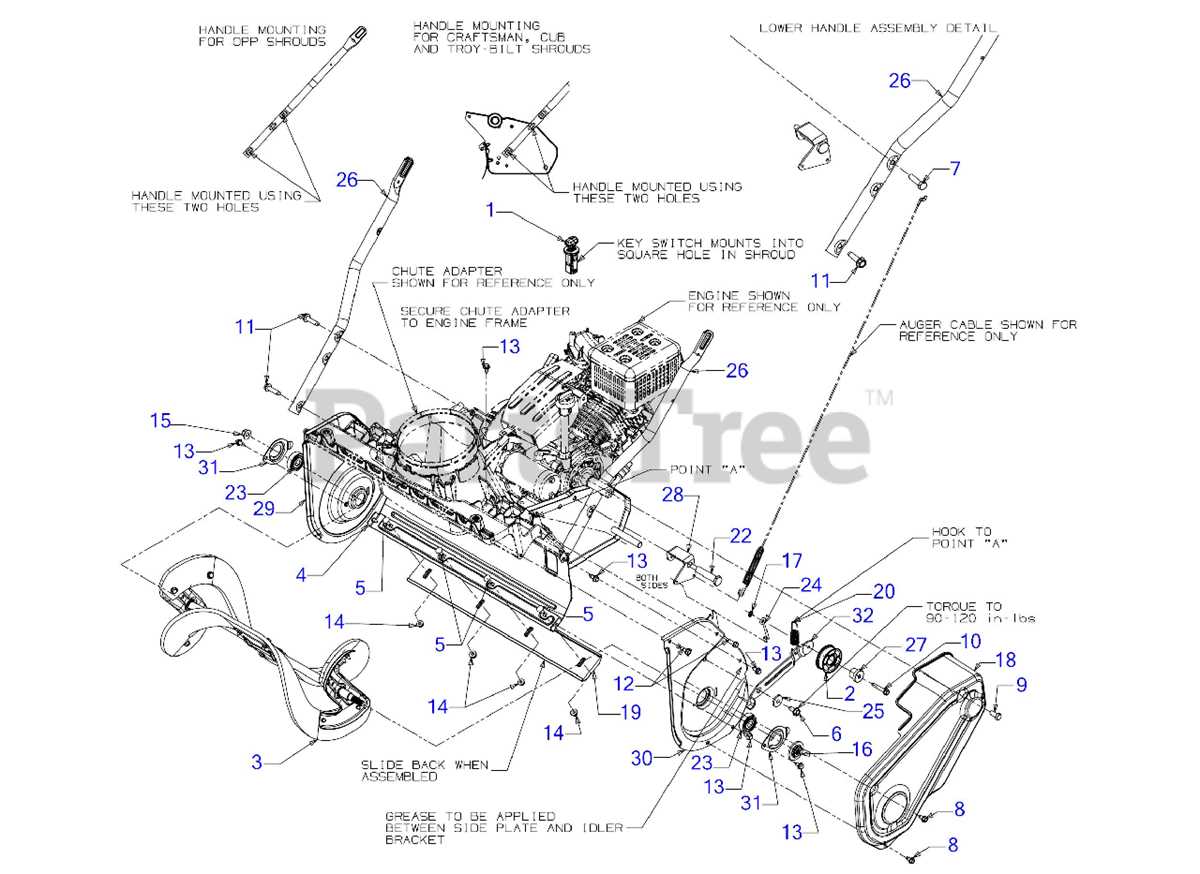

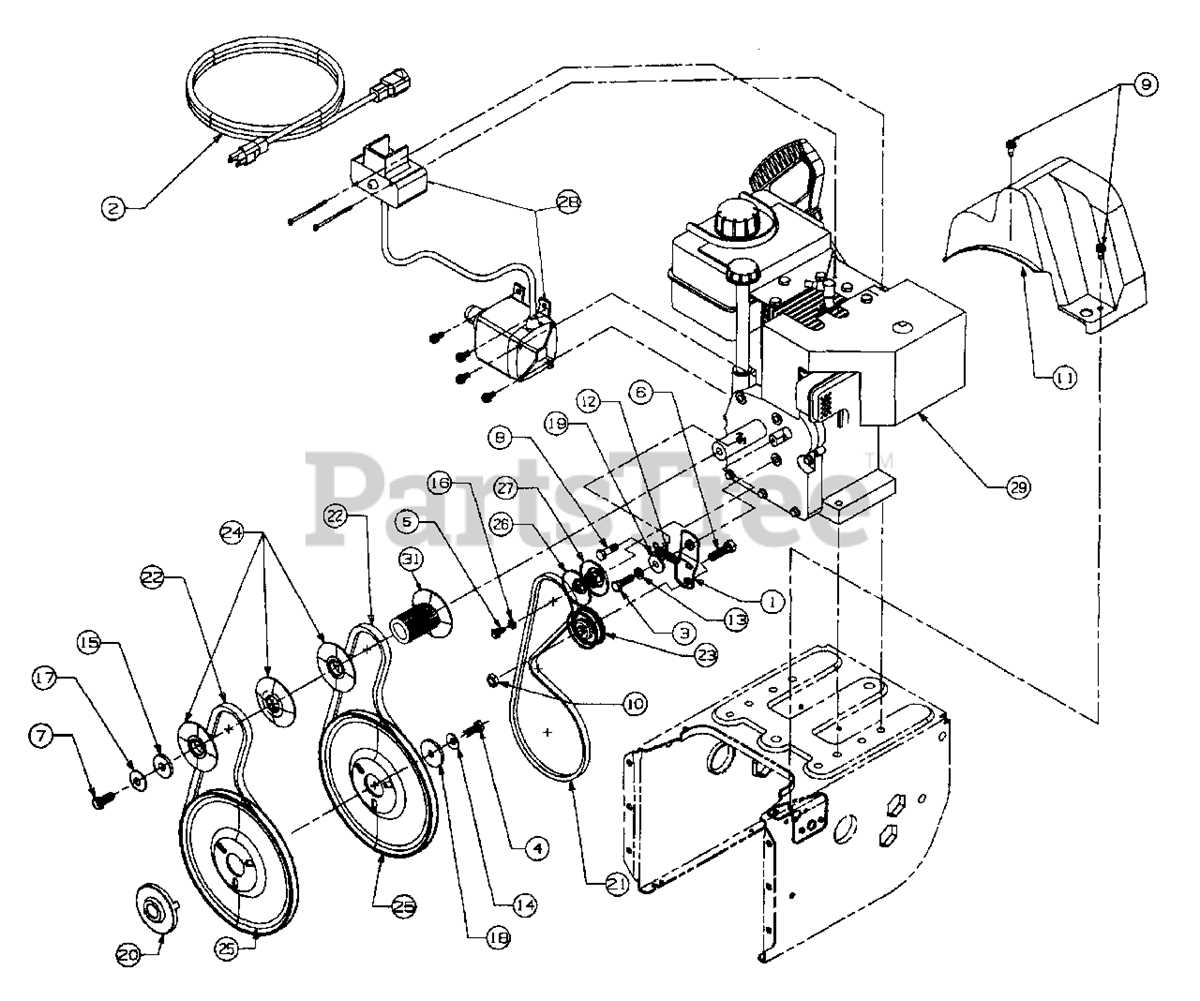

Locating Critical Elements in an Outdoor Equipment Schematic
Begin by isolating the auger assembly in the upper-left quadrant of the exploded view. This section typically includes the helical rotor, shear pins, and mounting brackets–verify their alignment with the housing unit. Misalignment here often causes performance drop due to uneven ice displacement. Cross-reference part numbers against the model’s service manual to confirm compatibility before disassembly.
Next, focus on the impeller system, usually depicted near the rear center of the schematic. The scroll casing, blades, and drive shaft should be examined for wear, particularly if the machine struggles with ejection distance. Check for deformation in the blades; even minor warping reduces throwing efficiency by up to 30%. Lubricate the shaft bearings annually using synthetic grease rated for sub-zero temperatures.
Drive Mechanism Verification
Inspect the transmission case–located adjacent to the impeller–including gears, belts, and friction wheels. A slipping belt often manifests as inconsistent movement or jerking; replace it if cracks exceed 2mm in depth. For gear-driven models, listen for grinding noises during operation–this indicates inadequate lubrication or misaligned teeth. Use only manufacturer-specified lubricants to prevent premature degradation of nylon gears.
The control linkages demand precise calibration. Locate the throttle cable and auger engagement lever in the lower-right section of the exploded view. Ensure the cable moves freely within its sheath; friction points here cause delayed response times. Adjust the tension so there’s a 3–5mm slack when the lever is in the “disengaged” position–excess slack leads to unintended engagement.
Powerplant and Safety Components
Examine the engine block in the upper-right corner, prioritizing the recoil starter, spark plug, and fuel filter. A faulty recoil spring–indicated by uneven resistance–can prevent starting; replace the entire assembly if the spring shows signs of fatigue. The spark plug should have a 0.7–0.8mm gap; wider gaps reduce ignition efficiency. Replace the fuel filter every 50 hours of runtime to prevent clogging from ethanol-blended fuels.
Finally, check safety switches dispersed throughout the schematic. The auger kill switch (usually mounted on the handle) must depress fully when released–test by starting the unit and letting go of the lever to confirm instant shutdown. For electric start models, verify the battery’s voltage remains above 12.4V under load; a lower reading necessitates recharging or replacement. Ignoring these components risks operational failure or unintended activation.
Finding Exact Component Matches for Your Winter Equipment
Locate the model number stamped on a metal plate–usually on the rear frame or side housing. This alphanumeric code is your primary identifier; cross-reference it with the exploded-view schematics provided in repair manuals or official manufacturer databases. Ignore vague descriptors like “24-inch” or “dual-stage”; specificity prevents ordering mismatched components.
Use the schematic’s itemized callouts–numbers aligned with arrows–to pinpoint the exact replacement. Each callout typically lists the OEM reference and compatible aftermarket alternatives. Example: if the impeller assembly (item 37) fails, note its precise description (e.g., “plastic 12-vane rotor”) and corresponding part number beginning with “486” before purchasing.
| Section | Typical OEM Prefix | Aftermarket Brands |
|---|---|---|
| Auger | 486- | MTD Gold, Arnold |
| Shear Pins | 951- | Stens, Oregon |
| Drive Belt | 754- | Gates, Dayco |
Inspect worn components against the schematic’s measurements. A drive belt labeled “1/2 × 38” must match both width and length; substituting a 36-inch belt risks slippage or premature failure. Measure tolerances (± 0.05 inch) where installations are tight, such as friction wheels or gearbox housings.
Search manufacturer portals or distributors using the exact part number. Insert the prefix (“486-”) followed by the numeric suffix–avoid generic searches like “auger replacement.” Verify part compatibility on the product page by checking “fits models” or “compatible with” listings. Retailers like RepairClinic or eReplacementParts sort results by model, reducing guesswork.
Step-by-Step Guide to Interpreting an Equipment Auger Housing Schematic
Locate the pivot shaft first–it’s the central rod running horizontally along the impeller casing, typically labeled with a numeric identifier like “A-5” or “B-12” in the legend. Verify its diameter against the specs listed in the reference table; mismatches indicate wear or a non-OEM component.
Examine the shear pins next. These small fasteners connect the drive mechanism to the cutting assembly and snap under overload to prevent motor damage. Note their spacing and thread type on the drawing; standard sizes are 1/4″ or 5/16″, but confirm with calipers if the schematic omits measurements.
Decoding Gear and Bearing Symbols
Gear icons appear as toothed circles, with dashed lines denoting hidden teeth engagement. Count the teeth if performance tuning is needed–stock ratios rarely exceed 22:1 for residential units. Bearings are shown as two concentric circles; the inner ring’s tolerance (usually ±0.002″) determines lubricant choice–synthetic grease for sub-zero operation.
Follow the belt path from the motor pulley to the helical rotor. Arrows guide direction, but cross-check against the parts list for V-belt width (most are 3L or A-section). Twisted belts on the diagram signal reverse rotation, critical for dual-stage designs.
Compare wireframe shading on adjacent components. Solid fill denotes structural pieces (housing walls), while stippled sections indicate replaceable wear plates–target these first during inspections for erosion patterns.
Trace hydraulic lines if present. Colored dots correspond to pressure ratings: red for 2,000+ PSI, blue for low-pressure return. Label cross-references lead to torque specs for fittings, often omitted but critical for field repairs.
