Start with the filtration framework–this is the core of water clarity. Locate the sand or cartridge unit beneath the skimmer assembly. Most 18-foot models use a 100-150 square foot filter media, while larger setups (24-foot+) demand a 200+ square foot capacity. Verify the O-ring seal annually: a cracked seal cuts efficiency by 30-40%. Replace it immediately if compression test shows under 12 psi resistance.
Inspect the pump housing next. The impeller should spin freely–jamming indicates debris accumulation. Clear blockages with a stiff bristle brush, never metal tools; they scratch surfaces and trap future contaminants. Motor longevity depends on voltage stability: use a surge protector (minimum 1500 joules) to prevent burnout during power fluctuations.
The structural framework requires equal attention. Examine vertical supports for rust at welded seams–surface oxidation spreads 2-3x faster after initial breach. Treat affected areas with zinc-rich primer followed by epoxy enamel. Check horizontal rails every 90 days: misalignment by 1/8 inch weakens wall integrity by 15%. Tighten bolts in a star pattern to distribute pressure evenly.
Liner integrity determines 70% of leak prevention. Run hands along the edge seam–bubbles or soft spots signal imminent failure. Patch small tears () with vinyl adhesive kits; larger breaches demand professional re-lining. Calcium deposits on suction plates reduce flow by 10 GPM per 1/4 inch buildup. Clean monthly with white vinegar solution (5:1 ratio) or CLR specifically formulated for pool surfaces.
Electrical components demand precision. Locate the GFCI breaker–it must trip at 6 milliamps; anything higher requires immediate replacement. Test with a multimeter: probe the hot and neutral slots, leakage to ground should read . Check bonding wire connections annually–they corrode faster than structural metal. Use copper anti-oxidant compound on all terminal connections to maintain conductivity.
Essential Components for Above-Ground Water System Maintenance
Start by locating the filtration network–typically a cylindrical housing near the liner’s base. Check the clamp ring securing the intake valve; corrosion here causes leaks. Replace if threads show wear or if rubber seals flatten. The skimmer basket, often overlooked, traps debris before it reaches pumps–clean it weekly with a stiff brush to prevent clogs that reduce flow rate by up to 40%.
Inspect the pump assembly next. Prime the unit manually if water doesn’t circulate within 30 seconds of activation–air trapped in the impeller cage disrupts suction. For sand or cartridge filters, backwash every 7–10 days during heavy use. Sand beds last 3–5 years but degrade faster in chlorinated systems; replace when grain size exceeds 0.8mm or channeling occurs. Cartridges require soaking in muriatic acid solution (1:10 ratio) every 6 weeks to dissolve calcified deposits.
Pressure Gauge and Valve Checks
- Gauge readings above 25 PSI indicate a dirty filter–backwash or replace media immediately.
- Multiport valves should rotate smoothly; stiff movement signals grit accumulation–disassemble and lubricate O-rings with silicone grease.
- Drain plugs on pump housings must be tight but not overtightened–use a torque wrench set to 8 ft-lbs to prevent cracking.
Liner integrity determines longevity. Run fingers along seams weekly–bulges or sticky patches signal delamination. Patch small tears (under 2 inches) with vinyl repair tape after cleaning the area with acetone. For larger damage, replace the entire sheet if wrinkles exceed 1 inch depth; stretched liners fail under pressure, causing catastrophic leaks. Ground cloth placement matters–ensure no rocks or roots puncture the material before installation.
Winterization and Storage
- Drain all water below skimmer and return jets to prevent freezing damage.
- Disconnect hoses and store indoors–UV exposure degrades PVC by 30% per season.
- Coil pipes loosely to avoid kinks; store in a climate-controlled space at 50–70°F.
- Lubricate all moving components (valves, pump lid threads) with PTFE-based grease before off-season storage.
- Cover the structure with a breathable mesh tarp–condensation accelerates mold growth on stored equipment.
Navigating Essential Elements in Above-Ground Water System Schematics
Start by locating the filtration unit–typically positioned near the base of the structure. Modern setups include a sand or cartridge filter, distinguishable by a cylindrical housing with pressure gauges on top. Check the inlet and outlet valves: the inlet connects to the skimmer line, while the outlet directs purified water back into the basin. If the system isn’t priming, inspect the multiport valve for debris; a blocked diverter valve often causes weak flow. Replace damaged O-rings on the pump lid immediately–these degrade faster than other seals due to constant chlorinated exposure.

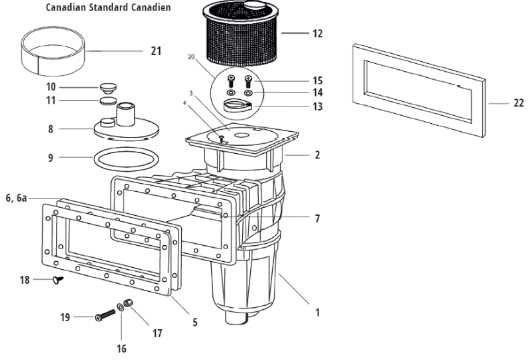

Examine the skimmer assembly next. The weir door–usually a floating flap–regulates debris entry; if stuck, it disrupts surface cleaning. Behind it, locate the basket, which should be emptied weekly during heavy usage. The return jet, often near the top edge, should point downward at a 45-degree angle to optimize circulation. Misaligned jets create dead zones, leading to algae blooms. For saltwater variants, identify the electrolytic cell mounted in-line after the filter–look for plate electrodes inside a clear casing that require annual scaling with a weak acid solution.
Critical Hardware Specifications
| Component | Material | Lifespan | Maintenance |
|---|---|---|---|
| Skimmer basket | HDPE | 3–5 years | Weekly cleaning |
| Pump impeller | Noryl (glass-filled) | 5–7 years | Inspect annually for cavitation |
| Filter cartridge | Polyester pleats | 1–2 seasons | Rinse biweekly; replace every 2,000 hours |
| Frame gasket | EPDM rubber | 8–10 years | Check for cracks every spring |
Grounding strips and bonding wires require careful attention. Locate the green bonding wire running along the exterior wall; it connects all conductive elements to a shared grounding bar. Corrosion at connection points (often near ladder anchors) creates electrical hazards–clean terminals with a wire brush and apply dielectric grease. For heated models, identify the heat exchanger coils; copper variants demand pH monitoring to prevent scaling, while titanium units resist corrosion but cost three times more.
Liner integrity checks should follow a grid pattern. Use a soft brush to trace the sidewall seams, focusing on areas where the vinyl meets the top rail–delamination often starts here. Patch small holes with vinyl adhesive and a repair kit; avoid over-stretching the material during application. Track tension by measuring the center drop during off-season storage–excessive slack indicates weakened hangers. Reinforce weak points with wraps of reinforced tape before refilling.
Seasonal Calibration Checklist
Before opening, verify the deck drain slope–it should direct runoff away from the structure at a 2% grade. Winter caps on return jets must seal tightly; cracked caps admit air, stressing the pump during startup. Lubricate union fittings with silicone-based grease to prevent galling; avoid petroleum-based products that degrade gaskets. Record pressure differentials monthly: a drop below 5 PSI signals a clogged filter, while a rise above 10 PSI indicates a bypass valve failure.
Step-by-Step Assembly Instructions Using the Components Guide
Lay out all framing segments in sequence before fastening–verify each beam’s numerical label matches the layout schematic to prevent misalignment. Begin with the base rails, securing them to the vertical supports using the provided stainless-steel brackets; torque the fasteners to 12–15 Nm to ensure structural integrity without deforming the aluminum. Attach the liner anchors next, spacing them evenly at 30 cm intervals along the upper rail–use a level to confirm zero deviation before locking into place.
Finalizing Structural Connections
Assemble the support struts by sliding the adjustable collars onto the diagonal braces, then align them with the pre-drilled holes in the legs–avoid overtightening, as this can warp the threads. Connect the filtration unit last, ensuring the inlet/outlet valves align precisely with the liner’s designated ports; use Teflon tape on threaded junctions to prevent leaks. Test all joints under load before filling.
Key Component Swaps and Cross-Brand Fitment
Replace worn skimmer baskets with models sized for 14″-16″ openings–most aftermarket units from Intex, Bestway, and Hayward share identical O-ring grooves and snap-lock tabs. Verify the basket depth: shallow variants (≤8″) fit mounting plates with a 3.5″ flange gap, while deeper versions require a 4.25″ gap. Avoid universal baskets lacking side vents; uneven water flow collapses debris prematurely.
Impeller housings labeled SJE-200A interlock with pump motors from four brands without clearance issues–four-bolt pattern matches Waterway, Sta-Rite, and Pentair shafts, but threading differs: 3/4″ NPT (domestic) vs. M20x1.5 (import). Grease seals before tightening to 22 ft-lb; overtightening strips aluminum threads. Substitutes with integrated flow valves replace dual-port assemblies, reducing priming failures.
Pressure-side cleaners demand 1.25″ sweep hoses; 1.5″ variants cause stalling in sub-1HP setups. Check taper angle on quick-connect cuffs: 12° fits Polaris, 6° aligns with Zodiac. Rubber diaphragms degrade after 300 hrs–swap for silicone diaphragms if chamber noise exceeds 45 dB; tool-free access caps on newer manifolds eliminate retaining ring seizures.
LED ladder lights rated IP68 retrofit into stainless steel rungs if the conduit diameter stays under 0.875″. Reverse polarity in AC fixtures shorts 12V drivers–label power leads pre-install. Replace factory lenses prone to UV bloom with polycarbonate covers stamped AS/NZS 4695:2018; inferior acrylic discolors within 18 months.
Main drain covers certified VGB 2008 must span ≥12″ internally to prevent suction entrapment; bolt spacing (4.75″ OC) aligns with Hayward frame kits but requires stainless hardware for fiberglass pools–galvanized fasteners corrode in 400 days. Always torque to 15 in-lb and seal edges with 100% silicone.
