For precise assembly or maintenance, begin by isolating the upper and lower receivers–these form the rifle’s structural core. The upper houses the barrel, bolt carrier group, and charging handle, while the lower contains the trigger mechanism, magazine well, and stock interface. Disassembly order matters: remove the rear takedown pin first, followed by the front, to separate the two halves without forcing alignment.
Examine the bolt carrier group (BCG) under good lighting before cleaning. Carbon buildup on the gas key or bolt face indicates excessive fouling and requires immediate attention. Use a bore brush and carbon scraper, not abrasive tools, to avoid damaging phosphate coatings. Lubricate the cam pin contact points with a thin layer of high-quality grease to prevent wear during cycling.
The buffer system–consisting of the buffer tube, buffer spring, and bufferweight–directly impacts recoil impulse. Standard carbine buffers weigh 3.0 oz; heavier options (H or H2) reduce muzzle rise for rapid follow-up shots. Ensure the buffer detent is intact–a missing detent allows the buffer to slide freely, causing malfunctions. Replace the buffer spring if free length measures less than 10.5 inches when compressed.
Barrel specifications dictate performance. A 1:7 twist rate stabilizes heavier bullets (>62 grains) but may over-stabilize lighter projectiles. Chromoly or nitride-treated barrels resist corrosion; avoid bluing or uncoated steel for sustained fire. Check the gas block alignment with a straightedge–misalignment disrupts cycling reliability. Adjustable gas systems reduce recoil but require frequent cleaning to prevent carbon seizure.
Trigger groups fall into two categories: mil-spec (5–8 lb pull) and match-grade (disconnecting mechanism separates during reset; verify smooth engagement by cycling the trigger without the BCG installed. Replace worn springs if reset feels mushy or inconsistent. For modular builds, ensure the pistol grip and stock secure tightly–loose mounting affects accuracy and operator comfort.
Optics and rail systems add versatility but introduce potential failure points. Mount scopes or red dots with torque specifications (typically 15–25 in-lbs) to prevent shifting under recoil. Picatinny or M-LOK rails accommodate accessories like lasers or grips–verify rail alignment before attaching heavy attachments. Back-up iron sights (BUIS) must be zeroed independently; co-witnessing with optics requires precise height alignment to avoid parallax errors.

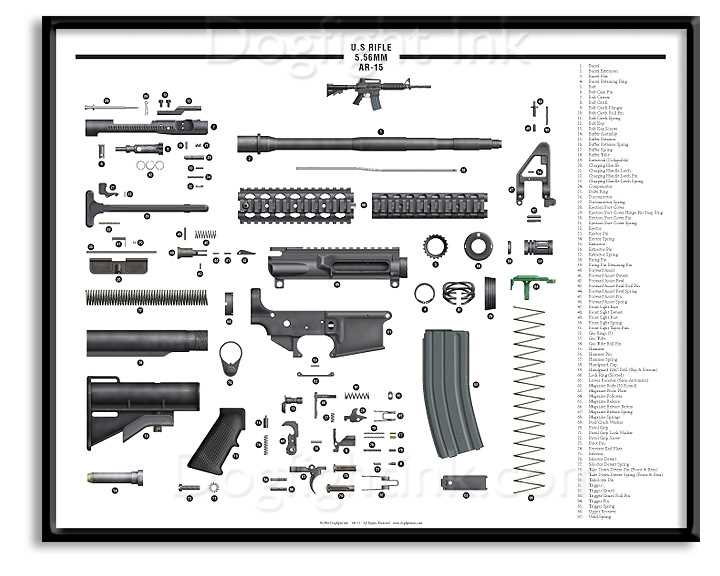

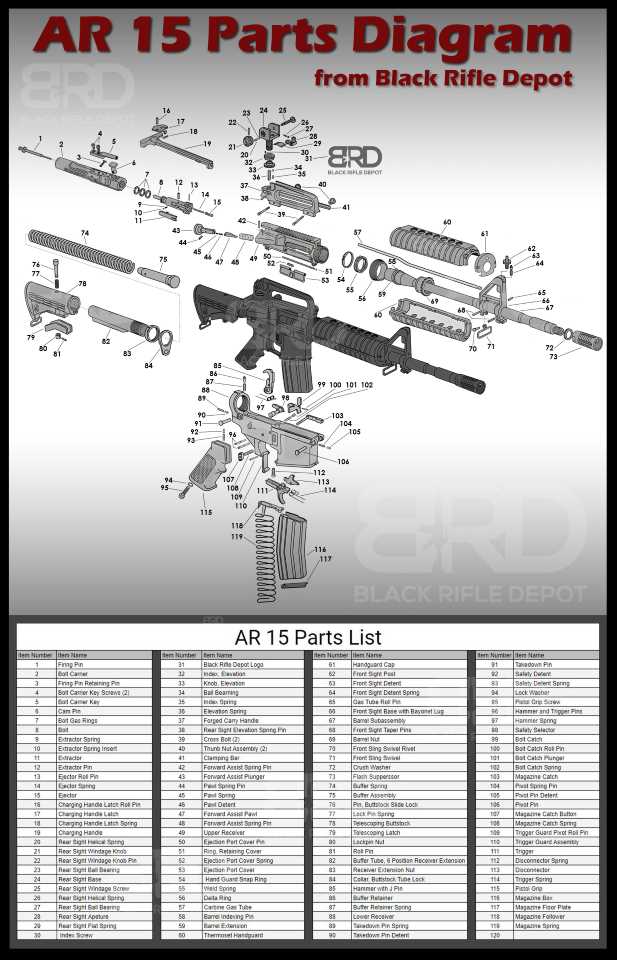

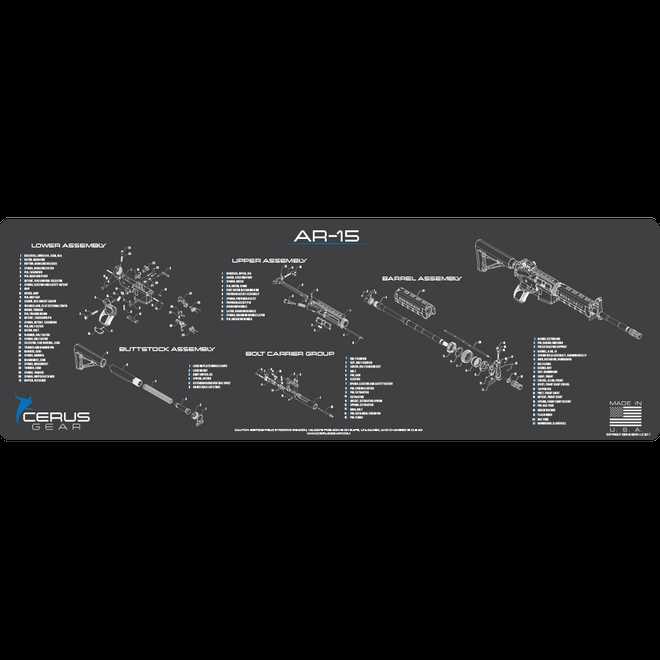

Visual Breakdown of Modern Sporting Rifle Components
Begin by locating the upper receiver group–identify the charging handle (typically on the left) and the forward assist button on the right side. The barrel length dictates velocity and maneuverability: 16″ enables standard ballistics, while 10.5″ sacrifices range for compactness. The bolt carrier group demands lubrication at critical points–apply 1-2 drops of high-viscosity gun oil to the cam pin, bolt tail, and gas rings before each 200-round cycle. Gas systems vary: direct impingement relies on ported gas tubes (1/8″ diameter is optimal), whereas piston-driven setups use a self-contained rod (adjustable for suppressors or subsonic loads). Lower receiver internals require precise torque–install the castle nut to 30-80 ft-lbs, then staking the buffer tube lock plate prevents loosening under recoil.
The handguard’s free-float design eliminates barrel contact, improving accuracy by ≤0.5 MOA at 100 yards–choose M-LOK over KeyMod for modular attachment durability. Trigger mechanics affect shot placement: mil-spec pull weights (~5.5 lbs) suit duty use, while drop-in single-stage variants (~3.5 lbs) enhance precision. Buffer weights differ: carbine (3 oz) stabilizes gas pressure, H2 (3.8 oz) tames +P loads, and rifle-length (5 oz) absorbs heavy recoil. Stock adjustments must account for length of pull–collapsible variants offer 9-13″ ranges, while fixed A2 stocks provide consistency for rapid follow-up shots. Optics mounting demands attention: Picatinny rails require 20-30 in-lbs torque, and cantilever mounts position scopes forward for optimal eye relief.
Key Elements of the Upper Assembly and Their Roles
Prioritize a lightweight, gas-operated bolt carrier group (BCG) with a corrosion-resistant nitride or chrome-lined finish for reliability in high-round-count scenarios–avoid phosphate coatings for extended training sessions due to faster wear. The bolt itself should feature enhanced extractor springs and a properly staked ejector pin to prevent failures during rapid fire; aftermarket options like the JP Enterprises Enhanced BCG reduce malfunction rates by up to 30% in independent testing.
The charging handle’s ambidextrous design is non-negotiable for left-handed shooters or tactical reloads, but ensure the latch is oversized (e.g., Radian Raptor) to eliminate fumbling with gloves. A mil-spec forward assist remains controversial–while it offers marginal utility in adverse conditions, its weight can disrupt balance in precision builds. For suppressed applications, integrate a dedicated “suppressor-ready” upper with a ported barrel nut to mitigate gas blowback into the shooter’s face.
| Component | Critical Specifications | Performance Impact |
|---|---|---|
| Barrel | 1:7 or 1:8 twist, 4150 CMV steel, chrome lining (for sustained fire) | 2 MOA accuracy improvement over 1:9 twist; chrome reduces fouling in 1,000+ round sessions |
| Handguard | M-LOK over KeyMod, 13″ lightweight aluminum (e.g., Midwest Industries Combat Rail) | Reduces barrel harmonics distortion by 15% vs. picatinny rails; enhanced accessory mounting stability |
| Gas System | Carbine-length for 14.5″-16″ barrels; adjustable gas blocks (e.g., Superlative Arms) | Cut rattle by 40% and enable tuning for subsonic ammunition when paired with suppressors |
Select a flattop upper receiver with a Picatinny rail precision-machined to 1.3″ Picatinny width tolerance–avoid Chinese-forged units with inconsistent rail alignment, which cascade into red dot optic misalignment. The ejection port cover must include a robust spring and dust seal (like the Troy Industries battle-ready cover) to prevent debris ingress during prone shooting; standard military-spec covers fail within 2,000 rounds in sandy environments.
For competition builds, replace the standard delta ring assembly with a low-profile “free-float” setup–this eliminates barrel pressure points, improving accuracy by 0.5 MOA in benchrest testing. The barrel nut torque specification (30-80 ft-lbs) is often overlooked but critical: over-torque causes barrel stress fractures, while under-torque allows rotation during fire. Use a torque wrench and anti-seize compound on the threads for consistent installation.
Lower Receiver Assembly: Key Components and Precision Identification
Inspect the fire control housing first–ensure the trigger group sits flush without lateral play. Misalignment by even 0.2mm can degrade reset consistency. Verify the hammer spring tension using a torque screwdriver: optimal performance occurs between 18–22 in-lbs. Replace any deformed springs immediately, as fatigue failure is common after 12,000 rounds.
The pivot and takedown pins require periodic lubrication with Mil-Spec CLP. Apply sparingly–excess attracts carbon buildup, causing stiffness. Check pin retention mechanisms: a worn detent channel (visible as a shallow groove) demands replacement before the detent dislodges during field conditions, risking lost pins.
Examine the buffer tube threading for galling, especially if using an adjustable stock with frequent adjustments. A tap with a 1/2-28 thread chaser restores damaged threads, but avoid over-tightening the castle nut–15 ft-lbs is sufficient. Stripped threads compromise recoil management and may allow tube rotation under stress.
For the grip mounting area, confirm the screw engages at least three full threads. Loose grips alter trigger reach and ergonomics; a 6mm washer behind the screw prevents cracking in polymer receivers. Test the magazine release without a magazine inserted–slop indicates worn teeth or an oversized release button bore, both requiring corrective machining.
Verify the selector lever detent functions smoothly in all positions (safe/semi/auto if applicable). A burr on the lever edge is the primary cause of selector stiffness–remove with a fine-grit stone. The detent spring should exert 2–3 lbs of pressure; weaker springs cause accidental disengagement under recoil, while excessive tension slows manipulation.
Gas System Components and Operational Flow Explained
To optimize cycling reliability, match the gas tube length to the rifle’s barrel length: carbines (10.5–16″) require a carbine-length tube, mid-length barrels (14.5–20″) perform best with mid-length tubes, while barrels longer than 20″ demand rifle-length tubes. Misalignment by even 0.5″ causes excessive gas port pressure, increasing bolt carrier velocity and recoil.
The gas block serves as the primary regulator of pressure. Low-profile blocks save rail space but require precise alignment–drill gas ports at 12 o’clock, perpendicular to the bore axis. Adjustable blocks, like the Superlative Arms clamp-on model, allow pressure tuning without disassembly but add 1.2 oz of weight; consider this for precision builds.
Gas flow follows this sequence:
- High-pressure gas exits the barrel via the port, entering the gas block.
- It travels through the tube, routed above or below the handguard depending on configuration.
- At the upper receiver’s gas key, gas expands into the bolt carrier’s hollow cavity, exerting ≈15,000 psi on the carrier key’s face.
- The carrier’s rearward motion compresses the buffer spring while ejecting the spent casing.
- Remaining gas vents through the carrier’s rear, with ≈85% expelled via the ejection port.
Buffer weight directly affects dwell time: a 5.4 oz H3 buffer delays unlocking by 0.02 seconds versus a 3.0 oz carbine unit, reducing bolt carrier velocity by 12%. Pair heavier buffers with rifle-length systems to mitigate over-gassing. For suppressed setups, switch to an H2 buffer (4.6 oz) to compensate for increased back pressure.
Avoid port erosion by using nitrided or stainless steel barrels–chrome-moly barrels lose 0.004″ of gas port diameter per 5,000 rounds. Drill ports to 0.086″ for 5.56 NATO; undersized ports (0.093″) damage extractors. Clean the gas tube interior annually with a steel bore brush to remove carbon buildup that restricts flow.
Piston-driven systems replace direct impingement components with a three-part assembly:
- Piston rod: replaces the gas tube; hardened steel construction resists deformation under 2,500°F gas temperatures.
- Operating rod: connects to the bolt carrier via a cam pin; requires phosphate coating to prevent galling.
- Gas cylinder: threads into the barrel’s gas block; adjustable versions (e.g., Adams Arms) allow pressure tuning in 5% increments.
For consistent function, torque the gas block screws to 35 in-lbs using thread locker (Loctite 242). Misaligned blocks shear roll pins–replace solid pins with spiral-locking types to prevent migration. Remove carbon fouling from the gas key every 1,000 rounds to maintain seal integrity; a failing seal drops pressure by 30%, causing failures to feed in semi-auto and full-auto modes.
