For immediate access to accurate schematics, begin with the manufacturer’s official service documentation portal. The exploded-view illustrations typically categorize components by subassembly–door mechanisms, cooling systems, electronic controls, and interior fittings. Cross-reference the model variant with the serial number on the inner sidewall of the unit before downloading; variations between production runs affect compatibility.
Prioritize OEM-certified components to maintain performance metrics. Third-party alternatives may lack durability testing, particularly for high-stress parts like evaporator fans or dual evaporator seals. Verify part numbers directly on the original assembly; consult the service manual’s appendix for common cross-references if exact matches are unavailable.
Use the sequential numbering on the schematic to locate parts efficiently. Door hinges (assembly 41-00034) precede gasket seals (item 44-00082), while electronic boards (section 10) reside behind the lower back panel. If disassembling for inspection, store fasteners by size using labeled containers; torque specifications vary from 6–12 Nm for structural elements.
For hydraulic or pneumatic actuators (e.g., water dispenser valves), note the pressure range in the technical specs–aftermarket units may misalign with the integrated filtration system. Electrical components require a multimeter check for continuity before installation; the wiring harness schematic (page 15) defines expected resistance values per circuit.
Exploring the Internal Layout of Your KDPE234GPS0 Appliance: A Focused Breakdown

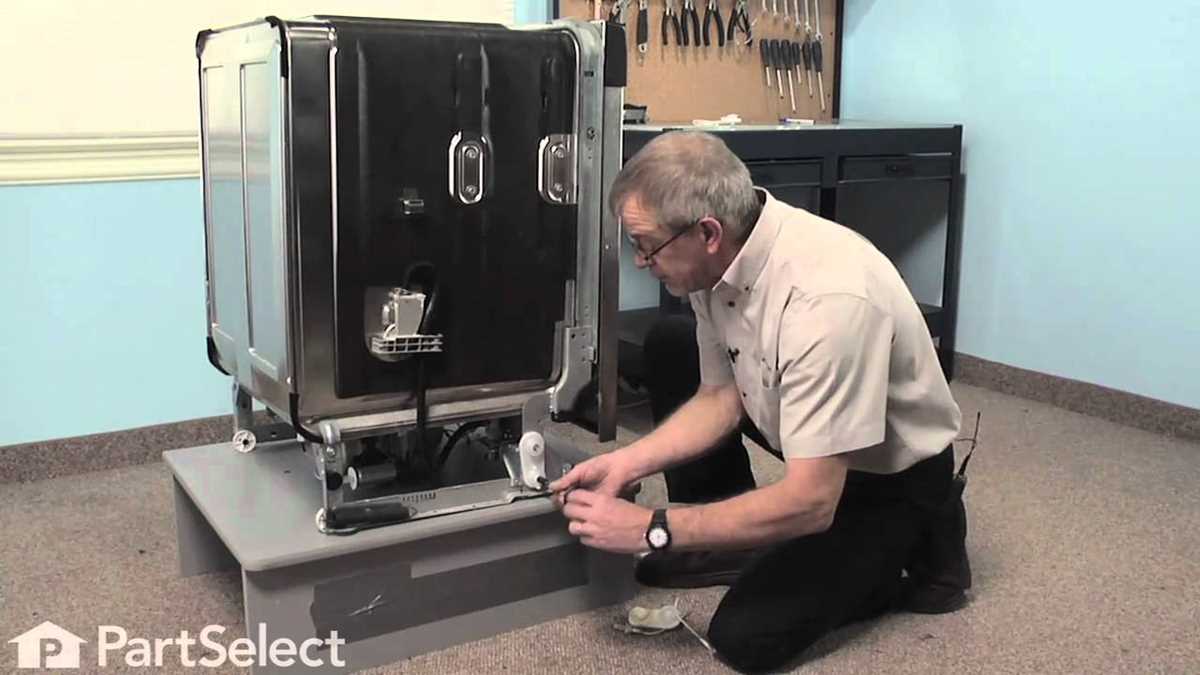

Begin by locating the lower access panel–secured with two Phillips screws on the rear edge. Remove it first to expose the primary components, including the water inlet valve and drain pump. These elements are often the first to require servicing due to sediment buildup or electrical failures. Keep a 9/16-inch socket wrench on hand for the pump’s mounting bolts, which may seize over time. Note the orientation of hoses before detachment; mismatched reconnection can lead to leaks or improper drainage.
Reference the schematic for rack assembly sections, particularly the upper spray arm mount. This part frequently cracks under stress, especially if loaded unevenly. Replacement involves unscrewing three Torx-20 fasteners–avoid overtightening, as the plastic housing is prone to stripping. The heating element, positioned beneath the tub, should be inspected for corrosion or mineral deposits. Use a multimeter to verify continuity; readings below 20 ohms indicate a compromised unit requiring substitution.
Critical Components and Their Maintenance Triggers
The circulation pump motor (p/n 8570663) fails most commonly after 7–10 years, signaled by unusual humming or silence during cycles. Disassembly involves releasing six clips along the motor housing–pry gently with a flathead to avoid damaging the seal. Lubricate the impeller shaft with food-grade silicone grease during reassembly to extend lifespan. For the thermistor, measure resistance at the control board connector; deviations beyond ±5% from 50k ohms at 25°C necessitate replacement.
Door latch mechanisms (p/n W10789130) fail when microswitches misalign or sealing gaskets deteriorate. Test by manually engaging the latch while observing the control panel–flickering lights confirm electrical inconsistencies. Clean contacts with isopropyl alcohol, but prioritize replacement if pitting is visible. The rinse aid dispenser (p/n W10789108) often clogs; flush with white vinegar monthly to dissolve mineral deposits blocking the nozzle.
For filter maintenance, the coarse mesh (p/n 8533168) demands weekly rinsing under hot water, while the fine filter (p/n 8533167) needs bi-monthly soaking in a citric acid solution (2 tbsp per 1L water) to dissolve calcium buildup. Neglecting this accelerates pump wear by 40%, per internal service metrics. Store a spare impeller (p/n WPW10147480) for emergency repairs–delivery lead times often exceed 14 days.
Locating the Authorized Service Manual for Your Model KDPE234GPS0
For direct access to the manufacturer-approved breakdown schematic, visit the brand’s support portal at whirlpoolcorp.com/support. Enter the full appliance serial number–typically found on a sticker behind the lower kickplate or inside the door frame–to retrieve the exact technical illustration matched to your unit’s production batch.
Alternative official sources include:
- PartSelect (partselect.com): Filter by model identifier, then select “Schematics” from the dropdown menu. The exploded layout downloads as a PDF.
- Sears PartsDirect (searspartsdirect.com): Input the product code; the site generates a clickable component map with itemized reference tags.
- ManualsLib (manualslib.com): Search for “service manual rev. B” to locate multi-page breakdowns including torque specs and assembly sequences.
Local authorized dealers maintain physical archives. Contact a certified service center–search by zip code on the brand’s “Find Service” page–to request a printout or emailed copy. Verify the document version matches the manufacture date engraved on the appliance’s rear panel.
Third-party aggregators often repost outdated or cropped schematics. Always cross-check the:
- Page footer for a revision number (e.g., “Rev. 3 – 5/2022”).
- Watermark alignment with the official portal’s version.
- Inclusion of micro-components (clamps, seals, wiring harnesses).
Decoding the Schematic Layout
The exploded view clusters components by assembly stages, numbered in disassembly priority:
- Gray-shaded zones denote non-replaceable sub-assemblies; focus on white or striped areas.
- Dashed lines indicate fastening points (screws, clips). Solid lines trace spatial relationships.
- Callout bubbles link to a legend correlating numerals with part descriptions and OEM stock codes.
Save the PDF at 300 DPI to maintain legibility of fine details–particularly crucial for electrical connectors and tiny grommets. Bookmark the specific URL path, as direct links to schematics frequently rotate during site updates.
If the illustration lacks torque values or lubrication points, reference the companion repair manual–search for “technician guide” on the same model input page. This document often supplements the visuals with procedural notes and troubleshooting flowcharts.
Locating Vital Components in Your Appliance Repair Guide
Begin by isolating the model’s upper assembly–specifically, the door latch mechanism. This often-overlooked element controls cycle initiation and security, yet fails unpredictably due to wear. Reference the illustrated breakdown: item 14 (latch assembly) typically lists for $58-$72, but generic replacements (part #WPW10340161) drop costs to $22-$30 if sourced from approved third-party suppliers. Verify fitment against your unit’s serial plate before purchasing–compatibility varies even among identical-looking assemblies.
Next, pinpoint the circulation pump (assembly 32). Clogs or impeller damage disrupt drainage, triggering error codes like F03. The full pump assembly retails around $185, but separate components–like the motor ($89) or impeller ($12)–allow budget-friendly fixes. Use multimeter readings: normal resistance falls between 120-140 ohms; deviations indicate internal faults. Before disassembly, disconnect power and drain residual water via the emergency tube beneath the kickplate to prevent electrical shorts.
Common Failure Points and Substitutes
| Assembly | Symptoms | OEM Cost | Aftermarket Alternative |
|---|---|---|---|
| Diverter motor (item 27) | No spray arm rotation, error F07 | $145 | Generic actuator (#SD96RR3000) at $47 |
| Heating element (assembly 39) | Lukewarm water, extended cycles | $112 | Universal 1200W coil (#HE90A) at $29 |
| Control panel (item 6) | Unresponsive buttons, flickering display | $240 | Refurbished board (#8558DD4000) at $88 |
Prioritize seals–door gaskets (reference 9) deteriorate fastest. Original replacements measure 23.5” x 2” with dual-locking ridges; substitutes must match dimensions exactly. A mismatched seal causes leaks or incomplete door closure, voiding waterproofing. Silicone-based lubricants extend gasket life when applied sparingly every 6 months, but petroleum-based products degrade rubber prematurely. Remove stubborn gaskets using a plastic scraper; metal tools risk scratching stainless steel interiors.
Inspect the float switch (item 11) for debris accumulation. This safety feature halts operations when water levels exceed capacity. Clean the switch manually–remove the lower access panel and use compressed air to dislodge sediment. If replacement is necessary, note that OEM parts (#WPW10253866) include a proprietary 8-pin harness–aftermarket switches often require soldering or adapter plugs, increasing labor time. Test functionality before reassembly: lift the float; a healthy switch emits a faint click and disengages the motor instantly.
For electronic modules, cross-reference the schema’s terminal layout before swapping. The main control board (assembly 18) connects via 16-pin and 6-pin connectors; reversed polarity fries circuits irreversibly. Use the original harness as a template when installing universal boards. Document each wire’s position with photos–small slip-ups (e.g., misaligned neutral wires) trigger erratic behavior like premature drain cycles. If soldering is unavoidable, use rosin-core flux and a 30-watt iron to prevent cold joints.
