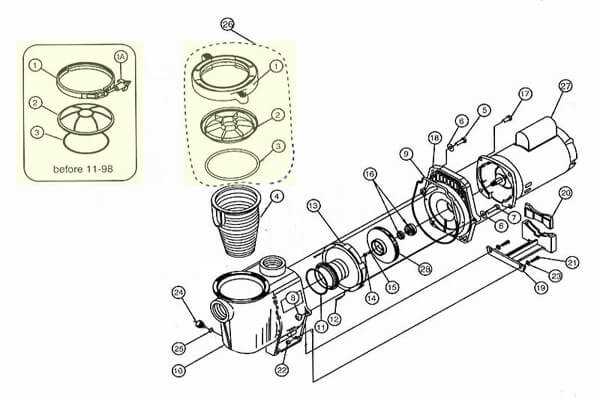

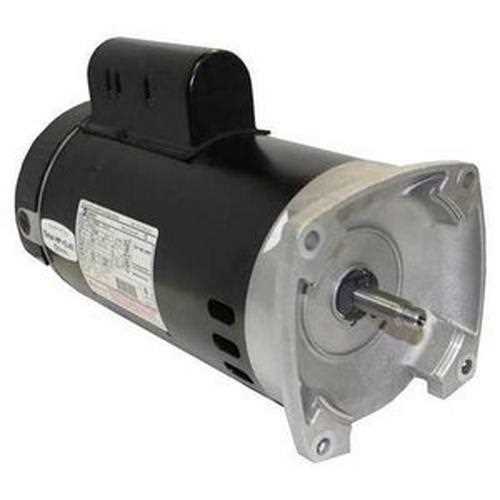

When repairing or maintaining a high-flow water circulation device, reference the exploded view schematic for precise component identification. The impeller housing–typically labeled near the motor shaft–must align with the seal plate within a 0.5mm tolerance to prevent leakage. Locate the volute casing at the discharge end; cracks here reduce efficiency by up to 18% and require immediate resin epoxy reinforcement.
Check the diffuser gasket (part #CS12-XY) for compression deformities–ideal thickness is 3.2mm when new. The motor’s capacitor (oval-shaped, usually 15–25 microfarads) sits adjacent to the thermal overload protector; test with a multimeter at 110–120V AC for a 5–10% variance from rated capacitance. Replace if readings exceed 15%.
Threaded unions connecting intake/exhaust ports should use #8–#12 Teflon tape; avoid over-tightening, which risks damaging the polypropylene flange (max torque: 12 Nm). For pre-2015 models, verify the louvered vent position–misalignment here increases motor temps by 22°F, accelerating stator wear.
Use a caliper to measure the shaft sleeve diameter (nominal: 12.7mm ±0.1mm). Corrosion beyond 0.3mm depth mandates replacement to avoid impeller wobble. For electrical diagnostics, probe the start winding (resistance: 4–7 ohms) and run winding (resistance: 2–4 ohms); deviations indicate insulation failure.
Understanding Your Aquatic Circulation System Component Layout
Begin by locating the impeller housing – the curved casing behind the strainer basket. If debris clearance seems inefficient, remove the six 10mm bolts securing this section. Inspect the vanes for wear; measurements below 3.2mm indicate replacement necessity. Keep track of each bolt’s original position as thread engagement varies between top and side placements.
Check the diffuser assembly next. This white plastic ring surrounds the impeller and includes three pressure channels. Use a flashlight to verify channel depth – minimal erosion around the outer edge affects flow rates by up to 18%. Match replacement parts with model-specific part numbers listed in the table below:
| Component | Part Number | Material | Pressure Test Rating |
|---|---|---|---|
| Impeller (Standard) | SPX3500ANC | Glass-filled Noryl | 15 PSI |
| Diffuser Ring | SPX3501DI | ABS | 12 PSI |
| Shaft Seal Kit | SPX3000SLS | Carbon-Ceramic | 25 PSI |
Shifting focus to electrical connections, trace wires from the capacitor to their terminals. The thermal protector (black cylindrical switch) should show no cracks or burn marks. Test continuity with a multimeter; resistance values outside 8-12 ohms suggest overheating. Label wire positions before disconnecting as incorrect reconnection risks motor burnout.
Examine the housing seal and bearing assembly last. Rotate the shaft manually while listening for grinding – this confirms bearing integrity. Lubricate with silicon-based grease only, avoiding petroleum products that degrade rubber seals. Tighten the impeller nut to 18-22 ft-lb torque; over-tightening distorts shaft alignment, causing premature seal failure.
For maintenance scheduling:
– Clean intake screens every 4 weeks in high-usage periods
– Replace mechanical seals annually if operating >6 hours daily
– Log shaft vibration readings bimonthly; deviations above 0.3 mm/s RMS signal bearing wear
Locating Critical Elements in a Motorized Water Circulator Assembly Blueprint
Examine the impeller housing first–its curved vanes dictate flow efficiency. Match the component’s serial number to the manufacturer’s reference chart to confirm compatibility, as variations exist between models even within the same series. The seal plate, positioned directly behind the impeller, often harbors the most frequent wear points; inspect the ceramic face for hairline fractures or pitting. Replace this entire assembly if corrosion exceeds 1mm in depth to prevent shaft misalignment, which cascades into premature bearing failure.
Trace the shaft from the impeller hub to the motor coupling–lateral play should not exceed 0.005 inches. Lubricate the diffuser gasket with silicone-based grease rated to 250°F before seating; improper installation causes air leaks that mimic clogged inlet symptoms. Document torque values for all fasteners–most housing bolts require 12-15 ft-lbs, while the basket strainer lid clamp needs 8-10 ft-lbs to prevent O-ring distortion.
Step-by-Step Guide to Locating the Impeller in a Motorized Water Circulation Unit
Disconnect power at the circuit breaker and release stored pressure by removing the lid from the housing–pry the cover screws counterclockwise with a #2 Phillips driver, targeting the recessed holes at 3, 6, and 9 o’clock positions. Rotate the volute assembly (the rear casing segment) clockwise until the locking tabs disengage; grip both halves firmly, apply steady traction, and wiggle if resistance persists.
Once separated, inspect the shaft end–exposing the brass rotor nut secured by a 13mm hex fitting (left-hand thread; turn right to loosen). Slide a 5/16-inch Allen key into the shaft’s recessed socket to prevent rotation while applying 35 ft-lbs of torque to the nut with a breaker bar. Lift away the diffuser ring (gray thermoplastic collar) to reveal the impeller; embedded vanes curve opposite the spin direction–confirm by tracing the inlet flow path from the suction side (larger eye diameter) toward the discharge outlet.
Decoding Your Aquatic Equipment Motor Wiring Schematic for Troubleshooting
Locate the voltage rating label on the motor housing–typically 115V or 230V–to confirm compatibility before proceeding. Mismatched power sources will damage internal coils immediately. Check the terminal board for labeled connections: “Line 1” (L1), “Line 2” (L2), “Ground” (GND), and sometimes a separate “Neutral” (N) if dual-voltage models require it. Single-speed units omit capacitor terminals; variable-speed variants include them marked “Cap” or “Run.”
- 115V hookups: Wire L1 to the primary hot terminal, L2 to the secondary hot terminal, and GND directly to the grounding screw.
- 230V hookups: Connect L1 and L2 across both hot terminals; GND remains unchanged.
Identify capacitor symbols–a curved line intersecting a straight line–to prevent miswiring surge-sensitive components. Microfarad values (e.g., 10µF–50µF) dictate starter torque; consult nameplate specs for exact replacements. Motors with thermal overload protectors display a bimetallic switch icon (circular outline with diagonal break)–if tripped, wait 30–60 minutes before resetting manually via red button.
Trace color-coded wires from switch to motor windings: black (L1), red (L2), white (neutral if applicable), green/yellow (ground). If existing wires appear brittle, splice with equal-gauge heat-resistant copper wire (minimum 14 AWG). Rotate the shaft by hand post-wiring; binding indicates bearing failure, while smooth rotation confirms correct assembly.
- Disconnect power at the breaker.
- Verify multimeter readings: 0Ω across windings when off, infinite resistance to GND.
- Reconnect power; measure voltage at terminals–should match supply (±5%).
- Observe current draw during startup–exceeding nameplate amperage signals internal short.
Look for centrifugal switch symbols (dashed circle or cam icon) on single-speed models–these disengage starter windings after reaching ~75% operational RPM. If unit hums without spinning, the switch contacts may be fused; replace the entire switch assembly rather than attempting repairs. Variable-frequency drives integrate heatsinks–ensure proper airflow or risk thermal shutdown within minutes.

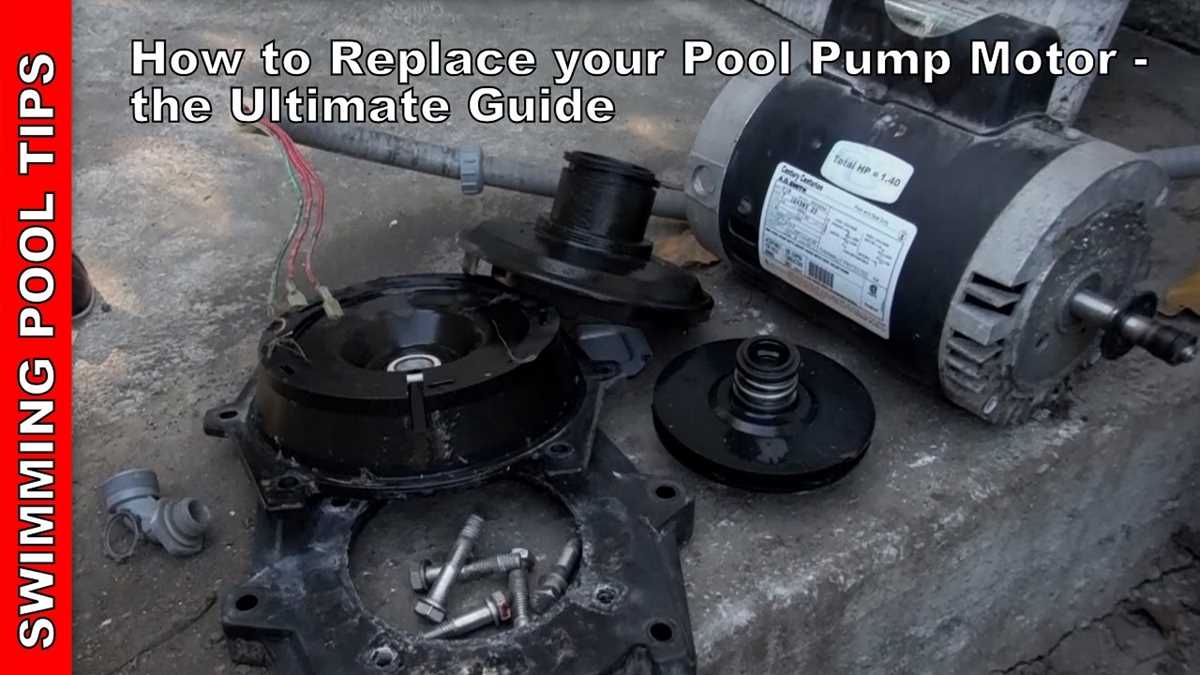

Replacing the Seal Plate: Tools and Components for Specific Motor Designs
Gather a 7/16-inch socket wrench, needle-nose pliers, a flathead screwdriver, and a torque-measuring tool before starting. Most housing assemblies for 1-1/2 HP and 2 HP variants require these exact tools to avoid stripping threads. Keep a clean rag nearby–lubricant residue must be wiped off immediately to prevent contamination of the new sealing surface.
Check the model number on the motor casing to confirm compatibility. The 340000 series uses seal plate part #34-0390, while 2-speed models (e.g., VGreen 1.65) require #34-0402. Third-party equivalents may fit but often lack the precision-milled ridges that prevent leaks under high RPMs. Purchase from authorized dealers–generic versions can warp after 40–60 operational hours.
Remove the impeller using a strap wrench or by gripping the shaft with vise grips–apply steady pressure to avoid shearing the stainless steel. The backside of the impeller hides a ceramic seal; inspect it for cracks. If present, replace it (PN #35-5104 for single-speed, #35-5106 for dual-speed). Skipping this step leads to shaft corrosion within 3 months.
Torque Specifications and Post-Installation Checks
Secure the new seal plate with four 1/4-inch bolts, tightening them in a cross pattern to 12–15 ft-lbs. Over-tightening distorts the machined surface, causing misalignment with the housing. Apply a thin layer of silicone grease (Dow Corning 111) to the O-ring groove–this prevents drying and ensures a watertight seal under 3,450 RPM loads.
Reinstall the impeller by threading it counterclockwise until it bottoms out, then back off 1/4 turn. This gap prevents thermal expansion from binding the shaft. Use a dial indicator to verify the impeller’s runout doesn’t exceed 0.003 inches–excess wobble accelerates bearing wear. If readings exceed tolerance, the shaft or seal plate may be defective.
Prime the system by filling the chamber with water before powering on. Listen for irregular high-pitched noises–squealing indicates insufficient lubrication or a misaligned seal. Run the motor for 10 minutes, then inspect the seal plate’s perimeter for moisture. Persistent leaks signal a damaged O-ring or improper torque on the bolts.
Store the old seal plate for diagnostics if issues persist; some motors (like the VS series) require additional shims (#34-0415) behind the plate to maintain proper clearance. Keep spare O-rings (PN #35-0070) on hand–they degrade after 12–18 months of chlorine exposure.
