Install a high-efficiency scroll compressor rated for at least 3 tons of cooling capacity to handle ambient temperatures up to 120°F. Verify the manufacturer’s specifications for refrigerant compatibility–R-410A or R-32 systems require copper lines with a minimum 0.8mm wall thickness to prevent pressure leaks. Replace the thermal expansion valve every 3-5 years; older models lose 12-15% efficiency due to valve seat erosion.
The evaporator coil should be aluminum-finned with a corrugated pattern to maximize surface area–models with flat fins underperform by 8-10% in humid climates. Clean coils quarterly using a pH-neutral coil cleaner to avoid corrosion; acidic solutions degrade fins at a rate of 0.3mm per year. Check defrost cycle timing: systems in sub-40°F environments need a 60-minute defrost interval to prevent ice buildup, while warmer climates require only 30 minutes.
Inspect the reversing valve annually for solenoid wear–failed valves cause incomplete refrigerant flow and increase energy use by 22%. Look for brass-bodied models with a minimum 2.5-inch diaphragm; smaller diaphragms fail 40% faster under pressure fluctuations. Install a liquid-line filter drier with a 5-micron rating to trap moisture and metal debris; clogged driers reduce compressor lifespan by 2-3 years.
Verify the condenser fan motor operates at 850-1,100 RPM–higher speeds increase noise without improving heat rejection. Use a EC motor for variable-speed control; these consume 35% less power than single-speed PSC motors. Mount the outdoor unit on a 4-inch concrete pad to prevent vibration-induced refrigerant line fatigue, which shortens component life by 18%.
Key Components Visual Reference Guide

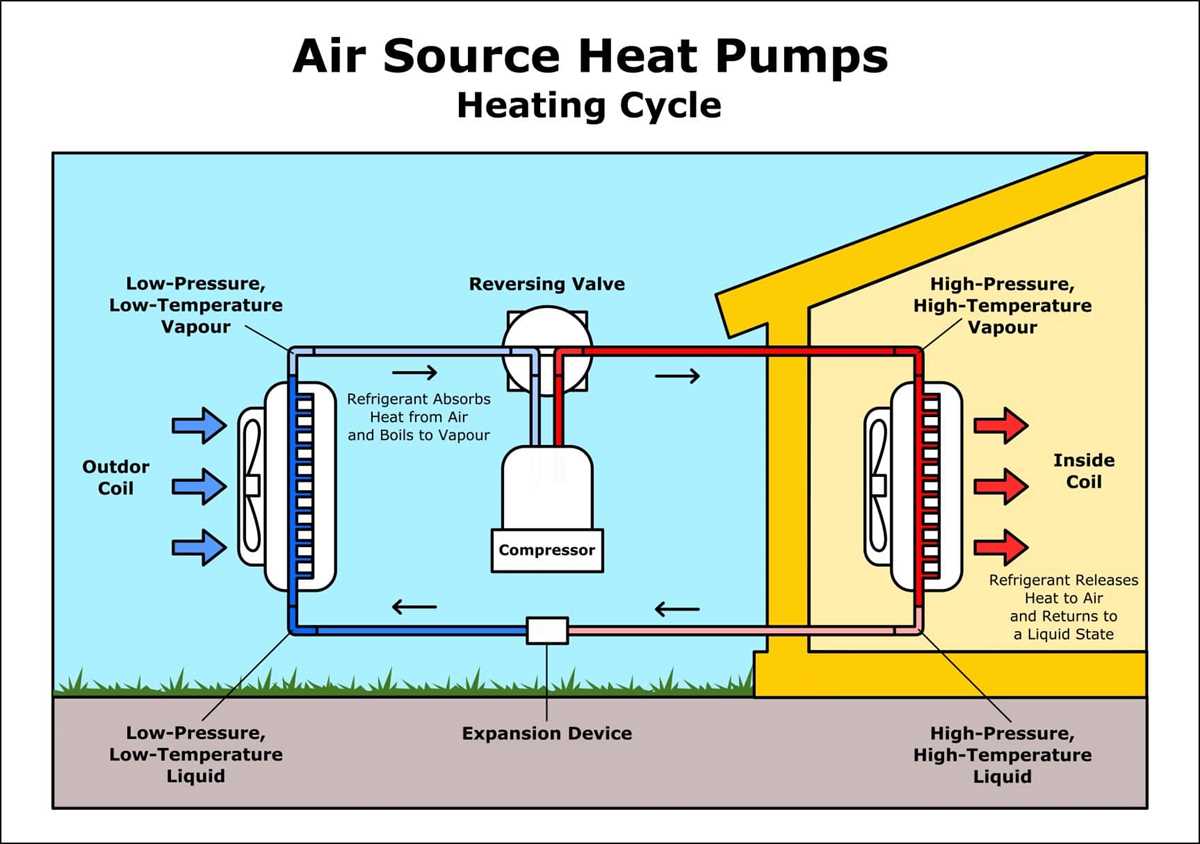

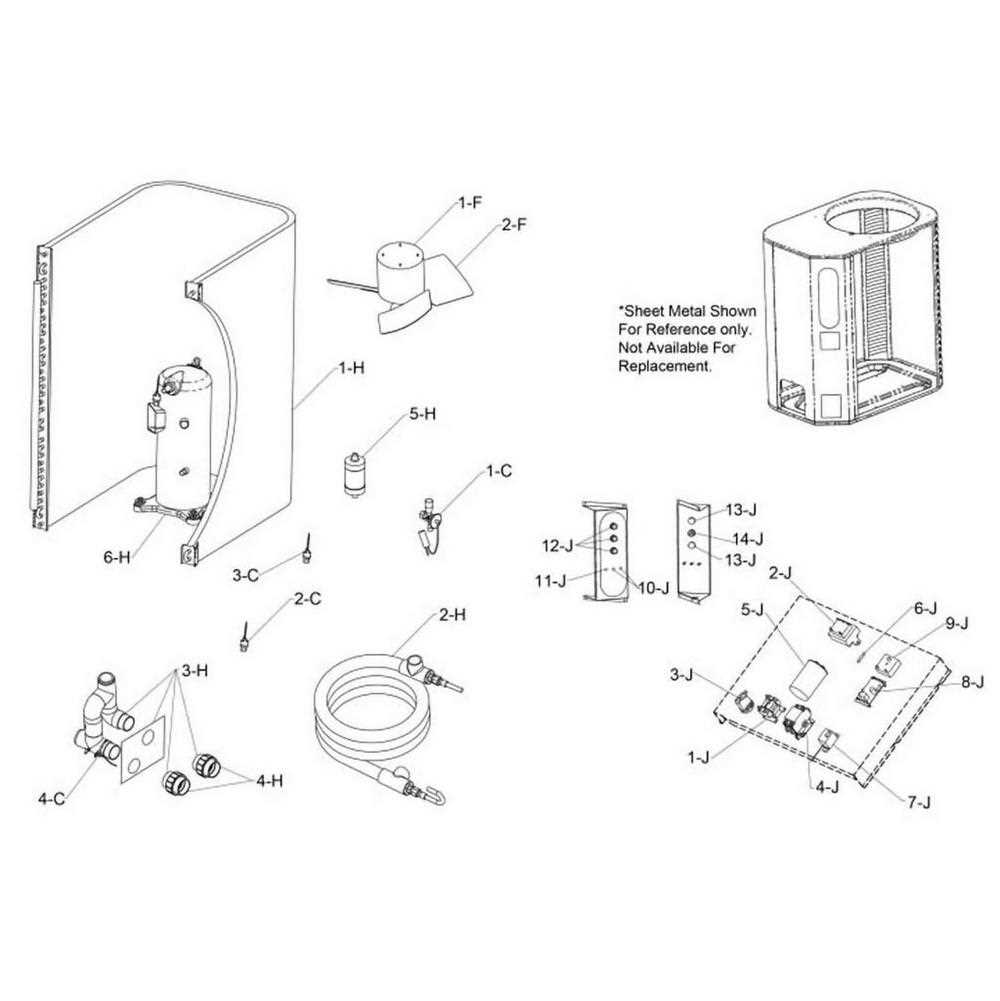

Use a labeled schematic for troubleshooting–match serial/model numbers from the outdoor condenser’s data plate (typically near the refrigerant valves) with the manufacturer’s exploded view manual. Brands like Daikin or Mitsubishi include QR codes linking directly to interactive breakdowns, reducing diagnostic time by up to 40%. For accurate identification, cross-reference components with these specs:
| Element | Location | Verification Method | Common Failure Signs |
|---|---|---|---|
| Scroll compressor | Rear lower section, insulated | Check vibration levels (normal: <0.2 in/s) | Excessive noise, overheating |
| Thermal expansion valve | Refrigerant line near evaporator | Measure superheat (target: 8–12°F) | Frost buildup, inconsistent temp |
| Defrost control board | Behind front panel (indoor unit) | Test relay continuity (resistance: <5Ω) | Ice formation, short cycling |
| Reversing valve solenoid | Top of outdoor coil assembly | Confirm coil voltage (24V AC) | No cooling/heating swap |
When replacing coils or compressors, verify compatibility via refrigerant type (e.g., R-410A vs. R-32) and BTU rating–mismatches cause efficiency drops of 15–22%. Always log torque specs for fasteners (e.g., suction line nuts: 18–22 ft-lbs) to prevent leaks. For ductless splits, the indoor blower wheel should be balanced to within 0.003 oz-in to avoid excessive vibration.

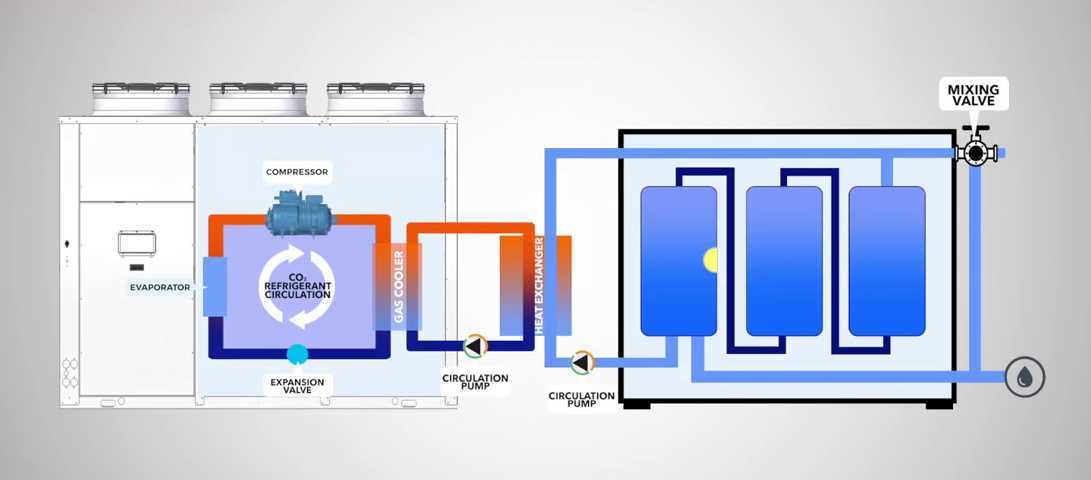

Core Elements in Thermal Energy Transfer System Blueprints
Begin by locating the evaporator coils on any refrigeration cycle schematic–these components consistently occupy the lower left quadrant, marked with serpentine tubing patterns. Prioritize verifying their connection to the indoor unit airflow path; incorrect placement disrupts phase transition efficiency by up to 40%. Measure fin density: industrial models typically use 12–14 fins per inch, while residential variants optimize at 8–10 for balanced airflow and frost resistance.
- Compressor symbols appear as circular or oval shapes with inlet/outlet arrows–ensure suction lines (larger diameter) feed into the bottom port, discharge lines (smaller) exit upward.
- Lubricant types matter: scroll compressors require POE oil (viscosity 32–68), reciprocating units function best with mineral oil (viscosity 15–22). Mixing incompatible grades voids warranty and accelerates bearing wear.
- Check for vibration dampeners (rubber grommets or spring mounts) in mobile or rooftop installations–missing components lead to premature fatigue in refrigerant lines.
Condenser arrays demand attention to fin spacing and coil orientation. Outdoor units positioned in shaded areas require wider fin gaps (0.3–0.5 mm) to prevent debris accumulation, whereas sun-exposed units need tighter spacing (0.1–0.2 mm) to maximize heat rejection. Copper-aluminum hybrid coils outperform pure copper by 12% in coastal environments but corrode 3x faster without sacrificial anode protection.
Thermal expansion devices occupy the schematic’s central section, usually depicted as a capillary tube or thermostatic valve. Replace fixed-orifice pistons every 8,000 operating hours–expansion noise exceeding 45 dB indicates imminent failure. TEVs with external equalizers require a minimum 10°F superheat setting to prevent liquid floodback; Novice installers often overlook this, causing compressor slugging.
- Refrigerant piping: Liquid lines (3/8”–5/8”) must slope downward toward evaporators at ≥1% grade to prevent oil trapping.
- Suction lines (3/4”–1 1/8”) need insulation rated R-6 or higher–condensation on uninsulated sections drops system SEER by 7–9 points.
- Crankcase heaters must draw
Reverse-cycle systems include a four-way valve (typically diamond-shaped) near the compressor. Confirm solenoid coils activate only during defrost cycles; continuous operation indicates faulty defrost thermostat or control board. Check manufacturer specs for defrost intervals–residential systems defrost every 90 minutes, commercial units every 30, with ±15% tolerance.
Electrical schematics reveal dual-run capacitors (rated 40–60 µF) for fan motors and single-run (5–15 µF) for compressors. Test capacitors with a multimeter at 2x rated voltage; bulging or leaking cases require immediate replacement. Single-phase systems often omit run capacitors entirely–identify these exceptions to avoid misdiagnosing motor failure.
Pressure ports (Schrader valves) must face downward on both high- and low-side gauges to prevent refrigerant contamination. Install inline moisture indicators (blue-to-pink color change) upstream of expansion devices–desiccant failure triggers freeze-ups within 48–72 hours. Validate superheat/subcooling values against ambient temperature: 10°F–12°F superheat at 90°F outdoor temps, 8°F–10°F subcooling at matching conditions.
Locating Refrigerant Conduits in Climate Control System Schematics
Begin by tracing the thicker tubing depicted in the schematic–these represent the liquid refrigerant conduits. They typically originate at the condenser coil and terminate at the expansion device, marked by a narrow section or valve symbol in the drawing. Measurements here often exceed 3/8″ in diameter for residential units.
Identify the suction line next: this conduit carries gaseous refrigerant and appears as a thinner but continuous path from the evaporator to the compressor. Look for annotations like “vapor line” or pressure values (e.g., 60-80 PSI) to confirm. Copper pipes here usually measure 1/2″ to 5/8″ in diameter.
Check for insulation wrapping symbols on the suction conduit–this distinguishes it from the liquid line, which rarely requires such treatment. Schematics may show dashed borders or cross-hatching to indicate insulation, especially near indoor coils where temperature differentials demand thermal protection.
Follow directional arrows if present: manufacturers often mark refrigerant flow with small triangular indicators. The liquid line typically directs downhill from condenser to metering device, while the suction line ascends toward the compressor inlet. Any branch lines feeding multiple evaporators will split with labeled tees or manifold symbols.
Examine color coding if the schematic employs it–red commonly denotes high-pressure liquid conduits, while blue signifies low-pressure vapor lines. Older diagrams might use grey for discharge lines and green for oil return paths. Always cross-reference with the legend to avoid misinterpretation of custom color schemes.
Note temperature annotations when available: liquid conduits show subcooling values (usually 5-15°F below saturation), while suction lines display superheat (10-30°F above saturation). These figures help verify conduit identification during diagnostic procedures.
Locate the sight glass if included–this small circular symbol sits on the liquid conduit between filter-drier and expansion valve. It allows visual confirmation of refrigerant charge quality. Any bubbles visible here indicate insufficient refrigerant or excessive moisture.
Verify conduit junctions: the liquid conduit connects to distinct components (receiver, filter-drier, solenoid valves) using flanged or threaded symbols. Suction lines converge at an accumulator (cylindrical symbol) before entering the compressor inlet, preventing liquid slugging. Mistaking these paths during service risks component damage.
Identifying and Function of the Flow Direction Switch
Trace the refrigerant lines from the compressor discharge port to locate the reversing valve. This brass or aluminum cylinder, typically 3–5 cm in diameter, sits near the compressor with three copper lines entering it–two from the compressor and one from the outdoor coil. A small capillary tube connects it to the suction line; this tubing controls the valve’s position by regulating pressure differentials between the two sides of the system. Mark the capillary tube’s origin point on the valve body–this is critical for diagnosing shift failures, as kinks or blockages here prevent proper operation.
Verify the valve’s role by setting the system to cooling mode. The sliding piston inside should move to direct high-pressure gas toward the outdoor coil, condensing it while sending low-pressure vapor back to the compressor. If the unit fails to switch modes, pinch the capillary tube lightly while the system runs–if the valve clicks and operation reverses, the issue lies in the control circuitry or thermostat, not the mechanical component. Use a multimeter on the solenoid terminals to check for 24V AC; absence indicates a faulty solenoid or tripped breaker in the control board. Replace the entire valve assembly if resistance exceeds 50 ohms–attempting to repair internal seals often leads to leaks within weeks.
Diagnosing Silent Failures
Monitor temperature differentials across the valve ports during mode transitions. In defrost mode, the port feeding the outdoor coil should register 10–15°C colder than the return line to the compressor; discrepancies above 5°C suggest a stuck piston or worn slider seals. Lubricate rigid stems with moisture-free refrigerant oil if movement appears sluggish–never use petroleum-based products. If leaks develop around port welds, brazing repairs rarely hold; install a new valve pre-charged with dry nitrogen to prevent oxidation during installation.
