Replace the air filter every 25 operating hours if working in dust-heavy conditions; the C-shaped seal (part #1127 020 1201) must align perfectly with the housing groove or debris bypass will damage the engine. The carburetor diaphragm (part #1121 120 0605) requires inspection for cracks after 50 hours–micro-tears cause lean fuel mixtures, leading to piston seizure. Lubricate the crankshaft bearings (part #1123 020 0400) with ISO VG 100 oil every 100 hours; neglect results in premature wear detectable by metallic knocks at idle.
Locate the clutch assembly (part #1125 020 4200) beneath the flywheel cover. Remove the spark plug and insert a reciprocal piston stop (tool #5910 890 5301) through the plug hole to prevent crankshaft rotation during disassembly. Failure to secure the piston risks damaging the connecting rod (part #1122 020 0700) or cylinder sleeves. The chain brake band (part #1128 020 2100) should engage within 0.2 seconds of activation–test with a digital stopwatch; slower response indicates spring fatigue (part #1128 020 2103).
Disassemble the oil pump (part #1129 020 0100) by removing the guide bar and chain. Check the pump gears for chipping; irregular wear reduces oil flow to the bar groove, causing friction burns (visible as blue-black discoloration on the bar rails). The throttle trigger (part #1110 020 2100) must return fully within 1.5 seconds after release–adjust the return spring tension (part #1110 020 2101) if delayed. Inspect the muffler (part #1138 020 0100) for carbon buildup every 30 hours; restricted exhaust flow raises cylinder temperatures by 15–20°C, accelerating piston ring wear.
Refer to schematics when reassembling the recoil starter (part #1134 020 3100). Ensure the pawl (part #1134 020 3102) engages the flywheel teeth at a 12° angle; misalignment reduces pulling force by 30%. The ignition module (part #1141 020 0100) requires a 0.3–0.4 mm gap–measure with a feeler gauge and adjust via the module’s mounting slots. Use torque specifications: clutch drum bolts (14 Nm), cylinder head screws (10 Nm), and sprocket nuts (8 Nm). Over-tightening distorts the crankcase (part #1126 020 0100), causing oil leaks at the gasket mating surface (part #1126 020 0102).
Clean all components with ethanol or mineral spirits–avoid pressurized air on sealed bearings. Store parts in labeled containers by subsystem: fuel, ignition, drive, and cooling. Cross-reference exploded views with serial number suffixes; early models (pre-2018) use a different flywheel key (part #1132 020 0101) than later variants. Replace the fuel line (part #1107 020 1100) every 200 hours; deteriorated rubber compromises fuel pressure stability, causing surging at partial throttle. Mark worn parts for immediate ordering–delay accelerates secondary damage to adjacent assemblies.
MS 461 Chainsaw Component Breakdown: Hands-On Reference
Locate the carburetor rebuild kit under the air filter housing by removing the four Torx T27 screws–ignore generic aftermarket gaskets, as OEM seals (part #1123 120 0605) prevent fuel leaks. The diaphragm must be positioned with the raised side facing the crankcase, or the idle mixture screw won’t seat properly.
Disassemble the clutch by locking the flywheel with a strap wrench (not vise grips) and loosening the central 14mm nut in a counterclockwise direction. The three spring-loaded clutch shoes (part #1121 100 1503) often crack at 300 operating hours–replace preemptively during bar maintenance to avoid unexpected disengagement under load.
Engine Disassembly Checkpoints
Remove the cylinder by first extracting the two 6mm studs at the base with a Slimline socket–standard sockets won’t clear the fin spacing. Inspect the piston rings for scoring: lateral wear exceeding 0.004″ (measured with a micrometer at the thrust face) necessitates full cylinder replacement (part #1127 020 2100) rather than honing, as the Nikasil coating has a 0.002″ minimum thickness.
The ignition module mounts behind the flywheel with three-star washers–torque these to 55 in-lbs using a beam-style torque wrench. The pick-up coil (part #1120 400 0600) typically fails after 400 hours; test resistance between the brown and black leads (240–350 ohms at 20°C) before reassembly.
Track bar tension relies on the anti-vibration system’s six rubber buffers–replace all buffers simultaneously (part #1127 100 2508) when sag exceeds 1mm, as uneven degradation causes chain derailment. The sprocket nose bearing (part #1123 640 0505) requires lithium grease applied directly to the rollers before installation; lightweight oils migrate under heat.

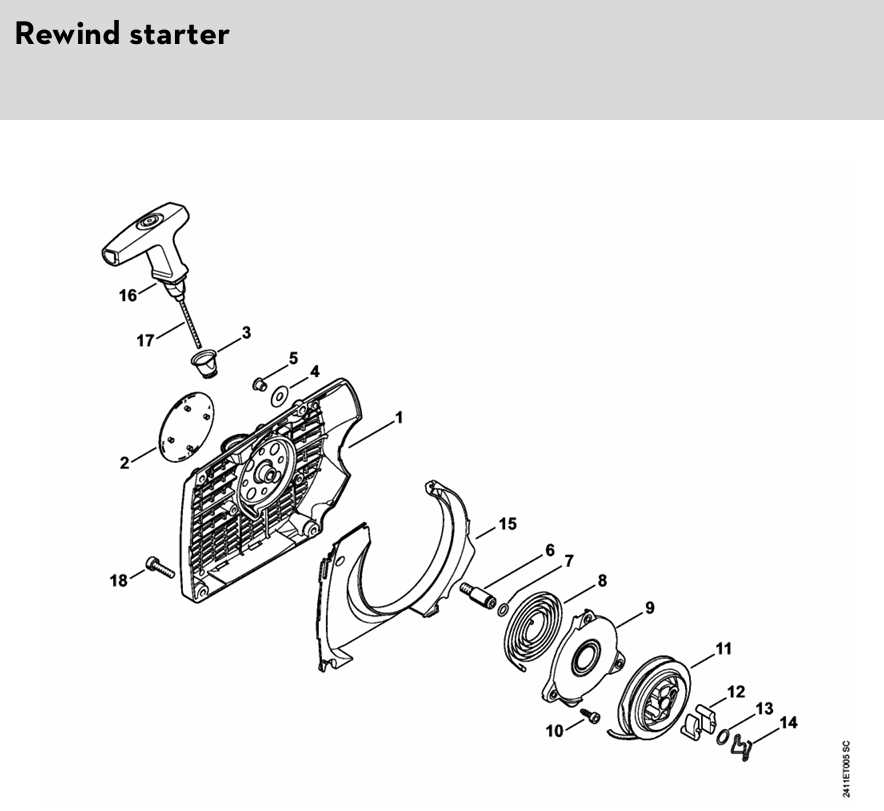

Reassemble the starter assembly by aligning the recoil spring’s hook with the housing notch–a misalignment slips during engagement. The starter rope (part #1116 410 0700) frays at 150 pulls; lubricate the pulley with dry silicone spray to extend lifespan.
Verify crankshaft straightness after clutch removal: mount a dial indicator at the PTO end and rotate–the runout should not exceed 0.001″. If exceeded, the crankshaft (part #1121 020 0500) requires replacement, as repair attempts compromise bearing journals.
Where to Locate Authorized Schematics for the MS 462 Chainsaw Model
Begin with the manufacturer’s regional portals, where official breakdown illustrations are hosted. Each country’s localized support site provides a searchable database–enter the product’s exact serial number or model variant to retrieve the correct schematic. For instance, the U.S. portal (stihlusa.com) includes a “Parts Lookup” tool that filters components by engine type, bar length, and assembly grouping.
Select authorized service centers maintain their own archives of print-ready exploded views. Locations listed on the manufacturer’s store finder (stihl.com/store-locator) often permit on-site access to these documents, or they may email them directly if requested. Call ahead to confirm availability–some centers require proof of ownership before sharing.
Key Online Sources for Mechanical Breakdowns
| Source | Access Method | Notes |
|---|---|---|
| Manufacturer’s EU portal | Serial/model search | Multiple language options, including exploded PDFs |
| Authorized dealer intranet | Login credentials via dealership | Password-protected, high-resolution schematics |
| Sector-specific forums | User-uploaded archives | Verify against official versions–third-party accuracy varies |
| Equipment repair databases | Paid subscription | e.g., RepairClinic, ShopKey Pro |
Certain third-party technical databases aggregate mechanical breakdowns but may exclude newer revisions. Subscriptions to platforms like ArboristSite or HeavyEquipmentForums provide community-shared schematics, though discrepancies often arise between versions. Cross-reference these against the manufacturer’s version to identify variances in component placement.
Physical service manuals supplied at purchase typically include a single-page exploded view for major assemblies (engine, chain brake, carburetor). If the original manual is missing, replacement booklets can be ordered through authorized dealers–quote the model’s exact configuration, as variants exist for different fuel capacities and bar lengths.
For immediate access without relying on digital sources, scan the QR code printed on the product’s certification label. This directs to a mobile-optimized schematic hosted on the manufacturer’s server, bypassing regional portal navigation. Ensure the device used has sufficient storage–high-resolution breakdowns may exceed 10MB.
Step-by-Step Identification of Key Components in the Professional Chainsaw Schematic
Begin with the powerhead assembly–locate the cylinder marked by cooling fins and a cast aluminum housing. Verify the serial number near the exhaust port; mismatches indicate non-OEM replacements. The piston should slide freely with minimal lateral play; excessive resistance suggests worn rings or scoring.
Inspect the crankcase next. Check the oil pump drive gear (helical-toothed) for wear; stripped gears reduce lubrication pressure. The clutch drum and sprocket must spin independently of the crankshaft; binding indicates bearing failure. Use a feeler gauge to measure crankshaft end play–tolerances above 0.15mm require thrust washer replacement.
Critical Filtration and Fuel System Analysis
Remove the air filter housing to access the intake manifold. The semi-permanent filter element must be free of debris; torn edges allow unfiltered air, accelerating internal wear. Examine the carburetor mounting flange for cracks–compromised seals cause fuel leaks or lean running conditions. The fuel pump diaphragm should flex without stiffness; hardening indicates ethanol damage.
Trace the fuel line from the tank to the carburetor. Replace brittle hoses immediately; degraded lines collapse under vacuum, starving the engine. Check the impulse line for blockages–clogged ports prevent proper pump operation. The primer bulb must inflate fully when depressed; incomplete inflation reveals a ruptured diaphragm or faulty check valves.
Bar and Chain Mechanism Verification
Examine the guide bar for uneven wear patterns. Rails should be parallel with no more than 0.5mm deviation. Measure the sprocket nose diameter–dimensions below 7.2mm reduce chain engagement efficiency. Replace the bar if groove depth exceeds 80% of original specifications.
The drive link gauge must match the bar’s pitch. Use a chain breaker to replace damaged cutters; improper seating causes premature stretching. Verify the chain tension with a 3kg pull test–proper tension allows 2-3mm lift at the bar’s midpoint. Excessive sag accelerates rail and sprocket wear.
Check the chain brake band for fraying. The band should engage fully under a 10N trigger force; weak springs or misalignment prevent safe operation. Inspect the kickback guard for cracks–damaged guards fail to halt the chain during sudden stops. Replace worn components in pairs to maintain balance and avoid premature failure.
