For precise repairs or upgrades, locate the drive system schematic in the manufacturer’s service manual–typically section 3, page 12. This document outlines wiring harness connectors, motor terminals, and controller pinouts, eliminating guesswork. If sourcing schematics online, verify the model number etched on the chassis plate matches the diagram; mismatches cause irreversible faults in regenerative braking or power distribution.
Replace worn battery interconnects with 2/0 AWG copper cables rated for 250+ amps to prevent voltage drops under load. Terminal corrosion occurs within 18 months in humid climates–clean contacts with a wire brush and apply dielectric grease every six months. For lithium battery swaps, ensure the BMS supports 48V systems with a peak current draw exceeding 400A; undersized BMS triggers thermal shutdown during acceleration.
Front suspension struts fail silently–listen for a metallic clunk over bumps at speeds above 15 mph. Inspect the A-arm bushings for radial cracks; torn bushings misalign wheel camber, increasing tire wear by 30%. Rear leaf springs sag 12% after 5,000 miles–measure unloaded arch height against factory specs (1.75″ ± 0.125″). Swap springs in pairs to maintain balance; mismatched pairs cause lateral drift on inclines.
Steering columns bind when the U-joint wears below 0.030″ clearance–replace it alongside the lower tie rod ends if play exceeds 3/16″. Dashboard voltage meters drift ±2V without calibration; cross-check with a multimeter probing the DC-DC converter output (should read 14.2V–14.8V at 3,000 RPM). Ignore “service soon” lights unless diagnosed–false positives reach 18% in models with CAN bus failures.
Upgrade the parking brake actuator to stainless steel cables if corrosion renders the original cables brittle–test pull force at the handle should exceed 45 lbs. Brake pads glaze after 50 emergency stops; bed them in with three 30-0 mph stops from dry pavement, then allow 30 minutes cooldown. Drivetrain noise at 2,500 RPM often traces to the differential spider gears–add 16 oz. of 80W-90 synthetic gear oil static fill to minimize wear after gear replacements.
How to Locate and Interpret Electrical Vehicle Component Schematics
Identify the controller wiring first–on most 2005–2023 models, terminals labeled “B+” (battery positive), “M-” (motor negative), and “F/R” (forward/reverse) anchor the primary system. Trace each wire from these points to troubleshoot voltage drops without guesswork. Verify colors against factory service manuals; for example, red typically denotes main power, while blue often handles accessory circuits.
Use a multimeter set to 20V DC range for live checks. Probe the solenoid’s small terminals (usually 5 mm) to confirm 36–48V input during switch activation. If voltage reads low, inspect the key switch contacts and battery pack interconnections–corrosion at the positive cable lug (torque spec: 12–15 Nm) causes intermittent operation.
| Component | Typical Resistance | Suggested Replacement |
|---|---|---|
| Potentiometer | 3–7 kΩ | OEM #18350G1 |
| Fuse (30A) | N/A | AGC-30 |
| Throttle microswitch | Open/closed | #28855G01 |
Replace the speed selector lever if clicking sounds persist–most snap failures occur at the plastic gear teeth alignment point. Tools needed: T25 Torx screwdriver, circlip pliers, and dielectric grease for sealing new connections. Keep a spare T-handle 10mm socket handy; steering column cover bolts strip easily if overtightened.
Locating Critical Elements in Electric Vehicle Schematics
Start by isolating the motor assembly on the schematic–it’s typically marked near the rear axle with labels like “Drive Unit” or “Traction System.” Verify the voltage rating (commonly 36V or 48V) and check the wiring harness connections for corrosion or fraying, especially at the controller interface. A degraded contact here can mimic battery failure, leading to misdiagnosed power loss.
Trace the battery interconnections next. On most plans, batteries are grouped in series with thick cables–look for terminal numbering (e.g., B+, B1, B-) and cross-reference with the charger port wiring. Misaligned connections here cause inconsistent charging cycles, so confirm polarity before disassembly. Use a multimeter to test voltage at each junction; discrepancies above 0.5V between cells indicate a failing unit.
Key Subsystems to Verify
- Speed Controller: Locate the rectangular box near the accelerator pedal. Check for blown fuses (usually 30–50A) and inspect the throttle sensor wiring–damaged wires cause erratic speed behavior.
- Brake Assembly: Hydraulic or mechanical brake components appear as lines leading to the wheels. Look for master cylinder fluid levels and cable tensioners; seized calipers are a common failure point.
- Suspension Struts: Schematics show coil springs and shock absorbers as triangular or cylindrical shapes. Verify bushings for wear–compromised parts reduce stability at higher speeds.

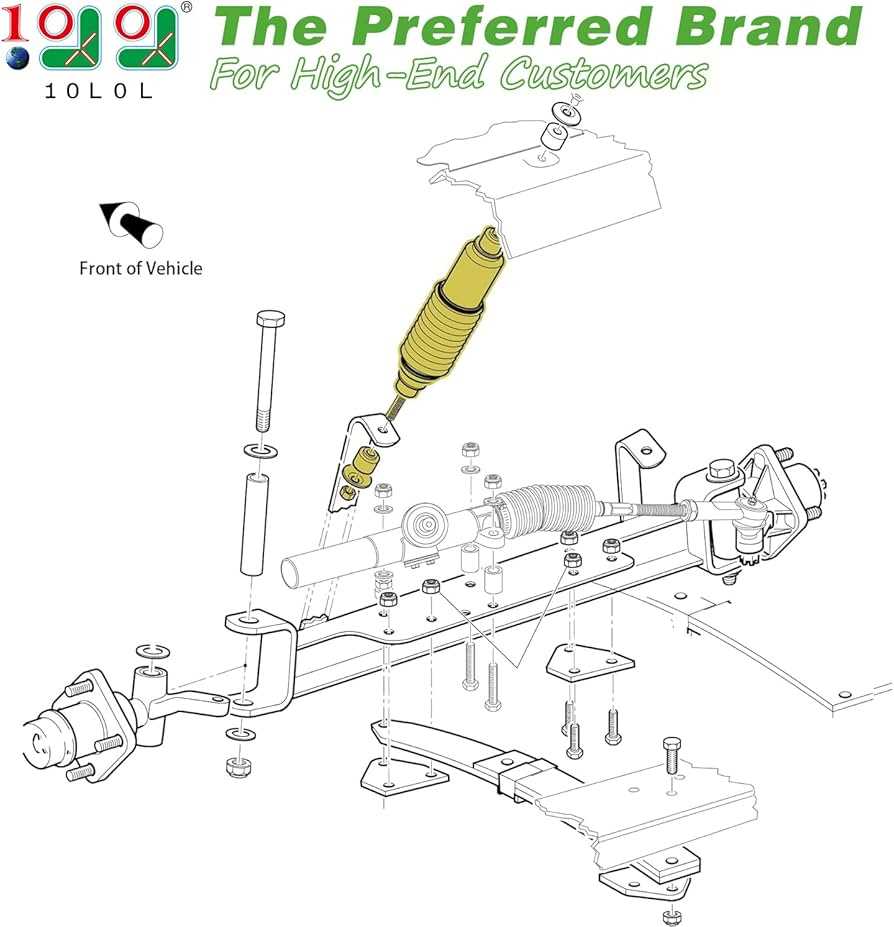

Examine the steering column and rack pinion next. On diagrams, these are drawn as elongated shafts with tie rods extending to the front wheels. Loose components here cause alignment drift. Measure play at the steering wheel–anything over 1.5 inches suggests worn bearings or a stripped gearbox. Replace shims one at a time to avoid over-tightening.
Finally, review the accessory circuits. Lights, horns, and digital displays connect via smaller wires branching from the main harness. Test each circuit with a 12V probe–non-functional bulbs or blown fuses often stem from shorted switches. Label disconnected wires immediately to prevent reconnection errors, as mismatched plugs can fry the voltage regulator during reinstallation.
Decoding Electrical Schematics for Electric Vehicle Troubleshooting

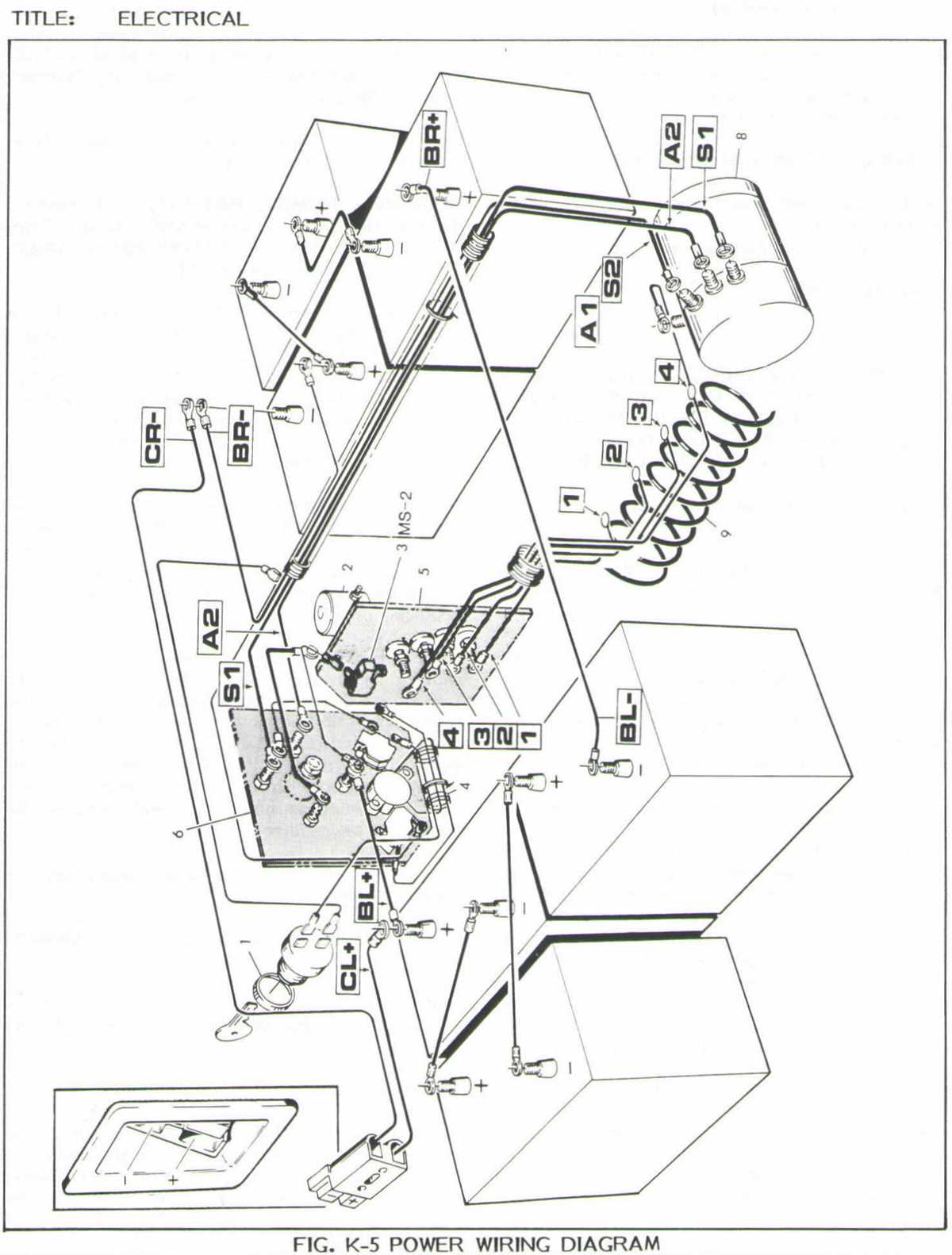

Start by isolating the battery circuit first. Locate the thick red and black cables–these handle high-current flow. Trace them from the power source to the motor controller, noting any fusible links or breakers along the path. Interruptions here often cause total system failure, mimicking dead battery issues.
Identify color coding anomalies–manufacturers frequently reuse colors across different circuits. For example, blue wires in one model may carry headlight voltage, while in another they signal accessory power. Cross-reference every wire with its documented function in the technical manual to avoid misdiagnosis.
Examine the solenoid’s role in circuit protection. A faulty solenoid manifests as intermittent power loss or clicking sounds without engine engagement. Test voltage at both terminals under load: normal readings should match battery voltage minus minor losses. Deviations indicate internal contact erosion.
Use a multimeter set to continuity mode to verify switches and relays. Probe both sides of suspect components while activating them–audible beeps confirm proper operation. Silent tests reveal corrosion, burnt contacts, or loose connections, often hidden in weatherproofed harnesses.
Pay attention to ground paths, typically represented by brown or black wires. Poor grounds create voltage drops that disrupt sensor readings and motor performance. Measure resistance between chassis and ground points; ideal values should be near zero ohms.
Inspect speed controllers for thermal damage. Overheated units may lose calibration, leading to erratic acceleration or failure to start. Check for bulging capacitors or discolored solder joints–these require immediate replacement to prevent catastrophic shorts.
Document every step with photographs or handwritten notes. Electrical systems in lightweight transport vehicles often have overlapping circuits; skipping this risks overlooking secondary faults masked by primary failures. Label wires before disconnecting anything to ease reassembly.
Test components in situ when possible. Removing a part for standalone testing can introduce new variables–vibration, temperature changes, or improper reassembly–that distort results. For instance, a motor that runs smoothly on the bench may stall under load due to undetected brush wear.
Step-by-Step Guide to Pinpointing Powertrain and Motor Components on Schematic Charts
Identify the schematic’s title block first–manufacturers imprint component families there. Locate “Engine Assembly” or “Transmission Subsystem” labels adjacent to numeric indexes. Cross-reference these with the legend; symbols like circles, squares, or dotted lines denote specific assemblies, not individual bolts or gaskets.
Trace the primary shaft from the motor casing outward. On most layouts, it appears as a thick horizontal line bifurcating into thinner branches. The branches represent:
- Flywheel housing
- Clutch engagement plate
- Reduction gear linkage
If the line terminates at a hexagon icon, that marks the wheel hub coupling.
Decoding Sub-System Icons
Motor housings typically occupy the upper-left quadrant on detailed overlays. Look for rectangular clusters labeled with alphanumeric codes–”MTR-3A” indicates the starter solenoid, while “TRN-7B” denotes the differential carrier. Use a magnifier to distinguish capacitors (zigzag lines) from solenoid coils (tight spirals).
For belt-driven configurations, follow the serpentine belt path:
- Departing pulley on the crankshaft
- Passing over the alternator
- Engaging the drive pulley
- Terminating at the tensioner arm
Dashed lines indicate return springs; solid lines show rigid linkages.
Exhaust manifolds and intake runners appear as jagged, interconnected blocks. Filters–air, fuel, or hydraulic–are depicted as rectangles with diagonal crosshatches. Locate the carburetor or fuel injector rail by finding the vertical block receiving three distinct intake lines (air inlet, vacuum hose, fuel line).
Differential housings sit isolated near the rear axle diagram section. A small circle nested inside a larger ring signifies the pinion gear meshing with the ring gear. Torque converters are rendered as a pair of concentric ellipses separated by a thin band–this gap represents the fluid coupling.
Troubleshooting Missing Annotations
If critical components lack labels, match shapes to the legend:
- Arrowheads → Lubrication ports
- Parallelograms → Mounting brackets
- Triangles → Sensor connections
Misplaced decals often indicate wear-prone zones–high-wear gears display adjacent warning symbols resembling exclamation marks inside triangles.
Measure distances between branches using the scale bar printed along the schematic edge. A discrepancy exceeding 5 millimeters in real-world spacing suggests either diagram scaling errors or component misalignment during assembly–inspect fasteners first before assuming internal wear.
