Complete Vertical Blind Components Guide with Annotated Diagram

vertical blind parts diagram

Start by disconnecting the slats from their carriers–hold the base firmly, slide the hook upward, and release it with a gentle twist. If the track uses a chain-driven system, inspect the gears for wear: teeth should have clean edges, free of burrs. Replace any deformed sprockets immediately–they cause uneven movement and premature tension wheel failure. Measure the distance between mounting holes before purchasing a new rod; even a 2mm deviation can prevent proper alignment.

Identify the weight bar early–most models have a thin metal strip at the bottom edge. If missing or bent, sunlight will warp the fabric within weeks. For fabric elements, check stitching at stress points: double-stitched seams last 3x longer than single. When reattaching, angle the slats at 15°–this prevents scraping against the wall while maintaining light control. Lubricate all moving joints with graphite powder; avoid WD-40 as it attracts dust and gumming.

Troubleshoot tilt mechanism issues by removing the wand cap first–not the wand itself. Inside, locate the torsion spring: if it feels loose, replace the entire assembly rather than tightening–cheap springs snap under repeated stress. For motorized systems, test voltage at the terminals before replacing the unit: 12V models need stable transformers; fluctuations burn out control boards. Keep spare pulleys (6mm diameter) on hand–vertical load-bearing failures rarely announce themselves before collapse.

Understanding Window Covering Component Layouts

Start by identifying the headrail–the horizontal track at the top–since it houses most functional elements. Label the carrier clips first; these small plastic or metal pieces slide along the track and support the fabric strips. Each clip connects via a hook or peg to a chain mechanism, enabling coordinated movement. Check the spacing between clips–manufacturers recommend 8–12 cm for uniform alignment and smooth operation. If spacing exceeds 15 cm, gaps appear, reducing light control efficiency.

Examine the weighted bottom bar attached to each strip. The bar stabilizes the fabric, preventing twisting or bunching. Most bottom bars embed a metal rod for added heft; verify its straightness by running a finger along the length. Bent rods disrupt smooth gliding and require immediate replacement. If bars lack internal weights, add external bead chains–common fixes use 1.5 mm stainless steel chains secured with crimp tubes.

Component Material Options Typical Lifespan Maintenance Tip
Carrier clips Nylon, polycarbonate, zinc alloy 5–8 years Lubricate with dry silicone spray every 6 months
Bead chain Steel, brass, plastic-coated 3–10 years (depends on usage) Clean with mild soap; avoid harsh detergents
Bottom bar Aluminum, steel, weighted plastic 7+ years Wipe with damp cloth; check for dents annually

Trace the cord route from the pulley system to the control wand. The pulley–usually a plastic wheel–should rotate freely without grinding. If sticking occurs, apply graphite powder directly to the wheel axle. Avoid lubricants like WD-40, as they attract dust and accelerate wear. The cord itself should measure 1.2–1.5 mm in diameter; thinner cords fray under minimal stress, while thicker cords strain the pulley.

Inspect the valance clips or fascia brackets, which secure the headrail to the mounting surface. Use #8 screws for drywall and #10 screws for wood studs–pre-drill holes to prevent splitting. For plaster walls, toggle bolts hold significantly more weight than plastic anchors. Position brackets at 30–40 cm intervals; uneven spacing causes sagging over time, distorting strip alignment.

Locate the tension mechanism, often a spring-loaded device near the pulley. Test tension by pulling the cord 30 cm–it should retract smoothly without slack. If tension feels loose, adjust the internal spring by turning the adjustment screw clockwise half a rotation. Over-tightening risks snapping the cord, while under-tightening causes inconsistent retraction. Replace springs showing rust or fatigue; compatibility depends on rail width–standard 89 mm rails use springs labeled “Type B.”

For fabric strips, note the stitching along the side hem. Double-stitched seams withstand daily manipulation better than single-stitch; expect 2–3 years of durability before fraying begins. Remove dust with a vacuum brush attachment monthly; embedded dirt abrades fibers prematurely. When replacing individual strips, ensure the new piece matches the original width (±1 mm)–mismatches disrupt the seamless stack when drawn open. Always order replacement strips from the same dye lot to avoid color variations under sunlight.

Key Elements of Sliding Window Treatments

vertical blind parts diagram

Inspect the headrail first–this aluminum or steel track holds the entire system. Check for warping or corrosion, especially in humid environments. Replace if bent, as misalignment causes slippage or uneven movement.

Examine the carriers–small plastic or metal clips inside the track that attach to each slat. Ensure none are cracked; broken carriers prevent smooth operation. Count them to confirm one per strip; missing carriers create gaps.

Fabric and Control Mechanisms

  • Woven panels: Look for fraying edges or discoloration. UV exposure weakens fibers; rotate panels every 12 months to distribute wear.
  • Chains/pulleys: Test the beaded cord–stiffness indicates dirt buildup. Clean with silicone spray; avoid oil-based lubricants.
  • Wands: Check the tilt rod for cracks. If loose, tighten the set screw at the bottom–over time, vibrations loosen connections.

Assess the bottom weights–small metal rods sewn into the hem of each strip. Missing weights cause panels to curl. Weigh them: standard sizes are 12g for lightweight fabrics, 20g for heavy textiles.

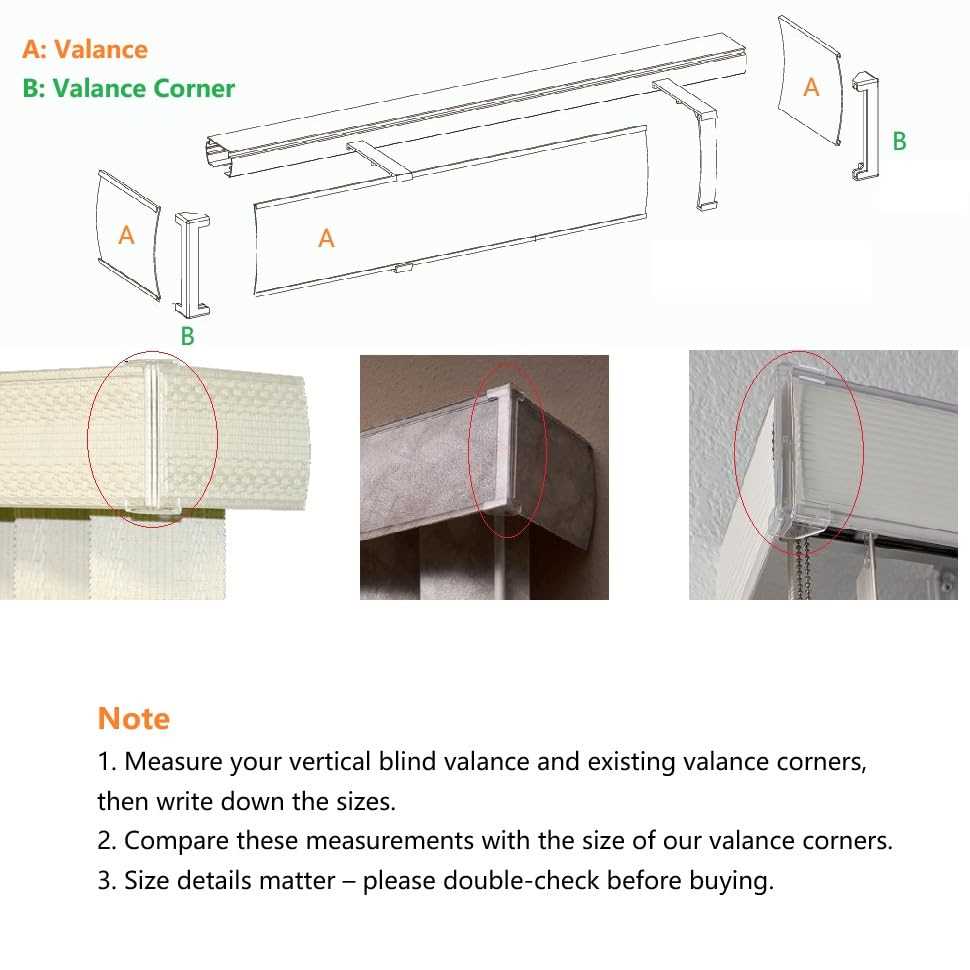

Look at the valance–if present, ensure clips hold securely. A drooping valance indicates weak spring tension; adjust or replace clips. For recessed installations, the valance should sit flush with the window frame to block light gaps.

Test the limit stops–small plastic pieces at the track ends. If slats crash into the brackets, reset the stops by sliding them toward the center. Incorrect placement damages the track or strips.

Maintenance Checks for Longevity

  1. Monthly: Dust with a microfiber cloth. Avoid vacuum attachments–they snag fabric.
  2. Quarterly: Inspect seams where weight rods meet the hem. Reinforce loose stitching with fabric glue.
  3. Annually: Measure panel width. If fading or shrinkage exceeds 5%, order replacements to prevent light leakage.

For motorized systems, verify the power supply–battery-operated units typically last 6–9 months per charge. Hardwired systems should have backup batteries; test them biannually by unplugging the main power source.

Assembling Adjustable Track Systems for Window Coverings

Lay the headrail on a flat surface with the mounting brackets facing upward. Ensure the rail’s internal track is clear of debris–use a dry cloth to wipe it if necessary. Align the first hanger clip with the track’s starting point, pressing firmly until it snaps into place. Repeat this process at measured intervals, typically 4-6 inches apart, to maintain consistent spacing and prevent slippage during operation.

Attach the carrier stems to the hanger clips by sliding them into the designated slots. Verify that each stem rotates freely–stiff movement indicates misalignment or incorrect insertion. Most systems require stems to face inward toward the window; check the manufacturer’s specifications for deviations, as some models position them outward for wider fabric overlap.

Insert the control chain or cord into the gear mechanism at one end of the rail. Thread it through the pulley system, ensuring it sits flush against the guide wheels without twists. Secure the free end to the tensioner, pulling just enough to remove slack while keeping the chain taut. Over-tightening can strain the gears; under-tensioning causes uneven movement or sagging louvers.

Fast the mounting brackets to the headrail by sliding them into the pre-drilled slots. Position brackets at both ends and at 12-18 inch intervals for standard 36-48 inch widths. For heavier fabrics or wider spans (54+ inches), add a central bracket to prevent bowing. Use a level during installation–crooked tracks lead to binding or premature wear on moving components.

Test the assembled unit before wall mounting. Slide the carriers manually along the track; they should glide smoothly without resistance. Operate the control chain to verify full rotation of the louvers–sticking points suggest misaligned stems or debris in the track. If adjustments are needed, disassemble only the affected section to avoid repeating steps unnecessarily.

Maintenance Fixes for Common Sliding Panel Track Issues

vertical blind parts diagram

Strip jamming mid-track often stems from debris accumulation near the carrier wheels. Remove the affected slat, clean the groove with a cotton swab dipped in isopropyl alcohol, and ensure the wheel rotates freely before reinserting. For stubborn buildup, use a plastic pick–not metal–to avoid scratching the guide rails.

Uneven rotation during tilting usually indicates a misaligned weight mechanism. Check the bottom chain for twists or knots; if intact, adjust the tension by turning the gear housing clockwise until the louvers align parallel. Over-tightening will cause strain–test after each quarter turn.

Intermittent tilting resistance suggests worn-out pinch rollers. Examine the roller housing for cracks; if damaged, replace the entire unit rather than attempting repairs. Lubricate new rollers with silicone spray–never oil–to prevent residue collecting dust and exacerbating future failures.

A squeaking track when drawing open often results from dried lubricant on the ball-bearing carriers. Apply a pea-sized amount of PTFE-based dry lubricant to each carrier’s moving contact points. Wipe excess immediately to avoid attracting dirt, which accelerates wear.

If the draw cord slips but doesn’t break, inspect the cord lock’s internal teeth for deformation. Sandpaper the teeth gently if flattened, or replace the lock if gouged. Ensure the replacement matches the original cord thickness to prevent recurring slippage.

Twisted louvers despite intact tension typically point to a bent control rod. Detach the wand, straighten the rod with pliers, then realign the louver hooks–mismatched angles cause uneven spacing. Test by tilting fully; persistent misalignment signals a deeper track warp requiring panel replacement.
