Locate the burner assembly beneath the cooking plate by removing the grease tray. The left and right burners connect to individual gas valves through brass elbows–check for cracks or corrosion at the connections, as leaks here reduce heating efficiency by up to 30%. Replace damaged elbows with 1/2-inch male NPT brass fittings (part #GRD-ELB-512); generic hardware fails under high-temperature cycling.
Inspect the flame spreader positioned directly above the burners. Warping from heat exposure causes uneven cooking–measure gaps between the spreader and cooking surface. If gaps exceed 0.125 inches, replace with a stainless steel model (part #GRD-FS-98). Avoid aluminum replacements; they deform at temperatures above 600°F.
The thermostat probe sits embedded in the left side of the plate. Faulty probes cause temperature fluctuations–test resistance with a multimeter (should read 1100-1300 ohms at 350°F). If readings deviate, replace the probe (part #GRD-TMP-43) and recalibrate using the dial calibration screw on the control knob.
Grease channel clogs reduce drain efficiency–clean monthly with a stiff wire brush or compressed air. For deteriorated channels, install a sloped stainless steel replacement kit (part #GRD-GC-76) to prevent grease pooling, which increases flare-up risks during high-volume use.
When reassembling, torque all fasteners to 12-15 ft-lbs to prevent vibrational loosening. Apply food-grade anti-seize to threaded components exposed to heat cycling to simplify future disassembly.
Exploded View Schematic for Commercial Flat-Top Component Identification
Start by locating the ignition assembly (item #GR-2045) in the upper left quadrant of the schematic–this includes the spark electrode and flame stabilizer plate. If starting issues persist, check the copper gasket (ref. #GR-2045-B) for warping; replace if gaps exceed 0.3mm. For high-temperature models, verify the ceramic insulation sleeve remains intact–cracks require immediate replacement to prevent gas leaks.
Inspect the grease management system every 50 hours of use: the rear catch pan (part #HT-8912) should be removed and cleaned with a non-abrasive degreaser, while the sloped drip tray rails (spec. #HT-8912-X) must be realigned if pooling occurs. Misalignment beyond 2° from horizontal reduces drainage efficiency by 40%. For units with stainless steel cooking surfaces, note the thermal regulator probe placement–improper seating causes erratic temperature swings.
Critical Wear Components and Replacement Intervals
Replace the burner orifice valves (model #CV-773) biannually or after detecting yellow flame tips–clogged ports reduce BTU output by 18-22%. The heat diffuser plate (ref. #FP-6600) requires annual resurfacing; uneven wear patterns indicate improper scraper technique. For LP gas conversions, confirm the regulator adjustment screw is set between 10-11 inches water column–deviation leads to incomplete combustion.
Refer to the manufacturer’s exploded diagram (page 12, revision G) for the interlocking spline gear system–skip teeth under load often stem from improper lubrication of the brass bushings. Use food-grade synthetic grease sparingly on gears (part #B-339) but avoid contact with the cooking surface. The front control panel’s thermocouple wiring harness (item #WR-512) should be tested with a multimeter for continuity before reassembly; resistance above 2 ohms necessitates full harness replacement.
How to Pinpoint Key Elements in Your Outdoor Cooking Station
Start by locating the heat distribution plate–the flat, rectangular steel surface designed to sit directly beneath the burner assembly. This component ensures even heating and prevents hotspots, typically secured with four screws or clamps. If warping is detected, replace it immediately to maintain consistent cooking performance.
Examine the burner housing next. The cast-iron or stainless steel burner should have clearly defined flame ports; if clogged, use a thin wire to clear debris without damaging the ports. The venturi tube, connecting the burner to the gas valve, must remain obstruction-free–any blockage risks incomplete combustion.

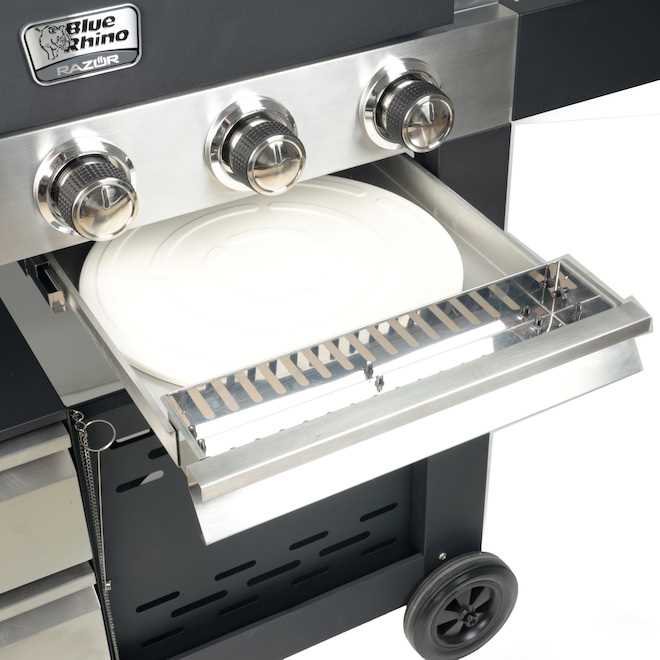

- Grease management tray: Positioned beneath the cooking surface, this removable pan collects excess oils. Empty and clean it after every use to prevent flare-ups and corrosion.
- Wind guards: Two side panels snap or bolt into place–ensure they’re firmly attached to shield the flame from gusts, which can alter heat output by up to 30%.
- Regulator assembly: The brass or aluminum valve controls gas flow; test it with soapy water–bubbles indicate leaks requiring prompt replacement.
Check the ignition system’s electrodes. The spark module should emit a consistent, visible spark when activated. If misaligned by more than 3mm from the burner ports, recalibrate to avoid unreliable ignition. Replace corroded wires that interfere with current flow.
The thermostat dial, often marked in temperature increments, relies on a capillary tube filled with thermal fluid. If readings err by more than ±25°F, the tube may be cracked–replace the entire probe rather than attempting repairs. Always recalibrate after reassembly.
- Remove the cooking surface to access the drip pan gasket–a silicone or fiber strip sealing the gap between the pan and frame. Deteriorated seals allow grease to seep into internal components.
- Inspect the support legs and crossbars; rust compromises structural integrity. Coat scratches with high-heat paint (800°F+ rating) to prevent further oxidation.
- Verify the gas hose connections at both the appliance and propane tank ends. Use pipe tape on threaded fittings but tighten only until snug (over-torquing can strip threads).
Step-by-Step Guide to Locating Outdoor Cooktop Flame Unit Components
Detach the cooktop’s drip tray by sliding it forward until the clips release. This exposes the primary flame assembly–look for two parallel gas tubes with brass nozzles aligned beneath the cast-iron plate. Label each tube’s position (left/right) before disassembly to avoid cross-threading during reinstallation.
Locate the ignition wires connected to the spark modules adjacent to the burners. Trace the wiring harness to the control box; unplug the connector only after verifying the gas supply is off. Note the wire colors–typically red for ignition and black for grounding–as mismatching can damage the spark generator.
Identifying Key Sub-Assemblies
Inspect the flame spreader, a perforated metal plate seated atop the burner tubes. Check for warping or blockages–clean with a non-metallic brush if residue exceeds 1mm thickness. Beneath this plate, examine the heat diffusers; cracks wider than 0.5mm require replacement to prevent uneven heating.
Locate the gas valve assembly behind the front control panel. Rotate the knob to confirm the valve shaft moves freely; apply food-grade lubricant if resistance is felt. Label each valve’s corresponding burner tube with masking tape to avoid configuration errors when reassembling.
Identify the pressure regulator by its horizontal orientation near the rear gas inlet. Ensure the vent hole (1.5mm diameter) faces downward to prevent moisture ingress. If corrosion is visible, replace the entire unit rather than attempting repairs–improper pressure can cause flare-ups exceeding 18 inches.
Common Replacement Components and Their Precise Identifiers
Prioritize the grease trough (part #GR-5209) when addressing uneven heating–its corrosion directly impacts heat distribution. Replace the scraper assembly (#SC-1487) every 6–8 weeks if used daily; worn blades reduce efficiency by up to 40%. For burner coverage, match the exact orifice size: 0.035″ for propane (#OR-213) or 0.028″ for natural gas (#OR-189). The igniter electrode (#IG-742) fails frequently; test continuity with a multimeter before ordering–a resistance over 2 kΩ signals replacement. Heat shields (#HS-396) warp at 700°F+; inspect for discoloration or dents, which indicate compromised heat deflection. Always cross-reference the serial number embossed on the chassis with the manufacturer’s parts list–generic substitutes void warranties and risk incompatible threading.
Thermocouples (#TC-954) last 1–2 years under normal conditions but degrade faster if exposed to moisture; store the appliance covered when not in use. The regulator valve (#RV-601) must match the gas type–confusion causes dangerous pressure fluctuations. Gaskets (#GK-112) crack around edges first; apply a thin bead of high-temp silicone (Permatex 27200) during re-installation to prevent leaks. For the control knob (#KN-438), note the spline pattern–most use a 1/4″ square shaft, but some models require a D-shape. Replace the flame tamers (#FT-815) in pairs to maintain balanced burner output.
Decoding the Manufacturer’s Component Breakdown Schematic
Locate the reference number adjacent to each disassembled piece–this ID matches the legend printed on the right margin. Cross-reference these numerals with the parts inventory list: the first column lists the numeric ID, the second specifies the official name (e.g., “igniter electrode,” “regulator valve”), and the third column shows compatible model codes. Ambiguous labels often omit thread pitch or material grade; verify dimensions with a vernier caliper if the sketch lacks callouts.
| Schematic Symbol | Interpretation |
|---|---|
| Solid arrow | Fastening sequence–install in direction of arrow. |
| Dashed line | Electrical or gas conduit–trace to corresponding terminal block. |
| Circle + slash | Replaceable cartridge–ensure O-ring groove faces upward. |
| Square parenthesis | Adjustable linkage–align flats before torquing set screw. |
