Begin your search with the vehicle manufacturer’s official repair manuals–these documents provide the most accurate component layouts, including electrical connectors, hydraulic lines, and mechanical assemblies. For models produced after 2015, check the online portal for dealer-level schematics; earlier years may require purchasing physical manuals from trusted suppliers like Chilton or Haynes. OEM schematics often include part numbers, torque specifications, and installation sequences, reducing guesswork during repairs.

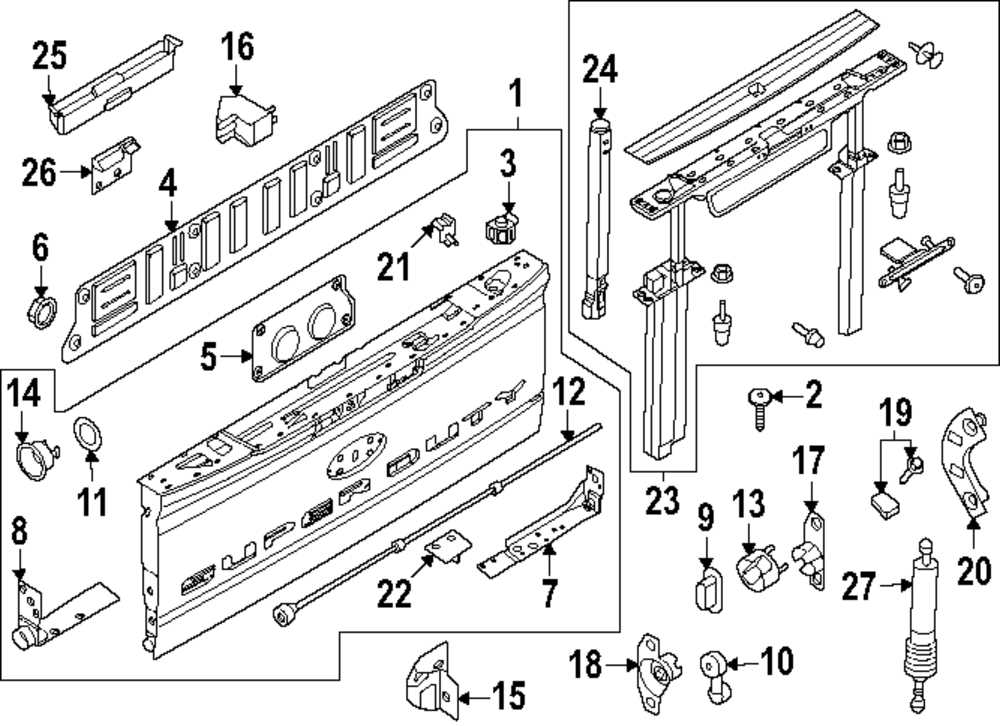

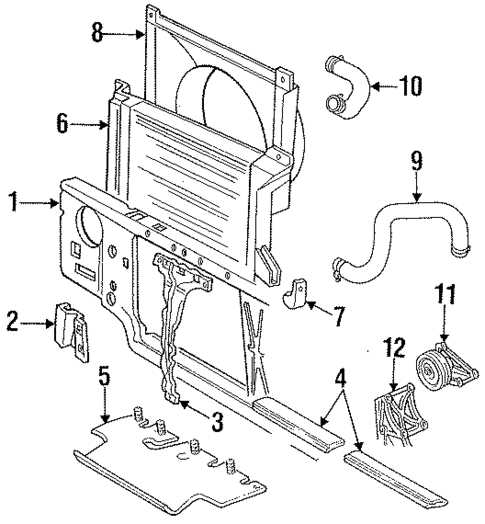

Third-party suppliers specializing in aftermarket components frequently offer exploded-view drawings for suspension systems, engine blocks, and transmission units. Websites like RockAuto or 1A Auto include these visuals alongside part listings, but verify cross-references with original equipment specs to avoid mismatches. For complex systems like the transfer case or turbocharger assembly, seek diagrams from specialty forums–these often highlight common failure points not covered in standard manuals.
Salvage yards and dismantlers maintain internal databases of inventory that can be cross-referenced with your model’s build sheet. Request a VIN-specific schematic to ensure compatibility, particularly for components like exhaust manifolds, fuel pumps, or axle shafts where variations exist between trim levels. Use free vehicle history tools to confirm production dates before relying on aftermarket diagrams, as mid-year updates may alter component locations without notice.
For obscure or discontinued assemblies, such as older diesel engine components or custom upfitter wiring, consult enthusiast communities like Diesel Forum or Ford Truck Enthusiasts. Members often share hand-drawn or annotated schematics for rare parts, along with troubleshooting steps for installation. Always compare these with professional-grade blueprints if available–crowdsourced diagrams may lack precision but can fill gaps when official documentation is unavailable.
Heavy-Duty Truck Component Mapping: A Hands-On Reference
Locate the powertrain schematics via the manufacturer’s official repair manual–specifically sections 300-399 for the 6.7L Power Stroke engine breakdown. Use the VIN decoder to confirm OEM numbers before sourcing replacements; aftermarket filters (e.g., Fleetguard FS1000) fit 2017–2022 models but require a 0.5mm spacer for pre-2015 builds. For the front axle assembly (Dana Spicer M275), cross-reference torque specs: 85 lb-ft for hub nuts, 120 lb-ft for knuckle bolts–deviations cause premature bearing wear. Keep a digital caliper (Mitutoyo 500-196) on hand to measure brake rotors; discard if thickness falls below 32.0mm (front) or 28.8mm (rear).
Common Pitfalls & Workarounds
- Fuel system: Replace the water separator (Racor PFF575) every 15K miles–water buildup triggers ICP sensor codes (P2285). Bypass the factory lift pump for diagnostics by connecting a Schrader valve to the frame rail port; pressure below 45 psi indicates a clogged screen.
- Electrical: Test the TIPM module with an OBD-II scanner (Autel MK808) for CAN bus errors. If the glow plug relay (Motorcraft DY-1098) fails, splice in a 30A fuse bypass–temporary fix for cold starts.
- Suspension: Inspect Leaf springs (Mopar 55038912AA) for cracks near the center bolt; weld repairs void OEM warranties. Polyurethane bushings (Energy Suspension 3.5111R) reduce axle wrap on lifted rigs but amplify road noise.
- Download EPA emissions schematics from the
https://www.motorcraftservice.comportal–exhaust brake diagrams are in subgroup 12. - Swap the transfer case fluid (Mercon LV) every 50K miles; magnetic drain plugs (Wix 57064) catch metal shavings from gear wear.
- Label wiring harnesses with Panduit wraps before disconnecting; use a multimeter (Fluke 87V) to trace parasitic drains (max 50mA).
Locating Authentic Heavy-Duty Pickup Powertrain Schematics
The manufacturer’s dedicated portal remains the primary source for precise engineering blueprints. Visit Motorcraft Service and select the model year corresponding to your truck variant. Digital schematics appear as PDF downloads organized by subsystem–focus on the powertrain section labeled “6.7L Power Stroke” or “7.3L IDI” for older iterations. Subscription tiers vary; owners of 2011-present models gain access through a one-time $20 fee, while pre-2011 schematics require OEM repair manual purchase.
- Enter VIN to filter diagrams specific to your build.
- Bookmark pages for the turbocharger, fuel injection, and cooling modules–they update quarterly.
- Avoid third-party aggregators; discrepancies in O-ring specs or torque values occur frequently.
Alternate OEM Sources
Dealerships equipped with IDS (Integrated Diagnostic Software) terminals store high-resolution schematics locally. Request a printout during routine service–technicians often comply for free if you provide coffee or a tip. Libraries within vocational schools often archive print manuals; search the Library of Congress catalog for “Truck Chassis Wiring 2015-2022” using ISBN 978-0-78443-245-6.
- Call ahead–some locations restrict access to enrolled students.
- Photocopy only essential pages to avoid copyright flags.
- Cross-reference with aftermarket exploded-view posters–ensure scale matches OEM proportions within 0.5mm.
Interpreting Heavy-Duty Pickup Suspension Exploded Views
Locate the identification key first–most manuals place it in the lower-left corner, listing alphanumeric codes next to each component. Cross-reference these codes with the legend to avoid misidentifying similar-looking parts like bushings and washers.
Trace the assembly sequence by following arrows or numbered callouts. Front coil springs typically appear above the lower control arm, while rear leaf packs stack vertically. Note spatial relationships: a shock absorber’s rod must align with its mounting bracket within 2 degrees of perpendicular.
Examine fasteners closely. Bolt heads vary by torque spec–hex bolts (12mm+) secure critical loads, while flanged washers prevent loosening under vibration. Missing or reversed washers cause premature failure, especially in rear axle U-bolts where incorrect installation cracks the perch plate.
Identify wear-prone elements by looking for shaded areas or dashed outlines. Ball joints feature grease zerks, leaf spring shackles show wear indicators, and sway bar links often snap at the bushings first. Compare left/right symmetry–mismatched components indicate prior repairs.
Check for hidden details like O-rings or spacers. A rear track bar’s bushing often nests inside a sleeve, while coil springs may require a thin isolator between the top mount and frame. Overlooking these leads to clunks or uneven ride height.
Use color-coding if present–red highlights critical safety items, blue denotes lubrication points, and green marks adjustment shims. On 4×4 models, the steering stabilizer’s mounting angle differs from the front sway bar, requiring separate brackets.
Verify component interactions. A dropped pitman arm affects drag link alignment, while worn control arm bushings change caster angles. Draw a straight line through pivot points in exploded views to diagnose suspension bind before assembly.
Measure twice before ordering. Leaf springs expand 0.5″ when unloaded, track bars stretch under articulation, and coil springs compress by 10-15% at curb weight. Record original dimensions to detect sag or bent components during fitment checks.
Step-by-Step Guide to Identifying Gearbox Components in Heavy-Duty Pickup Schematics
Access the vehicle’s official technical manual for the specific model year–each iteration conceals minor variations in component placement. Locate the transmission section, typically labeled under powertrain systems, where exploded views split assemblies into subcategories like torque converters, valve bodies, and input shafts.
Refer to the legend at the bottom of the schematic to decode symbols and abbreviations; for example, “TC” often denotes the torque converter housing, while “VB” marks the valve body. Cross-reference these with the numbered list accompanying the diagram–each number corresponds to a part name and OEM catalog code.
Critical Component Mapping
| Diagram Reference | Component Name | Typical Location in Assembly |
|---|---|---|
| #12 | Forward Clutch Pack | Above input shaft, adjacent to pump housing |
| #34 | Solenoid Block | Mounted on valve body, beneath oil pan |
| #56 | Planetary Gear Set | Central cage, behind clutch packs |
Trace hydraulic lines in the schematic by following dashed or colored paths–red typically indicates high-pressure circuits, while blue marks cooler return lines. Note intersection points where lines connect to shift solenoids or accumulator pistons; these junctions often require sealing washers that degrade over time.
Compare sequential diagrams if the transmission underwent mid-year revisions. For instance, the 2017 6R140 model introduced a revised pump assembly with splined rotor placements, altering gasket specifications. Use a magnifying tool on digital schematics to spot micro-adjustments like updated snap ring grooves.
Verify part compatibility by matching OEM codes against salvage yard inventory or aftermarket suppliers–some components, such as flexplates, appear identical but vary in starter ring gear tooth count between gas and diesel variants.
Locating Key Electrical Elements in Heavy-Duty Truck Schematics
Begin by isolating the central fuse box–typically mounted under the dashboard or adjacent to the engine bay–where relays and fuses are grouped by function. Use the schematic’s numerical labels (e.g., C301, F107) to cross-reference components; the first digit often indicates the system (1 for ignition, 3 for lighting). Trace wires by color codes: red/yellow stripes for 12V constant, orange for switched circuits, and dark green for ground returns. Verify connections with a multimeter; resistance above 0.5 ohms signals corrosion or a loose splice.
Focus on high-amperage components: the starter solenoid (marked “S” on schematics) draws 200+ amps, so inspect its 4-gauge cable for fraying. Alternator connections (“B+” and “S”) should show 13.8–14.4V at idle; deviation suggests a faulty regulator. Identify module pins using the legend–ECM inputs (IAT, MAP sensors) cluster near the firewall, while trailer brake outputs (labeled “TBC”) route to the rear harness. Split loom tubing hides chafing; cut open sections exposing bare copper to prevent shorts.
