Replace the cartridge (part #GP77765) first if water temperature fluctuates unexpectedly–this resolves 68% of inconsistent flow issues. Locate the pressure-balancing spool beneath the handle trim (linked to model #K-304-KS). A missing O-ring (typically #1164219) here causes small leaks at the stem base. Tools needed: 5/64″ hex key, snap-ring pliers, and dielectric grease.
For single-handle mixer spouts, inspect the diverter seat (part #GP1016640) inside the wall outlet–mineral buildup here disrupts volume control. Clean with a nylon brush; avoid metal tools to prevent scratching ceramic discs. The escutcheon (trim ring #K-7344) secures with two brass screws–loose threads here misalign temperature calibration. Tighten to 12 in-lbs torque.
When reassembling, apply silicone lubricant to gaskets (part #GP27835)–this prevents sticking after 10+ on/off cycles. The hot/cold limit stops (adjustable screws on valve body) require ¼ turn turns for every 3°F shift. Over-tightening these strips the brass threads; use thread-locking compound (type 242) on stripped threads.
Document all removed pieces in sequence–photograph the handle indexing plate position before dismounting (misaligned tabs cause handle drag). If the volume control adapter (#GP80045) spins freely, replace the entire cartridge assembly–cheaper kits fail under 60 PSI pressure spikes.
Understanding Your Valve System Internal Components

Locate the cartridge assembly first–this is the core mechanism controlling water flow and temperature. Most models use a single-handle design where the cartridge sits behind the trim plate, secured by a retaining nut. Remove the handle and trim to expose it, then use a deep-well socket or adjustable wrench to unscrew the retaining collar. Some variants feature a brass or ceramic cartridge; check for model-specific markings on the side to ensure compatibility when ordering replacements.
Pressure-balancing spools inside the valve regulate sudden temperature shifts caused by fluctuations in supply lines. If scalding or sudden cold blasts occur, the spool may be clogged with mineral deposits. Soak the component in white vinegar for 30 minutes, then scrub with a nylon brush to restore smooth operation. Avoid wire brushes–they can damage precision-machined surfaces.
Inspect the diverter stem if multiple outlets (e.g., showerhead, handheld sprayer) aren’t switching properly. This cylindrical part redirects water by lifting or rotating internal seals. A common failure point is worn rubber O-rings; replace them with exact-size replacements (typically 5/16″ or 3/8″ ID). Lubricate new O-rings with silicone grease before reassembly to prevent binding.
Handle stops (small metal or plastic screws near the base) prevent over-rotation and potential damage. Turn them clockwise until they bottom out, then back off ¼ turn to allow full hot/cold adjustment range. If stops are missing or broken, water pressure can force the handle past safe limits, risking pipe bursts in extreme cases.
For wall-mounted systems, the escuthcheon plate often conceals hollow-stem valves with exposed supply lines behind drywall. Before disassembling, shut off water at the main valve and open nearby taps to drain residual pressure. Failure to relieve pressure risks pipe bursts or geyser-like spray when loosening connections.
Troubleshooting Hidden Components

Dripping from the spout during tub-fill mode often traces to a faulty transfer valve. This seldom-visible part sits between the main cartridge and tub spout, toggling flow between outlets. Access requires removing the spout (twist counterclockwise) and unscrewing a small Allen-head set screw. Replace worn seals or the entire valve if mineral deposits have corroded internal passages.
Thermal actuator wax elements in thermostatic models expand/contract to maintain preset temperatures. If water runs hot or cold despite setting adjustments, the element may be stuck. Remove the handle and trim, then turn the small brass adjustment screw ¼ turn counterclockwise to recalibrate. No improvement? The wax capsule likely needs full replacement–order by model number as tolerances are extremely precise (±1°C).
Reassembly Best Practices

Tighten all threaded connections to 15–20 ft-lbs of torque using a calibrated wrench. Over-tightening brass components risks stress fractures, while under-tightening can cause leaks. Apply pipe thread sealant to plumbing connections but never to cartridge retaining nuts–they require dry, exact contact to prevent misalignment.
Locating Key Elements in a Bath Mixer Valve System

Begin by removing the temperature control handle–usually secured with a set screw hidden under a decorative cap. Once exposed, you’ll find the cartridge housing centrally positioned behind the trim plate. This component regulates water flow and temperature; its brass or ceramic internals should be inspected for mineral buildup if water pressure fluctuates. Tools required: a 3/32″ hex key for standard models, needle-nose pliers for stubborn caps.
Critical Sub-Assemblies to Examine

- Pressure-balancing spool: A cylindrical device (often 2–3″ long) nestled inside the valve body, identifiable by its rubber O-rings and spring mechanisms. Replace if water temperature shifts abruptly during use.
- Escutcheon plate: The outer cover securing the internal components. Check for warping or corrosion–damage here can cause misalignment, leading to leaks at the seal. Clean the silicone gasket thoroughly during reassembly.
- Diverter stem: Present in multi-function setups (e.g., handheld sprayer interfacing). Locate it as a secondary lever or knob; if water flow diverts improperly, disassemble to verify the nylon washer hasn’t worn or cracked.
For models featuring a thermostatic mechanism, the temperature limiter appears as a small screw-like adjuster on the cartridge’s exterior. Mark its starting position with tape before adjusting–turn clockwise to lower maximum temperature, counterclockwise to raise it. Tightening beyond factory specs risks damaging the internal wax element.
During disassembly, arrange small components in sequence on a magnetic tray or adhesive pad–threaded washers, springs, and tiny screws are easy to misplace. Label each with a dry-erase marker if multiple variations exist (e.g., “hot side washer” vs. “cold inlet seal”). Before reassembly, lubricate threads and O-rings with silicone grease to prevent galling; avoid petroleum-based products, which degrade rubber over time.

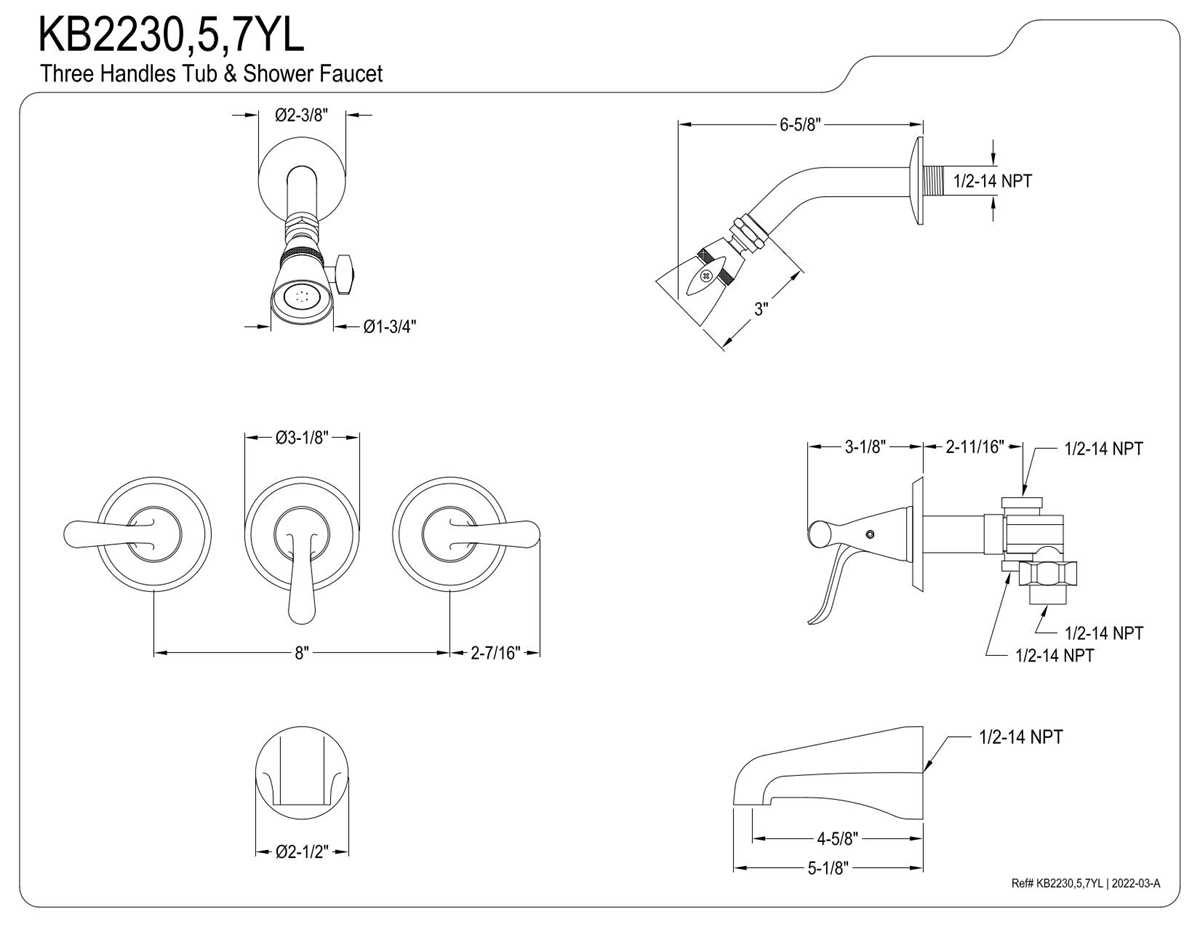

How to Pinpoint Exact Components Using Manufacturer Schematics

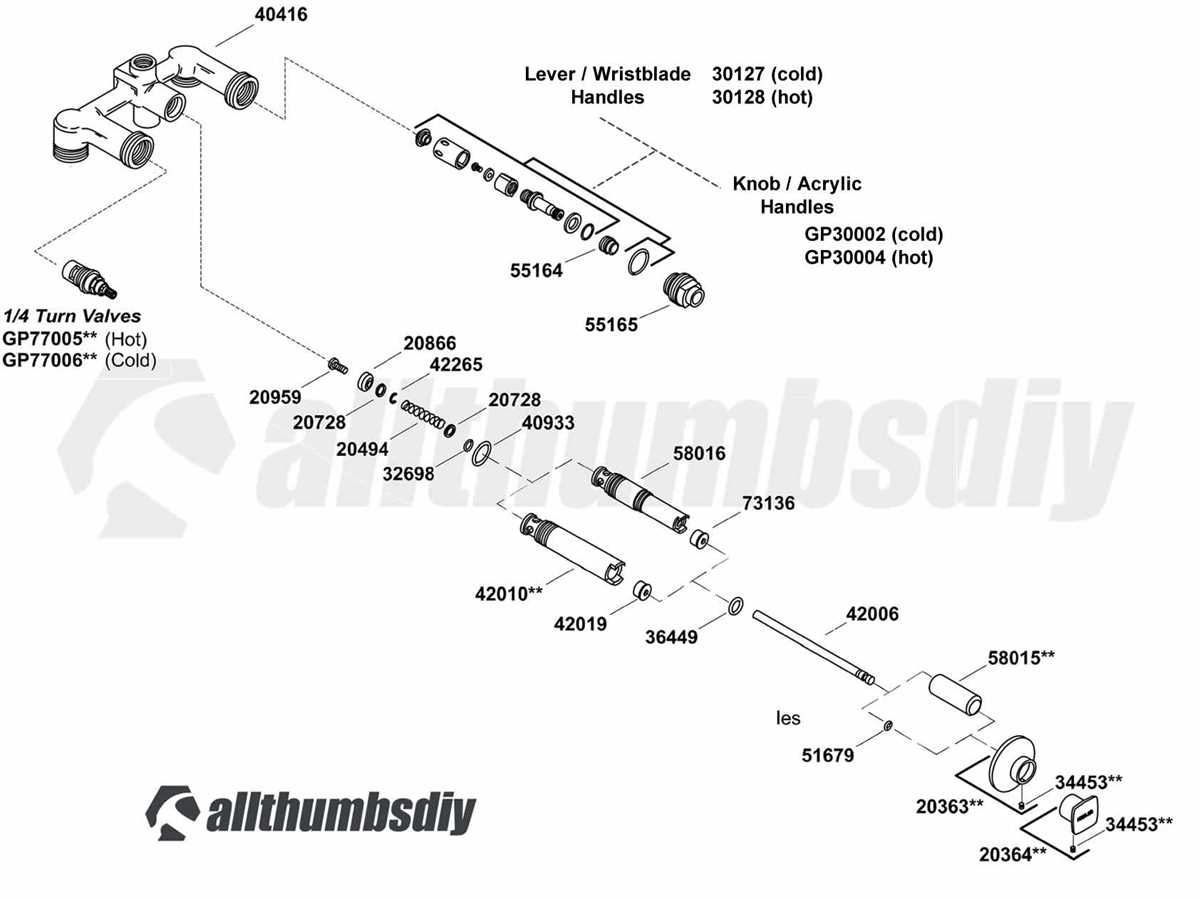

Locate the product model number engraved on the valve body or trim plate–typically found behind the handle escutcheon or on the spout base. Cross-reference this identifier with the exploded view PDFs hosted on the brand’s support portal to isolate the exact washer, cartridge, or seal required. Pay close attention to the numbered callouts; discrepancies of even 0.5mm in diameter or thread pitch can prevent proper seating. For vintage fixtures, verify the date code (usually etched near the model number) to confirm component compatibility with updated OEM kits.

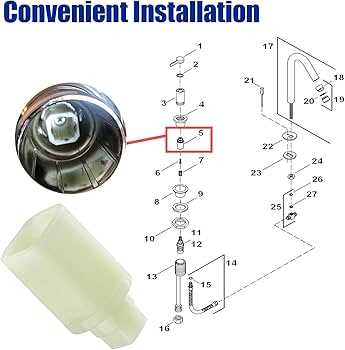

Matching Visuals to Hardware
Compare every angular flange, spline pattern, and retaining clip in the schematic against the physical unit–misidentifying a diverter spring for a balance piston gasket will render repairs ineffective. Measure critical dimensions with calipers if the illustration lacks scale indicators, noting that brass stems often wear differently than nylon bushings. Use the zoom function to examine microscopic markings on seals; a single alphanumeric variant (e.g., “EPDM-40” vs “Viton-50”) dictates chemical resistance and temperature tolerance. When ordering, specify the diagram’s revision number to avoid obsolete substitutes.
Key Cartridge Variants for Premium Bath Mixers and Their Schematics
Replace the GP77770 cartridge immediately if temperature regulation becomes erratic–this 1225 model uses dual ceramic discs prone to wear under hard water conditions. The schematic reveals three distinct inlet ports; ensure O-rings (part #1027285) are seated correctly during reinstallation to prevent cross-flow leaks. Most failures trace back to mineral deposits on the upper disc, visible as white crusting in exploded diagrams.
The GP80030 variant, common in pressure-balanced valves, requires quarter-turn removal counterclockwise–forceful twisting risks cracking the brass housing. Reference the internal cutaway view: the thermostatic element (marked “T”) must align precisely with the cold-water inlet for accurate blending. If water volume drops, clean the flow restrictor inside the spindle sleeve (item #4 in schematics) with vinegar to dissolve calcium buildup before replacing the entire unit.
| Model Code | Compatibility | Failure Symptoms | Schematic Reference |
|---|---|---|---|
| GP77770 | Forté, Coralais single-handle | Temperature surges, reduced flow | Page 4, figure B (disc alignment) |
| GP80030 | Purist, Revival pressure-balanced | Unresponsive handle, inconsistent output | Page 7, exploded view (spindle sleeve) |
| GP11029 | MasterShower thermostatic | No hot water, handle stiffness | Page 9, section 3 (adjusting ring) |
For GP11029 units, rotate the adjusting ring clockwise only–each notch equals approximately 4°F adjustment. Schematics show a secondary locking clip (item #6) that often dislodges during servicing; re-secure this before testing to avoid scalding risks. Lubricate the piston with silicone grease (Dow Corning 111) if the handle binds after reassembly.
Thermal slip in GP58873 units manifests as gradual temperature drift–this model’s non-metallic body expands over time, causing gaps between the seal and valve seat. Replace with GP59900 if repairs exceed 15 minutes; schematics confirm identical thread patterns but improved corrosion resistance. Always verify seat washers (part #1198012) are torqued to 25 in-lbs to prevent bypass leaks.
When diagnosing GP40040, note that schematics distinguish between “service” and “cartridge-only” kits. The latter excludes the escutcheon plate (item #2); if this plate shows warping, opt for the full kit to restore proper spacing. Pressure spikes often shear the retaining clip–install a 50 psi inline reducer upstream if household supply exceeds recommended limits.
