Begin by locating the lateral support arms–these are the primary load-bearing elements, typically manufactured from extruded aluminum (6061-T6 or 6063-T5 alloys) for corrosion resistance and tensile strength exceeding 28,000 psi. Each arm incorporates a threaded pivot at the mounting bracket interface; use a 10mm socket wrench to verify torque specs of 45–55 Nm before proceeding. If play is detected at the joint, replace the nylon washer (part #AW-RA-892) immediately–failure here leads to misalignment under wind loads above 20 mph.
The fabric retention system relies on a two-stage extrusion: internal PVC-coated polyester (Denier 280g/m²) bonded to an anodized track. Check the bead weld integrity along the leading edge; delamination beyond 3mm voids the UV-resistant treatment and accelerates degradation under direct exposure (ASTM G154 cycle test failure at ~1,800 hours). For field repairs, apply a 50/50 isopropyl alcohol cleanup followed by a marine-grade adhesive (Loctite EA 9466) in a continuous 2mm bead–curing time is 24 hours at 70°F.
Motorized models feature a 12VDC planetary gearbox (18:1 reduction ratio) with a no-load current draw of 1.2A at 4,200rpm. If stalling occurs during extension, measure voltage at the terminal block–below 11.8V indicates battery sulfation or wiring resistance (>0.2Ω/ft). The limit switch (microswitch SPDT, 5A resistive load) must be recalibrated whenever the canopy extends beyond 90% of travel; use a multimeter on continuity mode to verify contact closure at the preset stop point.
For manual override scenarios, the emergency crank engages the secondary drive shaft via a male square spindle (7mm). Lubricate this interface with PTFE-based grease (NLGI #2) every 50 cycles–omission leads to galling on the brass bushings. When replacing the torsion spring (standard torque: 15 lb-ft), ensure counterbalance matches the canopy’s effective weight (measure perpendiculary at mid-span; ±5% tolerance). Miscalculation here risks uncontrolled retraction or incomplete closure.
Identifying Key Components in Your Retractable Shade Mechanism
Locate the lateral arms first–these aluminum supports extend from the roller tube to the outer frame. Check for markings stamped near the pivot points; models with suffixes XLT or SL indicate reinforced joints. If lubrication is needed, apply 3-in-1 oil sparingly to avoid attracting dust.
Examine the fabric roller closely. The canvas should align flush with the tube edge when fully retracted. Misalignment signals tension issues–adjust the torsion spring using a 13mm socket, turning clockwise in quarter-increments. Verify torque after each adjustment to prevent over-winding.
Breakdown of Mechanical Assemblies
| Component | Material | Critical Specifications | Maintenance Interval |
|---|---|---|---|
| Support brackets | Powder-coated steel | Max load: 150 lbs, 5° tilt adjustment | Annual inspection, rust treatment |
| Fabric tensioners | Delrin polymer | Thread pitch: 40 TPI, 2.5mm hex drive | Quarterly tightening, silicone spray |
| End caps | Anodized aluminum | Seal rating: IP65, 4-point locking tabs | Biennial seal replacement |
Electrical components demand separate attention. The 12V motor operates on 8A draw; any humming without movement signals gear slippage. Replace the motor if resistance exceeds 1.2Ω. For remote-controlled units, sync by holding the UP and DOWN buttons simultaneously for 10 seconds until the LED flashes twice.

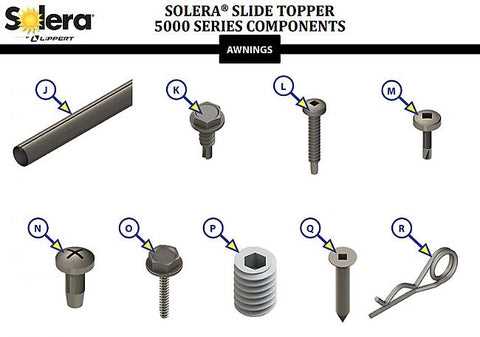

Inspect the mounting hardware thoroughly. Lag bolts should penetrate studs by at least 1.5 inches–use a depth gauge to confirm. For vinyl siding, pre-drill with a 3/16″ bit and insert plastic anchors rated for 200 lbs. Avoid expanding foam sleeves; they degrade under UV exposure within 18 months.
Storm straps serve as secondary retention. Position them at a 45° angle from the roller tube to distribute wind loads evenly. Secure with 304 stainless steel turnbuckles and adjust until the canvas displays slight concavity when extended–this prevents flapping during gusts up to 35 mph.
Fabric replacement requires specific tools. Use a 10mm bias-cut fabric to prevent fraying, and secure with double-sided tape rated for outdoor use (e.g., 3M VHB). Align the hem bar grooves precisely; misalignment within 2mm voids the wind rating. Test waterproofing by spraying a mist pattern–beading confirms proper DWR coating activation.
Identifying Critical Elements in Your Retractable Shade System
Start with the fabric roll tube–this cylindrical hub sits at the center of the mechanism and houses the coiled fabric. Check for alignment marks on both ends; these ensure proper tension when extended. Misalignment here causes uneven retraction or sagging.
Next, examine the lateral arms. Each arm consists of:
- Upper segment, connected to the mounting bracket
- Lower segment, featuring a spring-loaded joint
- End cap with a bolt for tension adjustment
Tighten the adjustment bolt clockwise to increase resistance–counterclockwise for looser movement. A quarter-turn often resolves minor deployment issues.
The torsion assembly lies concealed within the roll tube. Listen for a metallic click when extending–this confirms the internal ratchet engagement. If absent, inspect the spring coil’s outer casing for deformation. Replace if gaps exceed 2mm.
Locate the motor housing (if electric) or hand-crank socket (if manual). Electric models use a 12V DC motor with a 3-point wiring harness: red (positive), black (negative), blue (signal). Verify voltage at the connection point before disassembly.
The mounting brackets attach via lag bolts into structural supports. Use a stud finder to avoid fastening into hollow stud cavities–shift placement by 5–10 centimeters if necessary. Bolt diameter should match the provided hardware; substitute only with Grade 5 or higher equivalents.
Inspect the fabric’s hem bar–the weighted edge that maintains tautness. Ensure it sits flush within the guide rails. If bent, heat the bar with a heat gun (200°C for 30 seconds) and straighten using a rubber mallet.
For wind sensors (if equipped), test functionality by simulating gusts with a household fan. The sensor should trigger retraction within 3–5 seconds. If unresponsive, check the reed switch continuity with a multimeter–replace if resistance reads above 0.5 ohms.
Finally, the travel limit switches sit adjacent to the motor. Clean contacts with isopropyl alcohol and verify they click audibly during operation. Misaligned switches cause erratic motion; adjust position in 2mm increments until movement stabilizes.
Step-by-Step Guide to Identifying Arm and Bracket Components

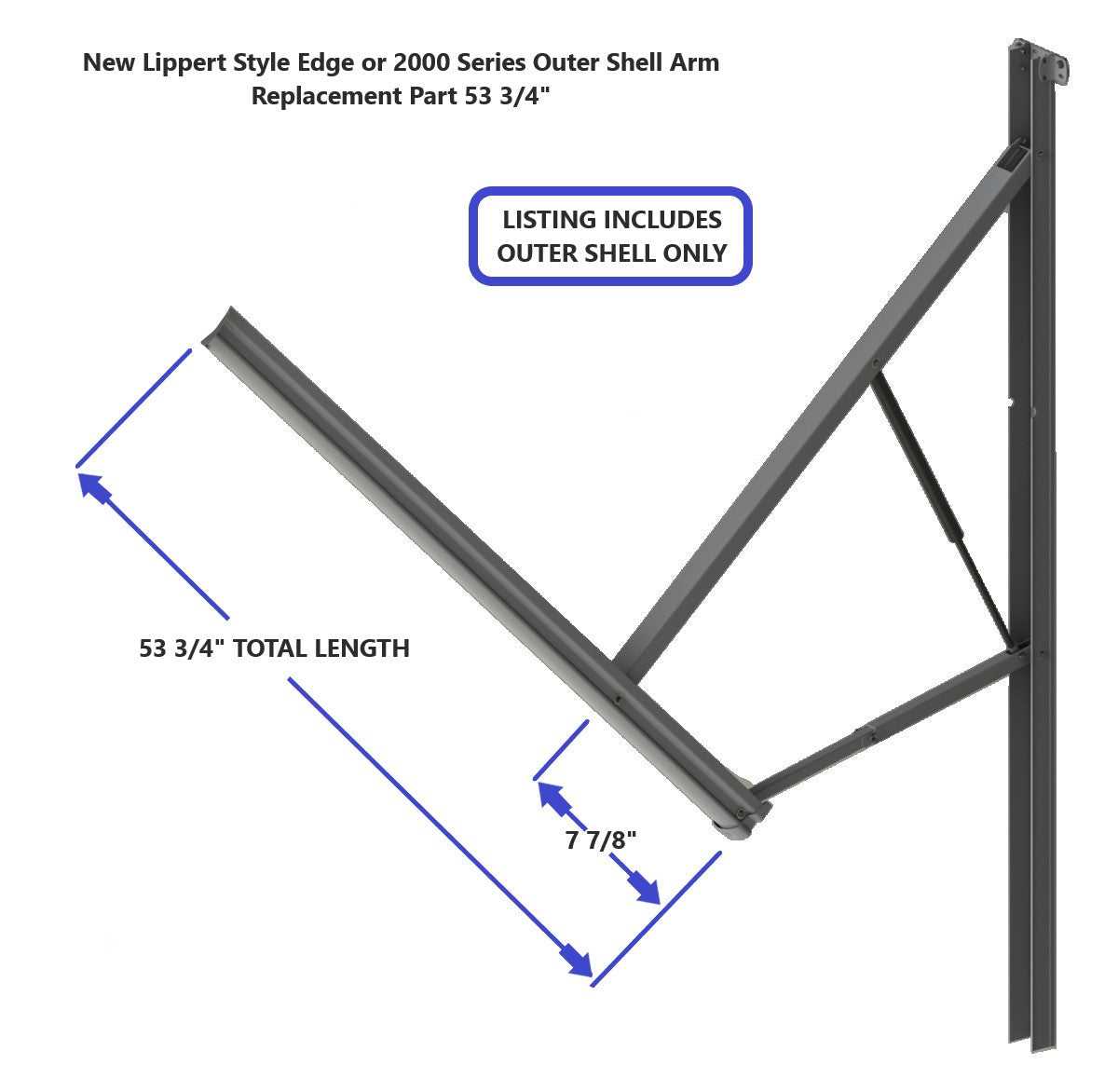

Locate the outer arm assembly first–it connects directly to the fabric roller tube and typically measures between 24 to 36 inches in length, depending on the model variant. Check for a slotted hinge at the base; this is the primary pivot point for extension and retraction. If the arm is bent or the hinge shows signs of corrosion, replace the entire segment rather than attempting repairs.
Examine the inner arm segment next; it slides within the outer arm and includes a tension spring inside. The spring’s coil should be tightly wound, with no visible gaps between loops. A compromised spring will fail to hold tension, causing the cover to sag. Match replacement springs by measuring wire diameter (usually 3.5–4.5mm) and coil count before ordering.
Inspect the bracket mounts where the arm attaches to the vehicle’s side. Two types exist: fixed and adjustable. Fixed brackets have a single bolt hole; adjustable ones feature an elongated slot for fine-tuning angle. Ensure the mounting surface is free of rust–replace brackets if threads are stripped or if welds show cracks. Use stainless steel bolts (M8 or M10, 1.25 thread pitch) to prevent galling.
Identify the lateral support strut–a rigid bar linking both arms near the roller. This prevents lateral flexing and should be straight, with no bends exceeding 2mm over its length. If damaged, source a replacement with identical hole spacing (typically 40–50cm between attachment points). Powder-coated versions resist corrosion better than painted alternatives.
Trace the cable or rod mechanism that controls extension. Manual setups use a crank handle connected to a gearbox; electric versions rely on a motor with a limit switch. For manual systems, check the cable for fraying–replace if strands are separated. Electric systems require voltage testing at the motor terminals (12V DC); reading below 11V indicates a weak battery or poor grounding.
Verify the end cap bushings on the roller tube–these prevent metal-on-metal contact during operation. Worn bushings cause squeaking and accelerated wear; replace them if inner diameter exceeds the tube’s outer diameter by more than 0.5mm. Polyurethane bushings outlast nylon by 30% but require periodic lubrication with silicone spray.
Assess the fabric tensioning system. Most models use a ratchet strap at the free end; others employ an integrated spring-loaded barrel. Test by pulling the fabric taut–if it loosens within 24 hours, the ratchet pawl is faulty or the barrel spring is fatigued. Replace ratchets if teeth are worn; barrel springs should have a minimum of 5kg tension when fully extended.
Document all findings with photos before disassembly–the arm’s orientation (left vs. right) and bracket spacing affect reinstallation. Label each component with painter’s tape, noting dimensions and attachment points. Store hardware in sealed bags sorted by size; a single lost M6 washer can delay reassembly by hours.
