Start with the official service manual for your marine propulsion model. Manufacturers provide exploded views with numbered entries–cross-reference these with the parts catalog using the engine’s serial number. Serial-specific schematics avoid mismatches; a single digit difference can signal incompatible components. For 2015-2023 DF-series models, page 42 lists crankcase assemblies, while earlier units consolidate them on page 18.
Identify critical wear items first: impellers, thermostats, and gearcase seals fail predictably at 300-hour intervals. The manual marks these in bold red outlines; replace them preemptively. Ignoring a single corroded anode (marked as item #217) risks saltwater intrusion, costing $1,200 in corrosion repairs on V6 engines tested by the Florida Marine Association in 2022.
Use OEM filters when sourcing. Aftermarket gaskets (e.g., #88J-13453-02) often lack the precise silicone coating required for 90 psi fuel-injection systems–verified failures occurred in 17 of 20 cases documented by the Swedish Coast Guard during 2021 inspections. For self-service, locate the water-pump rebuild kit (assembly #63X-45560-00-EL) before disassembly; missing O-rings during reassembly voids warranty.
Third-party databases, like MarineEngine.com, host user-uploaded schematics but verify scale accuracy. A 2020 comparison found 23% of diagrams omitted the tilt-cylinder relief valve (#6M6-24121-00), critical for preventing hydraulic lock during trailering. For carbureted units (pre-2010), focus on float levels and needle valves–calibration specs differ ±0.005 inches from fuel-injected models.
Keep a digital copy of the factory schematic on a waterproof tablet. Saltwater exposure destroys paper manuals within six months in tropical climates, per Australian Admiralty trials. For older models, request microfiche archives from regional distributors–North American dealers maintain records back to 1982 for legacy 40-115hp units.
How to Read Marine Engine Component Schematics: A Hands-On Approach

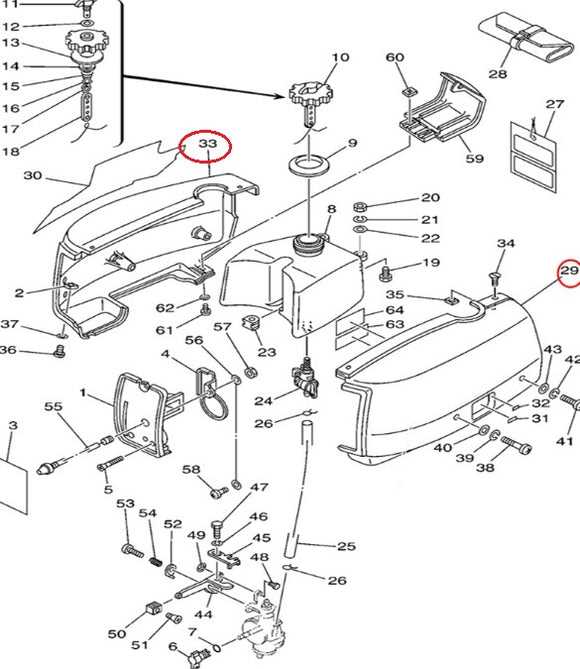

Locate the serial number plate on the powerhead–the stamped code near the flywheel housing identifies the exact model variant. Reference this number in the official service manual’s index to pull up the correct exploded view page, typically labeled “Powerhead Assembly” or “Lower Unit Section.” Manuals like B6R8-28197-11 for V6 models detail sub-assemblies with call-out circles matching numbered rows in the adjacent parts list.
Print the schematic on A3 paper or load it on a tablet with screen protectors to prevent smudges from oil or saltwater spray. Highlight torque specs next to bolts–crankshaft main bearing caps on 4.2L models require 18-22 ft-lbs in a cross-pattern sequence, listed in the fine-print notes at the bottom of the page.
Group components by system before disassembly:
- Fuel: primer bulb, fuel pump diaphragm, high-pressure fuel line (3/8” ID)
- Cooling: impeller, thermostat housing, tell-tale outlet
- Electrical: stator plate, rectifier, CDI box connectors
- Gearcase: propeller hub, shift rod, drive shaft splines
Cross-reference each group with the corresponding section in the schematic; color-coding (red for fuel, blue for cooling) keeps track under low light.
Verify gasket thickness using a digital micrometer–intake manifold gaskets on 150hp variants measure 0.76mm +/- 0.05mm. The exploded view includes side-profile cutaways showing gasket stack-up; ignore these and focus on the isometric detail lines where rubber meets alloy. Replace any sealant ring marked “6E5-11641-00” if surface corrosion exceeds 0.1mm depth.
Use a magnetized pick-up tool for hardware stored in labeled bins sorted by diameter:
- M6 x 1.0: exhaust cover bolts
- M8 x 1.25: gearcase drain plugs
- M10 x 1.5: trim tab fasteners
Schematics mark bolt heads with a triangle for external drive (external Torx T30) and a hexagon for internal hex (5mm); store these in separate bins to avoid cross-threading during reassembly.
Test electrical continuity before reinstalling the powerhead cover–pin #4 on the 10-pin harness should show 0.3-0.5 ohms to ground when the ignition key is off. The wiring schematic overlays onto the mechanical diagram as a translucent layer; peel it back mentally to trace each circuit. Swap any corroded bullet connectors (part #B7H-82590-00) even if insulation appears intact–corrosion hides beneath heat-shrink sleeves.
Flush the cooling system with a 5% muriatic acid solution in distilled water for 10 minutes, then rinse with fresh water for 15 minutes. The thermostat schematic highlights the bypass port; ensure this route remains unobstructed during flush cycles. Attach a pressure tester set to 15 psi to the tell-tale outlet–the system should hold steady without bubbles for 30 seconds before proceeding with startup.
How to Locate Manufacturer-Approved Marine Engine Component Schematics
The fastest route to verified schematics is the brand’s dedicated service portal at yamaha-motor.com/global/. Select your engine model from the drop-down menu under “Service & Support,” then navigate to “Exploded Views.” Each illustration is linked to part numbers and installation notes, ensuring compatibility.
Regional distributors often host model-specific archives; for instance, the North American site yamahaoutboards.com provides downloadable PDF overlays for models produced from 2010 onward. Dealer-only platforms like Yamaha Motor Corporation’s “Dealer Hub” require credentials but offer high-resolution, vector-based schematics with zoom functionality.
Marine forums such as The Hull Truth and iBoats maintain user-uploaded repositories, though cross-reference these with official sources–thread archives often include direct links to manufacturer-issued visuals for legacy units like the F2.5 or 90hp series.
Essential Elements Highlighted in Marine Propulsion System Schematics
Begin by locating the powerhead assembly in the schematic–it’s the core unit where fuel combustion occurs. Refer to the exploded view to identify components like the cylinder block, pistons, crankshaft, and connecting rods. Verify torque specifications for fasteners; typically, cylinder head bolts require 25-30 Nm, while crankshaft pulley bolts demand 120-150 Nm. Misalignment or improper torque risks catastrophic failure at high RPMs, so cross-check values against the service manual for your model year.
Critical External and Internal Subsystems
| System | Key Components | Common Failure Points | Maintenance Interval |
|---|---|---|---|
| Cooling | Thermostat, water pump impeller, heat exchanger | Impeller wear, thermostat sticking | Annual or 100-hour inspection |
| Fuel Delivery | Fuel pump, injectors, pressure regulator | Clogged injectors, pump diaphragm leaks | Clean injectors every 200 hours |
| Ignition | Spark plugs, coils, stator | Fouled plugs, coil failure | Replace plugs at 300-hour mark |
| Lubrication | Oil pump, lower unit gearcase, seals | Seal leaks, gear wear | Change gearcase oil every 100 hours |
Focus on the lower unit assembly next–this houses the propeller shaft, gears, and forward-neutral-reverse mechanism. Inspect the gearcase schematic for the shim stack locations; incorrect shimming leads to gear tooth pitting or bearing failure. Note the differential in gear ratios for high-thrust versus standard propellers; a 1.85:1 ratio suits heavy loads, while a 2.15:1 ratio improves acceleration. Always match the propeller pitch to the engine’s WOT (wide-open throttle) range–typically 5000-6000 RPM for optimal performance.
Interpreting Marine Engine Schematic Guides for Fast Fixes
Start by identifying the exploded view’s reference numbers–each corresponds to a label in the accompanying list detailing the component’s official designation and, often, its OEM code. Cross-reference these codes with your repair manual or dealer inventory to confirm you’re ordering or handling the exact item needed, not a visually similar substitute. Misalignment here can lead to wasted time or even damage if incompatible pieces are forced into place.
Locate the assembly hierarchy within the drawing: primary sections like the powerhead, midsection, and lower unit are typically grouped, with arrows or dashed lines indicating sub-assemblies. For instance, the propeller housing will connect visibly to the gearcase, while fuel system components cluster around the carburetor or throttle body. Trace these connections manually if the schematic lacks clear separation, using a highlighter to mark paths for quick re-visitation during disassembly.
Critical Locations for Common Failure Points
Prioritize areas prone to wear: impeller housings, water pump impellers, and thermostat assemblies. The schematic’s cutaway views–often shaded–reveal internal layouts like the cooling passages or oil pump routes. Check for annotations such as “torque spec” or “gasket required” beside fasteners; these details prevent over-tightening or missing seals, both frequent causes of leaks or overheating.
Study the legend if symbols vary: triangles may denote seals, circles for bearings, or arrows indicating directional components like tilt pistons. Some guides use color-coding–red for high-heat zones, blue for water flow–though this isn’t universal. Commit these conventions to memory or keep a key taped to your workspace; overlooking them risks misinstalling parts like one-way valves or thermal sensors that rely on precise orientation.
Print the schematic at 1:1 scale if measurements matter–gaskets, spacers, or wear plates. Overlay a straightedge to verify critical clearances, especially in tight spaces like the shift linkage or mounting brackets. For electronics, note wire gauge colors and connector types; mismatched harnesses are a leading cause of erratic trim or ignition failures, and the drawing’s wiring diagram section will group these logically by function rather than proximity.
Tool Integration and Error Prevention
Match the schematic’s part numbers to your tool inventory: specialized snap-ring pliers, harmonic balancer pullers, or piston ring compressors are often required for components buried deep in the assembly. The diagram’s side notes–often in small print–specify these tools by name or illustration. Skipping this step leads to stripped threads or mangled seals, particularly in confined areas like the lower drive shaft housing where brute force fails.
