Replace faulty seals and gaskets every 2–3 years to prevent leaks–identify them by their rubber or silicone material, typically 2–4 inches in diameter. Flush valves should align precisely with the tank’s drainage hole; misalignment causes persistent running water. Check the overflow tube height: it must stand 1 inch below the critical level mark to avoid tank overflow during refill cycles.
Handle mechanisms vary by model–side-mounted levers often connect via a lift chain adjusted to ½ inch slack. Rear-mounted push buttons require precise linkage alignment; improper settings lead to partial flushes or continuous drainage. Inspect the fill valve’s water level setting: the optimal height equals the overflow tube’s top minus ¼ inch.
Bowl refill tubes must direct water into the overflow pipe–not the tank–to prevent siphoning sounds or inconsistent flushing. Mounting bolts securing the base to the floor should tighten evenly in a star pattern to avoid porcelain cracks. Replace wax rings if seepage appears near the bowl’s base; use extended flanges for offset waste pipes on installations where standard rings fail.
Look for model-specific identifiers embossed on the porcelain’s underside–these codes determine compatible replacement components. Brass components outlast plastic counterparts by 5–7 years but require periodic inspections for mineral buildup. Always shut off the water supply and drain the tank completely before disassembly to prevent spills.
Understanding Schematic Breakdowns for Sanitation Fixtures
Begin by locating the flush valve assembly–typically positioned at the tank’s base–where the primary seal and refill mechanism connect. Identify the overflow tube adjacent to it; this component prevents tank overfilling by diverting excess water into the bowl. Examine the fill valve (or ballcock) on the left side, which regulates water inflow; its height should measure approximately 1 inch below the manufacturer’s critical level mark to ensure proper shutoff.
Inspect the handle linkage, often a lift wire or chain, attaching the lever to the flapper. Verify the chain’s slack: ½ inch of play prevents premature flapper closure while avoiding entanglement. The flapper itself–usually a flexible silicone or rubber disc–must create an airtight seal over the flush valve seat; warping or mineral buildup here accounts for 80% of silent leaks. Replacement gaskets should match the original’s diameter (±2mm tolerance) to maintain calibration.
Troubleshooting Common Assembly Issues
For persistent running water, remove the tank lid and add 5 drops of food coloring–wait 30 minutes. If color appears in the bowl, replace the sealing disk; if not, adjust the float cup’s position by turning the adjustment screw clockwise to lower the water level by ¼ inch increments. Hard water deposits on the rim jets can reduce flow by 40%; descale using white vinegar in a 1:1 solution with water, soaked for 2 hours. Always disconnect the water supply before detaching any component–thread seal tape on fill valve connections should exceed three wraps to prevent seepage at the coupling nut.
How to Spot Key Fixture Elements for Quick Fixes
Locate the fill valve by removing the tank lid – it’s typically a vertical assembly on the left side with a float arm or cylinder. Check for a small fill tube attached to its top; this directs water into the overflow pipe. If water continuously flows into the bowl, the seal at the base of this component may be worn or misaligned. Replace it by unscrewing the locking nut beneath the tank and installing a new unit with plumber’s tape to prevent leaks.
Tackling the Flush Mechanism
The flush handle connects to a lift chain, which raises the flapper when activated. If pressing the handle requires excessive force, adjust the chain length – leave about ½ inch of slack to ensure proper sealing. A corroded or warped flapper won’t seal correctly, leading to constant water flow; inspect its rubber edges for cracks or mineral buildup. Replace immediately if damaged, matching the model number printed on the flapper’s underside.
Examine the overflow tube at the tank’s center; it should extend 1–2 inches above the waterline. If it’s too short, water may siphon into the bowl, while excessive height causes overflow. Adjust by bending the float arm or turning an adjustment screw on newer models. For dual-flush systems, ensure the secondary button isn’t stuck partial–clean debris from the actuator rod if necessary.

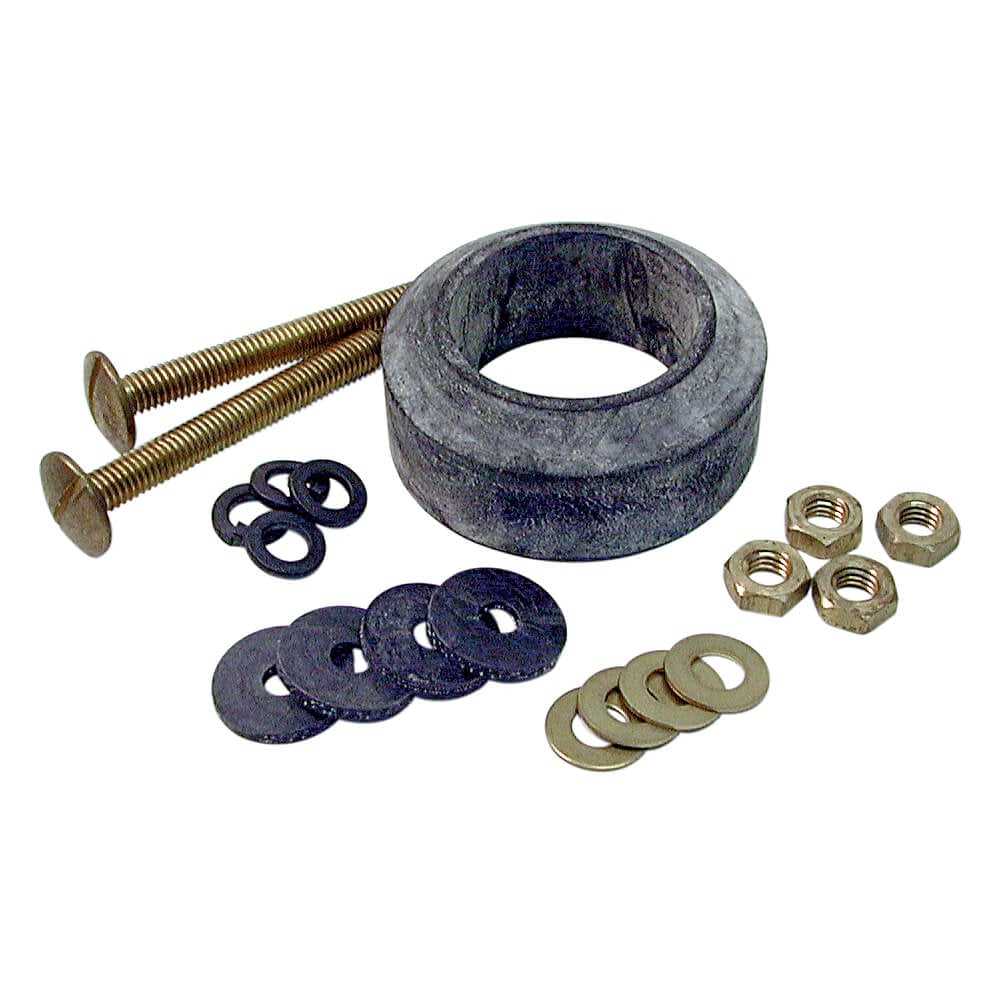

Inspect the tank-to-bowl gasket–visible only after removing the tank–if leaks appear at its base. This thick rubber seal compresses between the tank and bowl; deformation or cracks will require replacement. Drain the tank, disconnect the water supply, and loosen the mounting bolts to access it. Apply a bead of silicone sealant during reinstallation to prevent future seepage.
Troubleshoot slow drainage by checking the rim jets under the bowl’s edge. Mineral deposits often clog these small holes; clear them using a bent wire hanger or vinegar soak. If the bowl empties slowly despite clear jets, the drain line may have an obstruction–use a plumbing snake to reach beyond the trapway curve.
How to Pinpoint the Refill Mechanism in Plumbing Schematics
Locate the exploded view section of the assembly blueprint–typically marked near the tank’s interior layout. Identify the vertical column positioned centrally; this houses the primary water-regulating component. Labels like “A7” or “B12” often denote its position, depending on the model series.
Examine the upper portion of the tank schematic, where the inflow control is consistently illustrated. Look for a cylindrical or cone-shaped symbol connected to a flexible tube–this signifies the intake valve. Cross-reference the numbered legend: entries such as “fill assembly” or “refill unit” confirm its identity.
Trace the path of the water line in the diagram. The inlet mechanism always anchors to the tank’s base, extending upward to meet the overflow pipe. If the schematic divides the assembly into subcomponents, the refill element will occupy the lower half, adjacent to the flush actuator.
| Component Location | Symbol Key | Common Markings |
|---|---|---|
| Central tank column | Cylinder with inlet pipe | #A7, #B9, #C14 |
| Side-mounted float | Arm with spherical end | #D3, #E5 |
| Base attachment | Threaded base with gasket | #F11, #G2 |
The float ball or cup connected via an angled arm is an immediate visual cue. In contemporary schematics, the arm may appear as a dotted line terminating at a circular or oval shape. Older models depict a rigid rod leading to a larger sphere–both variations serve the same pressure-regulating function.
Use the component index if the main schematic lacks clarity. Numbers adjacent to the refill device correlate with detailed inset drawings or side views. These insets magnify the seal, adjustment screw, and water orifice, confirming the valve’s exact configuration.
Verify proper orientation by checking the directional arrows, if present. The inflow control must face the rear or side wall, never directly above the flush outlet. Misalignment in the diagram suggests incorrect identification–reassess using the numbered legend or cross-section views.
Decoding a Flush Mechanism Assembly Blueprint
Locate the spindle at the center of the schematic–its length determines compatibility with the tank depth. Most designs label it with a numeric code (e.g., #47 for standard 4-inch extensions) or color-coded dots for quick reference. Compare the spindle’s threading pattern to the replacement guide: coarse threads fit older models, while fine threads align with high-efficiency units.
- Gasket position (usually Item 5 or C): Verify thickness–1/8″ seals low-flow systems, 3/16″ suits pressurized tanks.
- Retaining clip: Check if it’s metallic (lasts longer) or plastic (prone to cracking under torque).
- Overflow tube: Note the height–shorter tubes (6″) prevent overflow in shallow reservoirs; taller tubes (9″+) accommodate deeper water levels.
Examine the refill tube’s routing path–it must bypass the overflow tube without kinks. If the schematic shows a detachable refill linkage, ensure the connection point matches the actual valve’s barbed fitting size (typically 1/4″ or 5/16″). Mismatched diameters cause leaks or slow fills.
Cross-reference the lift chain’s attachment holes with the handle’s throw length. Standard handles require 3-4 holes; elongated handles need the lower holes for full flushes. If the exploded view includes a trip lever with adjustable angles (common in dual-flush systems), note the degree markings–15° increments align with partial flushes, 30°+ trigger full releases.
Step-by-Step Repair Guide for Sanitary Fixture Reservoirs
Locate the exploded schematic for your model–typically found on the manufacturer’s website under “technical resources” or printed inside the tank lid–before disassembly. Identify each component: the flush valve (often a tower with a seal at its base), the refill assembly (a vertical tube connected to the water supply), and the trip lever mechanism (including the lift wire and chain). Shut off the water supply at the wall valve, then hold down the flush handle to drain residual pressure. Disconnect the supply line using an adjustable wrench, turning counterclockwise until the nut detaches cleanly. Place a towel beneath the connection to catch drips. Remove the tank lid and set it aside on a padded surface to prevent cracks.
Replace worn seals starting with the flush valve–pull the tower straight up to release the old seal, grease the new one lightly with silicone lubricant, and press it into place until it clicks. For the refill assembly, unscrew the top cap by turning it counterclockwise, slide out the old fill valve, and insert the replacement, aligning the overflow tube with the marked water level indicator. Reattach the supply line, hand-tightening first, then securing with a quarter-turn of the wrench to avoid over-torquing. Test for leaks by turning the water back on and observing the bowl for 30 seconds–adjust the chain length so there’s 1/2 inch of slack, ensuring the flapper closes fully without binding. If the refill tube sprays erratically, pinch it beneath the water surface in the overflow pipe to quiet gurgling.
