Start repairs by locating the carburetor assembly–marked on schematics near the fuel tank connection with three mounting bolts. Replace the air filter cartridge (OEM #791720) if debris clogs the intake; verify inner foam integrity before reinstallation. The flywheel key (part #697036) often shears first under sudden load–inspect for twisting or partial fractures to prevent ignition timing failures.
Use snap-ring pliers for the governor linkage (diagram zone C); note torque specs (5–7 ft-lbs) to avoid binding. The lubrication pump (OEM #793573) requires SAE 30 non-detergent oil–drain annually by removing the drain plug below the sump. For valve adjustments, loosen locknuts on both rocker arms, set clearance (0.004–0.006 in), then recheck compression (minimum 90 PSI).
Electrical diagnostics begin at the stator coil–test resistance (180–240 ohms) between the magneto case and spark plug terminal. The crankshaft seal (part #693552) fails above 200 operating hours; pry it out using a seal puller, ensuring shaft surface is free of burrs before pressing the new seal (0.25 in lip depth).
Overhaul kits (OEM #272073) include piston rings; measure ring gap (0.003–0.004 in max) with a feeler gauge before sliding into the cylinder bore. The recoil starter releases tension by removing the pulley screw–do not lose the spring retainer clip (0.0625 in thick). Check the exhaust valve face for pitting; lapping compound removes minor corrosion, but replace if grooves exceed 0.010 in deep.

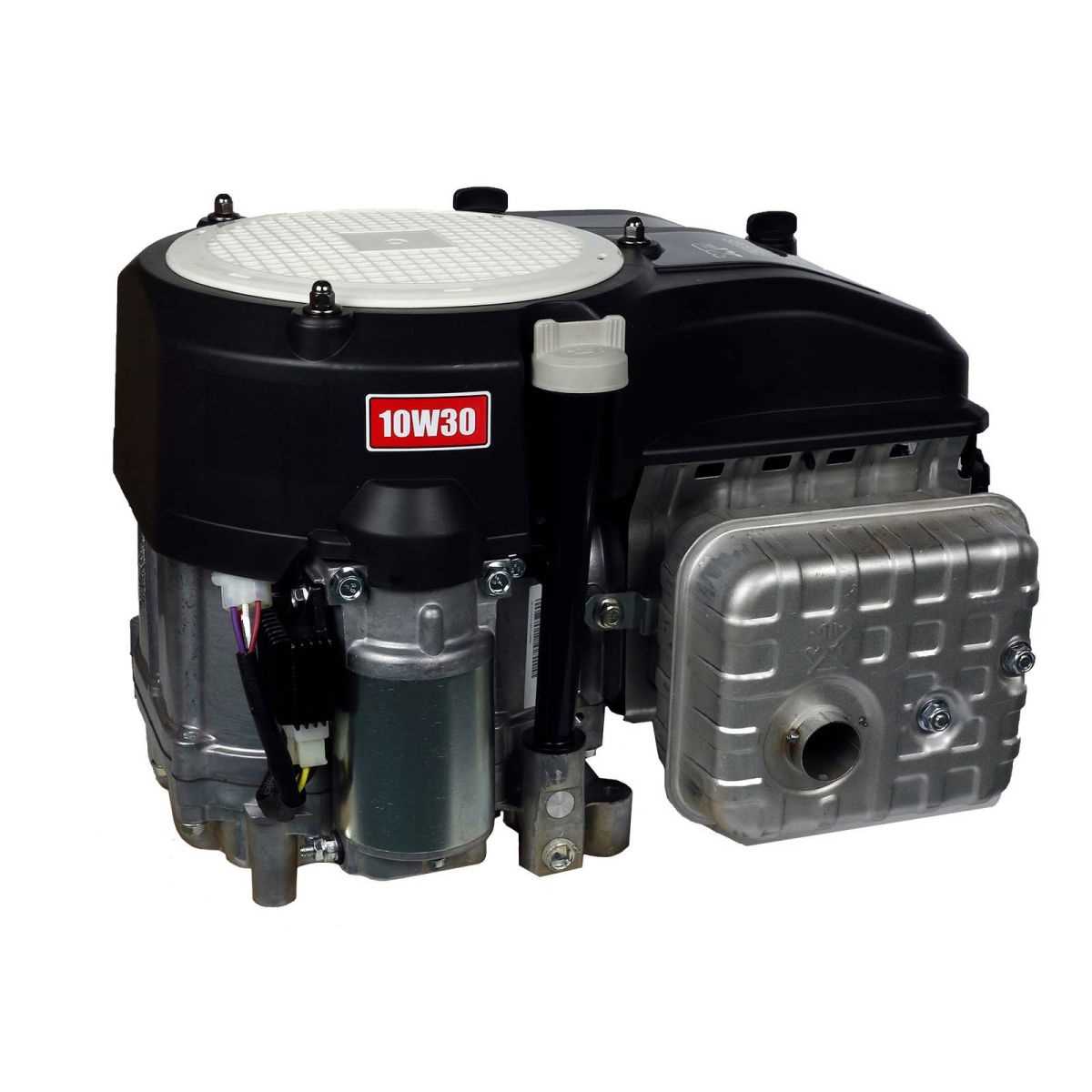

Understanding Your 17.5 Horsepower Powerplant Component Layout
Begin by locating the air filter housing–positioned on the right side when facing the motor. Remove the wing nut to access the foam element; wash it with warm soapy water every 25 operating hours or whenever debris is visible. Avoid compressed air as it can tear the material.
Next, inspect the carburetor linkage. The governor lever connects to the throttle plate via a small spring–ensure this spring stretches no more than 12mm when engaged. Lubricate the pivot points with silicone spray monthly to prevent corrosion. A faulty governor causes erratic RPMs; replace the spring if tension weakens.
| Component | Torque Spec (ft-lbs) | Maintenance Interval |
|---|---|---|
| Cylinder head bolts | 18-22 | 100 hours |
| Flywheel nut | 45-50 | 200 hours |
| Spark plug | 15-20 | 50 hours |
Drain the fuel system before prolonged storage. Disconnect the fuel line from the tank outlet, then run the motor until it stalls. This prevents stale fuel residues clogging the jets. Replace the inline fuel filter annually–it’s overlooked but critical for consistent flow.
Examine the ignition coil gap when troubleshooting misfires. The correct distance between the flywheel magnets and coil legs is 0.25mm-0.36mm. Use a non-magnetic feeler gauge to avoid false readings. Test coil output with a multimeter–below 3k ohms indicates failure.
Critical Wear Points
Check the valve clearance every 300 hours. Intake valves should measure 0.10mm-0.15mm; exhaust valves 0.20mm-0.25mm. Adjust using the rocker arm nuts–over-tightening warps the valve stem. Grind new valves if seating surfaces appear pitted.
The starter clutch assembly wears internally. Listen for a clicking noise during startup–this signals worn gears. Remove the blower housing to access the starter; replace the entire unit if gear teeth appear rounded. Rebuild kits exist but rarely justify the labor.
Identifying Critical Elements in Your 305cc Power Unit
Begin by locating the flywheel beneath the recoil starter housing; it sits at the front left of the assembly. Remove the blower cover secured by three 8mm bolts–use a torque wrench set to 12 Nm to avoid over-tightening upon reassembly. The flywheel’s magnets interact with the ignition armature, positioned directly below.
The carburetor mounts on the right side, connected via a rubber intake manifold. Disconnect the fuel line first, then unfasten the two 10mm bolts holding the mounting bracket. Note the orientation of the throttle linkage–misalignment during reinstallation can cause lean or rich fuel mixtures. The air filter housing attaches above the carburetor with a single screw; removal grants access to the choke plate.
Trace the valvetrain components starting with the rocker arms atop the cylinder head. Loosen the 11mm adjustment nuts on the pushrods before removing the valve cover–keep track of the pushrod order, as swapping them risks improper valve timing. The camshaft lies beneath the crankshaft, driven by a timing gear with 48 teeth; match its alignment marks during servicing.
- Crankshaft pulley: Located at the base, it drives the alternator via a serpentine belt. Verify belt tension with a deflection gauge (target: 10–12mm under 4.5kg pressure).
- Oil dipstick tube: Threads into the crankcase on the left side; ensure the O-ring seals properly to prevent leaks.
- Governor linkage: Attached to the carburetor’s throttle lever–adjust the spring tension to maintain consistent RPM under load.
The cylinder block houses the piston and crankshaft, but direct access requires splitting the case. Before attempting, drain all oil via the 14mm sump plug and remove the cooling fins’ shroud. The piston rings should have a gap of 0.2–0.4mm; measure with feeler gauges during inspections. Replace the head gasket if compression loss is suspected–torque the cylinder head bolts in a spiral sequence to 22 Nm.
Inspect the exhaust manifold for carbon buildup; soak it in a solvent bath if clogged. The spark plug sits at a 45-degree angle above the piston–use a socket with a rubber insert to avoid stripping the threads. For storage, disconnect the spark plug wire and rotate the flywheel by hand to prevent fuel gumming in the carburetor.

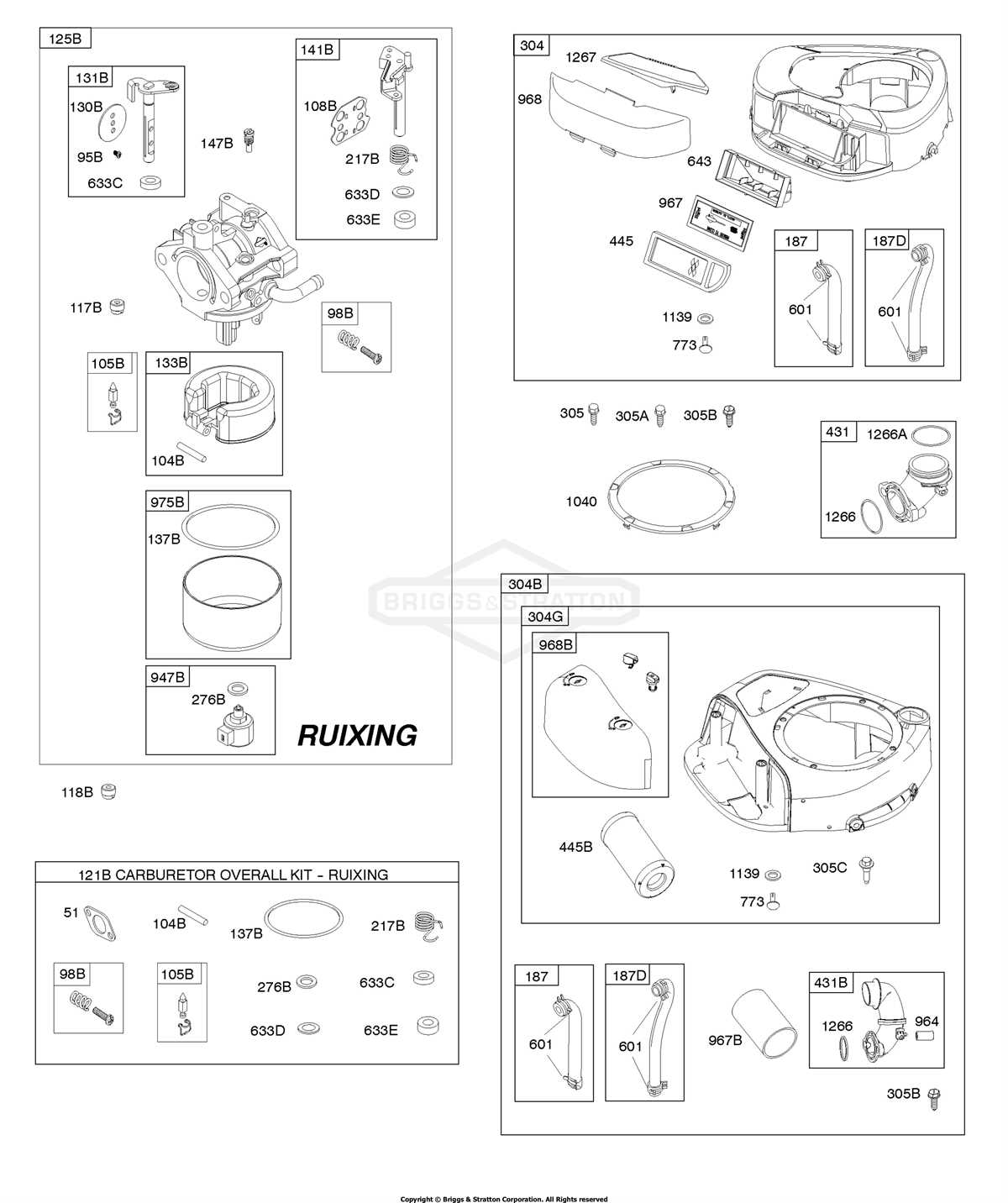

Carburetor Overhaul: Precise Disassembly and Reassembly Guide
Locate the fuel bowl nut beneath the carb body–rotate counterclockwise with a 14mm socket. Drain residual fuel into an approved container; dispose per local regulations. Disconnect the linkage rod from the throttle plate using needle-nose pliers–note alignment for reassembly.
Remove the idle speed screw and mixture screw–count turns during removal (standard: 1.5 turns from seated position). Inspect screw tips for erosion; replace if grooves exceed 0.2mm depth. Soak screws in carb cleaner for 10 minutes if corrosion exists.
Extract the emulsion tube by inserting a 3mm pin punch into the center hole–tap lightly to release the pressed fit. Check O-rings (ID: 6.5mm x 2.5mm) for flattening; replace if cross-sectional thickness drops below 2.3mm. Rinse tube in acetone, then air-dry for 15 minutes before reinstallation.
Pull the main jet from its bore using a 5mm hex key–measure orifice diameter (factory spec: 0.8mm). Compare against a drill bit gauge; deviations over 0.05mm require replacement. Clean the passageway with 0.4mm stranded wire wrapped in lint-free cloth, lubricated with STA-BIL fogging oil.
Unthread the pump cover (8mm hex) to access the diaphragm–peel carefully to avoid tearing. Examine the membrane for cracks; test flexibility by stretching 200% with calipers. If elasticity fails below 180%, install a new unit (P/N: 695456). Reinstall with the gasket side facing outward–align index tabs with housing grooves.
Scrub all metal components with Sonicweld degreaser, followed by ultrasonic cleaning at 40kHz for 8 minutes. Rinse in denatured alcohol, then dry with compressed nitrogen (15psi). Apply Permatex 2207B thread sealant to all bolts prior to torquing (bowl nut: 12 Nm, pump cover: 7 Nm).
Test for vacuum leaks using a SmokePro tester at 0.3 cfm flow rate–hold throttle plate open to 0.75 inches while monitoring gauge stability. If pressure drops below 10 inHg in 30 seconds, reseat gaskets or replace needle valve assembly (spool width: 2.8mm). Calibrate idle using a digital tachometer–adjust mixture screw in 1/8-turn increments until 1,200 RPM ±50 is achieved.
Recognizing Critical Maintenance Components and Their Service Timelines
Replace spark plugs every 100 operating hours or annually–whichever occurs first. Use NGK BPR4ES or equivalent, gapped at 0.030 inches (0.76 mm). Fouled plugs reduce combustion efficiency by up to 20%, increasing fuel consumption and carbon buildup in the exhaust.
Air filters require inspection every 25 hours under normal conditions. Paper elements should be replaced every 50 hours, while foam pre-cleaners mandate cleaning every 10 hours if operating in dusty environments. A clogged filter restricts airflow, causing the motor to run roughly and accelerating cylinder wear by 30%.
Wear-Prone Components and Exact Replacement Cycles
Check valve clearance at 200-hour intervals; adjust if measurements exceed 0.004–0.006 inches (0.10–0.15 mm) for intake valves and 0.005–0.007 inches (0.13–0.18 mm) for exhaust valves. Improper clearance leads to valve train noise, reduced compression, and eventual valve failure within 150 additional hours.
Lubricate throttle and governor linkages every 50 hours with high-temperature grease such as Mobilgrease XHP 222. Corroded or stiff linkages cause erratic RPM fluctuations, increasing idle speed by 20% and shortening carburetor lifespan by 40%.
Inspect fuel lines for cracks or brittleness every 100 hours; replace immediately if degradation is detected. Ethanol-blended fuels degrade polyurethane lines faster, leading to vapor lock and potential fuel leaks within 12 months of installation. Use ethanol-compatible SAE J30R9 or equivalent.
Crankcase oil demands a full change every 50 hours or six months with SAE 30 API SJ or higher. Synthetic blends like Mobil 1 10W-30 extend drain intervals to 75 hours but require filter replacement (part 698364) at the same interval. Contaminated oil reduces bearing life by 50% and increases piston ring wear by 35%.
Examine engine mounts and vibration dampeners every 200 hours. Cracked or missing dampeners transmit excessive harmonic vibrations, loosening fasteners and shortening alternator life by 60%. Torque mounting bolts to 25 ft-lbs (34 Nm) during reassembly.
