Start by locating the engine housing cover–item 12 on most schematics. Remove the two screws fastening it to the main body; these often strip, so use a #2 Phillips driver with controlled torque. Beneath it sits the flywheel assembly, secured by a single nut. Matching the rotation direction imprinted on the flywheel ensures correct removal. Store components in order: intake shroud, spark plug boot, then the flywheel itself.
Inspect the crankshaft seals (both drive-shaft and PTO ends) for heat warping or silicone residue. Replace if inner diameter exceeds 10.2 mm or if lip damage is visible under 10x magnification. The left-hand seal typically shows wear first due to exhaust-heat concentration. Clean mating surfaces with 400-grit emery cloth; avoid compressed air–it forces debris deeper into the crankcase.
Reference the exploded view sheet for carburetor linkage alignment. The throttle lever should contact the adjustment screw at exactly 2.3 mm from the housing edge. Over-tightening the idle-speed screw causes inconsistent fuel delivery. Note color-coded washers: red for high-speed jet, blue for primer bulb gasket. Swap only identical part numbers; cross-referencing OEM codes prevents fuel-air ratio imbalance.
Reassembly sequence matters–piston ring gaps must face downward relative to the cylinder’s exhaust ports. Lubricate with two-stroke oil before sliding piston into bore; verify top dead center alignment via the flywheel key slot. Secure cylinder head bolts in a star pattern, tightening to 9 Nm ±0.5 Nm. Failure to follow the torque spec risks compression leaks detectable by a gradual drop in max RPM below 9,000.
Assistance Guide for Power Assist Bike Component Layout
First, locate the rear wheel assembly schematics–reference segment 4B in the official service manual. This section details the cassette removal procedure, including torque specifications for locknuts (25–30 Nm) and the required tool set: a 14mm socket, 5mm Allen key, and snap-ring pliers for the derailleur hanger.
For the mid-drive motor disassembly:
- Disconnect the battery terminal (red/black cables) before handling the cover plate.
- Rotate the torque sensor counterclockwise to release it from the frame mount–use a rubber mallet if corrosion is present.
- Note the position of the 8 fixing screws; thread-locking compound (Loctite 242) must be reapplied during reassembly.
Chain tension adjustment requires precision–measure the deflection midpoint between the front and rear sprockets. Ideal range: 10–12mm slack. Exceeding this risks premature wear on the jockey wheels. Always replace the chain if stretch exceeds 0.75% (use a 12-inch caliper for verification).
The brake caliper rebuild process involves three critical seals:
- Piston seal (O-ring, 5mm ID) must be lubricated with DOT 4 fluid–no substitutes.
- Dust boot installation requires a specialized installer tool to avoid tearing.
- Bleeding sequence: lever → caliper → lever (repeat until air bubbles cease).
Handlebar controls include a hidden reset button beneath the left grip–press for 5 seconds to recalibrate the speed sensor if error code “E-04” appears. The throttle assembly uses a hall-effect sensor; never disassemble–replace the entire unit if response lag exceeds 300ms.
Frame welds near the downtube are prone to stress fractures–inspect biannually with a magnet and dye penetrant. For crack repair, use a TIG welder with 4043 aluminum filler rod at 90–110 amps. Post-weld, apply a corrosion inhibitor (e.g., ACF-50) to prevent galvanic reaction with stainless bolts.

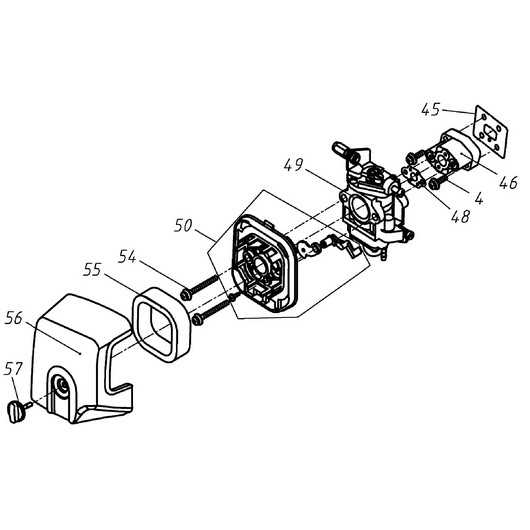

Finding the Air Intake Component in Your Equipment’s Schematic
The air filter assembly is typically positioned near the engine’s carburetor or intake manifold, identifiable by a rectangular or cylindrical housing with securing clips. In the exploded view, locate the section labeled “Intake Group” or “Filter System”, where it appears as item #12-03 (part code A756-89010). Use contrasting colors–red for the filter element, blue for the housing–if the diagram includes shading. For quick access during maintenance, remove the two retaining screws (torx T25) on the outer casing; these are often overlooked but critical for proper sealing.
Key Verification Steps
- Match the filter housing shape to the schematic: a oval 85mm x 60mm box with a single 10mm outlet hose.
- Check for a foam pre-filter (item #15-07) attached to the main unit–common omission in replacement procedures.
- Ensure the sealing gasket (item #13-01, 2mm thick) is intact; degradation here causes unfiltered airflow.
- Note the orientation: arrow embossed on the housing must point toward the engine block.
- If the diagram lacks labels, reference the adjacent components–throttle linkage and fuel line serve as reliable landmarks.

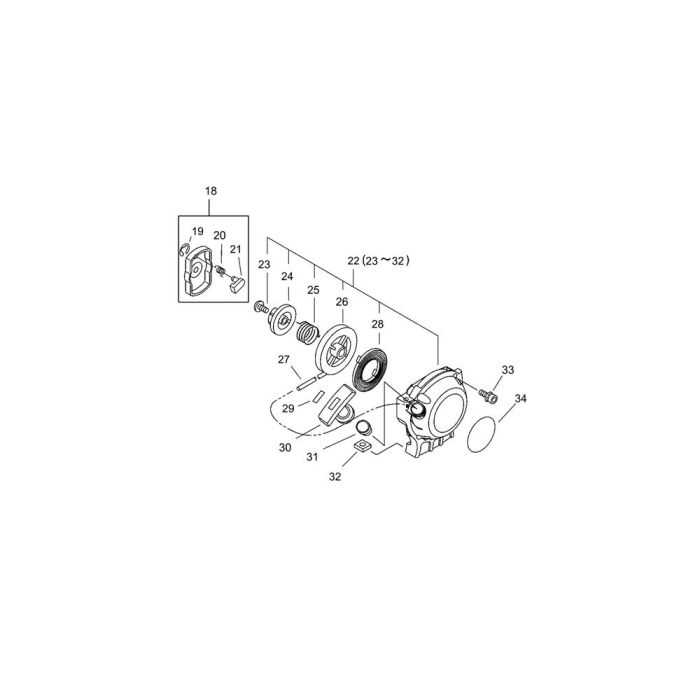

Locating Key Recoil Assembly Elements in Your Trimmer Model
Inspect the starter housing first–its outer casing typically secures with three to four Torx T20 screws. Remove these fasteners to reveal the spring mechanism and pulley system underneath. The pulley, usually molded from reinforced nylon or composite, features a central hub with notched grooves; these engage the starter rope during pull-start action. Check for wear along the rope’s path, particularly where it exits the housing, as fraying here indicates imminent failure. Replace the rope if its diameter drops below 3mm or if more than three strands appear severed.
Examine the recoil spring next. This coiled strip of hardened steel, often 0.5mm thick, winds around a drum inside the pulley. A properly tensioned spring should retract smoothly without slack; uneven retraction or a “dead zone” during pull suggests internal deformation. If corrosion or pitting is visible, clean with fine-grit emery cloth (400-600) before re-lubricating with lithium-based grease. Ensure the spring’s inner end hooks securely into the pulley’s retaining slot–misalignment here causes erratic engagement. For reassembly, align the rope’s knot with the pulley’s guide hole before winding the spring counterclockwise to maintain correct tension.
Interpreting the Fuel System Layout in Technical Blueprints
Locate the fuel pump symbol–typically a rectangle with an arrow indicating flow–positioned near the tank assembly. Follow the solid line extending from it to the carburetor or fuel injector, noting any inline components like filters or pressure regulators marked by distinct shapes (e.g., circles for filters, triangles for check valves). Verify the arrow direction matches the expected fuel flow: tank → pump → filter → engine intake. If the schematic includes color coding, blue lines usually represent fuel paths, while red may indicate return lines or electrical connections.
Key Symbols and Their Functions
| Symbol | Component | Schematic Clues |
|---|---|---|
| ⬛ (Solid rectangle) | Fuel pump | Connected to tank via thick line; may include “+” for power input |
| ○ (Circle with cross) | Fuel filter | Placed between pump and engine; often labeled “FF” or “Filter” |
| ◁ (Triangle with line) | Check valve | Prevents backflow; arrow shows allowed direction |
| ─┬─ (T-junction) | Fuel rail/manifold | Branches to individual injectors; may include pressure specs (e.g., “3.5 bar”) |
Trace the return line–usually a thinner or dashed path–from the engine back to the tank. Confirm it bypasses critical components like the filter, as contaminants in returned fuel could clog downstream parts. If the blueprint includes numeric annotations (e.g., “.5mm orifice”), cross-reference with the service manual for tolerance values. Discrepancies between the schematic and physical system (e.g., missing clamps, reversed connections) often pinpoint failure points during troubleshooting.
Locating the Ignition Coil and Spark Plug Wiring on Your Power Tool
Begin by removing the engine cover–securely fastened with four 10mm bolts near the cylinder head. Set the bolts aside in order of removal to avoid misplacement. The coil sits directly above the flywheel, concealed under a black plastic shroud held by two clips. Release these clips carefully; excessive force may crack the housing.
The spark plug wire connects to the coil’s central terminal, identifiable by its rubber boot and metal retaining clip. Trace the wire downward–it terminates at the spark plug, threaded into the cylinder head’s left side. If corrosion is present, clean the boot interior with dielectric grease to ensure a snug, moisture-resistant fit.
Disconnect the battery or ground wire before any inspection. Failure to do so risks accidental ignition or short-circuiting. The coil’s primary wiring harness comprises a two-pin connector; unplug it by pressing the release tab while pulling straight outward. Avoid twisting, as this can damage the pins.
Inspect the coil’s resistance with a multimeter: set to 20kΩ range, probe the coil’s terminals. Readings outside 5–15 kΩ indicate a faulty coil requiring replacement. For the spark plug, gap should measure 0.6–0.7mm (0.024–0.028 inches). Use a wire-style feeler gauge–blade types may give false readings.
Reassembly Sequence
Reattach the spark plug wire first, ensuring the boot clicks audibly over the plug’s porcelain insulator. Reconnect the coil’s wiring harness, verifying the connector locks into place. Position the shroud over the coil, aligning its notches with the engine’s mounting posts before securing the clips. Torque the four cover bolts to 8–10 Nm in a crisscross pattern to prevent warping.
Test ignition by cranking the engine briefly. If misfires occur, recheck the coil’s ground connection–often overlooked, it’s a single 8mm bolt near the starter housing. Ensure this bolt is free of paint or debris; a poor ground causes intermittent spark loss. Always verify spark quality against a known good plug before condemning the coil.
