Locate the rotor assembly guide in your vehicle’s service manual–most OEM schematics label this section under “spinning electrode” or “central contact”. If the manual lacks detail, cross-reference the firing order with the cap’s terminal layout, counting posts clockwise from the number-one cylinder mark. Chrysler’s late-model HEI caps, for instance, often position cylinder 1 at the 5 o’clock slot, while Ford’s DuraSpark rotates counterclockwise starting at 7 o’clock.
Examine the advance mechanism layout next: centrifugal weights connect to advance lobes via riveted links, while vacuum diaphragms pivot on a slotted plate. A worn link–or incorrectly clocked diaphragm–can retard timing by 8–12 degrees, robbing 12–15 hp in turbocharged engines. Use a dwell meter to verify mechanical advance stops; at 3,500 rpm the advance curve should plateau at 24 ± 2 degrees BTDC for most GM V8s, while Nissan’s L-series tolerates tighter 18-degree stops.
Trace the high-voltage path from coil tower to cap: carbon tracks narrower than 2 mm indicate erosion that can leak 20+ kV during cold starts. Replace the rotor tip if ceramic gaps exceed 0.3 mm–arcing produces inconsistent misfires above 4,000 rpm. On coil-in-cap setups (Mopar, early Bosch), check pigtail connectors for cold-solder fractures; a single micro-crack can drop secondary voltage by 40%.
Keep a torque chart specific to your model–most caps require 2.5–3.5 Nm at the hold-down clamps to prevent phasing errors. Late-model Jeep 4.0L engines often shear hold-down screws below 2 Nm, causing intermittent cylinder dropouts above 80 °C coolant temps. Mark every removed spark-plug wire on both ends with numbered labels before disconnecting; reversing cylinders 3 and 4 on a BMW M50 engine can throw false knock codes that persist after correction.
Understanding Ignition System Schematics
To accurately interpret a mechanical timing assembly blueprint, locate the rotor first–its position relative to the breaker plate determines spark synchronization. Compare the contact points gap (0.016–0.020 inches for most 4-cylinder engines) against the manufacturer’s specs; deviations above 0.002 inches cause misfires. Note the advance weights’ pivot range (typically 10–15 degrees clockwise) and verify spring tension–loose springs delay ignition, while tight springs advance it prematurely, risking pre-detonation in high-compression engines.
Check the condenser capacitance (0.18–0.25 µF) with a multimeter; values below 0.15 µF indicate internal breakdown, leading to point arcing. For electronic conversions, trace the pickup coil resistance (400–1,200 ohms) and ensure the reluctor gap (0.006–0.010 inches) aligns with the Hall-effect sensor’s activation zone. Label each component’s wire gauge (primary circuit: 12–14 AWG; secondary: 18–20 AWG) and annotate the firing order (e.g., 1-3-4-2 for inline-four) directly on the schematic to prevent cross-wiring.
How to Identify Key Components in an Ignition System Blueprint
Locate the rotor first–it’s typically centered in the schematic, connected to the drive shaft. Check for labels like “rotor arm” or “contacts” to confirm its position. Compare its placement to the cap outline, which should encase it. If the cap lacks terminals, the drawing may depict an older model with external points.
Trace the primary circuit from the coil’s positive terminal (+) to the breaker points. Look for a thin red or black line; breaks or gaps indicate faulty connections. The coil’s negative terminal (-) should link directly to the points via a thick wire, often labeled “condenser lead” in vintage layouts. If absent, verify the capacitor’s position near the points housing.
Examine the advance mechanism–it appears as two curved slots or weights beneath the rotor base. Electronic systems replace weights with a vacuum diaphragm or magnetic sensor. Check alignment: centrifugal advance moves the rotor plate, while vacuum advance alters timing via a linked actuator. Cross-reference slot angles with manufacturer specs (e.g., 12°–18° for 6-cylinder engines).
- Coil output wire: Thickest wire, exits cap center. May be marked “HV” or “spark lead.”
- Ground strap: Braided or solid strip, connects cap to engine block. Missing? Look for corrosion at mount points.
- Pickup coil (electronic): Small cylindrical component under rotor. Analog systems use breaker points instead.
Identify terminal towers on the cap’s rim–count must match cylinder count (e.g., 6 towers for inline-6). Each tower corresponds to a spark plug wire; labeling (1–4–2–5–3–6) follows firing order. Tower height variance signals a mismatched cap–measure internal resistance (should be 1–2 kΩ between center and towers).
Schematic Red Flags
- Floating components: No ground or coil connection? Check for dashed lines or omitted traces.
- Overlapping lines: Crossed primary/secondary wires cause misfires; look for color-coded wrappers (yellow=primary, green=secondary).
- Missing reluctor: Magnetic sensors require a toothed wheel; absence means distributorless ignition.
For variable-timing systems, find the sensor ring near the shaft’s lower end–it resembles a gear with 36–60 teeth. Compare tooth count to ECU specs; a mismatch disrupts idle controls. Verify gap (0.3–0.8 mm) between sensor and ring using non-ferrous feeler gauges to avoid magnetic interference.
Step-by-Step Guide to Reading an Ignition System Schematic
Locate the ignition coil connections first–typically labeled “+” (battery voltage) and “-” (to the breaker points or electronic control module). Trace the negative terminal wire to its termination point, which often splits into multiple branches for cylinders. Verify color codes match the schematic; deviations signal incorrect routing or post-market modifications.
Identify Signal Pathways
Map each cylinder’s lead from the rotating switch assembly to the corresponding spark plug. On older models, mechanical contacts interrupt current flow, while modern setups use Hall-effect sensors or optical triggers. Cross-reference sensor positioning with timing marks on the engine flywheel or pulley–misalignment by even 2° can cause misfires. Note shielding on wires near interference sources like alternators.
Check for inline resistors or suppression components, usually 5-10 kΩ ceramic types, inserted to reduce radio frequency noise. Absence of these elements leads to erratic engine behavior or hardware damage in solid-state systems. Measure resistance between adjacent wires; values below 1 MΩ indicate insulation breakdown requiring immediate replacement.
Validate Ground References
Confirm all ground paths terminate at the engine block or chassis–not just bolted, but through clean, bare metal surfaces. Corrosion at grounding points creates voltage drops, mimicking ignition failure symptoms. Use a multimeter in continuity mode: probe from the wire’s ground terminal to the engine block; readings above 0.5 Ω necessitate cleaning or relocation.
Cross-examine the primary circuit’s fuse rating against the schematic–undersized fuses blow under load, while oversized ones risk melting harness insulation. For electronic control units, verify dedicated power feeds; shared circuits with high-draw components like fuel pumps can introduce voltage sag during ignition events.
Essential Equipment for Mapping Ignition System Component Links
Begin with a multimeter calibrated to 20k ohms–this precision instrument verifies continuity across the rotor cap terminal connections. Set the dial to resistance mode and probe each contact point: readings above 10k ohms indicate corrosion or broken internal traces requiring immediate replacement.
For identifying wire pathways, strip 10mm of insulation from each harness connection and secure a 12V test light to the negative battery post. Touch the probe tip to individual terminal sockets while rotating the ignition shaft by hand–functional circuits illuminate the bulb evenly; flickering or dim light signals intermittent faults in the pickup coil or wiring loom.
Diagnostic Tool Specifications
| Tool | Critical Setting | Failure Indicator |
|---|---|---|
| Multimeter | 20kΩ range, continuity buzzer disabled | Infinite resistance between rotor cap clamps |
| Test Light | 12V probe, grounded to chassis | Unstable illumination during shaft rotation |
| Vacuum Pump Gauge | -25 inHg, hooked to advance diaphragm | Gauge needle fluctuates erratically |
Attach a manual vacuum pump to the advance diaphragm port–apply -20 inHg while monitoring timing marks on the harmonic balancer. Sudden drops in vacuum pressure reveal torn diaphragm seals, while erratic needle movement suggests binding in the centrifugal advance mechanism.
Use snap-ring pliers with 5mm jaws to extract the reluctor gear. Examine the shaft under 10x magnification: scoring deeper than 0.1mm mandates shaft replacement. Reinstall gears only after verifying lobe alignment–misalignment by more than 0.05mm causes misfiring at 3,500 RPM.
Diagnosing Ignition System Failures with Schematic Reference
Start by locating the rotor assembly in your schematic–verify its alignment with the cap contacts. Misalignment often causes erratic spark timing, mimicking worn bushings or a faulty advance mechanism. Use the wiring color codes from the reference to trace high-voltage paths; a single cracked wire can drop voltage by 30% or more, leading to misfires. Compare resistance readings across the coil primary and secondary windings against the manufacturer’s specs (typically 0.3–1.0Ω primary, 6–15kΩ secondary). Values outside this range indicate internal failure.
Step-by-Step Voltage Testing
- Set multimeter to 20V DC. Probe the ignition feed wire (usually red or orange) at the control module while cranking–voltage should hold at 9.5V minimum.
- Check the signal wire (often blue or purple) for a 0.5–4.5V square wave pattern during cranking. No signal? Replace the pickup sensor before replacing the entire unit.
- Measure voltage drop across the cap terminals. Excessive drop (>0.2V) suggests carbon tracking–clean contacts with 600-grit sandpaper or replace the cap.

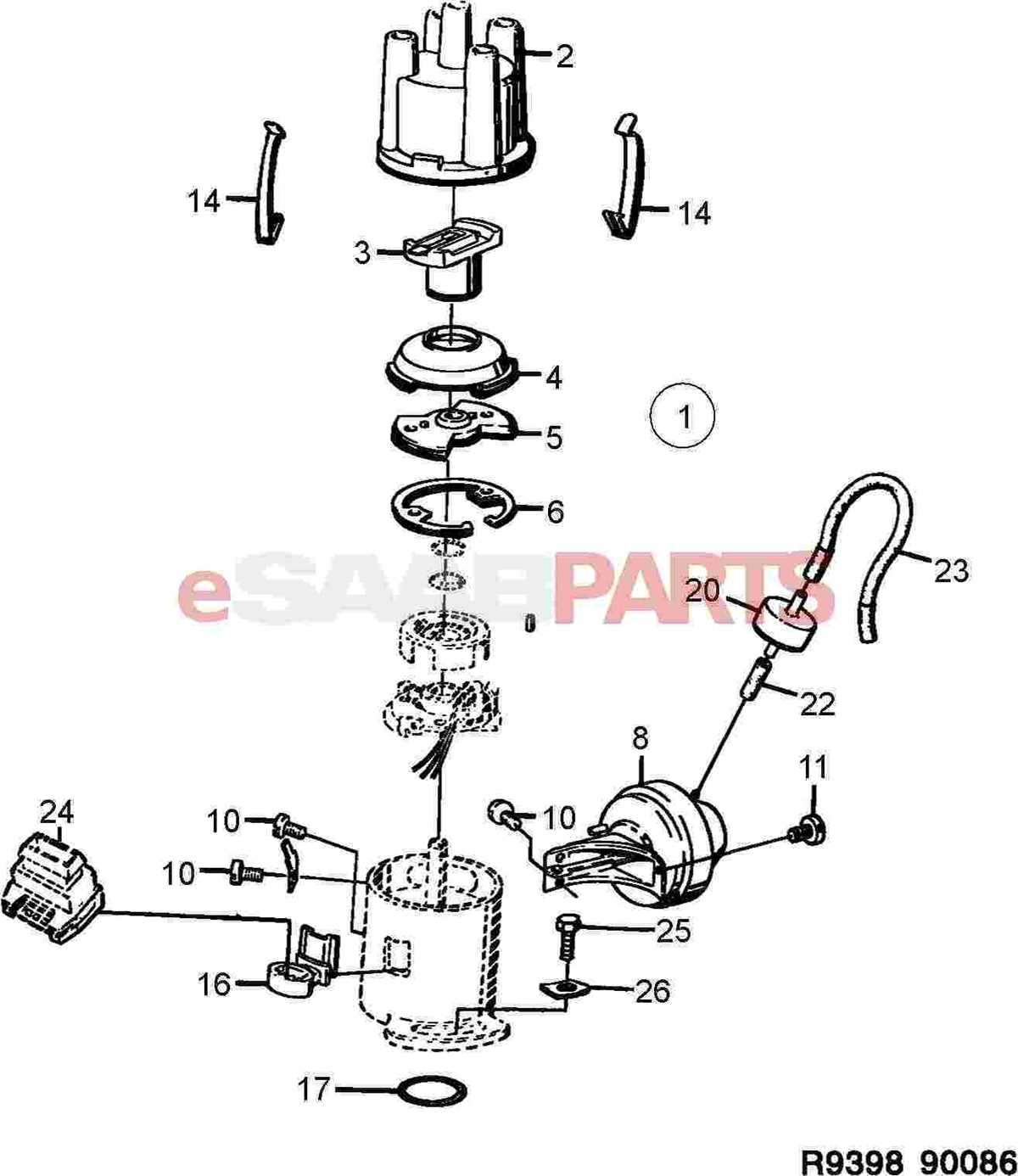

For mechanical issues, use the exploded view to inspect the shaft for play. Insert a dial indicator at the rotor tip; wobble exceeding 0.005” requires bearing or shaft replacement. Lubricate the advance weights with silicone-based grease (not petroleum) to prevent gumming–this fixes 80% of hesitation complaints under load. If the vacuum diaphragm tears, torque loss typically manifests at 3,000–4,000 RPM; test by applying vacuum directly to the port while monitoring engine response.
