Before attempting repairs, locate the model number plate on your unit–typically stamped on the chassis near the engine or under the housing. Cross-reference this number with the manufacturer’s official schematic database to avoid mismatched replacements. Models from 2015 onward feature a modular auger assembly with breakaway shear pins; earlier versions use solid bolts requiring precise torque specifications (18–22 ft-lbs). For auger belt replacements, note the belt width (usually ½” or ⅝”) and teeth count (commonly 120 or 140) to ensure compatibility with the impeller pulley system.
Impeller housings in most 2-stage units have three key wear points: the fan blades, the wear plate (mounted behind the blades), and the chute rotation gear. Inspect the blades for material thinning or cracks–replace if thickness drops below 2mm. The wear plate, often overlooked, should be flipped or replaced when grooves exceed 4mm in depth. Chute gears (plastic or steel) fail at different rates; steel gears tolerate 120 lbs of lateral force before stripping, while plastic counterparts may shear under half the load.
For electrical troubleshooting, check the ignition module and kill switch wiring first. Corrosion at the spark plug terminal (resistance should read
Auger drive systems divide into two types: friction-disc and direct-gear. Friction-disc models (common in mid-tier units) require specific grease (NLGI #2 lithium-based) to prevent slippage; avoid automotive greases, which thicken in cold conditions. Direct-gear systems (found in high-end models) need gear oil replacement every 50 hours of operation–refill to the lower sight glass mark with SAE 80W-90 hypoid gear oil. Failure to maintain lubrication accelerates gear tooth wear, leading to costly housing replacements.

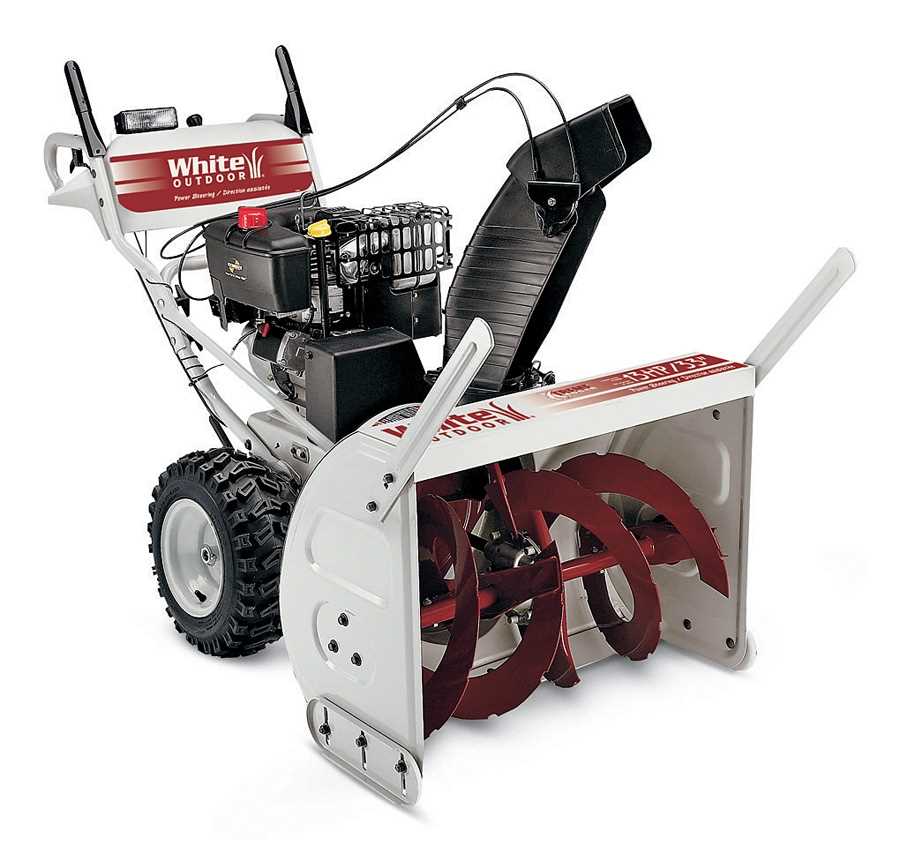

Understanding Your Compact Snow Clearing Equipment: A Breakdown of Components
Begin troubleshooting by locating the impeller housing – typically secured with three bolts near the discharge chute. Remove these fasteners with a 10mm socket; corrosion often requires penetrating oil applied 15 minutes prior. Inside, inspect the rubber paddles for uneven wear; replacements should match the original 12-inch diameter with a thickness tolerance of ±0.5mm.
Consult the stamped model number on the engine block – usually a six-digit code followed by a dash and revision letter (e.g., 24A-123B00). Cross-reference this identifier against manufacturer schematics; generic models omit critical variations in carburetor linkage geometry, leading to improper fuel mixture adjustments. For precise tuning, use a dwell meter set to 10° BTDC.
| Component | Material Grade | Torque Spec (ft-lbs) | Inspection Interval (hours) |
|---|---|---|---|
| Auger blades | AR400 steel | 35-40 | 25 |
| Wheel hub bearings | ABEC-5 | 28-32 | 50 |
| Shear pins | Grade 5 titanium | N/A | Post-impact |
When servicing the traction drive belt, note that newer variants include a double-ribbed profile resisting slippage under 30°F conditions. Replace with part #754-04220A if cracks exceed 1/16″ depth across three adjacent grooves. Belt tension should deflect 1/2″ under 10 lbs. force at the midpoint between pulleys.
Adjusting the skid shoes involves a precise 1/8″ clearance from the surface; uneven settings cause premature auger wear. Use feeler gauges for consistency – stainless steel models (part #731-04176) resist rust better than zinc-plated alternatives. Tighten the mounting bolts incrementally, alternating between sides to prevent warping the frame.
The control cables require periodic lubrication with silicone-based grease introduced via the outer sheath’s Zerk fitting every 40 operating hours. Avoid petroleum-based products; they thicken in sub-zero temperatures. Route cables away from exhaust components, maintaining a minimum 2″ separation to prevent heat-induced stiffness.
Electrical diagnostics should start at the flywheel magneto – verify resistance between the ignition coil terminal and ground (900-1200 ohms at 70°F). A deviation exceeding 150 ohms indicates coil degradation. For models with headlights, check the stator output; voltage should read 13.5-14.5V AC at full throttle.
Winterizing involves draining the fuel system with STA-BIL-treated gasoline run through the carburetor until dry, then adding marine-grade fogging oil (1 oz) via the spark plug orifice before storage. Remove spark plugs and reinstall loosely to prevent cylinder moisture buildup. Store equipment on a wooden pallet, tilted forward 5° to facilitate condensation drainage from the crankcase.
Identifying Your Equipment’s Serial Code Without Hassle
Check the rear frame near the wheels–most manufactures stamp the serial code on a metal plate or decal here. If obscured by dirt or rust, wipe the area with a damp cloth to reveal the alphanumeric sequence. For models released after 2018, the code often starts with “1G” followed by eight digits.
Alternative Locations to Inspect
- Underside of the auger housing, visible when tipping the machine backward.
- Left-side panel near the handle stem, especially on self-propelled variants.
- Rear discharge chute bracket or impeller cover for compact units.
If the code is missing or illegible, consult the original purchase documents or warranty card–dealers imprint it there as well.
Smaller handheld models typically feature the serial on the engine block or recoil starter housing. Remove the cover if needed, but avoid disassembly beyond accessible plates. Cross-reference any found code with the manufacturer’s online lookup tool to confirm compatibility before ordering components.
How to Locate Official Equipment Schematics for Winter Maintenance Machines

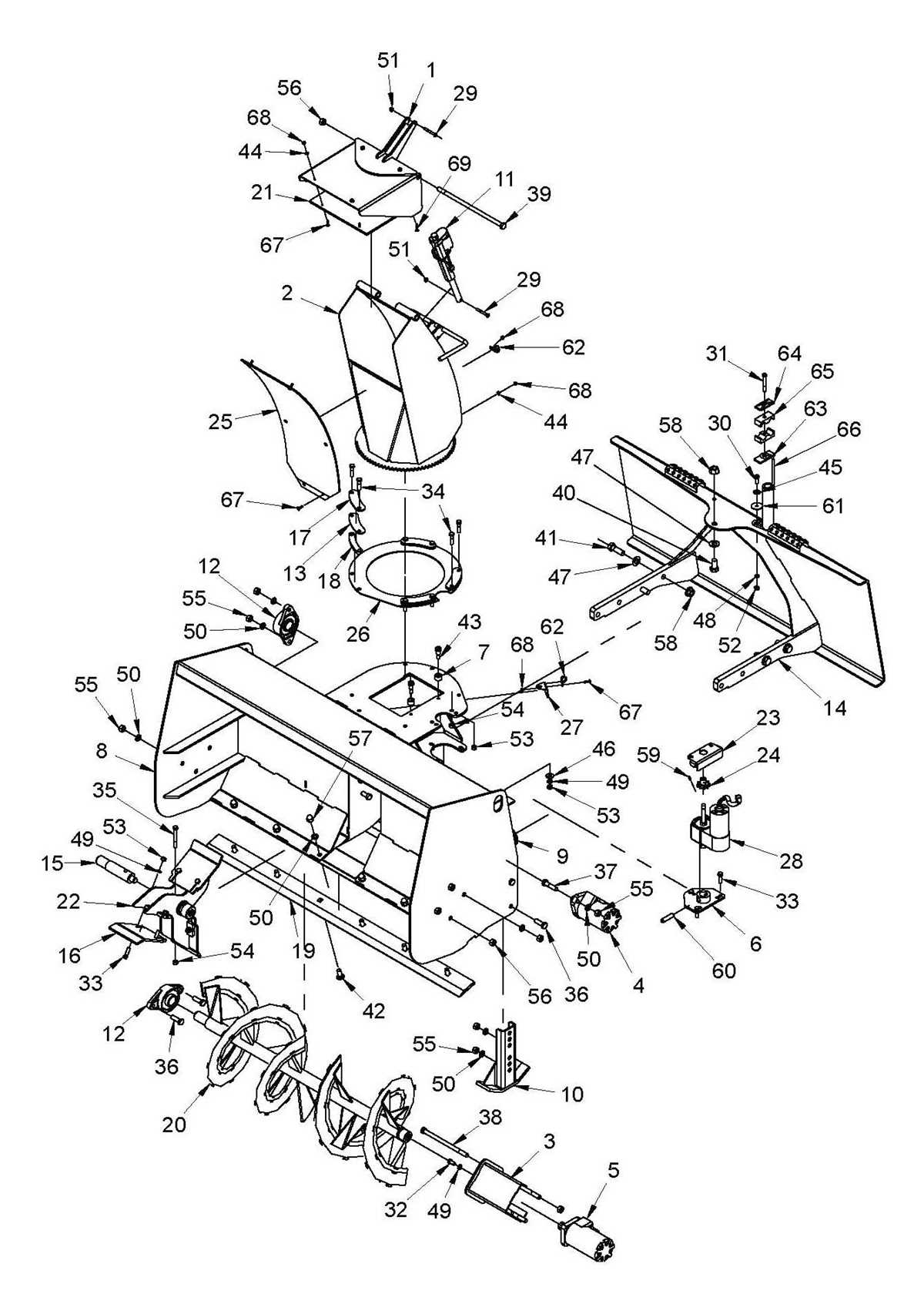

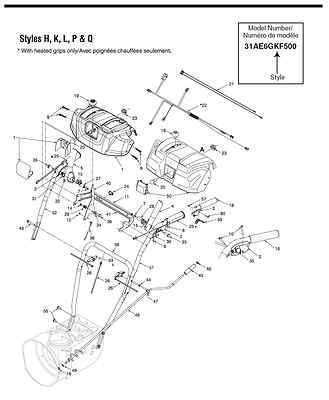

Open the manufacturer’s official website specifically designed for repair resources. Enter the model number–found on a metal plate near the engine or under the hopper–into the search bar. The site will display a exploded view drawing with numbered components, descriptions, and OEM identifiers. Download the PDF for offline reference.
Key Platforms to Check
- Brand Portal: Direct access to original schematics, including serial-specific revisions.
- PartSmart: Interactive interface allowing zoom, section isolation, and direct ordering.
- ManualsLib: Aggregates scanned service guides if official diagrams are unavailable.
- eReplacementParts: Offers cross-referenced assemblies with compatibility notes.
Verify the serial range matches your unit before trusting third-party downloads. For models released before 2015, search by engine code (e.g., “BS 1450” for Briggs & Stratton) if the primary number yields no results. Print or save diagrams at 150% scale to ensure labels remain legible during repairs.
Locating Critical Elements in Your Gas-Powered Clearing Machine’s Spiral Cutter Unit
Begin by examining the shear pins (often 1/4-inch diameter zinc or stainless steel) fastened to the center shaft of the spiral cutter. These sacrificial bolts prevent blade damage by breaking under excessive torque–replace them immediately if bent or missing, as compromised pins allow uncontrolled rotation, risking auger housing warping or motor overload. Check the gap between the cutter bars and the internal skid shoes; a clearance of 1/8 inch ensures efficient ice removal without scraping the pavement. Tighten loose mounting bolts on the paddle assembly (typically 1/2-inch hex heads) with a torque wrench set to 30 ft-lbs to prevent vibrations that misalign the auger during operation.
Assessing Wear on Replaceable Segments
Inspect the edge strips (rubber or polymer) lining the impeller chute–they should protrude at least 3/4 inch beyond the chute lip; if worn shorter, they’ll fail to direct debris efficiently, causing clogs. The drive belt connecting the motor to the spiral mechanism cracks over time; replace it if grooves exceed 1/32-inch depth. For models with friction wheels, verify the engagement point contacts the spiral shaft at a 90-degree angle–misalignment reduces throwing distance by up to 40%. Lubricate the hexagonal coupling (if equipped) with lithium grease after every 25 operating hours to prevent seizing in sub-zero temperatures.
Solving Frequent Issues in Winter Equipment with Visual Guides
Check the auger belt alignment by locating it on the schematic under the “drive components” section. If the belt appears loose or misaligned, compare its position to the dashed lines in the illustration. Tighten the adjustment bolt (marked #12 on most models) until the belt deflects no more than ½ inch when pressed firmly. Replace the belt if cracks or fraying exceed 30% of its width, as slipping reduces clearing efficiency by up to 40%.
Inspect the shear pins–small cylindrical fasteners securing the auger to the shaft–where the guide highlights their placement near the impeller housing. If the unit vibrates excessively or the auger fails to rotate despite engine power, a broken pin may be the cause. Always keep spares on hand; standard sizes include 5mm x 20mm for residential machines and 6mm x 25mm for heavy-duty models. Align the replacement pin precisely in the slot, ensuring it sits flush with the auger hub to prevent premature shear.

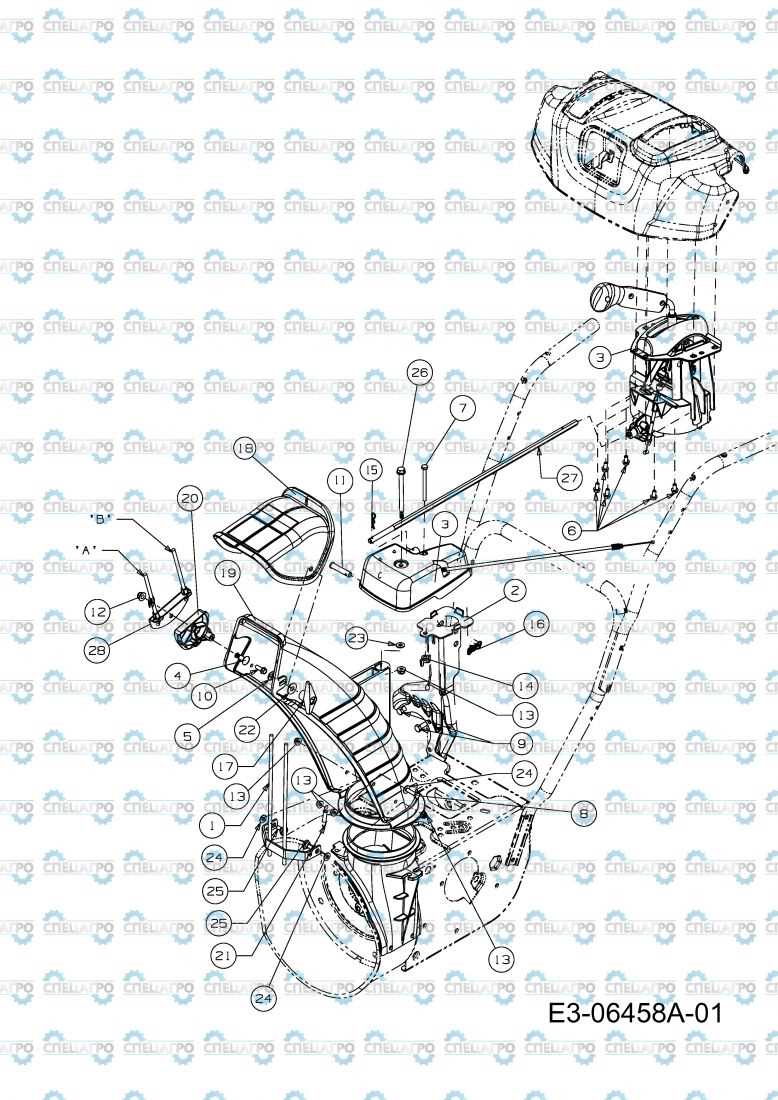

Examine the chute rotation mechanism if directional control becomes sluggish. Refer to the exploded view where the worm gear (item #18) meshes with the chute base. Apply lithium grease to the gear teeth if rotation requires excessive force, as dry contact increases wear by 60%. For frozen or jammed mechanisms, remove ice buildup with isopropyl alcohol before reassembling–never use heat sources, as thermal shock can crack polycarbonate chute components.
