Begin repairs by sourcing the manufacturer-approved breakdown from the service portal for model X9-utility variants. Official PDF schematics display exploded views of drivetrain assemblies, hydraulic circuits, and electrical harness routing–critical for accurate disassembly. Third-party replicas often omit torque specifications or mislabel fasteners, leading to premature wear.
Key components frequently requiring replacement include the transfer case bearing (part #70001-32450), final drive gears (assembly #70004-19230), and brake master cylinder (item #72101-23403). Verify thread pitch and shaft diameter before ordering–compatibility charts list metric measurements exclusively. Aftermarket seals may not meet OEM durability standards under load.
For structural repairs, reference the frame weldment diagram in section 8 of the official documentation. Misaligned mounting points cause stress fractures near the roll cage attachment zones. Use magnetic particle inspection to check for cracks in high-stress areas before welding. Always follow preheat temperatures listed in the technical bulletin TB-012-07.
Electrical faults often trace to corroded connectors in the instrument cluster or solenoid pack. The wiring schematic labels each circuit with color codes–match resistance values (ohms) to the troubleshooting grid to isolate shorts. Replace terminals with gold-plated contacts for moisture resistance; standard copper degrades rapidly in off-road conditions.
Lubrication points require specific intervals–hydrostatic transmission fluid (part #U-7420-0181) must be changed every 400 hours under heavy use. Incorrect viscosity voids warranty claims. The differential fluid capacity (0.7 liters) and recommended bleed sequence appear on page 3-17 of the maintenance guide. Deviations cause hydraulic binding.
Comprehensive Utility Vehicle Component Mapping: Locate and Replace with Precision
Begin by securing the official exploded-view schematics from the manufacturer’s service portal–filter for model year to avoid mismatches. Print the layout in 11×17 format for clarity; detail-rich zones like the drivetrain and hydraulic circuits demand uncluttered visibility. Cross-reference each numbered entry with the accompanying parts list; discrepancies often originate from superseded components or regional variants.
Isolate the subassembly requiring attention–transmission housing, front differential, or PTO linkage–by tracing fluid paths and mechanical linkages in the diagram first. Use a highlighter to mark adjacent fasteners and seals; overlooking a single O-ring or circlip during reassembly triggers leaks or misalignment. For instance, the rear cargo bed’s hinge pins correspond to a three-point mounting sequence labeled 42-45 on sheet 7, not the two-bolt pattern mistakenly referenced in aftermarket forums.
Verify torque specifications directly beneath the component depiction; the torque chart is often tucked beneath the frame illustration on page 12. Ignore generic values–forexample, the 12 mm axle flange bolts require 45 Nm, while visually identical engine mount bolts cap at 58 Nm. Mismatched tightening angles risk thread stripping or premature bearing failure, particularly in the dual-range transfer case where helical gears mesh under load.
For electrical schematics, follow color-coded conductor paths in red (constant power), yellow (switched ignition), and green (ground return). The fuse block diagram, typically positioned adjacent to the instrument cluster illustration, decodes relay positions that reset when erroneous diagnostic trouble codes (DTC) misdirect to the fuel pump instead of the voltage regulator. Use a multimeter set to 20 V DC to validate pin assignments before ordering connectors.
When sourcing replacement linkages, cross-check the diagram’s material notes–powder-coated pivot arms (part prefix “K”) resist corrosion but seize if lubrication ports clog, whereas zinc-plated variants (prefix “C”) tolerate abrasive environments yet corrode after 18 months of salt exposure. Substitutes must match spline count and throw distance; the auxiliary brake pedal linkage employs a 14-tooth spline, while the clutch counterpart requires 12 teeth.
Critical Areas Demanding Diagram Dexterity
Focus on these high-wear subassemblies: transmission shift forks (figure 3-A), hydraulic control valve body (figure 5-B), and the rear independent suspension’s trailing arms (figure 6-C). Each exploded view includes micro-adjustments–like the 1.2 mm shim stack beneath the differential carrier–omitted in generic aftermarket catalogs. Misalignment here cascades into uneven tire wear or binding during articulation.
Document each disassembly step by photographing initial positions before loosening any fasteners; the dashboard’s warning light clusters rely on a hidden bus bar routing, and misplacement interrupts the CAN signal, triggering false error flags. Retain original seals unless the diagram explicitly indicates an upgrade kit (marked “UPD”); even minor dimensional deviations in gasket profiles disrupt fluid seals or vacuum integrity.
Locating Authorized Utility Vehicle Component Blueprints on the Web
The manufacturer’s primary portal remains the most reliable source for original equipment schematics. Visit the corporate service platform–accessible at kubota.com/parts–and enter the model identifier in the dedicated search field. Select the corresponding variant from the dropdown, then filter by system (engine, chassis, hydraulic) to pull up exploded views with part codes, pricing, and compatibility notes. Bookmark the direct link to avoid navigating the hierarchy each time.
Dealer-Managed Alternatives
Regional distributors host proprietary catalogs with extended documentation not always mirrored on the global site. For instance, kubota-usa.com offers a downloadable PDF library under its “Technical Publications” section, while European dealers provide interactive tools requiring login. Contact details for local branches appear on the same page–request access to the dealer-only portal if working with a service center; they can forward exact blueprint files via email.
Aftermarket aggregators like Partstree and Partisan replicate official illustrations but add user-generated annotations. Verify OEM numbers against these platforms to confirm subassembly breaks, though discrepancies occasionally appear in older revisions. Use these for cross-referencing only–never substitute for the factory-sanctioned specifications.
For offline access, authorized repair manuals bundled with the original purchase often include fold-out inserts at 1:1 scale. If lost, third-party reprints are available through Heydon or ManualsLib–ensure the ISBN matches the 2007–2015 production run to guarantee accuracy.
Decoding Utility Vehicle Component Schematics for Precision Maintenance
Locate the exploded view sheet for your off-road carrier by matching the serial plate digits to the revision index printed in the upper left corner–common revisions include “KDS05-X” for 2007–2012 builds or “KDS08-Y” for post-2013 updates. Each revision adds micro-variations like reinforced axle housings or upgraded pedal assemblies, so cross-reference the alphanumeric code before ordering bushings or seals.

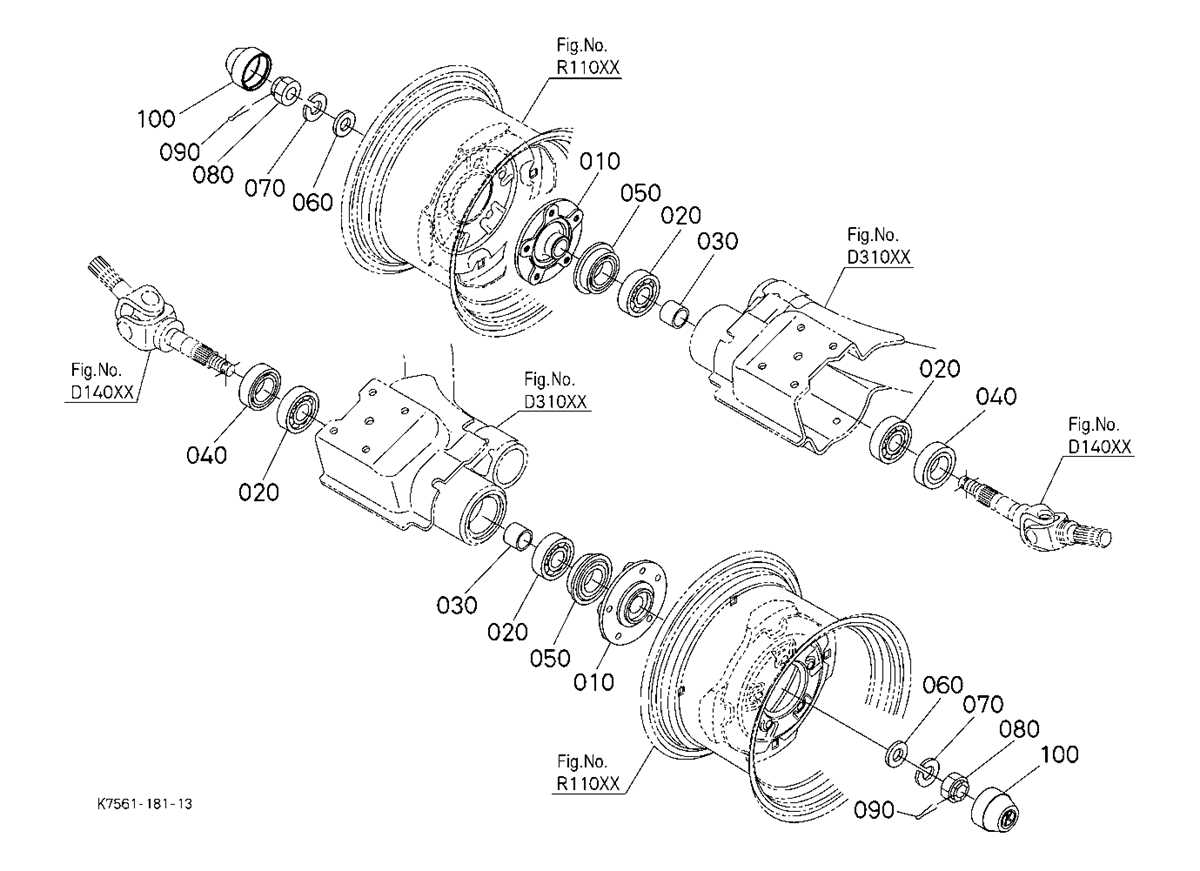

Trace lead lines from components to their callouts–numbers correspond to a master legend grouped by system (hydraulics, drivetrain, electrical). A single callout like “15-21” denotes a bracket assembly containing seven sub-items; verify quantities with the annotation box below the schematic, which specifies fastener types (e.g., “Grade 8 flange bolt M8×25”). Missed fasteners cause misalignment during reassembly.
Critical Subassembly Breakdown
| System | Key Reference | Common Pitfalls | Verification Tool |
|---|---|---|---|
| Brake master cylinder | Callouts 32-40 | Over-torqued caps shear bleed ports | 0–20 Nm torque wrench |
| CV joint half-shafts | Callouts 55–58 | Improper clip seating leads to dislodgement at 45+ mph | Retaining ring pliers |
| Hydrostatic pump linkage | Callouts 89–92 | Worn pivot balls cause 2–3 mm pedal free play | Feeler gauge set |
Orient the schematic to match the vehicle’s perspective–front components appear at the top, rear at the bottom. Rotary assemblies like the cooling fan (callout 64) are shown in both front and side views; a dashed line indicates the removed cover plate, exposing the impeller behind it. Ignoring dual-view depictions risks installing gaskets backward, causing leaks.
Check for superseded components marked with an asterisk (*)–manufacturers substitute parts without updating schematics immediately. A footnote near the legend explains transitions, e.g., “Pre-2010 fuel filters (callout 76) replaced with new micron rating (ref #47219–89200).” Ordering obsolete items wastes 4–6 weeks in backorders; always confirm stock numbers via the manufacturer’s cross-reference portal.
Frequent Utility Vehicle Components Requiring Maintenance and Schematic Positions
Begin with the drive belt–the most common wear item on these off-road carriers. Locate it in the undercarriage schematics, typically labeled as the “belt assembly” beneath the cargo bed. Check for fraying or glazing every 50 hours of operation; replace immediately if cracks exceed 1/8 inch. Use OEM reference number 72060-66930 for precise matching, as aftermarket alternatives often skip critical heat-resistant coatings.
- Air filter: Positioned in the right-side engine compartment, identifiable by a cylindrical housing with a twist-lock lid. Service intervals should not exceed 200 hours under dusty conditions. The primary filter (HH071-32430) traps coarse debris, while the secondary inner filter (HH071-32450) blocks fine particulates–replace both simultaneously to prevent premature turbo wear.
- Brake pads: Found in the rear axle assembly, accessed by removing the wheel and caliper. Measure thickness; discard at 3mm remaining. Front pads (70011-65013) wear faster than rear (70011-65023) due to weight distribution. Lubricate pad shims with 08887-01206 anti-seize compound during installation to prevent squealing.
Fuel injectors–often overlooked–are nestled beneath the valve cover. Symptoms of clogging include rough idling and white exhaust smoke. Clean using 19208-87403 injector cleaner kit every 400 hours, or replace at 800 hours with 16600-88560 units. Resistance checks should read 13-17 ohms; deviations indicate internal failure. Refer to engine cross-section diagrams (sheet KU-RTV-X69-E-3) for exact placement, noting the #3 injector is prone to fouling due to its location near the exhaust manifold.
- Disconnect battery negative terminal before servicing electrical connections.
- Label all wire harness plugs for precise reassembly–color codes differ between ignition coil (19021-87405) and starter motor (70001-38500).
- Use dielectric grease (08798-00010) on all plug terminals to prevent corrosion; this step prevents intermittent starting issues common in high-humidity environments.
Suspension components–specifically A-arms and bushings–experience accelerated degradation in rough terrain. Front A-arms (72060-27310) feature greaseable zerk fittings; lubricate every 100 hours with NLGI #2 lithium complex. Rear trailing arms (72060-27320) lack fittings–disassemble and repack bearings with 08887-01001 synthetic grease annually. Check for play by lifting the vehicle and rocking wheels; replace bushings (72061-44220) if movement exceeds 2mm. Diagrams for these assemblies are split across chassis sheets KU-RTV-X69-C-2 (front) and KU-RTV-X69-C-4 (rear).

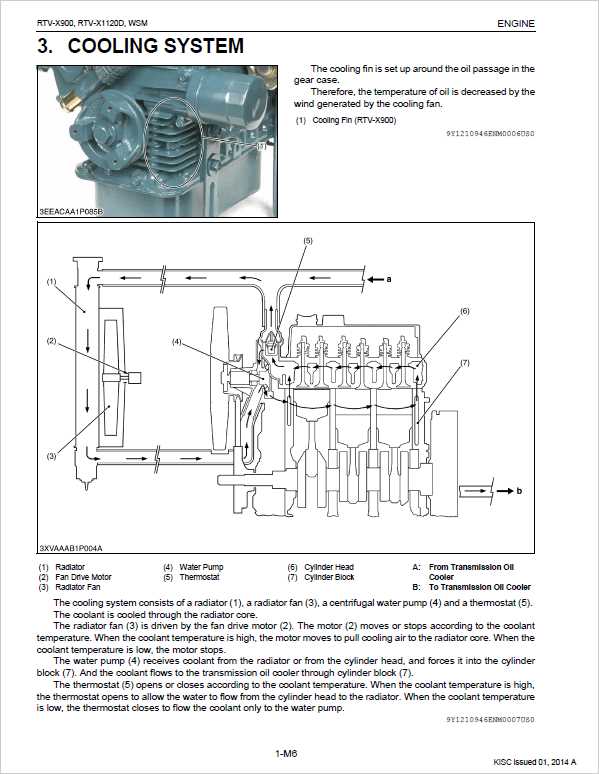

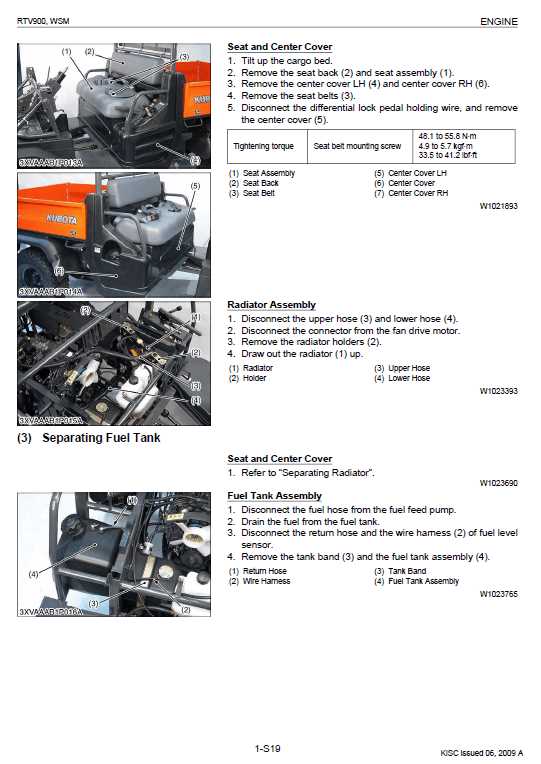

Cooling system failures typically stem from neglected hoses or the water pump. The upper radiator hose (72060-88710) hardens over time, while the bypass hose (72060-88720) develops micro-fractures. Replace both at 600 hours or upon detecting softness. The water pump (17401-87404)–located behind the fan–should be inspected for weep hole moisture; a wet hole signals seal failure, requiring immediate replacement to avoid cavitation damage. Use SO-41AC coolant mixed 50/50 with distilled water; pre-mixed solutions often lack sufficient silicate inhibitors for aluminum components.
