Begin by examining the fabric tensioning rods–these slender, cylindrical elements connect to the leading edge bar and maintain uniform stretch across the cover. Check for corrosion or bending, as compromised rods distort shelter alignment and reduce longevity. Replace any damaged rods immediately with manufacturer-specified gauges to prevent sagging or uneven wind stress.
The support arms feature a dual-hinge design: one pivot near the mounting bracket and another midway along the arm. Lubricate both hinges every six months using silicone-based grease–petroleum products accelerate wear on nylon bushings. Misaligned arms cause the roller tube to bind, leading to premature motor failure in electrically operated models.
Inspect the valance fabric for fraying along stitched seams. Reinforce vulnerable edges with UV-resistant thread during repairs; standard polyester thread degrades under prolonged sunlight. The valance should overhang the leading edge by 1.5–2 inches to deflect rain runoff–adjust if water pools on the cover.
For manual systems, verify the crank handle engages the worm gear smoothly. Apply lithium-based lubricant to the gear housing annually–grit accumulation forces excessive torque and can strip gear teeth. Replace worn handles that slip under load; stripped gears require full mechanism replacement.
The mounting brackets must transfer load directly to structural lumber, not vinyl siding. Use lag screws with 3/8-inch shafts and embed them at least 2 inches into wooden studs–drywall anchors fail under dynamic wind loads. Space brackets no more than 4 feet apart for spans wider than 10 feet to prevent debris entry at gaps.
Test the limit switches in powered systems by manually pressing the rod against the tube during retraction. Faulty switches cause the tube to over-rotate, damaging the fabric’s hem pocket. Calibrate switches by adjusting the internal screw until the tube stops within 1 inch of full retraction.
Clean the cover’s polyvinyl coating with mild soap and a soft-bristle brush–abrasive cleaners strip the protective layer, accelerating mold growth. Avoid pressure washers; high psi delaminates fabric layers. After cleaning, apply a waterproofing spray containing fluoropolymers to restore beading properties.

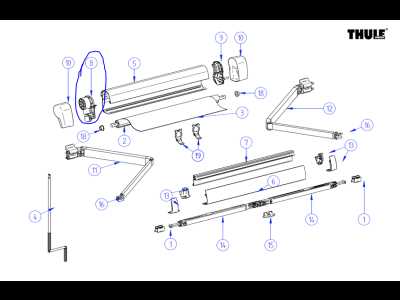

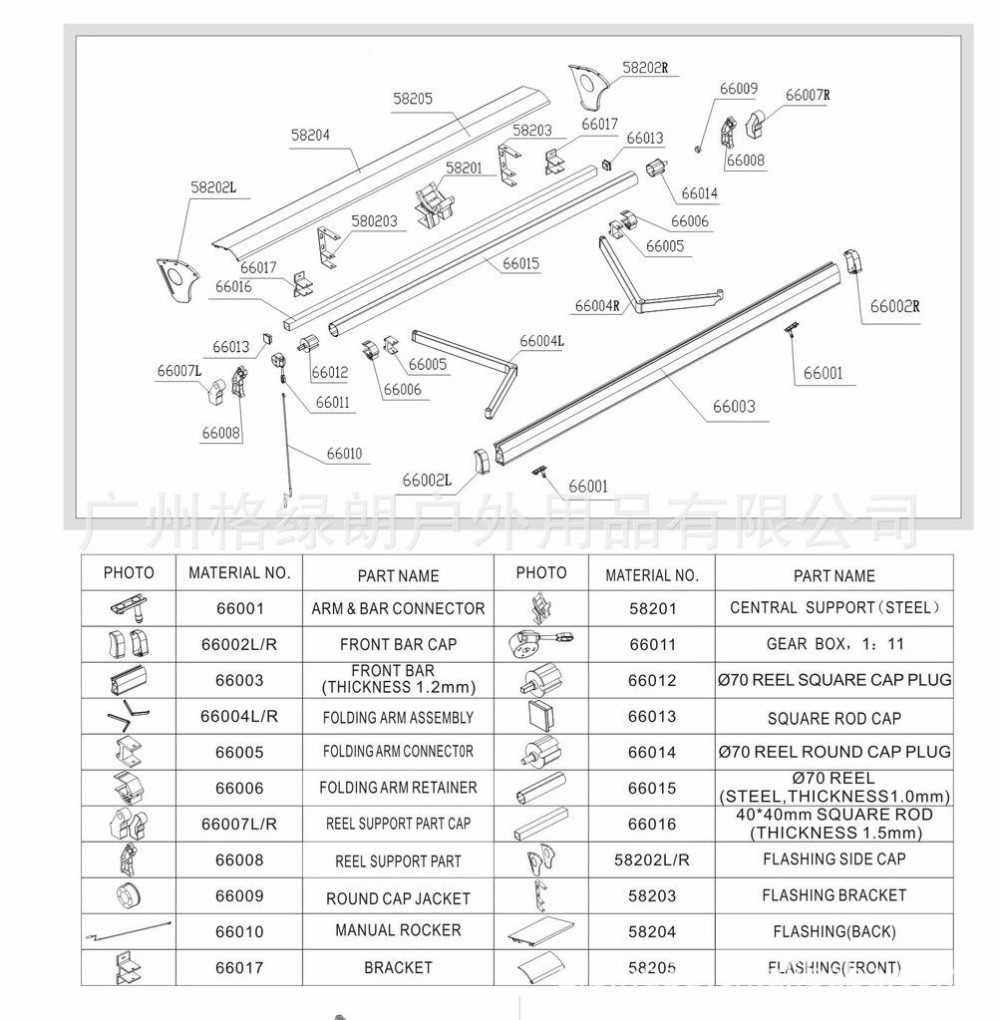

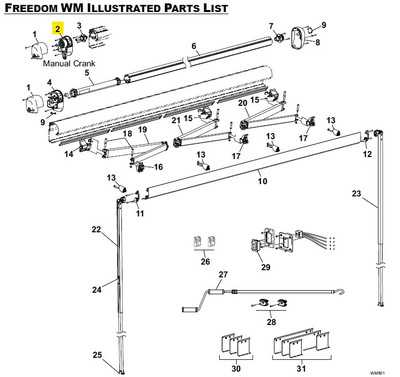

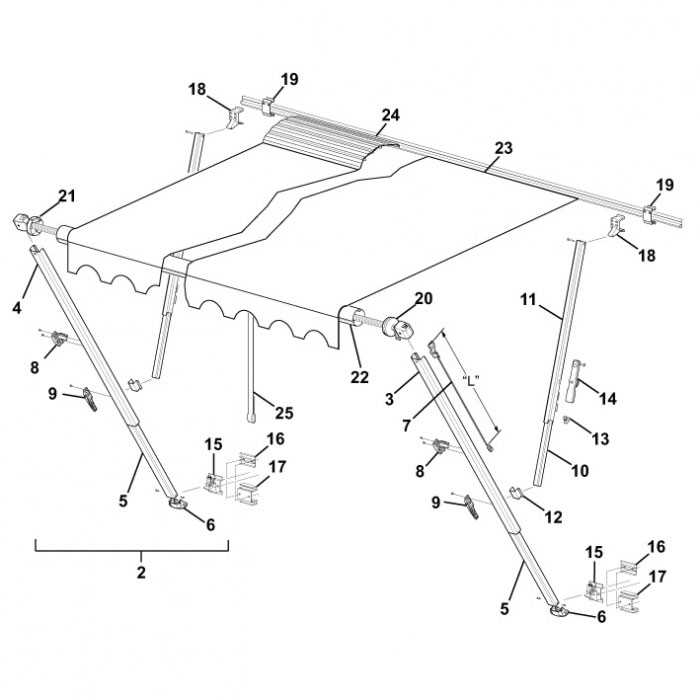

Visual Breakdown of Retractable Shade Components
Labelled schematics simplify troubleshooting–focus on these five core elements first: aluminium valance (front bar), roller tube housing the coiled fabric, support arms with adjustable tension knobs, tension straps at the trailing edge, and mounting brackets secured with 8mm lag bolts. Verify each bracket type (wall, soffit, or fascia) matches the structure’s load rating (minimum 300 lbs shear strength for 10’ x 12’ models). Misaligned arms cause uneven retraction; tighten friction hinges using a 5mm hex key after every 20 deployments. Fabric wear occurs at stress points–reinforce with UV-resistant thread if stitching frays near the roller tube.
Replace worn wind support bars annually; corroded steel versions warp at 20 mph gusts. Check pulley systems for frayed cables–use 3/16” stainless steel replacement wire rated for 500 lb tensile strength. Lubricate pivot points with silicone spray (avoid WD-40) to prevent squeaking and premature wear. For motorised units, ensure the limit switch calibration matches the fabric’s extended length (±1 inch); recalibrate after power outages to prevent jamming.
Core Elements of a Foldable Shade Structure
Prioritize a sturdy aluminum or steel frame with a powder-coated finish to resist corrosion–opt for alloys like 6061-T6 for lighter loads or 6063-T5 for heavy-duty applications. Replaceable nylon or PVC bushes between pivot points reduce friction; lubricate every 6–12 months with silicone-based grease to prevent seizing. For coastal regions, upgrade to stainless steel hardware (AISI 316) to counteract salt spray degradation.
- Fabric membrane: Choose solution-dyed acrylic (e.g., Sunbrella) for UV resistance (UPF 50+); polyester blends degrade 40% faster under direct sunlight. Reinforce stress points with double-stitched seams using bonded polyester thread (minimum 150 denier). Avoid vinyl if the structure exceeds 12 ft width–thermal expansion causes sagging up to 1.5 inches in summer.
- Roller tube: Use anodized aluminum (minimum 76mm diameter) for spans under 16 ft; switch to 89mm or 102mm tubes for larger installations to prevent deflection. Attach fabric with stainless steel bead ties every 12 inches–glue-on methods fail at wind speeds above 20 mph.
Integrate a dual-stage lateral arm mechanism with 1.5mm thick steel supports for wind loads up to 25 mph; add a third stage if exceeding 28 mph. Adjustable tension springs (rated for 150–300 cycles/year) should extend fully within 8–12 rotations of the crank; replace if retraction time exceeds 15 seconds. For motorized units, install a limit switch with a 3-second delay to prevent fabric bunching–manual overrides must disengage automatically during power failures.
- Mounting brackets: Use L-shaped steel plates (minimum 3/16″ thickness) anchored directly to structural studs–concrete screws (e.g., Hilti HUS) outperform lag bolts by 35% in pull-out tests. Allow 1/8″ gap for thermal expansion using neoprene washers.
- Rainwater channels: Fabric gutter systems must slope 1/4″ per foot toward drains; aluminum extrusions with silicone seals prevent leaks at joints. Test by spraying 2 gallons of water per minute–standing water over 30 minutes indicates insufficient pitch.
- Security locks: Deploy a keyed latch on manual models to deter tampering; motorized versions require a 12V backup battery with 48-hour runtime to prevent collapse during outages.
Mapping Out Retractable Shade Structure Components on Technical Drawings
Locate the primary support beam first–typically a horizontal aluminum extrusion spanning the mounting surface. On blueprints, mark this as “Header Rail” with measurements for length, wall clearance, and bracket spacing. Check for notches or pre-drilled holes indicating attachment points for vertical arms.
Identify side arms; they appear as L-shaped or curved profiles. Label them “Articulating Supports”, noting pivot points where they connect to the header rail and lower mounting plate. Include bolt sizes and torque specifications if detailed in engineering notes.
Trace the tilt mechanism–usually a pair of parallel tubes or rods running between the side arms. Tag these “Angle Adjusters”; measure the distance between them and their position relative to the pitch when fully extended or retracted.
Find the fabric roll tube–shown as a hollow cylinder near the header rail’s rear. Tag it “Rotating Barrel” with diameter and material code (often 6061 aluminum). Note any internal springs or ratchet systems if schematics include cutaway views.
Mark wall anchors separately–typically rectangular or angular plates with bolt patterns. Use “Fixing Plates” and include their placement height, distance from corners, and required fastener types (e.g., lag screws, wedge anchors).
Highlight the pull strap or motor housing if automated systems are present. Label “Actuation Handle/Motor Assembly” with cord length or electrical conduit paths where applicable. Indicate voltage requirements for motorized units.
Cross-reference any hidden reinforcements–such as internal gussets or welded joints–using “Structural Gussets”. Note their exact location between layered components, especially in high-load areas near pivots.
Ensure every component on the blueprint carries a tolerance value. For aluminum extrusions, specify ±0.5mm; for fastener holes, ±0.2mm. Add a legend grouping all labels by color-coding: red for load-bearing elements, blue for adjustable parts, green for mounting hardware.
Step-by-Step Guide to Measuring Retractable Shade Components
First, extend the lateral supports fully and lock them in position. Place a rigid measuring tape at the pivot point of the outer hinge–where the arm connects to the wall bracket–and stretch it to the opposite pivot at the fabric roller’s end. Record this length in millimeters, rounding to the nearest centimeter. For accuracy, measure three times: once at full tension, once with slight slack, and once perpendicular to check for alignment deviations exceeding 3 mm. Discrepancies indicate worn pivots or bent rods, which require replacement before mounting.
Critical Measurement Points and Tolerances
| Component | Measurement Reference | Tolerance (± mm) | Tool Required |
|---|---|---|---|
| Arm length (extended) | Pivot-to-pivot | 5 | Laser measure or steel tape |
| Bracket spread | Center-to-center of mounting holes | 2 | Digital caliper |
| Drop (vertical) | Wall bracket to lowest point | 3 | Level + tape |
Position the mounting plates on the intended surface–vinyl siding, brick, or aluminum framing–before drilling. Trace the hole centers with a fine-tip marker, then verify spacing against the recorded measurements. For brick, use a masonry bit 1–2 mm larger than the fastener diameter to accommodate expansion anchors. Pre-drill all holes with a 3 mm pilot bit to prevent surface cracking. Install screws finger-tight first, then torque to 15–20 Nm using a hex driver to avoid stripping threads. Recheck alignment by retracting and extending the mechanism twice; any binding or uneven movement mandates bracket re-positioning.
Maintenance Components for Home Canopies and Their Roles
Replace fabric panels every 3–5 years, even if they appear intact. UV degradation weakens polyester or acrylic threads before visible wear appears–test tension by pressing firmly; if the material doesn’t snap back, it’s time for new covering. Measure width precisely; off-the-shelf replacements rarely fit without trimming.
Support arms made from powder-coated aluminum outlast steel by 25% in coastal climates, resisting salt corrosion. Check pivot points annually; lubricate with dry silicone spray only–WD-40 attracts dust, causing stiffness. If arms sag under load, swap out worn-out torsion springs rather than tightening bolts; overtightening strips threads.
For manual systems, upgrade crank handles to ergonomic models with 1:4 gear ratios. They cut effort by 40% and include a clutch mechanism that prevents over-extension–critical for awnings over 12 feet. Avoid aftermarket cranks without safety stops; they detach mid-retraction, risking frame damage.
Brackets must align flush to the wall; misaligned mounts create stress points that warp frames within 18 months. Use stainless-steel anchors for brick, lag screws for wood–not drywall anchors, which pull out under wind loads exceeding 20 mph. Apply butyl tape between brackets and surfaces to prevent water seepage.
Retractable models often falter at guide rails. Clean tracks monthly with a nylon brush to remove grit buildup–accumulated debris increases friction, slowing deployment. If wheels stick, replace nylon rollers with ball-bearing types rated for 50 lb loads; they halve rolling resistance.
Valances require replacement when grommets tear or stitching frays. Opt for marine-grade thread if relocating near swimming pools; chlorine degrades standard polyester in under two seasons. Reinforce seams with double-stitching for awnings exposed to 30+ mph gusts.
For electric systems, swap limit switches every 500 cycles or two years. Cheap knockoffs fail without warning–choose models with auto-calibration to compensate for sun-induced cable stretch. Always keep a manual override tool on-site; power outages strand motorized units mid-operation.
