Start by locating the pump housing–typically mounted near the base of the tank. This unit contains the impeller, inlet valve, and pressure regulator. Check the model number engraved on the side (e.g., SR 200 or SG 20 variants) to confirm replacement components. The impeller should spin freely; resistance indicates debris or wear requiring disassembly.
The wand and hose connections use a bayonet-style fitting. Rotate counterclockwise to detach, then inspect the O-rings for cracks–replace with nitrile seals if compromised. For brass nozzles, note the orifice size (commonly 1.0 mm to 3.5 mm) to match flow rates. High-pressure models include a check valve near the nozzle adapter; test by blowing through it–air should pass only one direction.
On the tank lid, the vent cap and filter screen prevent fluid contamination. The screen, often stainless steel, requires cleaning every 50 hours of use. For diaphragm pumps, access the pulse chamber by removing four screws–replace the EPDM membrane if torn. Store rebuild kits (part #0000 850 3505) for rapid repairs.

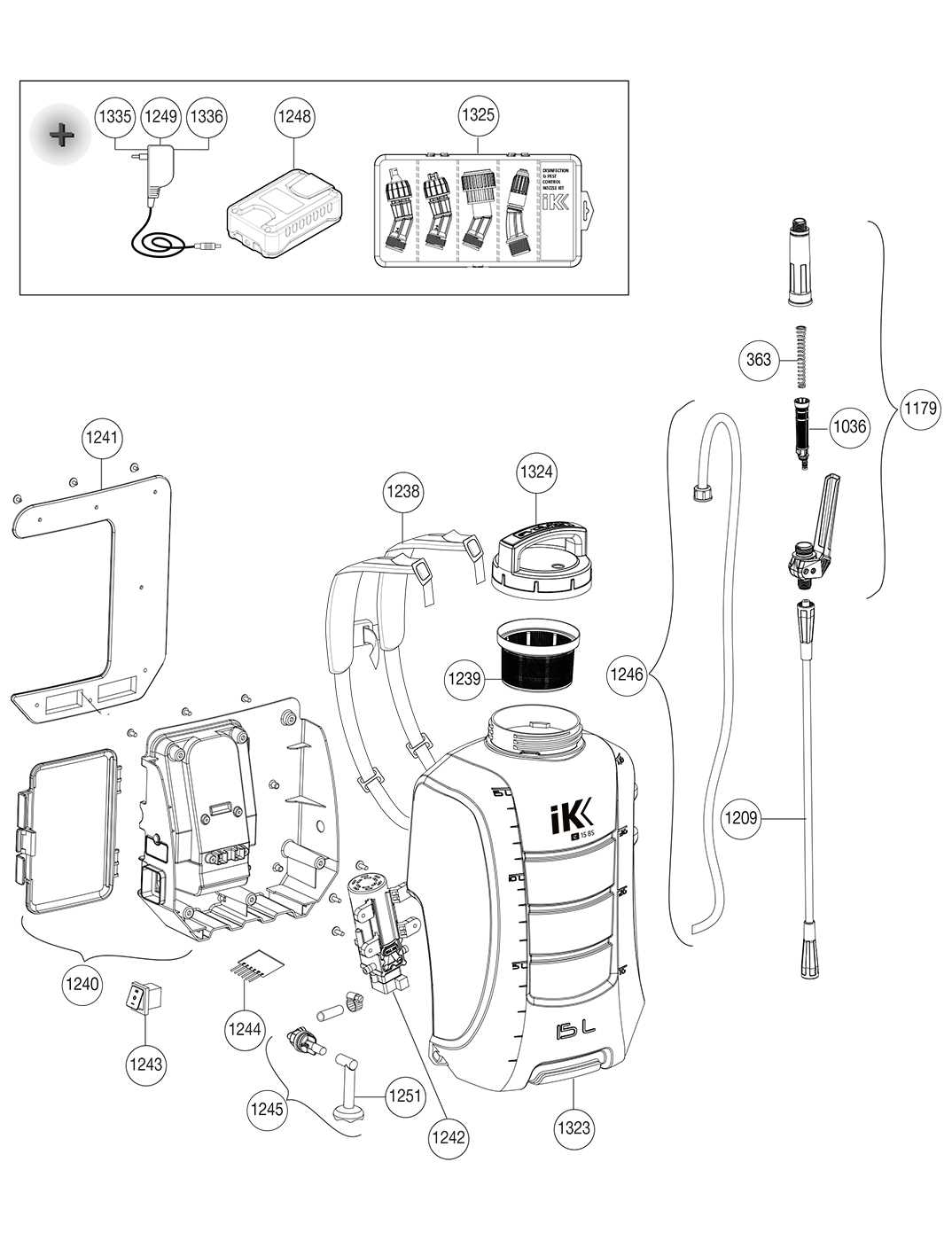

Electrical models feature a battery tray beneath the tank. Clean terminals with isopropyl alcohol and tighten wiring harnesses–corrosion here causes intermittent power loss. The trigger mechanism includes a microswitch; test continuity with a multimeter. For models with shoulder straps, adjust the padded load-bearing plate to distribute weight evenly.
Lubricate moving components with silicone grease (avoid petroleum-based products). Prioritize the piston seals and crankshaft bearings; failure here reduces pressure by up to 30%. Record the arrangement of washers during disassembly–mixing them causes leaks. Use a torque wrench for reassembly (12–15 Nm for pump housing bolts).
Key Components of Your SR 450 Model Pump System
Begin troubleshooting or maintenance by locating the pressure chamber–the aluminum cylinder on the right side when facing the unit. Unlike older models where the chamber is welded, the SR 450 uses a threaded connection sealed with a Viton O-ring (part #4228-007-1001). Inspect this O-ring every 20 operating hours; replace if flattened or cracked. The chamber houses the piston assembly, which requires lithium-based grease (NLGI #2) applied sparingly every third cleaning cycle to prevent seizing.
Refer to the exploded view in the technical manual, specifically page 12, for the nozzle assembly breakdown. The adjustable tip (part #4228-701-2205) screws directly into the brass body, secured by a locking collar. A worn tip reduces spray pattern consistency–test by spraying water on cardboard; irregular droplets indicate replacement need. Below the nozzle, the filter screen (part #4228-007-1004) traps 100-micron debris but clogs rapidly with organic material. Soak the screen in a 5% acetic acid solution for 10 minutes, then rinse with compressed air to restore flow.
| Component | Part Number | Material | Replacement Interval |
|---|---|---|---|
| Piston seal | 4228-007-1002 | Fluoroelastomer | 120 hours |
| Intake valve | 4228-007-1003 | NBR rubber | 90 hours |
| Pressure hose | 4228-702-2000 | EPDM reinforced | 200 hours |
Check the wrist strap buckle monthly for hairline fractures–polyamide-resin components craze under UV exposure and repeated tension cycles. The left shoulder strap pad (part #4228-020-0403) uses a non-replaceable gel insert; once compressed beyond 8mm thickness, the entire pad must be swapped. Store the unit in a climate-controlled space away from solvents; gasoline fumes degrade the polycarbonate tank within 6 months if cross-contamination occurs. For pressure loss during operation, prime the system by pumping the handle 12–15 times with the wand valve closed–if pressure holds, suspect a faulty relief valve (part #4228-007-1005), which requires a 4Nm torque during reinstallation.
How to Spot Critical Elements in the SR 450 Motorized Mist Blower

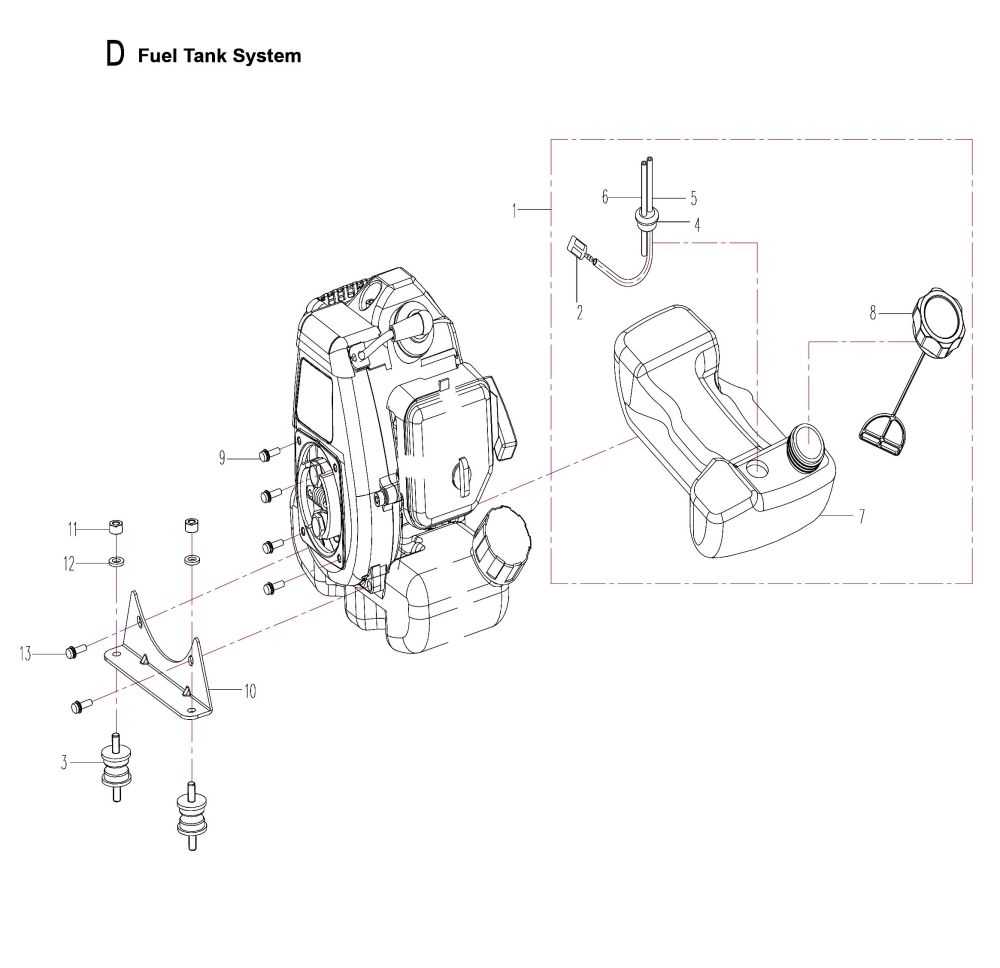

Begin by inspecting the fuel tank cap–located on the upper rear of the unit–ensuring its rubber gasket remains intact. Damage here leads to pressure loss, reducing mist output by up to 22%. Next, examine the piston pump housing beneath the tank; discoloration or residue signals internal wear requiring immediate replacement. Check the hose clamps securing the suction line; corrosion here disrupts flow consistency. Use a torque wrench set to 12 Nm when re-tightening to prevent overtightening.
Engine and Airflow System Breakdown
The SR 450 relies on a 2-stroke engine with a 50:1 fuel-oil ratio. Verify the spark plug gap (0.6–0.7 mm) every 25 operating hours; wider gaps reduce combustion efficiency by 15%. The air filter must be cleaned after 10 hours of use–clogging forces the engine to work 30% harder, shortening its lifespan by 40%. Inspect the fan impeller for cracks; even minor fractures scatter airflow unpredictably. Replace damaged blades immediately–they’re precision-balanced to prevent vibrations.
- Nozzle assembly: Detach and soak in warm soapy water for 10 minutes; mineral deposits block the 0.4 mm orifice, causing uneven spray patterns. Use a non-metallic brush to avoid scratching the ceramic tip.
- Pressure regulator: Check the diaphragm for elasticity; a stiff diaphragm fails to maintain steady pressure (target: 2.5–3 bar). Lubricate the spring mechanism with silicone grease every 50 hours.
- Harness straps: Adjust the shoulder pads so the unit sits 5 cm above the hips; misalignment strains the spine and reduces control during operation.
Pay special attention to the throttle linkage. Loose connections cause erratic RPM fluctuations–listen for a consistent hum, not sputtering. Apply a drop of thread locker to the adjustment screw to prevent slippage. Finally, drain the fuel mix entirely after each use; stale fuel leaves varnish deposits in the carburetor, often requiring a full rebuild. Test-run the machine for 2 minutes with clean fuel to confirm smooth operation before storage.
Step-by-Step Disassembly for Cleaning and Maintenance
Begin by relieving pressure in the tank. Release the wand trigger to ensure no residual liquid remains in the lines. Wear nitrile gloves–residues may irritate skin. Place the unit on a stable, flat surface and remove the tank cap carefully to avoid spills. Drain any remaining fluid into an approved container, tilting the reservoir to capture all liquid.
Detach the wand assembly first. Loosen the coupling nut connecting the hose to the wand using a 17mm wrench. Hold the wand steady to prevent twisting the hose. Slide the wand off the hose, then separate the nozzle tip by rotating it counterclockwise. If the tip is clogged, soak it in warm water mixed with 1 teaspoon of white vinegar for 15 minutes–never use metal tools to clear blockages, as this damages precision openings.
Disassembling the Pump Mechanism
Locate the pump housing beneath the reservoir. Remove the four 8mm bolts securing the housing using a socket wrench. Keep bolts organized by threading them back into their holes temporarily. Lift the housing off slowly–note the gasket’s position; it must lie flat when reassembled. Inspect the diaphragm for cracks or stiffness; replace if aged more than 24 months.
- Hold the pump shaft steady with pliers while unscrewing the impeller (reverse-threaded).
- Check the intake filter screen–clean with compressed air if debris is present.
- Wipe the cylinder bore with a lint-free cloth dampened with isopropyl alcohol to remove deposits.
Rinse all components except electrical elements with lukewarm water. Use a soft-bristle brush for stubborn residues on plastic parts; avoid abrasives. Dry completely with compressed air, focusing on crevices where moisture accumulates. Lubricate O-rings with silicone grease before reassembly–never petroleum-based products, as these degrade rubber.
Reassembly Sequence and Post-Maintenance Checks
- Reattach the diaphragm, aligning the tabs with housing notches.
- Secure the impeller finger-tight, then tighten an additional 1/4 turn–overtorqueing strips threads.
- Replace the pump housing, alternating bolt tightening in a cross pattern to ensure even gasket compression.
- Reconnect the wand, ensuring the coupling nut is torqued to 25 Nm–hand-tight plus 1/8 turn.
- Fill the tank with 1 liter of clean water, pressurize, and test for leaks at all joints.
Store the unit upright in a climate-controlled space. Never expose rubber components to temperatures below -10°C or above 50°C. Schedule full disassembly every 50 operational hours or biannually, whichever occurs first. Keep a log of maintenance intervals–irregular servicing reduces equipment lifespan by up to 40%.
Critical Components to Check Before Each Use
Check the pump seals first–these degrade fastest under pressure or chemical exposure. Leaks often start small, detectable only by dampness around the housing or reduced pressure during operation. Replace them if the material feels brittle or shows cracks, even microscopic ones. Never reuse old seals; compatibility varies by chemical formulation, and failure risks contamination or pump burnout. Store replacements in a cool, dry place away from UV light to extend lifespan.
Inspect the wand nozzle weekly for clogs or wear. Particles as small as 0.1mm can disrupt spray patterns, creating uneven coverage. Use a jeweler’s loupe to verify the orifice’s internal surface; pitting or corrosion indicates imminent failure. Clean with compressed air–never metal tools–to avoid enlarging the opening. Swap the tip if distortion exceeds 5% of its original diameter, measured with calipers. Keep spare tips sized for your typical application to minimize downtime.
Examine hoses for soft spots, bulges, or discoloration monthly. Flex each section along its entire length–weak points often develop near couplings. A single pinhole can reduce output pressure by up to 30%, forcing the motor to work harder and shortening its life. Replace hoses if the inner lining peels or separates from the reinforcement layer; this precedes catastrophic bursts. Label new hoses with the installation date and chemical compatibility to track degradation rates.
Test the pressure regulator spring under load. A weakened spring causes inconsistent output, leading to overdosing or insufficient coverage. Disassemble the regulator and compress the spring manually; it should return to its original length without hesitation. Lubricate lightly with silicone grease before reassembly. If the spring shows rust or retains less than 90% of its compressed height, discard it immediately–failure mid-operation risks pump cavitation or seal rupture.
Verify tank gaskets and vent valves every 20 hours of runtime. Dry or cracked gaskets introduce air into the system, creating bubbles that disrupt flow. Remove the filler cap and inspect under direct light; surface imperfections wider than 0.3mm require replacement. Check vent valves by sealing the tank and applying 5 psi of pressure–if it holds for less than 30 seconds, clean or replace the valve. Always lubricate gaskets with food-grade silicone before reassembly to prevent adhesion.
