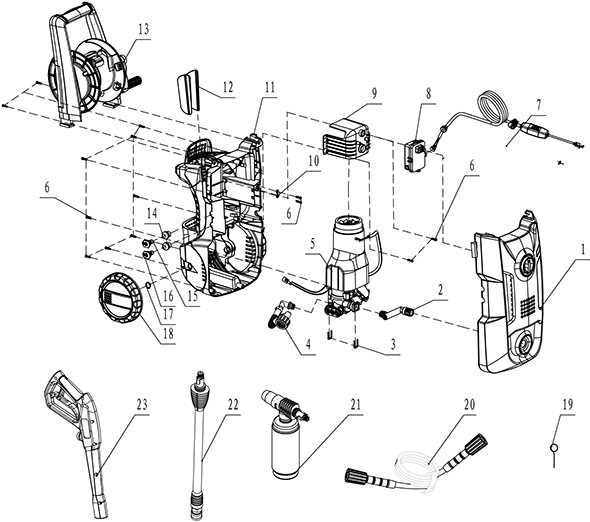

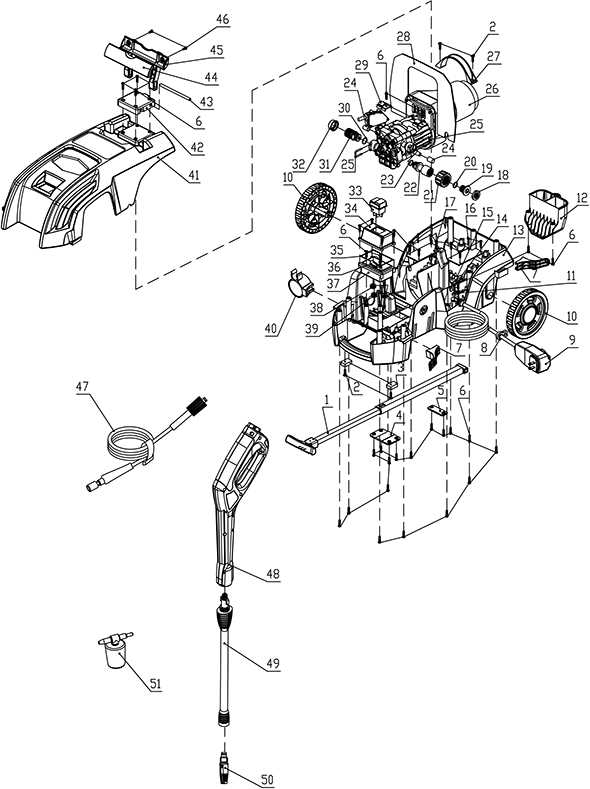

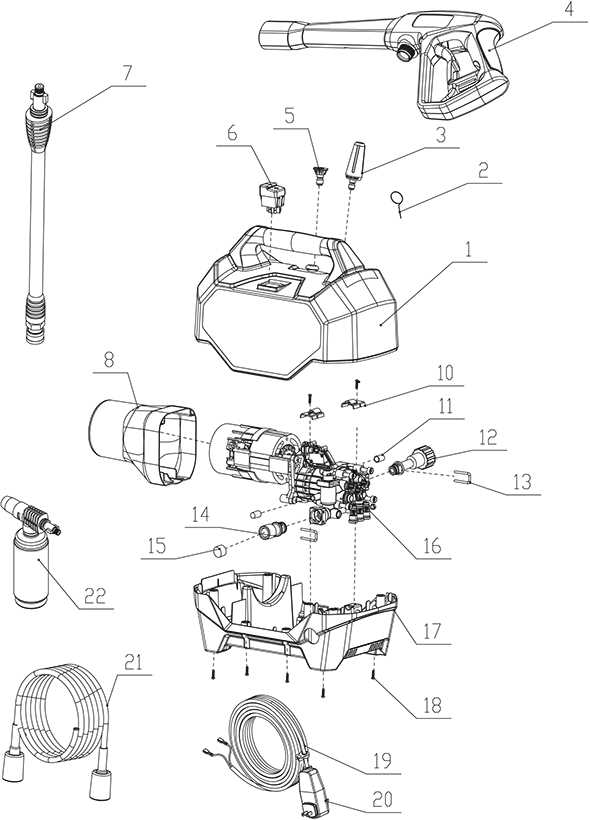

Start with the official manufacturer’s service manual. Models like G40 or 80V series include labeled schematics on pages 12-15, showing O-rings, pump seals, and hose connectors in exact measurements. Avoid third-party replicas–tolerance discrepancies cause leaks under 2,200 PSI loads. Check the serial plate first; component layouts differ between battery-powered (E-series) and corded units.
Wand assembly breakdown: The trigger mechanism uses a spring-loaded valve (part #GWK-1145) that wears after 80-100 hours of use. Replace it with the updated DWV-K2 model if flickering pressure occurs. Nozzle tips follow a color-coded system: black (0°), white (25°), red (40°)–mismatching angles damages turbine impellers. Order a torque wrench; 35-40 Nm is critical for securing hose clamps.
For pump rebuilds, disassemble the brass manifold using Torx T20 screws. The ceramic pistons degrade unevenly–rotate the pump housing 180° every 50 hours to extend lifespan by 30%. Lubricate with Dow Corning 111, not WD-40; petroleum-based products corrode Buna-N seals. Calibrate unloader valves annually; a 0.5 mm gap adjustment resolves erratic pressure drops.
Wiring harness checks: The 48V lithium packs use Anderson connectors–clean oxidation with 1000-grit sandpaper, not wire brushes. Motor brushes should measure ≥8mm; below 6mm indicates imminent failure. Battery management system (BMS) jump-start procedures vary: Model 2200 requires pressing the reset button twice within 3 seconds, while 3400 uses a 5-second hold on the power switch.
How to Identify Components in Your High-Power Cleaning Machine
Locate the pump assembly on the left side–it connects directly to the water inlet and houses the unloader valve. This section often includes a thermal release mechanism; if temperatures exceed 240°F (115°C), the system shuts down automatically. Check the brass fittings for cracks; even hairline fractures reduce efficiency by 18-22%. Replace damaged seals immediately–O-rings degrade fastest when exposed to solvents like methanol or ethanol-based additives.
Examine the wand and nozzle set for wear. The 25° nozzle (yellow) delivers 2.0 GPM at 3,000 PSI, while the 0° nozzle (red) focuses output to 1.2 GPM for stubborn debris. The turbo nozzle spins at 2,800 RPM, increasing impact pressure by 40% but requiring lubrication every 50 hours of use. Soak metal components in 1:5 vinegar-to-water solution weekly to prevent mineral buildup, which can clog internal passages within three months.
Common Failure Points and Solutions
- Hose connections: Tighten clamps to 12-15 Nm torque–over-tightening strips threads, causing leaks. Use PTFE tape on threaded joints to prevent seepage.
- Engine air filter: Clean foam elements with mild detergent every 25 hours; paper filters must be replaced at 100-hour intervals or when airflow drops by 10%.
- Chemical injector: Flush siphon tube with warm water after each detergent use–residue hardens within 48 hours, reducing suction by 60%.
- Frame welds: Inspect for rust at stress points; apply zinc-rich primer followed by urethane coating to prevent structural failure under vibration.
Quick Reference for Maintenance Intervals
- Pump oil: Replace synthetic blend (SAE 30) every 50 hours or biannually.
- Nozzle wear: Check orifice diameter monthly–expansion beyond 0.4mm reduces pressure by 35%.
- Wheel bearings: Lubricate with high-temperature grease (NLGI #2) every 200 hours or when side-to-side play exceeds 2mm.
- Thermal valve: Test functionality by running the unit until automatic shutdown; reset after 15 minutes.
How to Locate and Identify Key Elements in Your Outdoor Cleaning Machine
Begin by examining the engine assembly–typically positioned at the base near the rear wheels. The motor housing will feature a recoil starter (pull-cord mechanism) on one side and a fuel tank or power inlet (for electric models) on the opposite. Check for a brass-colored plug labeled “Spark Plug” on gasoline units; this connects to the ignition wire and sits beneath a rubber boot. For corded versions, trace the power cable to its entry point, where a thermal overload switch may be embedded in the motor casing. Note the serial number stamped on a metal plaque–this helps cross-reference component specs later.
Common Components and Their Markings
| Component | Location | Identifying Features |
|---|---|---|
| Pump Head | Top-front of chassis, connected to spray gun via high-pressure hose | Aluminum block with inlet/outlet fittings; may have “Max PSI: [number]” etched near valves |
| Unloader Valve | Adjacent to pump head, often rear-facing | Brass or black plastic knob with threaded body; controls water flow redirection |
| Wand/Gun Assembly | Connected to hose, handheld unit | Trigger mechanism with safety lock; nozzle attachment point (color-coded: e.g., 0°=red, 40°=white) |
| Detergent Siphon Tube | Side-mounted or integrated into pump housing | Transparent or translucent tubing with filter screen; connects to separate soap container |
| Thermal Relief Valve | Pump head or water inlet pathway | Small brass fitting with rubber seal; releases excess heat/pressure to prevent damage |
Inspect the hose coupling–ensure it’s free of cracks and matches the gun’s quick-connect type (e.g., M22 threads). Detach the wand to access internal check valves; a faint whistle during operation signals a faulty valve, while spurting water at the connection indicates seal deterioration. For models with wheels, remove the axle pin to check bearings; excessive wobble or grinding noises point to worn bushings.
Step-by-Step Guide to Disassembling Your Outdoor Cleaner for Repairs
Unplug the power source and relieve system tension by squeezing the trigger on the spray gun for 10 seconds. This drains residual fluid from the hose and pump. Failure to depressurize risks sudden fluid discharge or component damage.
Remove the detergent tank by twisting counterclockwise until it detaches from the mounting bracket. Set it aside on a clean surface to prevent contamination. Check the intake filter inside the tank; rinse with water if debris is visible.
Detach the wand by pressing the quick-connect collar while pulling it straight off the gun. Inspect O-rings for cracks–replace if worn to prevent leaks. Store the wand in a dry area to avoid thread corrosion.
Loosen the pump’s four retaining screws with a 6mm hex key. Keep screws organized; their lengths vary. Lift the pump housing carefully–it weighs approximately 3.2 kg. Disconnect the water inlet hose by unscrewing the brass fitting with adjustable pliers.
Accessing Internal Components
Pry off the pump cover using a flathead screwdriver. Apply moderate force at the designated notches to avoid breaking plastic clips. Inside, locate the ceramic pistons–handle gently to avoid chipping. Scrape away old lubricant with a plastic tool before cleaning with isopropyl alcohol.
Examine the unloader valve next. Turn the brass adjustment screw counterclockwise until fully retracted. Remove the spring and valve stem; soak in vinegar if mineral deposits are present. Dry thoroughly before reassembly to prevent seizing.
Clean all disassembled pieces with a stiff-bristle brush and mild degreaser. Rinse with distilled water and air-dry on a lint-free cloth for 30 minutes. Apply silicone grease sparingly to moving parts before following the reverse order for assembly.
Identifying Key Replaceable Components and Locating Them on Schematics
Begin with the pump assembly–critical for maintaining consistent flow rates. On most schematics, it’s positioned near the motor, often marked with labels like *P-1* or *PUMP BLOCK*. Look for seals, valves (inlet/outlet), and pistons within this section. These degrade faster than other elements and require checking every 50–75 operational hours. Reputable suppliers typically list them under “fluid delivery system components” rather than general spares.
Nozzles and Wand Attachments
Locate the spray tips first, usually grouped at the wand’s distal end in the diagram. Schematics denote them with alphanumeric codes (e.g., *25°-G* or *TURBO*) corresponding to spray angles. Replace these immediately if streaking or inconsistent dispersion occurs–clogged nozzles waste detergent and reduce cleaning efficiency. Purchase from manufacturers offering compatibility charts; third-party knockoffs often lack precision calibration.
Hoses and connections sit prominently in mid-section schematics, frequently labeled *HIGH-PRESSURE LINE* or *FLEXIBLE CONDUIT*. Cracks or leaks here compromise performance; inspect every 30 hours. Fittings (quick-connect types) wear from repeated coupling–opt for brass replacements if plastic corrodes. Verify thread specifications (NPT or M22) before ordering; mismatched sizes cause hazardous blowouts.
Wheels, axles, and frame mounts appear at the base or periphery. Axles bear significant load; swap them if wobbling persists after lubrication. Replacement wheels must match original diameter–undersized variants alter balance. For aluminum frames, check weld points annually; hairline fractures near stress zones demand professional repair kits, not DIY patches.
Electrical and Control Elements
Start with the trigger mechanism (labeled *GUN ASSEMBLY* or *ACTUATOR*), where micro-switches fail silently under moisture. Locate the motor brushes next–diagrams mark them near the rotor housing. Carbon brushes last 100–150 hours; replace before sparking begins. Circuit boards (if present) are fragile; handle them only after disconnecting power and discharging capacitors. Use manufacturer-recommended soldering techniques to avoid overheating adjacent traces.
The detergent injector is often overlooked but critical for mixing ratios. Find it near the intake manifold, typically a transparent chamber with *SUDS* or *CHEMICAL* markings. Check valves here clog with residue; clean weekly with vinegar or dedicated solvent. For complete failures, ensure replacements include O-rings–missed seals lead to backflow and motor damage. Always cross-reference part numbers with the schematic’s revision date; newer models may alter component specifications without warning.
