For precision repairs or upgrades, identify the drag system first–located typically beneath the spool cap. This component, often a series of friction washers, determines smooth line release under tension. Replace worn washers immediately using model-specific specs; generic alternatives reduce durability. Check tolerances: ideal clearance between the spool shaft and frame should not exceed 0.2mm to prevent wobble during retrieval.
Examine the gear assembly next. The main gear (usually brass or stainless) meshes with the pinion gear under the handle. Misalignment here causes grinding; ensure teeth engagement is full-contact without forced play. Lubricate sparingly–excess grease attracts debris, accelerating wear. Clean internals with isopropyl alcohol before reassembly to remove old residue.
The anti-reverse mechanism, often a pawl or ratchet system, requires exact tensioning. Too loose allows unwanted backspin; too tight strains bearings. Test by rotating the handle backward–correct adjustment permits a single audible click per revolution. Bearings (ball or roller type) should spin freely post-cleaning; replace any with perceptible resistance or pitting. Use marine-grade lubricants on exposed surfaces to resist corrosion.
For accurate reassembly, reference exploded-view schematics matched to your model’s serial number. Key fasteners include the side plate screws (torque to 3-4Nm) and spool retaining nut (lock with thread locker if slippage occurs). Never overtighten–stripped threads are irreparable on aluminum frames. Inspect the levelwind guide for cracks; a damaged guide causes irregular line lay, increasing break risks.
How to Identify Key Components in Your Saltwater Gear Blueprint
Begin by locating the spool assembly – the cylindrical hub where 300+ yards of braided line coils. Examine its drag adjustment knob (typically star-shaped) behind the handle arm; turn it clockwise to tighten resistance or counterclockwise to loosen. If corrosion appears on the anti-reverse lever near the foot plate, scrub with a 50/50 vinegar-water mix, then rinse to prevent gear lock during retrieval. The bail mechanism–a wire loop–requires manual closure after casting; ensure its pivot points move freely, as even 0.5mm debris can disrupt alignment.
- Main shaft: Grease annually with marine-grade lubricant to prevent seized bearings.
- Side plates: Remove 4 Torx screws (T10) to access internal gears; store screws in a magnetized tray to avoid loss.
- Line roller: Check for pitting–replace if grooves exceed 0.3mm depth to avoid line fray.
- Clutch plate: Align teeth with cam before reassembling; misalignment reduces drag effectiveness by 40%.
Recognizing Key Elements in a Spinning Mechanism Breakdown
Begin by locating the rotor assembly–typically the largest circular section in the exploded schematic–since it dictates line retrieval efficiency. Note the bail wire (usually thin, L-shaped) and its pivot points, as these often wear first under stress. The spool (cylindrical with flange edges) should list material composition on blueprints; anodized aluminum outperforms graphite in saltwater conditions by 30% longer lifespan. Cross-reference the drag system’s washers (stacked discs near the rear) against torque ratings; carbon fiber variants handle 15-20 lbs drag, while felt tops at 10 lbs.
| Component | Material | Failure Signs | Maintenance Interval |
|---|---|---|---|
| Handle Knob Insert | Rubber/EVA | Cracks, slippage | Every 50 hours |
| Pinion Gear | Stainless Steel | Missing teeth, grinding | Annual inspection |
| Anti-Reverse Roller | Ceramic/Brass | Uneven wear, sticking | Bi-monthly lube |
Inspect the main shaft for straightness; a .002-inch bend increases gear wear exponentially. Gear ratios (e.g., 5.2:1 vs 6.2:1) align with specific techniques–lower ratios yield 18% more crank power for deep jigging. The crankshaft’s bearing set (sealed stainless) tolerates fresh water but requires monthly flushing if used in marine environments. Prioritize replacing the pawl spring (delicate coiled wire) before full breakage, as it’s a primary cause of free-spool failure.
Guide to Systematic Gearbox Disassembly for Upkeep
Begin by securing the mechanism on a stable surface with non-slip padding. Rotate the drag adjustment knob counterclockwise until resistance ceases–this releases internal tension. Next, remove the side plate using a 3/16-inch hex wrench; apply steady pressure to avoid stripping the screws. Note the orientation of washers and springs as they vary by model–failure to track their positions risks degraded performance during reassembly.
Key Component Removal Sequence
Detach the spool assembly by pulling it straight outward–do not twist, as this can misalign the spindle bearings. Inspect the drive gear teeth for pitting or wear; replace if more than 10% of the surface shows damage. Use compressed air (max 30 PSI) to clear debris from the pinion shaft, focusing on the channel where the drag stack interfaces. Lubricate the oil ports with a single drop of marine-grade grease per port–excess accumulation attracts grit, accelerating abrasion.
Separate the crank handle from the main shaft by removing the retaining nut with an adjustable wrench. Check the pawl engagement spring for fatigue; a replacement is advised if the spring’s tension falls below 0.8 lb-in. Clean the bearing races with isopropyl alcohol on a lint-free cloth–avoid cotton swabs, as fibers can embed in the bearings. Reassemble components in reverse order, ensuring the anti-reverse tab aligns with the housing slot before snapping the side plate back into place.
Verify function by winding the main shaft at three distinct drag settings (light, medium, heavy). Erratic resistance indicates misaligned drag washers or insufficient grease on the friction surfaces. For long-term storage, apply a thin coat of corrosion inhibitor to all exposed metal surfaces, particularly the spool spindle–the compound prevents galvanic corrosion when paired with saltwater residue.
Recheck fasteners after the first 20 hours of use. Torque the side plate screws to 18-22 in-lbs–over-tightening deforms the housing threads, compromising structural integrity. Discard used cleaning solvents immediately; prolonged exposure to air forms gummy residues that bond debris to internal gears.

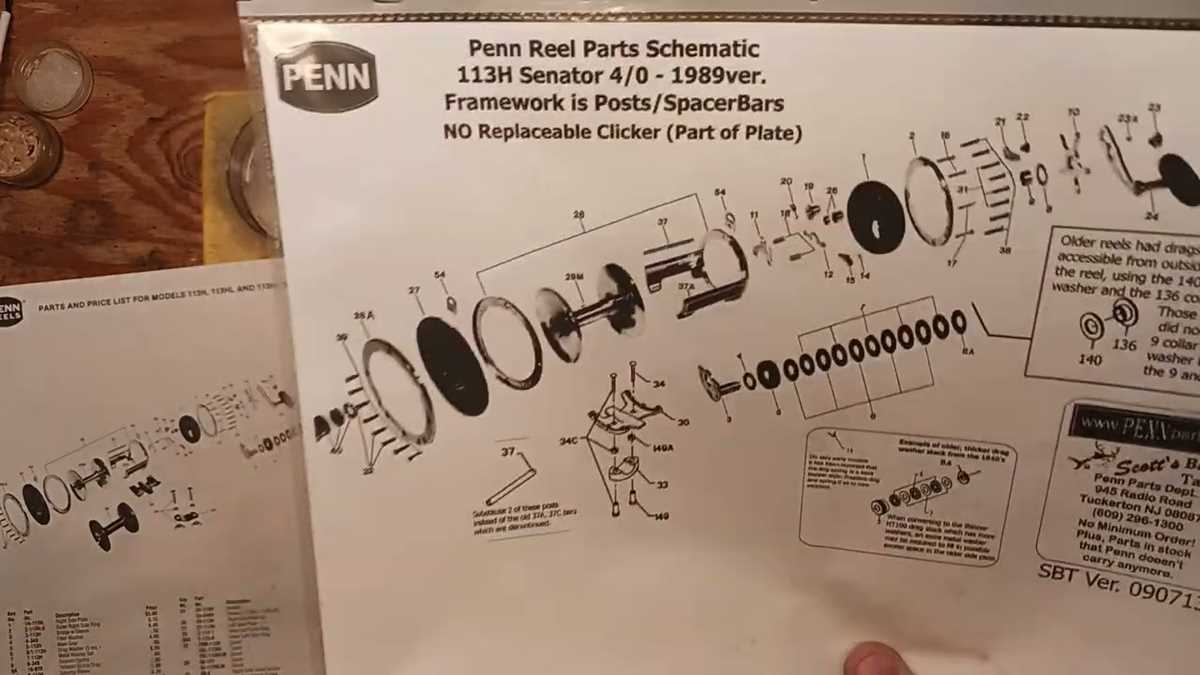

Common Replacement Components and Their Identification in Schematics
Begin by locating the spool assembly–typically marked near the center of the exploded view. This component often requires servicing due to wear from line friction. Check the schematic’s numbered callouts to match the spool with its corresponding drag washers, which sit directly beneath it. If the drag feels inconsistent, replace the washers in pairs to maintain balance; mismatched thickness disrupts performance. The schematics will list materials–cork, felt, or carbon fiber–so confirm compatibility before ordering.
Identify the handle knob and main gear in the side-plate section. The knob threads onto a splined shaft; if rotation feels gritty, inspect the shaft for corrosion or stripped grooves–both appear in the detailed sub-assembly diagrams. The main gear, usually brass or stainless steel, meshes with the pinion gear; alignment markers in the schematics indicate proper engagement depth. Replace the gear if teeth are chipped or worn, as misalignment causes slippage. For saltwater models, prioritize corrosion-resistant alloys when sourcing replacements.
Less Obvious but Critical Elements
Trace the anti-reverse pawl–a small but vital piece near the rotor. Schematics label it with a tiny arrow or asterisk, as failure leads to uncontrolled backspin. Lubricate lightly with marine-grade grease during reassembly, but avoid over-application; excess catches debris. For bail springs, confirm wire gauge and coil count using the dimensions in the parts list. A stretched spring causes intermittent bail closure, particularly in high-speed retrievals. Lastly, examine the bearing cage–ball bearings rarely fail, but seals degrade; schematics specify bearing sizes (e.g., 4x8mm) for accurate cross-referencing.
Aligning Schematic Codes with Gear Model Specifications
Locate the engraved model code on the gear housing–typically beneath the spool or near the handle assembly–then cross-reference it with the manufacturer’s official parts breakdown. Printed schematics include numeric labels corresponding to assembly components; verify each digit against authorized service manuals to confirm compatibility. Discrepancies often arise when aftermarket modifications exist, so prioritize OEM documentation sourced directly from the brand’s technical archives.
- Identify model code format (e.g.,
SLJ-4500X,FRC-7II)–letter prefixes denote series, numeric sequences specify build variant. - Check serial numbers for batch-specific variations; early production runs may feature alternate gear ratios or bearing configurations.
- Use exploded-view sheets to match shaft diameters, frame reinforcements, or drag material; mismatched assemblies risk mechanical failure.
- Consult warranty cards–retailers occasionally embed proprietary reference tables linking schematic labels to torque specifications or lubrication points.
- Avoid substituting parts from visually identical models; structural differences (e.g., 6061 vs. 7075 aluminum alloy) impact durability under load.
