Begin by locating the engine model number stamped on the side of the powerplant–typically a Yamaha GCV160 or Briggs & Stratton 44T. This single identifier unlocks access to 90% of necessary schematics. Without it, cross-referencing blades, belts, or filters becomes speculative at best. Check the right rear wheel assembly next; the transmission model is often etched beneath the fender skirt.
For the cutting deck, measure blade diameter (54 inches) and spindle count (three) before ordering replacements. The outer spindles differ from the center unit–verify left/right orientation using the pulley teeth direction. Belts follow distinct part codes for drive (5321335-71) versus deck (5321384-25); mixing them causes premature wear. Grease zerks on all spindles demand attention every 25 hours of operation–neglect leads to seized bearings within six months.
Electrical components resist generic substitutions. The ignition coil (model 5321223-83) must match exact resistance values (measured 3.5–4.2 ohms), while fuse ratings require strict adherence (20A main, 10A parking brake circuit). Filter replacements–both air (paper element) and fuel (dual-stage)–demand OEM equivalents; aftermarket units often compromise engine longevity by 30–40%.

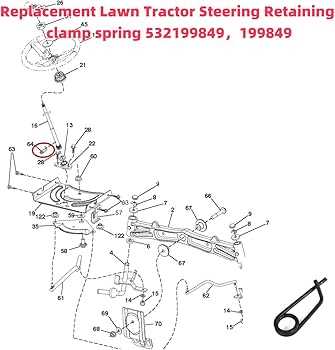

To disassemble the steering gearbox, remove the front bumper plate first–this exposes the sector shaft nut (17mm). Mark all linkage positions with paint before loosening joints; incorrect reassembly alters wheel alignment irreversibly. Hydraulic lift cylinders (part 5321743-59) rarely fail but require bleeding after belt tension adjustments to prevent sporadic deck height fluctuations.
Always cross-verify part numbers against the date-coded service bulletins published quarterly. Some 2018–2020 production models use revised spindle housings (5323664-01 vs. 5321964-32); substituting older units causes deck vibration at speeds above 3,200 RPM. For the seat safety switch, opt for the improved version (5323645-03) with corrosion-resistant contacts–earlier variants fail after 80–100 wet mowing cycles.
Garden Tractor Component Layout: Direct Access Guide

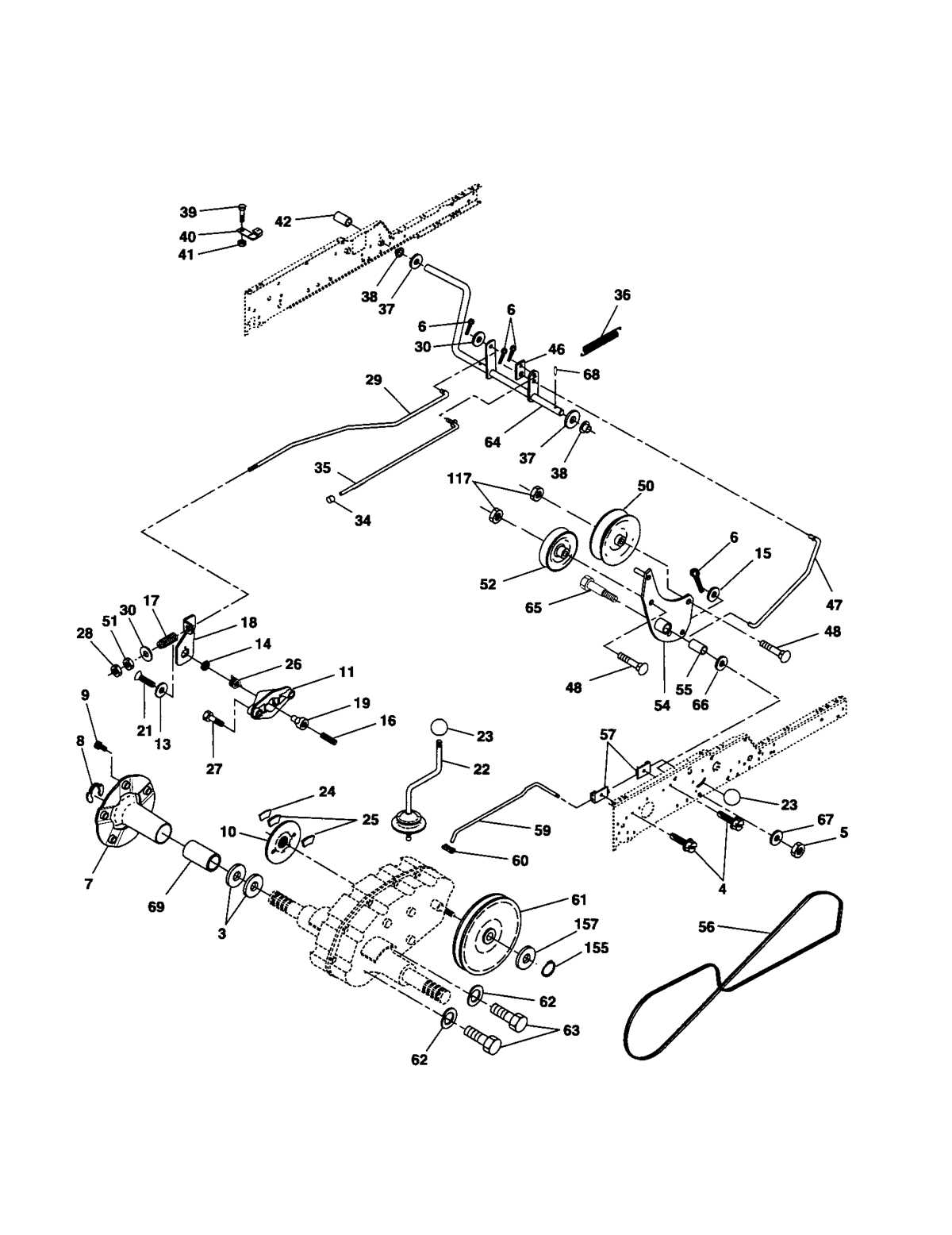

Begin by locating the exploded view for model LGT2654 on the manufacturer’s official service portal or through verified distributors like PartsTree, Jack’s Small Engines, or eReplacementParts. Use the search filter to isolate sections–focus on Section 4 (Mower Deck) and Section 6 (Hydrostatic Transmission) first, as these require frequent maintenance. Print or save the high-resolution schematic as a PDF; zooming in on a tablet will save time during disassembly. Label plastic bags with corresponding section numbers from the diagram to organize screws, spacers, and bolts–mixing them leads to reassembly errors.
Critical Component Groups & Common Failures
| Subsystem | Key Elements | Failure Signs | Replacement Interval |
|---|---|---|---|
| Cutting Deck | Blade spindles, mandrels, pulleys | Uneven cuts, vibration, excessive noise | 200–250 operating hours |
| Drive Train | Hydro pump, drive belt, transaxle | Slipping, jerking motion, fluid leaks | 400–500 operating hours |
| Electrical | Solenoid, ignition switch, safety switch | Failure to start, intermittent power | 300–400 operating hours |
| Steering | Tie rods, steering gear, bushings | Wandering, stiff steering | Annual inspection |
For transmissions, drain the hydraulic fluid every 100 hours if operating in dusty conditions–contaminants accelerate wear. Replace the drive belt if fraying exceeds 10% of the width; sidewalls cracks indicate imminent failure. Spindle bearings should be repacked with marine-grade grease during blade sharpening sessions to prevent seizure.
When replacing blades, use a torque wrench set to 45–50 ft-lbs–over-tightening warps the deck. Verify pulley alignment with a straightedge; misalignment causes premature belt wear. For electrical troubleshooting, test the ignition coil with a multimeter (resistance should read 2.5–5.0 kΩ); a failed coil often mimics a dead battery. Keep a parts cross-reference list: OEM brake pads (#587177001) can be substituted with aftermarket Stens 280-796 without modification, while hydro filters (#589480003) require exact OEM matches to avoid voiding warranty.
Finding the Genuine Schematic for Your LGT2654 Equipment Online
Visit the manufacturer’s authorized dealer portal at husqvarnaedge.com–enter the model number into the search bar, then select “Exploded Views” from the results. This interface offers interactive breakdowns with part numbers, prices, and direct ordering links, updated within 24 hours of engineering revisions.
Third-party platforms like Partstree or Partselect host OEM-grade schematics; filter by year and serial range to ensure compatibility. Avoid generic retail sites–verify the diagram displays the correct transaxle (Tuff Torq K46 variant) or spindle assembly (82 cm deck) before downloading.
Cross-Checking Diagram Accuracy
Compare the retrieved schematic against the decal inside the tractor’s engine compartment–labels should match torque specifications (e.g., 25 Nm for blade bolts) and belt routing arrows. Discordances typically signal obsolete revisions; contact customer support with the full 12-digit serial engraved on the rear frame rail for confirmed updates.
Bookmark verified URLs using browser plugins like OneTab to bypass repeated searches–official diagrams often disappear from public view after 90 days, yet remain accessible via cached dealer logins until the next model refresh.
Key Elements of the LGT2654 Cutting Deck: A Detailed Breakdown
Begin diagnostics by locating the spindle assemblies–four pivotal hubs where blades attach. Each unit houses a sealed bearing, grease fitting, and pulley. Inspect for corrosion or wobble during rotation; any play exceeding 0.5mm indicates immediate replacement. Reference torque specs: 50-55 Nm for spindle bolts, rechecked after 10 operating hours.
Trace the drive belt path from the engine pulley downward. The primary belt (part #532181522) should sit snugly in the double-groove crankshaft pulley, then route under the tensioner arm before engaging the idler pulleys. Replace if cracking appears on the underside or if stretch exceeds 5mm beyond original length. Clean pulley surfaces with acetone before reinstallation to prevent slippage.
The deck shell consists of 12-gauge steel with reinforced welds where stress concentrates–near the discharge chute and rear mounting points. Check for hairline fractures using a magnifying glass; minor imperfections can be welded with E7018 rods, while larger breaches demand a full deck swap. Apply rust converter (e.g., Rust-Oleum 7779) on exposed edges after sanding to prevent propagation.
- Anti-scalp wheels (2x outer, 1x center) should protrude 3-5mm below the blade plane when adjusted to factory height (38mm). Excessive wear on wheel treads signals incorrect deck leveling or uneven terrain. Replace wheels if tread depth falls below 2mm; polycarbonate units outlast nylon in wet conditions.
- Blade bolts require thread-locking compound (Loctite 243) during installation. Use a torque wrench set to 40-45 Nm–over-tightening risks shearing the bolt head. Always install new crush washers to maintain tension integrity.
- The discharge chute’s deflector flap must pivot freely; lubricate the hinge pin with lithium grease quarterly. Ensure the chute liner (LLDPE plastic) is fully intact–cracks cause clumping and uneven cut quality.
Examine the height adjustment linkages–each lift lever connects to a bell crank via a cotter pin (p/n 532195371). Replace bent or elongated pins immediately; misalignment here compounds deck sag over time. Grease all pivot points with NLGI #2 lithium complex grease to reduce wear. Test the full range of motion (25mm to 102mm) before use; binding indicates worn bushings.
Inspect mower blades for curvature distortion–place each blade on a flat steel plate and check for gaps exceeding 0.2mm. Sharpen edges at a 30° angle using a dedicated blade balancer (e.g., Oregon 42-025) to prevent vibration. Replace blades if nicks exceed 1mm or if overall length shortens by more than 6mm from original specs.
The belt tensioner spring should exert 8-10kg of force when engaged. Weak springs cause belt slippage and premature wear; test using a spring scale hooked to the tensioner arm. Adjust or replace if force falls below specifications. Note: side discharge models use a stiffer spring than mulching decks–verify PN 532124297.
Clean the underside of the deck after every 5 hours of operation using a plastic scraper (never metal) to remove grass buildup. Pay special attention to the baffle plates–removing accumulated debris prevents airflow blockages that reduce cut quality. Treat bare metal surfaces with a thin layer of silicone spray to inhibit moisture ingress.
Locating Components for Your Lawn Equipment with Visual Guides
Begin by retrieving the official schematic for your model. Manufacturers typically host these documents on their support sites under sections labeled “manuals” or “technical resources.” Download the PDF file–it will include exploded-view illustrations of every assembly. Identify the component needing replacement by cross-referencing its position in the guide with the physical location on the machine. Each item is numbered, often with a corresponding legend detailing specifications like part numbers, measurements, and materials. Verify these details match the broken piece before ordering replacements to avoid mismatches.
Use the visual breakdown to trace attachment points and fastening methods–whether bolts, clips, or adhesives secure the element. Note adjacent components that may require temporary removal for access; the schematic usually indicates these relationships with arrows or layered views. When sourcing substitutes, filter search results by the exact serial code from the chart rather than generic descriptions. Third-party vendors frequently stock compatible alternatives, but ensure compatibility by comparing dimensions and interface designs directly against the illustration.
