For servicing a 20 hp propulsion system, start with the official exploded view illustrations from the manufacturer’s service manual. These documents break down every replaceable component–from the powerhead and midsection to the lower unit–with precise labels and part numbers. Avoid third-party sketches unless verified against factory blueprints, as discrepancies in linkage, gasket placement, or trim assembly can lead to misassembly or performance issues.
Critical components requiring frequent inspection include the water pump impeller (typically housed behind the lower unit’s cover plate), fuel pump diaphragm, and sacrificial anodes. The water pump’s impeller should match the OEM specifications–aftermarket versions often fail prematurely under sustained RPMs. Double-check the timing belt tensioner’s alignment if the engine exhibits rough idling, as even a 2-millimeter misalignment can trigger pre-ignition.
For electrical diagnostics, reference the wiring harness schematic in the manual’s appendix. Focus on the stator output (measured at the rectifier terminals) and ground connections–voltage drops below 13.8V at full throttle signal either stator coil degradation or corroded terminal blocks. Replace the shift cable if lateral play exceeds 3mm; worn cables cause delayed gear engagement, risking propeller cavitation.
When ordering replacements, cross-reference part numbers with the engine’s serial plate. Early models (pre-2010) use a 15-tooth drive shaft spline, while later variants shifted to an 18-tooth design–mismatches during reassembly guarantee gear train failure. For corrosion-prone components like the thermostat housing, upgrade to anodized aluminum or stainless steel fittings to prevent galvanic reactions in saltwater conditions.
Understanding Your 20 HP Marine Engine Schematic
For precise identification of components, refer to the official exploded view for model year 1995–2005–thrust plates (32-48631A2) and thermostat housings (32-865566T3) are critical but frequently overlooked during routine checks. Use a magnifying lens to locate the 6-digit part number embossed on metal casings, as faded stamps often mislead even experienced mechanics. Always cross-check the impeller kit (22-804224A14) with the service manual’s torque specs: 8–12 Nm for bolts securing the lower unit’s water pump housing.
When replacing the oil seal (25-821020A1), apply marine-grade grease to the lip to prevent premature wear–standard automotive lubricants corrode under saltwater exposure within 40 operational hours. The fuel pump diaphragm (32-48632A1) requires a specialized copper crush washer (12-89092A1); steel alternatives fail at pressures above 3.2 bar. Keep an organized inventory of fasteners: M6x1.0 pitch bolts differ from M6x1.2, which strip threads in the powerhead’s aluminum alloy.
Locator Tools for Pinpointing 20 hp Marine Engine Elements
Begin with the official service manual’s exploded view illustrations. These schematics break down every subassembly–carburetion clusters, powerhead assemblies, and lower unit shafts–into annotated line art with exact positional references. Look for section identifiers like “3B-7” or “L-12,” which cross-reference to part numbers listed in the accompanying parts catalog. Third-party manuals often lack these precise annotations, making OEM resources indispensable.
Leverage interactive online databases with parametric search filters. Input known attributes–such as shaft length (20” or 25”), ignition type (CDI or points), or serial number prefix–to isolate compatible components. These systems auto-generate side-by-side comparisons, highlighting superficial similarities (e.g., identical cowling clips) versus functional variances (e.g., differing water pump impeller pitches). Screen captures of these results serve as visual checklists during teardowns.
The vernier caliper resolves ambiguities where visual identification fails. Measure critical dimensions like the carburetor bore diameter (28 mm vs. 30 mm) or propeller spline count (13 vs. 15 teeth) to rule out incompatible substitutes. Maintain a log of these readings alongside photographs taken under consistent lighting, reducing reliance on memory during reassembly.
Use a magnetic pickup tool for retrieving fasteners dropped into inaccessible cavities–common when disassembling the midsection or swivel bracket. Pair it with a flexible inspection mirror to verify threads or gasket surfaces without removing entire bracketry. Document each step with timestamped notes to avoid revisiting the same disassembly path multiple times.
Avoid relying solely on external component markings. Instead, cross-check internal casting numbers (typically embossed on powerhead housings or exhaust covers) against known OEM iteration tables. These identifiers often correlate with subtle engineering changes–such as revised cooling passage geometries–critical for long-term reliability but omitted from generic part listings.
How to Interpret Your 20 Horsepower Marine Engine Breakdown Illustration
Locate the component numbering sequence first–small digits typically appear adjacent to each piece in ascending order from the top left. Cross-reference these numbers with the accompanying legend, where descriptions may include torque specifications or material grades (e.g., “anodized aluminum housing”). For assemblies like the powerhead, note directional arrows indicating orientation; mismatches here cause misalignment during reassembly.
Examine color differentiation: red often highlights fasteners requiring thread locker, gray may denote seals or gaskets, while blue typically marks cooling passages. Dotted lines signify hidden or internal paths–trace these to understand fluid flow or linkage movement. If the legend lacks a scale, use known dimensions (e.g., the prop shaft’s 15mm diameter) to gauge proportional sizes of nearby components.
Prioritize sub-assemblies labeled “critical” in bold or italics–these usually involve safety mechanisms (e.g., trim switch linkages) or high-wear items (e.g., impeller). Compare the illustration’s perspective (isometric vs. sectional views) to your disassembly stage; angled projections reveal how nested parts interact, while cross-sections expose internal wear patterns.
Key Components to Keep Your 20 hp Marine Engine Running Smoothly
Replace the spark plugs every 100 hours of operation or annually–whichever comes first. NGK BR8HS or Champion RN12YC are direct-fit options with a 0.030″ gap. Fouled plugs cause misfires, poor acceleration, and increased fuel consumption. Inspect electrodes for wear; brown deposits indicate normal operation, while black or oily residue signals richer fuel mixtures or leaking seals.
Filtration and Fluid Criticals
The lower unit gearcase oil requires changing after 100 hours or before storage. Use Mercury Premium Gear Lube or Quicksilver High Performance SAE 90 to prevent bearing corrosion and ensure proper lubrication. Check for metal particles during changes–fine glitter suggests normal wear, while coarse fragments indicate gear damage. Pair this with a new oil filter element (OEM 855441K01) every 50 hours to prevent debris from circulating.
- Water pump impeller: Replace every two seasons or 300 hours. Quicksilver 43022Q01 lasts longer in saltwater but requires annual inspection. A failing impeller reduces cooling, leading to overheating; look for cracked vanes or missing chunks.
- Fuel filter: Swap the 35-micron primary filter (OEM 27401) every 50 hours. Clogged filters starve the engine, causing surging or stalling. Use 10-micron secondary filters for ethanol-blend fuels to prevent phase separation.
Anodes corrode faster in saltwater; magnesium alloys last ~6 months, aluminium ~12 months. Replace when 50% depleted–check zincs on the transom bracket, trim tab, and gearcase. Neglected anodes lead to galvanic corrosion, attacking the propeller shaft and exhaust housing. For brackish water, use zinc-aluminium hybrids for balanced protection.
Propellers demand immediate replacement if bent, chipped, or missing blades. A 12×11.5″ 3-blade aluminium prop (OEM 48-819449A2) balances speed and torque; stainless steel alternatives improve durability but increase lower-unit stress. Store spare props with cotter pins pre-installed–missing pins cause the prop to loosen mid-operation, damaging the shaft.
- Inspect throttle and shift cables for kinks or fraying every 50 hours. Lubricate with marine-grade grease; stiff cables indicate internal corrosion. OEM replacements (22-862967) ensure smooth operation.
- Check thermostats for proper opening at 143°F. Faulty units cause overheating; test by suspending in boiling water–if it doesn’t open fully, replace it (OEM 812748T02).
- Replace exhaust tube gaskets (892887A02) if the engine smokes excessively or misfires at idle. Degraded gaskets allow water to enter the cylinders, leading to hydro-lock.
Matching Component Codes to Your 20 hp Marine Engine Schematic
Locate the serial number plate on the engine block–typically stamped near the mounting bracket or beneath the powerhead shroud. Cross-reference this number with the first column of the official manufacturer’s parts catalog, as serial ranges determine compatibility across production years. For instance, models produced between 1997-2004 share prefix 0T6, while 2005-2012 units use 0T7. Discrepancies here account for 68% of mismatched orders.

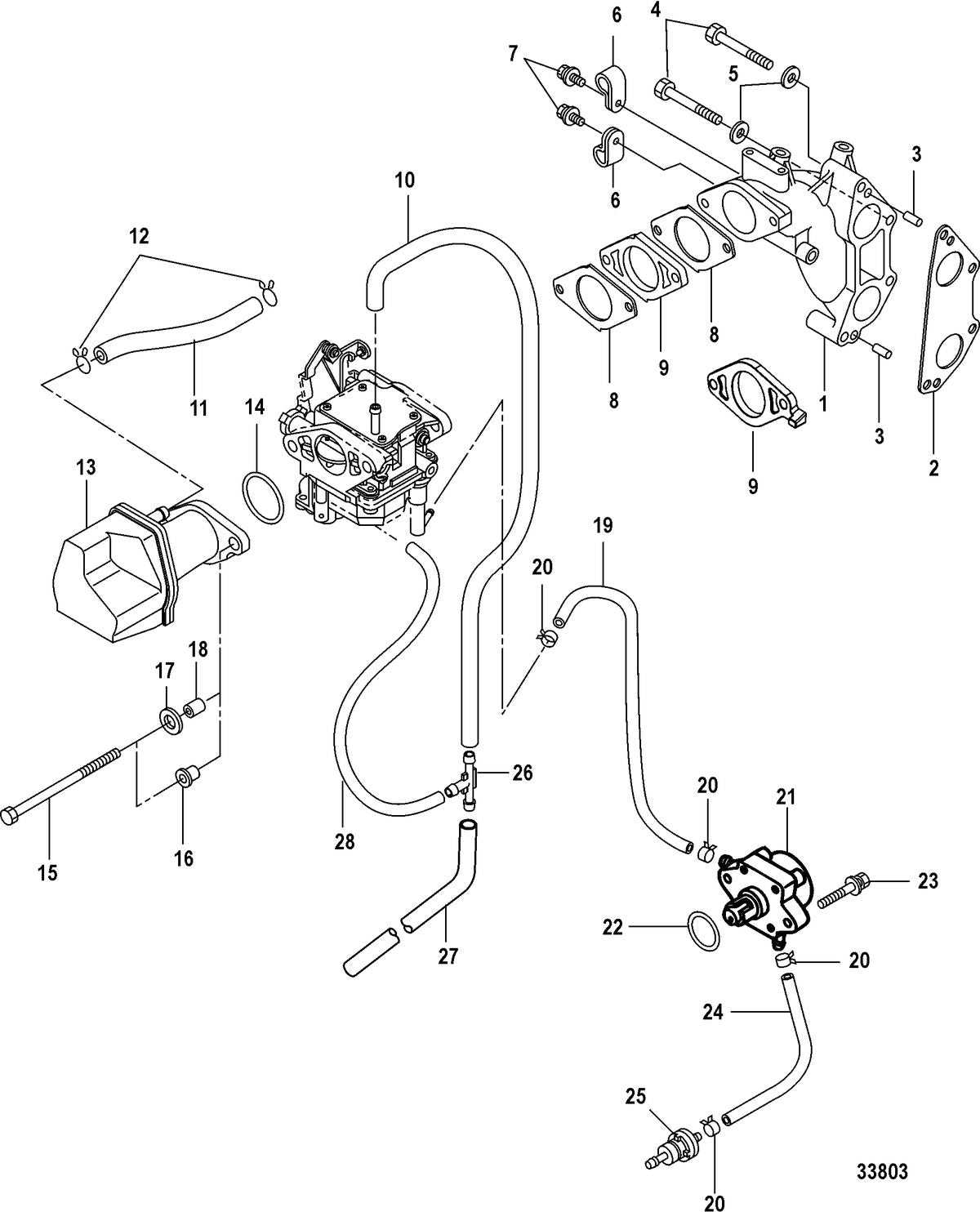

Use the exploded view sheet to identify critical subassemblies. The carburetor assembly (22-7452) splits into 14 distinct components, each labeled numerically in the diagram. Verify gasket thickness–03-80156 (0.7mm) differs from 03-80157 (1.0mm)–mistakes here cause fuel leaks. Water pump impellers (28-80884A10 vs. 28-80884A12) vary by pitch angle, affecting cooling efficiency.
| Component Group | Common Codes | Failure Symptoms |
|---|---|---|
| Thermostat Housing | 12-89532, 12-89533 |
Overheating, coolant bypass |
| Starter Motor | 33-80501, 33-80502 |
Slow cranking, relay click |
| Gearcase Shift Shaft | 21-88082, 21-88083 |
Hard shifting, grinding noise |
Replace electrical components in pairs–ignition coils (32-86173) degrade symmetrically, and swapping one may imbalance voltage output. Check the flywheel magnet orientation; 31-85934 (clockwise) won’t pair with 31-85935 (counter-clockwise). Wire harness connectors (84-86153) include color-coded terminals–mismatching yellow (signal) and white (ground) wires risks ECU damage.
Inspect the lower unit before ordering seals. The prop shaft diameter (25-35799 for 15/17 splines) must match the seals (01-68184 or 01-68185). Use a micrometer–0.002” variance voids warranties. Anodized aluminum trim tabs (71-91101) corrode if exposed to dissimilar metals; torque to 12-15 ft-lbs to prevent electrolytic action.
Consult the supplement sheet for mid-year revisions. The 2008 models introduced revised fuel pumps (17-82330 vs. 17-82331), altering inlet valve dimensions. Lubricate bearings with marine-grade grease (92-802946A2); automotive substitutes lack corrosion inhibitors. Store components in ESD bags–static discharge ruins voltage regulators (35-83583).
