Locate the hydraulic pump assembly near the rear axle–common failure points include the drive shaft seal and pressure relief valve. Replace these with OEM-matched components (part numbers 873NN01216 and 873NN01217) to avoid premature wear on the lift cylinder. Use a 19mm wrench to remove the retaining bolt before separating the pump from the motor housing.
Inspect the loader’s quick-attach plate for misalignment or excessive play, which indicates worn pivot bushings. Order replacements in sets (left/right pairs) to maintain symmetry; single-side swaps cause uneven stress. A torque wrench set to 120 ft-lbs ensures proper reattachment without stripping threads.
The engine air filter housing requires removal every 200 operating hours–unclip the two latches on the side panel rather than forcing the cover, which can crack the intake manifold. Replace the primary filter (part number 511BL03301) only when the restriction indicator reaches the red zone; premature changes waste money and disrupt airflow calibration.
Check the drive chains for slack by lifting the track 1.5 inches above the roller–adjust with the tensioner bolt if movement exceeds 2 inches. Over-tightening accelerates sprocket tooth wear; use a feeler gauge (0.024–0.031 inch gap) for precision. Always replace both chains simultaneously to prevent uneven torque distribution.
Faulty joystick controllers often mimic electrical failures–test the potentiometers with a multimeter set to 20k ohms before replacing the entire unit. Clean the connection ports with contact cleaner rather than compressed air, which can blow debris deeper into the circuit board.
Understanding Your Compact Loader Component Layout
Start by locating the hydraulic pump schematic–it’s typically positioned near the engine block, identifiable by its aluminum housing and multiple hose connections. Use a flashlight to trace the lines back to the control valves; misaligned fittings here can cause slow response during operations. If replacement is needed, match the OEM number stamped on the pump’s flange to avoid compatibility issues.
Examine the lift arms next–they should pivot freely without grinding noises. Grease zerks at each joint require lithium-based grease every 50 hours of use; neglecting this accelerates wear on the bushings. For arm cylinders, check the rod seals for hydraulic fluid leaks–any dampness indicates failure, and delays in replacement risk contaminating the entire hydraulic system.
Electrical System Breakdown
Inspect the wiring harness for chafed insulation, particularly where it routes past the cab firewall–bare wires here often trigger intermittent faults. The main relay, usually a cube-shaped unit near the battery tray, should show no burn marks; if overheating is evident, test its resistance with a multimeter (12-15 ohms expected). Battery terminals must be corrosion-free–clean with a wire brush and apply dielectric grease to prevent future buildup.
Track rods and pins demand precise alignment; use a straightedge to verify they’re parallel. If the machine pulls to one side, check the kingpin bushings–these wear unevenly and require replacement in pairs. For the drive motors, listen for whining under load; this suggests internal gear damage, and rebuilding isn’t cost-effective–opt for a remanufactured unit instead.
Cab components often suffer from vibration-related failures. The seat switch, a small plunger under the seat, must depress fully to enable operation–if it sticks, clean with contact cleaner but avoid excessive lubrication. HVAC filters clog rapidly in dusty conditions; replace them every 200 hours to maintain airflow and prevent evaporator coil icing.
Finally, document every component’s condition with timestamped photos. This creates a baseline for monitoring wear patterns and helps justify preventive replacements. For reference, keep a printed copy of the schematic near the machine–digital versions are unreliable in areas without signal, and lost productivity from delays isn’t recoverable.
Identifying Critical Elements on Your Compact Loader Schematic
Begin by locating the hydraulic pump section–typically marked near the rear axle on most models. This area will be labeled with abbreviations like “HP” or “HYD PUMP” and may include routed lines connecting to the lift arms and auxiliary circuits. Verify pressure ratings if listed; common values range between 3,000 to 4,000 PSI for standard configurations.
Trace the electrical harness toward the operator’s compartment. Key connectors include the main fuse block (usually 50-amp) and relays for headlights, ignition, and safety switches. Look for color-coded wires: red for power, black for ground, and yellow or blue for signal circuits. Check for crimp points near moving joints–these often fail first.
The engine assembly schematic should highlight the cooling system separate from the powertrain. Locate the radiator (labeled “RAD” or “COOLER”), thermostat housing (often near the cylinder head), and water pump (driven by the crankshaft). Note the hose routing–upper and lower radiator hoses typically connect at 90-degree angles to prevent kinking.
Examine the undercarriage section for track tensioners, idlers, and sprockets. These components appear as circular or oval shapes with arrows indicating rotation direction. Look for grease zerks (marked “GZ”) on pivot points; proper lubrication intervals are every 10 operating hours.

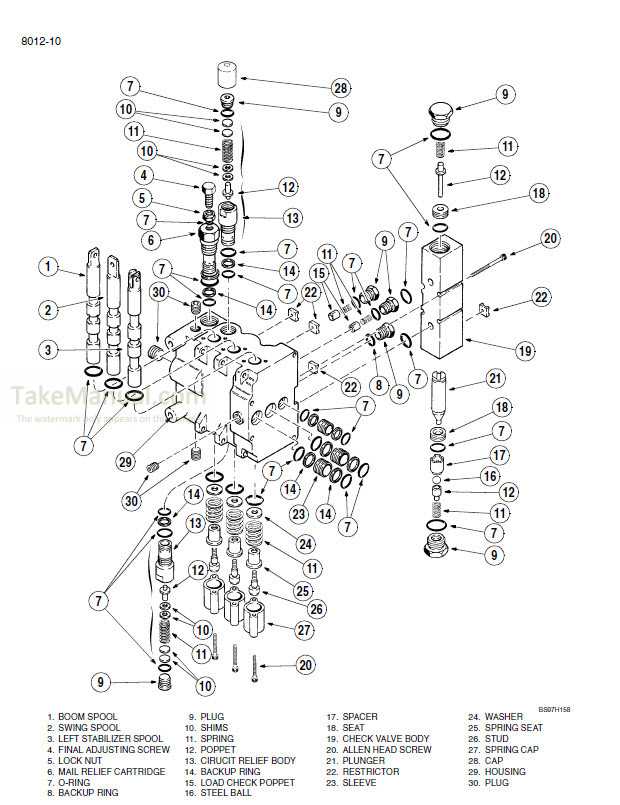

Find the control valve bank–usually positioned beneath the seat area. This assembly regulates loader arm movement and attachment functions. Each spool should be numbered (e.g., “S1,” “S2”) with corresponding labels like “Float,” “Raise,” or “Aux.” Cross-reference these with your machine’s function labels to avoid mismatches during repairs.
Inspect the fuel system layout, which typically separates the tank, filter, and injector lines. The primary fuel filter (labeled “FF” or “FILTER”) should attach vertically near the firewall. Check micron ratings–10-micron filters are standard for newer models, while older units may use 30-micron.
Use the legend or callout numbers to cross-reference components with the bill of materials. If a part lacks a label, identify it by shape: circular components are often pumps or motors, rectangular shapes denote valves or filters, and cylindrical elements typically represent cylinders. Keep a ruler handy–some schematics use inconsistent scaling.
Locating Key Hydraulic Components in Compact Loader Blueprints
Begin by tracing the main pump–typically marked near the engine coupling on schematics. Look for a circular or oval symbol with output lines branching into control valves. Verify pressure ratings: most auxiliary pumps deliver 3,000–4,500 PSI, while gear-driven variants often cap at 3,200 PSI. Cross-reference the part number against OEM service manuals; discrepancies here indicate potential aftermarket modifications.
Valves appear as rectangular blocks with inlet/outlet ports. Directional spools are identifiable by multiple position indicators (e.g., float, neutral, forward). Priority valves, regulating flow to attachments, usually sit upstream–marked with a spring symbol for preload settings. Check pilot-operated check valves; their absence may signal simplified circuits suited for low-demand implements.
Decoding Line Symbols and Color Codes
Solid lines denote pressure circuits, dashed lines show return flow, and dotted lines represent pilot controls. Follow SAE J1207 standards: red lines indicate high-pressure supply, blue denotes return, and yellow/green marks drains or case leaks. Schematic inconsistencies–like missing thermal relief valves–often point to legacy models predating ISO 13849 safety certifications.
Hoses and connectors bear alphanumeric labels (e.g., “H-12-3/4″ for 3/4” ID hose). Measure inner diameters: mismatch between blueprint specs and physical components causes inefficiencies. Quick couplers should align with ISO 7241-A/B; non-compliant fittings risk cross-threading under load cycles exceeding 2,500 hours.
Swap out damaged cylinders only after verifying bore/stroke dimensions (e.g., 2.5″ bore × 10″ stroke). Schematics omit internal seals, but rod wiper failure appears as hydraulic fluid leaks near pivot pins. Replace cracked rod eyes immediately–rebuild kits save ~70% versus full assemblies, though tolerances tighten below 0.002″.
Decoding Engine and Drivetrain Labels on Compact Loader Schematics
Locate the engine block reference number first–typically printed near the cylinder head or valve cover. On most schematics, this appears as a 7- to 10-character alphanumeric code (e.g., *F4HFE200* or *T3C1545*). Cross-reference this with the OEM’s parts manual under “Powerplant Identification” to confirm displacement, fuel system type, and emissions tier. If the label is obscured, swap a flashlight to a side angle; stamped codes often remain legible under oblique light even when faded.
For hydrostatic drive components, follow the hydraulic lines from the pump to the motor. The pump label (often *P/N 8675043* or similar) sits on the rear housing, while the motor tag (e.g., *M9405-78*) is mounted on its side flange. Note the serial number prefix–digits 3-5 indicate torque rating in lb-ft. Replace both pump and motor as a matched pair if any of the following apply:
- Case drain flow exceeds 3 quarts per minute.
- Pressure drops below 3,500 psi under load.
- Shims between the swash plate and housing show corrosion.
Transmission tags cluster near the shift solenoid bank. Look for a rectangular plate riveted to the housing; the top line identifies the gear ratio set (e.g., *GR-2.87*), the second line lists input torque limits. If the label specifies *High-Clearance*, verify differential width–these models require 2.1-inch wider axle housings than standard variants. Replace bushings if wear exceeds 0.008 inches on the output shaft; most schematics denote bushing P/N alongside the seal.
Coolant pump labels occupy the front face above the impeller. The critical detail is the impeller diameter, typically etched below the part number (e.g., *D-75mm*). If the label reads *Heavy-Duty*, the housing is cast iron rather than aluminum–expect 22% longer service intervals but also 14% higher weight. On schematics, this component connects via a 1.25-inch hose to the radiator inlet; mismatch here causes cavitation at speeds above 2,200 rpm.
Final drive tags attach to the planetary hub assembly, usually beneath the brake caliper. The first two letters indicate wheel motor type (e.g., *TM* for tandem motors, *SM* for single), while the subsequent three numbers list the reduction ratio. Schematics annotate these with color-coded arrows:
- Red: Wheel speed sensor circuit.
- Blue: Brake piston diameter (critical for pad selection).
- Green: Axle pinion gear tooth count.
Mark discrepancies between left and right tags–even one-tooth differences create tracking issues under load.
