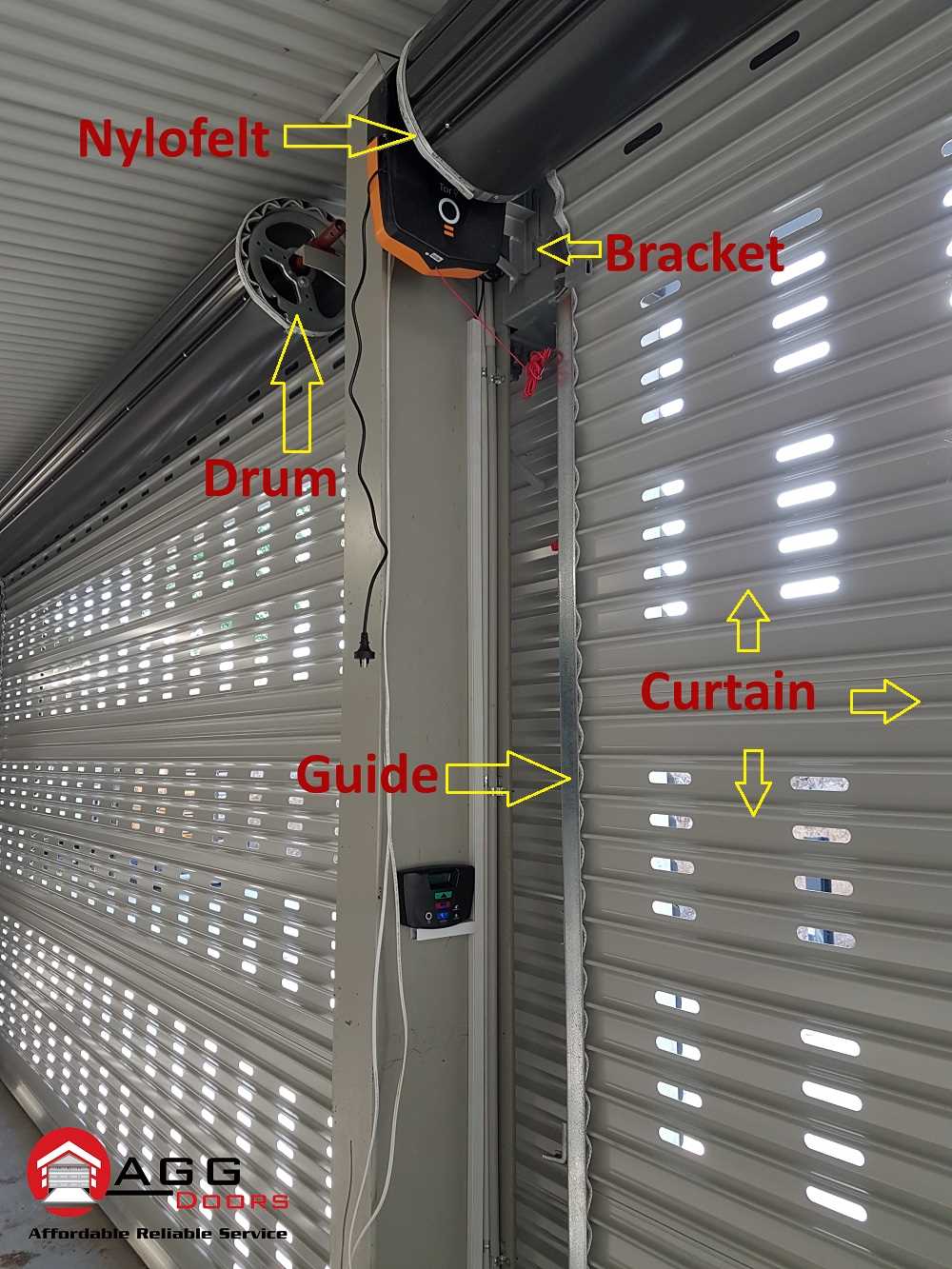

Start by examining the curtain assembly – the primary barrier between the interior and exterior space. This section typically includes horizontal slats or panels engineered to interlock, distributing weight evenly across the track system. The material composition varies: galvanized steel offers durability against corrosion, while aluminum provides lighter alternatives without sacrificing structural integrity. Ensure the bottom seal integrates with the threshold to prevent drafts or small debris from infiltrating.
Next, inspect the lifting mechanism. Torsion springs mounted above the opening store rotational energy, counterbalancing the system’s mass for smooth operation. Extension springs, though less common in modern designs, may require additional safety cables to mitigate failure risks. Verify pulley alignment and cable tension; misalignment causes uneven movement, accelerating wear on rollers and track edges. Replace frayed cables immediately to avoid catastrophic breakdowns.
The track framework consists of vertical and horizontal rails guiding the curtain’s movement. Use sturdy steel brackets spaced no more than 24 inches apart to prevent sagging. Radius sections–where the track curves–require precise bends; improper angles force rollers into premature failure. Apply lubricant to hinge points and bearing surfaces every six months, prioritizing silicone-based or dry lubricants to avoid attracting dust.
Pay attention to hardware ancillaries: hinges, brackets, and weatherstripping. Reinforced hinges between panels prevent flexing under wind loads, while nylon rollers reduce friction noise compared to steel equivalents. Replace worn weatherstripping along the sides and header to maintain insulation; deteriorating seals increase utility expenses by allowing temperature exchange. For automated systems, confirm the motor drive assembly aligns with the emergency release cord, ensuring manual override remains accessible during power outages.

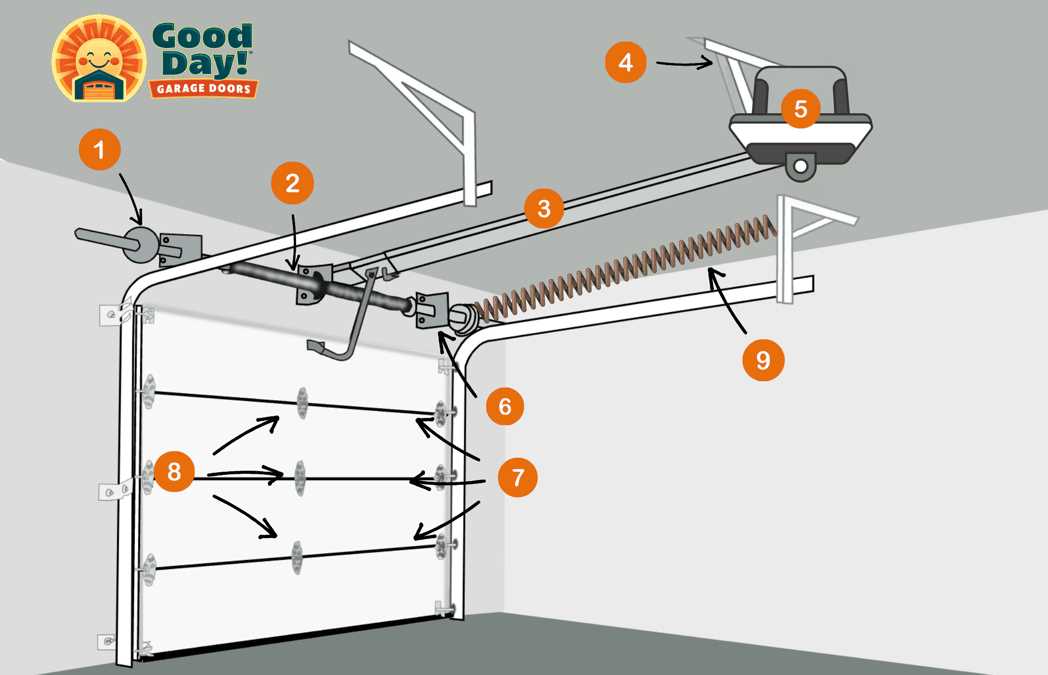

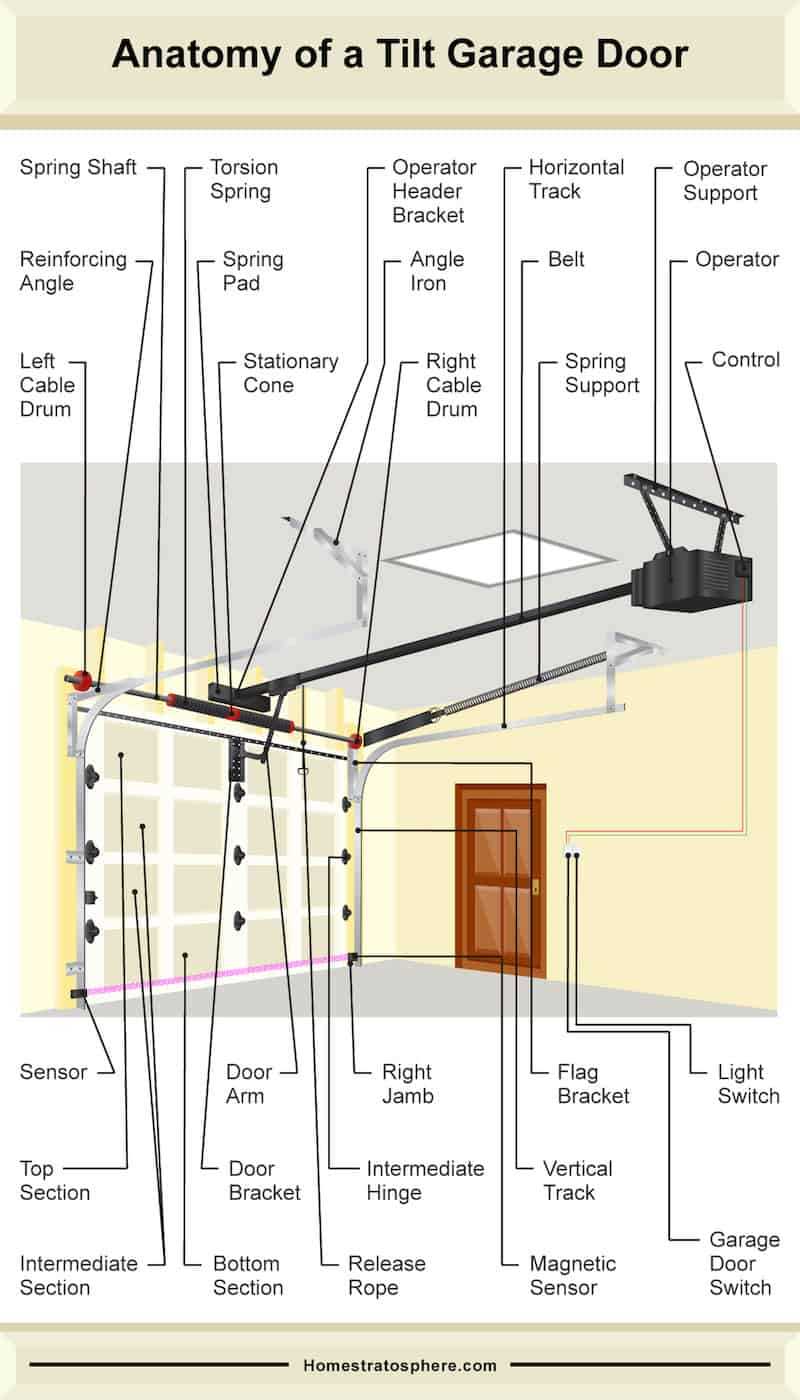

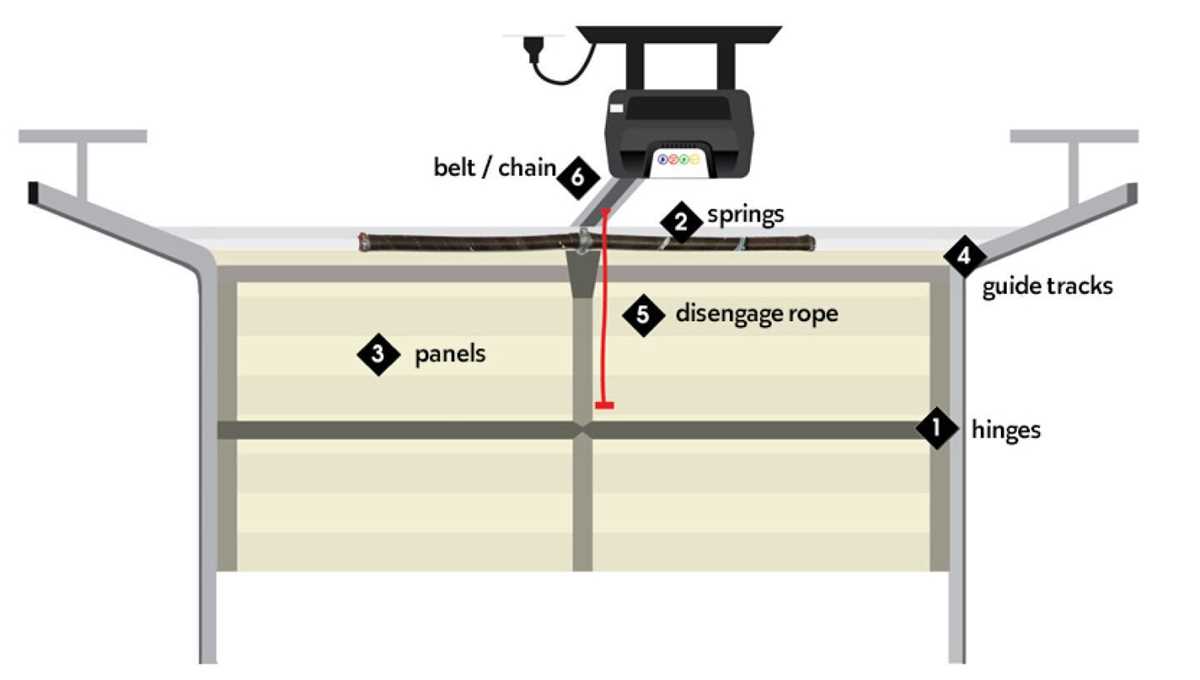

Key Components of an Overhead Door System Illustration
Begin by identifying the torsion spring assembly at the top of the entrance mechanism–it counterbalances 80-90% of the weight, reducing strain on the opener. Locate the stationary cones on either end, where the cables anchor; ensure these are secured with set screws torqued to 25-30 ft-lbs to prevent slippage. The winding bars must engage the winding drums precisely, with each quarter-turn delivering 30–36 inch-lbs of tension–misalignment here risks catastrophic failure.
Inspect the rollers–nylon-coated variants last 5-7 years under daily use, while steel bearings corrode within 2-3 years in humid climates. Track alignment demands a 1/4-inch gap between the rail and the panel’s curved edge; deviations exceeding 1/8-inch cause binding. Lubricate the hinges with lithium grease every 6 months, focusing on the pivot points where friction generates up to 80% of operational noise.
The safety reversal sensors require calibration to a 6-inch sensing range, positioned no higher than 6 inches above the floor. Verify the beam is uninterrupted–even a 0.5mm gap can disable the auto-reverse function. Opener chains should maintain 1/4-inch slack at the midpoint; tighter tolerances accelerate sprocket wear by 30%. Replace the limit switch screws if adjustment exceeds five complete turns–persistent misalignment indicates gear wear.
Weather sealing along the bottom edge should compress by 20-30% when closed; silicone profiles last twice as long as vinyl but require adhesion to a clean surface with a bonding score of 70 Psi. The lock striker plate on sectional fixtures must align within 1/16-inch of the latch to prevent forced entry–the strike gap is the most common security vulnerability. For insulated models, check the R-value degradation annually; core delamination drops efficiency by 12% per decade.
Replace the emergency release cord every 3 years, even if unused–UV exposure weakens nylon fibers by 50% in sunlight. The manual lock handle’s throw distance should engage the track notch within 1/2-inch of travel; longer throws indicate bent track sections. For commercial-grade systems, torque the header bracket bolts to 50 ft-lbs–under-torquing causes track separation at the splice joints, leading to misalignment under load.
Critical Elements Highlighted in Automated Entryway Schematics
Begin by identifying the torsion spring system on blueprints–its position above the opening dictates structural integrity and balance. Measurements for coil diameter, wire thickness, and barrel length must align precisely with the door’s weight, typically noted in a legend or callout box. Misalignment here accelerates wear, leading to sudden failures.
Examine the horizontal rail tracks next; their curvature and elevation angles determine smooth operation. Look for specifications on radius values–commonly 12″ or 15″ for residential models–and ensure they match the panel thickness listed elsewhere. Gaps exceeding 1/8″ between rails and rollers signal misinstallation, causing binding.
Roller assemblies require scrutiny of material composition: nylon outperforms steel in noise reduction but demands more frequent replacements in high-cycle environments. Schematics should indicate roller diameter (often 2″ or 3″) and bearing type (sealed vs. open) to gauge durability. Check for corrosion-resistant coatings if proximity to coastal climates is noted.
Control box wiring diagrams merit attention–voltage ratings for opener motors (120V vs. 240V) must sync with power source annotations. Look for relay switches and safety sensor paths; reverse-engineering these connections prevents electrical hazards like short circuits or intermittent failures.
Weatherstripping profiles differ by climate: EPDM suits extreme temperatures, while vinyl suffices for moderate regions. Blueprints may depict cross-sections–verify thickness (typically 3/4″–1″) and attachment method (nailed, screwed, or adhesive-backed). Inadequate sealing here voids insulation R-value claims.
Automatic release mechanisms, often marked in red, should specify cable routing to the handle. Confirm the disconnect distance from the header (usually 6–7 ft) to ensure compliance with emergency protocols. Missing this detail risks non-compliance with local building codes.
How to Locate and Mark Torsion Mechanisms in Overhead Entryway Schematics
Examine the horizontal bar above the panel’s top edge–coiled tension assemblies typically attach here via winding cones, securing to stationary brackets at both ends. Measure the wire gauge: 0.207″ (230 grade) for residential setups under 16 feet, 0.250″ (260 grade) for wider openings. Note the spring color coding: black or gold stripes indicate cycle ratings (10,000 for standard, 20,000 for high-performance). Label each mechanism’s rotation direction–left-hand springs have threads winding counterclockwise when viewed from the end cap, right-hand variants twist the opposite way.
Verify the shaft diameter where cones fasten; common sizes include 1″ and 1-1/8″ hollow tubes. Mark the stationary bearing plates anchoring the shaft to wall brackets–these often include oil-impregnated bushings requiring periodic lubrication. Document the cable drum diameter adjacent to each spring, as mismatched sizes alter lift equilibrium and risk imbalance during operation.
Step-by-Step Guide to Finding Guide Rails and Wheel Assemblies on Schematics
First, identify the left and right vertical framing sections in the schematic–these will show the guide rails as parallel lines extending from the floor to the header. Look for rectangular or U-shaped cross-sections in the illustration; most modern assemblies use 2-inch-wide tracks, though some industrial models feature 3-inch variations. If the schematic includes exploded views, note the track mounting holes–typically spaced 18 to 24 inches apart–along the vertical edges. Rollers attach via brackets welded or screwed into these rails, so trace the lines upward to locate the curved horizontal segment transitioning into the overhead position.
Key Indicators of Roller Placement
| Feature | Location Clue | Verification Method |
|---|---|---|
| Wheel Housing | Circular cutouts along rail interior | Measure diameter (common: 1.5–2 inches) |
| Bracket Notches | L-shaped slots near rail ends | Count per panel (standard: 4–6) |
| Spring Attachment | Horizontal bar intersecting top roller | Check torque specification (residential: ½–1 ton) |
Examine the overhead assembly next–here, the rails angle sharply toward the ceiling. On the schematic, this curve will appear as a quarter-circle with radius markings (often 10–12 inches). Wheel assemblies cluster at the transition points; expect two rollers per panel side, indicated by dots or hexagons where the vertical and horizontal segments meet. If the drawing includes side views, confirm roller alignment: top wheels should sit slightly above the rail’s inner flange to prevent binding. For sectional models, each panel hinge correlates with a roller pair–use this to cross-reference placement accuracy.
Key Insights on Sectional Segments and Joint Arrangement in Overhead Mechanisms
Always verify hinge positioning at the topmost segment first–misalignment here propagates errors downward. Factory-set marks on steel or aluminum faces indicate optimal attachment points; deviating by more than 3mm risks binding during operation. For insulated models, internal fasteners should penetrate no deeper than 60% of the foam core to avoid thermal bridging.
Track the vertical spacing between pivots: standard residential units use 400mm intervals, while heavy-duty industrial variants reduce this to 300mm for added rigidity. Exceeding these dimensions reduces lateral stability by up to 18%, based on stress-testing data from certified repair logs. Always cross-reference with the manufacturer’s torque specifications–overtightening by even 1.5Nm can deform the mounting plate within 500 cycles.
- Single-layer 24-gauge segments: hinges max load 113kg per pair, spaced ≤1.2m apart.
- Double-layer 22-gauge segments: hinges max load 227kg per pair, spaced ≤0.9m apart.
- Wood composite segments: hinges require stainless steel mounting plates to prevent galvanic corrosion at contact points.
Label each hinge numerically during disassembly, noting orientation: gate-style hinges (90° bend) must face inward on alternating segments to prevent cable interference. For sectional units wider than 3.6m, add two intermediate hinges per panel row–skipping this step increases sag by 0.4mm per linear meter over a 12-month period. Replace all fasteners if any show >15% thread wear, particularly in coastal environments where salt accelerates degradation by 300%.
Measure the revealed gap between segments when fully closed–ideal clearance is 1.5-2mm; values below 0.8mm indicate excessive tension in the counterbalance system or worn roller bearings. Polyurethane rollers require 0.3mm less clearance than nylon equivalents due to thermal expansion differences. For retrofit installations, new hinges should always match the original material (e.g., zinc-plated steel for outdoor use) to prevent dissimilar-metal corrosion, which reduces lifecycle by 40%.
During seasonal adjustments, retract sections fully before tightening hinges–partial extension creates false gaps that mislead alignment checks. For models with pinch-resistant edges, verify hinge plates align flush within 0.2mm tolerance to activate safety mechanisms. Misalignment here can void UL 325 compliance, exposing operators to liability under Section 15.3 of NFPA 80.
Replace all weather seals if any segment shows >5% compression set–this directly correlates with a 2.1% increase in energy loss per affected linear meter. For high-cycle environments (>20 open/close cycles daily), upgrade to oil-impregnated bronze bushings at pivot points; standard steel bushings fail after ~8,000 cycles, while upgraded options exceed 25,000 cycles per ASTM B898 testing.
- Visually inspect for hairline fractures radiating from hinge mounting holes–early-stage stress cracks indicate imminent failure.
- Apply corrosion inhibitor (e.g., LPS 3) to all hinge interfaces if indoor humidity exceeds 60% RH.
- For sections exposed to direct sunlight, rotate hinges 180° every 5 years to prevent asymmetric UV degradation.
