Identifying worn or faulty elements in your workstation seating begins with examining the five critical assemblies. The adjustable lumbar support–typically a contoured pad or curved bracket–should maintain consistent pressure against the lower spine. If it wobbles or fails to hold position, check the tension control mechanism, often a knob beneath the seat pan that regulates recline resistance. Replace this immediately if threads strip or springs lose tension, as compromised support accelerates spinal fatigue.
The gas lift cylinder, a pneumatic strut with a polished steel shaft, determines seat height and vertical stability. Inspect the outer casing for dents and the shaft for corrosion–both indicate imminent failure. A hissing sound during adjustment confirms nitrogen leakage; use a cylinder removal tool (hexagonal base) to detach it without damaging the base plate. Never attempt repairs on this component; internal pressures exceed 500 PSI.
Armrests rely on two sub-assemblies: height-adjustment sleeves and pivot joints. The sleeves, usually plastic with internal ridges, strip easily if forced; lubricate with dry silicone spray quarterly to prevent squeaking. Pivot joints–often zinc-coated steel–should rotate 30° in each direction; misalignment here restricts shoulder mobility. Test by applying 10 lbs of lateral pressure–any play beyond 2 mm requires replacement.
Seat sliders and tilt mechanisms demand precise clarity in diagrams. The slider track–frequently anodized aluminum–must show uniform wear; uneven grooves cause unintended seat movement. The tilt tension knob connects to a multi-disc clutch; if rotation feels gritty, disassemble and clean with isopropyl alcohol, avoiding petroleum lubricants that degrade nylon washers. Note torque specifications: over-tightening (max 4 Nm) damages internal threads.
Wheel casters contain sealed ball bearings for smooth rolling; debris accumulation here is the primary failure point. Remove casters by pressing a flathead screwdriver into the release slot beneath the base–do not yank. Replace entire units if swivel resistance exceeds 0.5 lbs or if the stem bends; compatibility varies by leg diameter (60 mm vs. 75 mm). Diagrams should explicitly label thread pitch (typically 18 TPI) to avoid cross-threading during reinstallation.

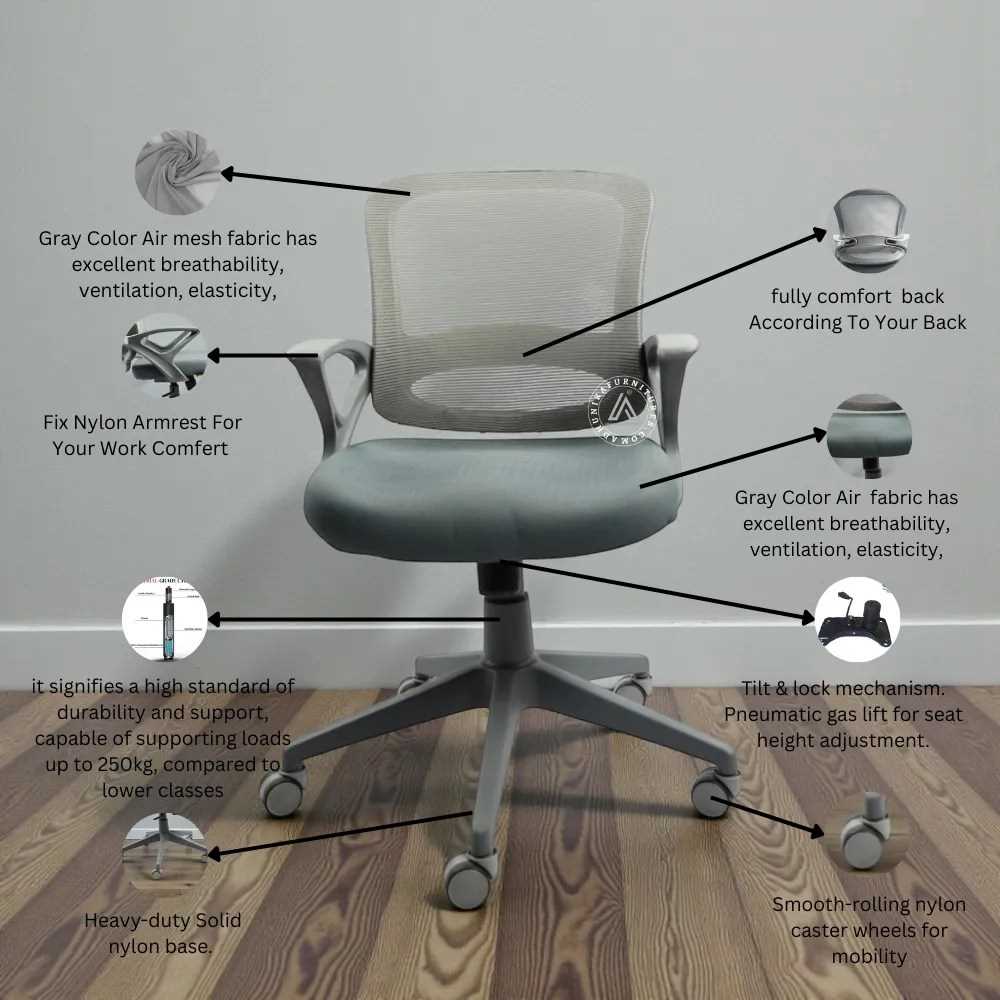

Understanding Workseat Component Layouts
Begin by identifying the five core segments of any ergonomic seating unit: the base, support column, seating platform, backrest assembly, and adjustable mechanisms. The base typically features a five-spoke wheel configuration with durable casters rated for 250–300 lbs, while the gas lift column should meet Class 4 standards for stability. Examine the seat pan depth–opt for 16–20 inches to accommodate varied torso lengths–and ensure the backrest has a 95–110° recline angle with lumbar support positioned at 7–10 inches from the seat surface. Materials matter: high-density foam (4–5 lbs/ft³) resists compression longer than low-grade alternatives, and breathable mesh or PU-coated polyester fabrics outperform vinyl in airflow and longevity.
- Base structure: Steel or reinforced nylon with 2.5-inch diameter legs for 360° swivel stability.
- Pneumatic lift: Dual-chamber design for controlled descent; test smoothness by holding 10 seconds in mid-adjustment.
- Backrest: Look for a waterfall edge at the bottom to reduce thigh pressure; contoured designs with a 12-degree forward tilt improve posture.
- Armrests: Padded polyurethane caps should adjust 7–11 inches above the seat, with a width of 2–3 inches between pads to avoid shoulder strain.
- Tilt mechanism: Synchronized seat-back ratio (2:1 or 3:1) prevents “hammocking”; lockable positions must engage with an audible click.
Key Elements of Ergonomic Seating Solutions
Begin by examining the backrest–its structure determines lumbar support quality. Models with adjustable curves align with the spine’s natural S-shape, reducing strain during prolonged use. Look for mesh or contoured designs; mesh improves airflow while contoured versions cushion pressure points. The tilt mechanism should allow independent adjustment from the seat to maintain proper posture.
The seat base dictates comfort and durability. Depth should match the user’s thigh length, with 1-2 inches of space behind the knees to prevent circulation issues. High-density foam or molded designs distribute weight evenly, while shallow padding causes discomfort within hours. Seat height adjustment ranges typically span 16 to 21 inches to accommodate various desk setups.
Armrests impact shoulder and neck alignment. Padded, 360-degree pivoting variants prevent stiffening, while width-adjustable types reduce tension in the trapezius. Avoid fixed or non-padded versions–they force unnatural arm positions, increasing fatigue. The distance between armrests should allow relaxed shoulders without constricting movement.
Base stability depends on caster type and material. Five-spoke designs with nylon or polyurethane wheels glide smoothly on carpet or hard floors, while poor-quality rollers scratch surfaces and create uneven motion. Load capacity varies: lightweight bases support 250 lbs, while reinforced steel handles up to 500 lbs. Test mobility by tilting–wobbly bases indicate weak joints.
Gas lifts control seat height and swivel range. Verify lift class (Class 2 or 3) for weight compatibility; Class 1 fails under heavy loads. Smooth, silent operation signals quality seals, whereas creaking suggests wear. Swivel mechanisms should rotate 360 degrees fluidly–jammed or jerky movement strains muscles during turns.

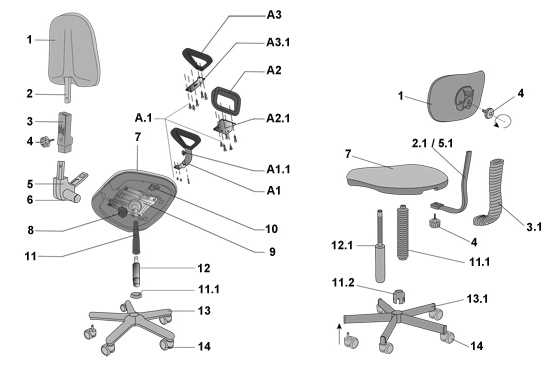

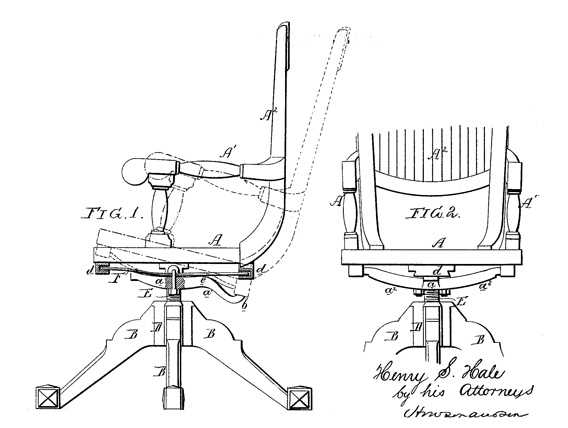

How to Decode an Exploded Illustration of Seating Components
Begin by locating the item number annotations–small digits or letters adjacent to each component in the visual breakdown. These identifiers correspond precisely to a numbered legend, typically positioned along the margins or at the bottom of the schematic. Ignore generic labels like “screw” or “bolt”; focus on alphanumeric codes such as “A-5” or “PN-203” that reference specific fasteners, brackets, or upholstery layers.
Trace the assembly sequence from the base upward. Most exploded illustrations arrange elements in construction order: castors appear first, followed by the pedestal stem, gas lift cylinder, seat plate, backrest supports, and finally upholstery panels. Note how pivot points and locking mechanisms–illustrated as dashed lines or hinge symbols–indicate rotational or adjustable connections. If a component appears detached or floating, it usually signifies a removable cover or modular attachment.
Key Symbols and What They Indicate
| Symbol | Meaning |
|---|---|
| Dashed Arrow | Direction of insertion or alignment |
| Solid Circle | Fixed rivet or permanent joint |
| Dotted Line | Hidden structural support |
| Double-Headed Arrow | Adjustable range (e.g., tilt tension) |
| Hashed Rectangle | Rubber or silicone gasket |
Examine fasteners next. Washers, screws, and clips are drawn disproportionately large to highlight their role. Cross-referencing the legend will reveal thread specifications–M6x1.0 or #10-32–and whether they require a Phillips, Torx, or hex driver. Bearings or bushings, often depicted as concentric circles, demand lubrication; their absence in the schematic suggests press-fit installation that requires specialized tools like a bearing puller.
Common Pitfalls in Interpretation
Manufacturers occasionally omit non-critical components–felt glides, decorative caps, or warning labels–from exploded views. Verify omitted elements against parts manifests included in repair manuals. Another frequent oversight involves mirrored assemblies: left and right armrests may share a part number but require opposite mounting orientations, indicated by directional arrows or asymmetric cutouts in the illustration.
End with a verification pass. Compare the exploded depiction with physical disassembly of the seating unit, starting with the most accessible components like armrests or upholstery inserts. Use a flashlight to inspect concealed areas–gas lift bases often conceal retaining clips that aren’t always labeled. If discrepancies arise, consult exploded illustrations from alternative models by the same manufacturer; shared platforms frequently reuse core components with minor variations.

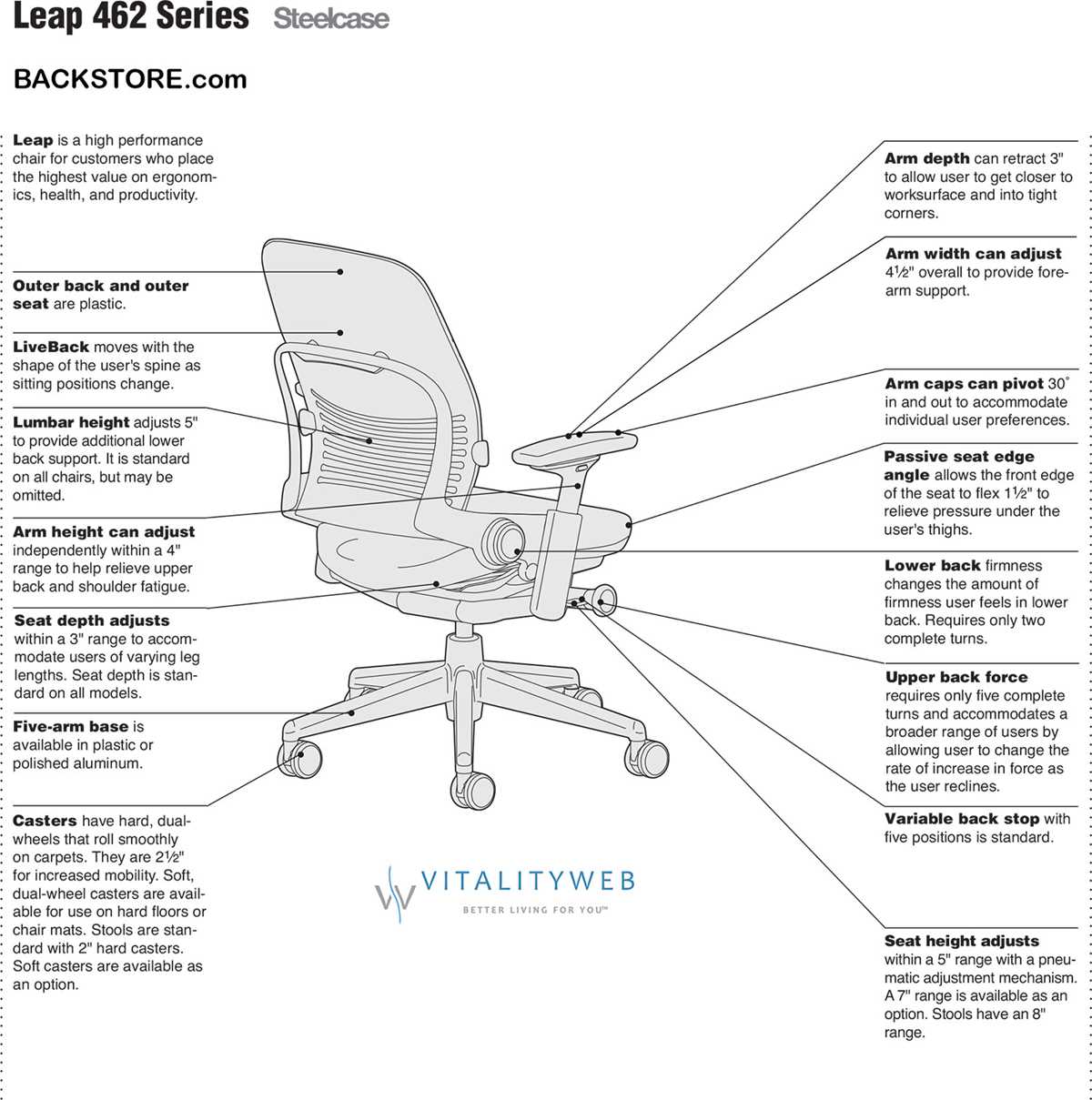

Common Adjustment Mechanisms and Their Locations
Locate the lumbar support lever beneath the seat’s front edge–most models position it within easy reach of your fingertips. Adjust it while seated to match the natural curve of your spine; improper placement strains lower back muscles within 15-20 minutes of use. Test by sliding your hand between your lower back and the backrest–if it fits snugly without gaps, the setting is correct.
Height adjustment pistons sit directly under the seating area, activated by a paddle-shaped lever on the right side (or left on ergonomic variants). Pump in short bursts to avoid sudden drops; excessive force damages hydraulic seals. Ideal height positions thighs parallel to the floor, knees bent at 90° with feet flat–measure by ensuring a 2-3 finger gap between knee and seat edge.
- Tilt tension knob: Found beneath the seating surface, usually paired with a recline lever. Turn clockwise to tighten resistance (prevents overextension), counterclockwise to loosen (enables free rocking). Set so the backrest moves with your body weight but doesn’t flop backward when leaning.
- Armrest adjustments: Width controls (inward/outward) are on the underside of each arm; height toggles sit at the base. Align armrests so elbows rest at 90° with shoulders relaxed–upper arms should never lift above parallel to the floor.
- Seat depth slider: Released via a small lever under the front edge. Extend until the seat edge stops 3-4 inches from the back of your knees; shorter settings reduce thigh support, longer ones press against circulation.

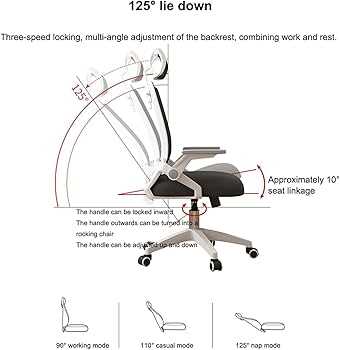

Recline locks anchor to the central mechanism beneath the seat. Test by leaning back–if the angle holds without sagging, the lock engages properly. For dynamic sitting, disengage the lock and use tilt tension instead; static angles cause hip flexor fatigue after 45 minutes.
Troubleshooting Misaligned Controls
If a lever feels loose or unresponsive, check for stripped gears–a common issue in models older than 3 years. Lubricate pivot points with silicone spray annually; WD-40 attracts dust and accelerates wear. For height pistons that sink overnight, replace the gas cylinder immediately–leaking fluid creates an unsafe seating position.
- Armrest wobble: Tighten screws underneath with a hex key (typically 3mm or 4mm). Replace cracked plastic casings; even hairline fractures compromise stability.
- Stuck levers: Apply heat via a hairdryer for 30 seconds to expand metal, then tap gently with a rubber mallet. Forceful pulls warp internal springs.
- Uneven backrest: Adjust the cam plate (visible when kneeling under the seat) by turning its bolts ¼ turn increments. Use a level tool to verify alignment; tilts beyond 2° cause uneven spinal loading.
