For owners of the 2007–2018 model variants, identifying the correct linkage components is critical to maintaining precise front-axle control. The Pitman arm, typically mounted to the sector shaft with a 48-tooth spline (1-1/8″ diameter), must be matched with an idler arm of equal length to prevent misalignment. Replacement of these parts requires a 1-1/8″ socket for proper torque–typically 180–210 ft-lbs–to avoid spline wear. Track-bar bushings, often overlooked, degrade faster when exposed to off-road conditions; polyurethane variants outlast rubber by 3–5 years but require annual inspection for cracks.
Tie-rod ends connect via tapered joints secured with 3/4″ castellated nuts–lockwire or cotter pins are non-negotiable to prevent loosening under articulation. Adjustment sleeves, positioned between the drag link and tie rods, allow toe-in corrections; improper settings accelerate tire wear by up to 40% during highway driving. For lifted suspensions (3″ or more), a dropped Pitman arm (e.g., Synergy Manufacturing’s 2″ drop) restores steering geometry, reducing bump steer by 60% compared to stock configurations.

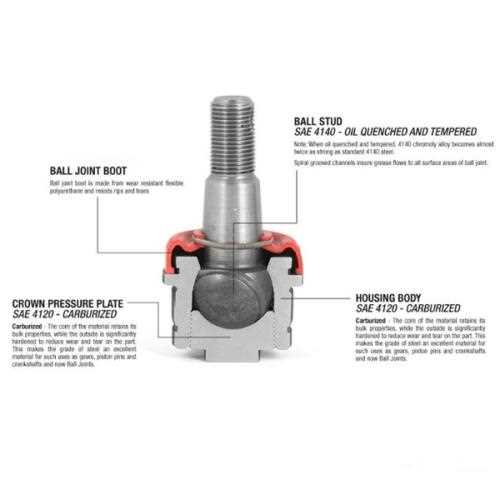

Ball joints–upper and lower–must meet Moog or Dana standards; OEM replacements (e.g., Mopar 68049223AA) include greaseable zerks for extended service life. Failure to upgrade u-joints in the front driveshaft when lifting beyond 4″ introduces vibration and shortens driveline lifespan by 15,000–20,000 miles. Steering dampers, while optional, reduce feedback; Bilstein 5100-series provide 20% more damping force than stock units, improving stability at speeds above 50 mph.
Reassembly demands attention to torque specs: tie-rod jam nuts (65–80 ft-lbs), drag link ends (55–70 ft-lbs), and axle U-bolts (70–90 ft-lbs). Use thread locker (Loctite 242) on all fasteners except adjustment sleeves. Post-installation, a professional alignment ensures camber stays within ±0.5° and caster between 4–6°–critical for preventing wandering on uneven terrain. Stock reference numbers for components (e.g., track bar: 05214525AC; drag link: 52028888AB) streamline ordering but cross-referencing with aftermarket brands (Rough Country, Terraflex) can yield cost savings of 25–35%.
Understanding Your Off-Road Vehicle’s Front-End Linkage Components
Start by inspecting the drag link assembly–a critical connection between the pitman arm and tie rod end. Look for excessive play or corrosion at the joints, as misalignment here directly impacts wheel tracking. Replace the drag link if movement exceeds 1/8 inch when tested with a pry bar.
The track bar stabilizes lateral movement, preventing axle shift during turns or uneven terrain. Check bushings for cracks and mounting brackets for weld integrity. A failing track bar causes wobble at speeds above 40 mph, often mistaken for alignment issues. Torque bolts to 120 ft-lbs after installation.
A common failure point is the tie rod ends. These spherical joints degrade faster under heavy articulation. Use a greaseable design with zerk fittings for longevity–avoid sealed units in off-road applications. Measure runout with a dial indicator; anything above 0.030 inches requires replacement to prevent sudden separation.
Hydraulic Assist Systems
If your rig has a power steering pump, monitor fluid levels weekly. Low fluid causes cavitation, damaging the pump and rack. Use ATF+4 fluid exclusively–aftermarket blends lack the required temperature stability. Flush the system every 30,000 miles to remove metal particles that accelerate wear.
The steering gearbox (typically a recirculating ball type) needs adjustment if play exceeds manufacturer specs. Check the sector shaft lash by rotating the input shaft while monitoring output movement–excess play indicates worn gears or improper preload. Tighten the adjusting screw in 1/8-turn increments until resistance increases, then back off 1/4 turn for optimal gear engagement.
- Inspect sector shaft seals for leaks–oil weeping indicates impending failure.
- Lubricate input shaft splines with dielectric grease to prevent corrosion.
- Replace the gearbox if teeth show spalling or pitting, even if play is minimal.
Modification Considerations
Aftermarket drop pitman arms improve geometry with lifted suspensions but require precise length measurement. A 1.5-inch drop typically suits 3-inch lifts; exceeding this causes bump steer. Verify new pitman arm spline count matches the original–mismatches prevent proper engagement and can shear the shaft.
Heavy-duty control arms with adjustable heim joints eliminate slop but introduce maintenance. Grease heim joints every 500 miles off-road–neglect leads to seized threads. Use high-angle jam nuts to prevent backing off under stress. Avoid poly bushings in control arms; they transmit vibrations excessively compared to rubber or delrin variants.
For extreme articulation, consider a hydro-assist ram kit. Mount the cylinder parallel to the tie rod to avoid binding. Plumb with -6AN stainless steel lines secured at 12-inch intervals to prevent vibration damage. Test for leaks at 1,500 psi before off-road use–factory hoses often fail under sustained pressure.
- Align wheels after any linkage modification–even slight toe changes wear tires rapidly.
- Torque all fasteners in a star pattern to evenly load bushings.
- Document preload settings on adjustable components for future reference.
Critical Elements of the JK Off-Road Control System
Start by locating the track bar–a thick, adjustable link connecting the axle to the frame on the driver’s side, typically coated in black or gray powder. Measure its bushings: inner diameter should be 1.25″ (new) or 1.19″ (worn); replacements require polyurethane for longevity. Avoid rubber, which degrades within 30,000 miles on rugged trails. Next, inspect the drag link, the angled rod linking the pitman arm to the passenger-side knuckle. It should have a 1.375″ threaded end; if threads are stripped, opt for a tapered ball joint adapter to prevent loose play. For lifted suspensions, extend the link by 2-3 inches to maintain proper turn radius–failure causes dead-wobble above 45 mph.
Check the tie rod assembly–specifically the ends near the wheels. Each end should move freely but without lateral slack; torque jam nuts to 75 ft-lbs. Replace cotter pins immediately if bent. The pitman arm, attached to the sector shaft, must sit flush; any deviation beyond 0.010″ indicates wear and requires immediate replacement to prevent steering wander. For heavy off-road use, upgrade to a high-strength alloy pitman arm rated for 6,000 lbs. Finally, verify the power cylinder hoses for abrasions–route them away from header pipes using Adel clamps spaced every 8 inches. Failure here leads to sudden boost loss and erratic tracking.
Rapid Verification Steps
- Shake each wheel violently (side-to-side): any clunking past 0.125″ travel means worn ball joints or unit bearings.
- Cycle the wheel left/right while observing the steering gear box: fluid leaks or irregular resistance signal internal seal damage.
- Measure caster angles with a digital gauge–target 4.5°–7° for optimal straight-line stability; adjust via adjustable upper or lower control arms.
- Check suspension mounts: cracked welds at the frame rail require reinforcement plates (0.125″ steel).
Tool Essentials
- Torque wrench (50–200 ft-lbs) for precise fastener tightening.
- Ball joint press set–never hammer; heat damage voids warranty.
- Feeler gauges (0.001″–0.025″) to check tie rod and track bar tolerances.
- Hydraulic jack stands–minimum 3-ton capacity to prevent collapse during axle drops.
Finding and Interpreting Off-Road Vehicle Front Axle Control Schematics
Access the official manufacturer’s service manual first. For the 2007–2018 model, locate the section titled “Chassis and Suspension” or “Steering and Linkage.” Digital versions are available through licensed repair platforms like Alldata, Mitchell 1, or the brand’s subscription-based portal. Print copies can be ordered directly from the automaker or found in technical libraries.

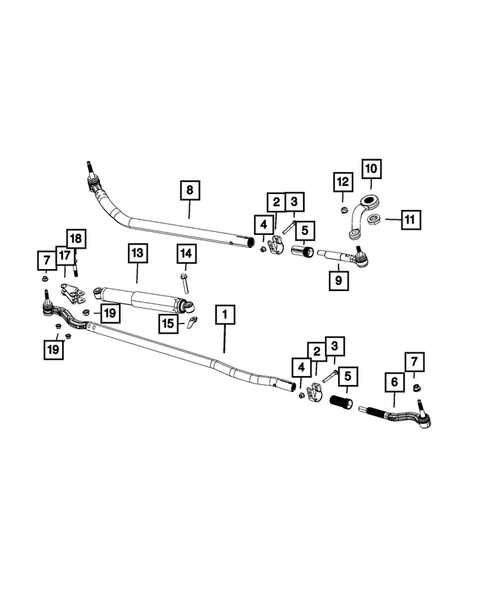

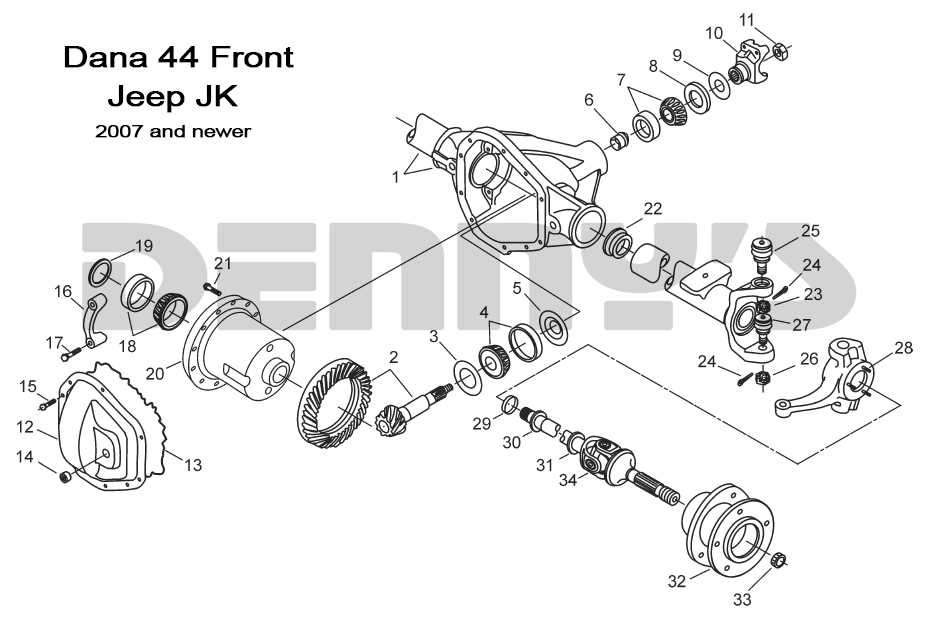

Identify the exploded view page by searching for keywords such as “rack assembly,” “tie rod ends,” or “drag link.” The schematic will display numbered components with corresponding labels in a table at the page’s margin. Cross-reference each number with the part description to isolate specific hardware–focus on ball joints, bushings, and adjustment sleeves.
Use a flashlight and mirror if inspecting the vehicle’s undercarriage visually. Trace the path of the control arms from the pitman arm to the front hub, noting where each connector attaches. The drag link connects the sector shaft (steering box) to the passenger-side knuckle, while the track bar centers the axle laterally.
Compare the schematic’s torque specifications against your vehicle’s current bolt tightness. A digital torque wrench with a range of 30–120 ft-lbs ensures precision. Mark fasteners with paint after verification to track loosening over time–especially critical for components exposed to dirt and moisture.
Check for revisions in later model years. For example, 2012 introduced a revised track bar design with an adjustable jam nut, while earlier versions used a fixed bushing. Subtle differences like these affect alignment and handling, so match the diagram to your specific trim level (Sport, Sahara, Rubicon) and production year.
Download a mobile reference app that allows pinch-to-zoom on schematics. Apps like RepairPal or Haynes Online offer offline access, helpful when working in remote locations. Bookmark critical pages with annotations–highlight recurring failure points like the sector shaft seal or idler arm bushings for quick troubleshooting.
Test-fit replacement components against the diagram before installation. Misaligned parts–such as aftermarket tie rod ends–can alter toe-in settings, leading to uneven tire wear. Use a threading dye on new bolts to ensure proper engagement depth, particularly for the pitman arm nut, which requires 180 ft-lbs of torque.
Store a printed copy in a sealed plastic sleeve inside your glovebox. Environmental exposure (heat, grease, water) degrades paper, making future repairs harder. Include highlighter marks for critical measurements–like the 3.5° caster angle for Rubicon models–and update the sheet after any front-end modifications.
