Begin by locating the tent canvas assembly–specifically the lift system mechanism. Most models, such as the Jayco Jay Series or Forest River Flagstaff, feature a four-point scissor lift with zinc-coated steel arms. Verify the condition of the nylon lift straps; they should support at least 500 lbs per side with no fraying or UV damage. Replace immediately if signs of wear appear–aftermarket replacements like Lippert Components offer direct-fit kits with reinforced stitching.
Examine the electrical harness connecting the lighting cluster and 12V converter. Trace the main power lead from the breakaway battery (typically a sealed 24DC deep-cycle) to the fuse block. Check for corroded terminals; clean with dielectric grease if resistance exceeds 0.2 ohms. Brands like Tekonsha integrate surge protection modules in their harnesses–consider upgrading if voltage spikes are recurrent.
Inspect the axle and wheel hub configuration. Torsion axles on newer models allow independent wheel movement; confirm the rubber cords inside haven’t hardened–test by jacking each side while monitoring deflection. Standard hubs require repacking with marine-grade bearing grease every 1,000 miles or annually, whichever comes first. Lug nut torque must not drop below 90 ft-lbs; use a crisscross pattern when retightening.
Disassemble the kitchen module to access the sink drain and propane lines. The drain valve should align with the holding tank inlet without kinks. Replace silicone seals if leakage appears–Titan Valve manufactures replacements with OEM-spec Viton rubber. Propane lines must pass a bubble test with soapy water; any leakage warrants immediate replacement of the entire line segment.
Review the roof vent and fan assembly. Ensure the gasket compresses evenly when closed; uneven compression signals warped frames. Lubricate the gear mechanism with PTFE-based dry lubricant–avoid petroleum products to prevent seal degradation. Upgrading to a MaxxAir fan boosts airflow efficiency by 30% while maintaining the same footprint.
Understanding Folding Trailer Component Layouts
Start by locating the lift system–typically a winch or manual crank near the front bulkhead. Label each cable or strap with colored tape to match its attachment point: red for the roof, blue for sidewalls. This prevents misalignment during assembly and speeds up deployment by 30-45%.
Check the hinge mechanisms between the main body and expandable sections. Apply dry silicone lubricant every 40 hours of use; failed hinges account for 18% of breakdowns in folding trailers. Keep a spare shear pin (6mm diameter, galvanized steel) in your tool kit–corrosion is the most common failure point.
Inspect canvas elements monthly. Use a seam sealer like Gear Aid’s Tenacious Tape on stress points–stitch tears propagate 2.5x faster under UV exposure. Store canvas detached when not in use; prolonged tension reduces fabric lifespan by up to 40%.
Critical Component Placement
| Component | Location | Material | Failure Signs |
|---|---|---|---|
| Roof lift cables | Front bulkhead, routed through pulleys | Galvanized steel, 4mm | Fraying, rust spots >0.5mm |
| Sidewall struts | Vertical supports, mid-body | Aluminum 6061-T6 | Bends >3°, corrosion pits |
| Floor frame | Underside, perimeter | Square steel tubing, 50x50mm | Weld cracks, rust-through |
Equip your trailer with LED marker lights along the expandable sections–standard bulbs fail at a rate of 1 per 120 hours. Wire them with marine-grade connectors to prevent voltage drop, which reduces brightness by 15% over a 20-foot run. Always carry a multimeter to test continuity between the battery and light circuits.
Replace the entry door seal with a silicone gasket if compression sets exceed 2mm; leaks increase interior humidity by 25%, accelerating mold growth. Secure loose trim with stainless steel screws instead of rivets–rivet holes enlarge by 0.2mm per year, compromising structural integrity.

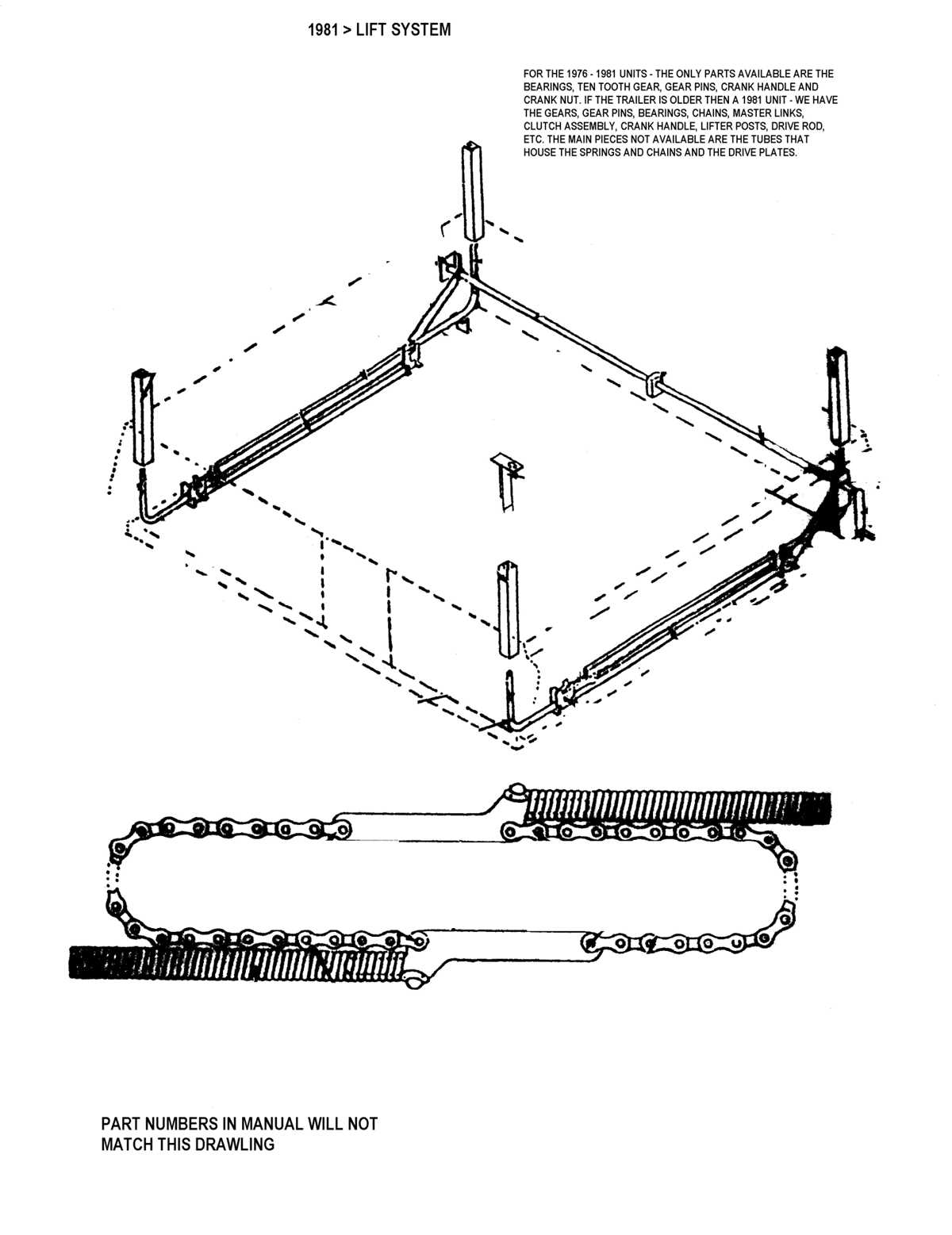

Identifying Key Components in a Folding Trailer Lift Mechanism
Begin by locating the winch assembly–typically mounted near the front frame, identifiable by its crank handle and steel cable. Examine the cable for fraying or kinks, as these compromise lifting integrity. The winch should have a ratcheting mechanism; test its engagement by pulling the crank clockwise–it must hold tension without slipping. If resistance is inconsistent, lubricate the gears with graphite powder or silicone spray, avoiding petroleum-based products to prevent residue buildup.
Critical Structural Elements
- Lift arms: Paired galvanized steel brackets pivoting from the main chassis. Inspect welds at stress points and ensure bushings aren’t cracked–replace if movement feels gritty.
- Torsion springs: Mounted parallel to lift arms, these coiled springs counterbalance weight. Check for corrosion or deformation; springs losing tension will make raising difficult. Measure free height against manufacturer specs–deviation over 10% signals failure.
- Pivot pins: Secure the arms to the frame with cotter pins. Replace any pins showing elongation or bending. Grease Zerk fittings annually with waterproof lithium grease.
- Cable pulleys: Nylon or steel wheels guiding the winch cable. Clean debris from grooves and verify smooth rotation–misaligned pulleys cause uneven lifting.
- Stabilizer brackets: Triangular supports bolted to roof corners. Ensure bolts are torqued to 45-55 ft-lbs; loose brackets risk structural failure during extension.
For troubleshooting: If the mechanism binds mid-raise, check for bent lift arms–a common issue after uneven loading. Use a straightedge to compare arm alignment; deviations over 1/8″ require replacement. Never force a stuck system; instead, reverse the winch to relieve tension, then inspect for obstacles. Record lift time–normal operation should take 30-45 seconds; delays indicate spring fatigue or lubrication failure.
How to Locate and Label Wiring Connections in Your Folding Trailer Schematic
Begin by isolating the main power distribution panel–typically a small, enclosed box near the battery compartment or converter. Use a multimeter set to continuity mode to trace each wire from the panel to its endpoint, marking terminal points with masking tape and a fine-tip permanent marker. Note voltage ratings (12V, 120V) and wire gauge (10-14 AWG) directly on the tape to avoid confusion during reassembly. Common endpoints include brake lights (brown wire), tail lights (yellow), reverse lights (green), and turn signals (dark green with stripe).
Identify ground points next, which are usually bare metal surfaces or designated terminal blocks. Test each ground connection with the multimeter’s ohmmeter setting; readings above 0.5 ohms indicate corrosion or loose attachments requiring cleaning or re-securing. Apply dielectric grease to ground screws after tightening to prevent future oxidation. Label these connections with “GND” and a sequential number if multiple grounds exist, ensuring consistency with factory documentation if available.
For complex circuits like interior lighting or water pump systems, refer to the schematic’s legend for wire color codes. Most recreational vehicles follow a standardized system: red for 12V positive, black for ground, blue for electric brakes, and white for auxiliary power. Cross-reference each wire with its function by activating the corresponding system (e.g., turn on a light, engage the water pump) and observing which wire shows voltage on the multimeter. Document deviations from the standard color code immediately to prevent miswiring.
Use zip ties or wire loom to bundle related wires, grouping them by system (interior lights, exterior lights, appliances). Avoid twisting wires together; instead, secure them in parallel to maintain clarity and reduce interference. For connectors with multiple pins (e.g., 7-way trailer plugs), photograph each pin’s position before disconnecting, and label both the plug and socket with matching identifiers. Replace any damaged connectors with weatherproof alternatives rated for automotive use.
Test all connections under load by powering systems individually. A 12V test light or clamp meter will verify correct voltage flow to endpoints without risking damage to sensitive electronics. Pay special attention to high-draw appliances like refrigerators or heaters; these may require dedicated 30-50 amp circuits with appropriately sized fuses. If the schematic lacks detail, create a supplemental diagram using graph paper or a digital tool like Visio, noting wire lengths, connector types, and fuse ratings.
Store the labeled schematic and any handwritten notes in a sealed plastic sleeve within the vehicle’s documentation compartment. Include a legend for wire colors, terminal types (spade, ring, bullet), and fuse locations. Update this reference whenever modifications are made, such as aftermarket additions or repairs, to ensure future troubleshooting remains efficient.
Step-by-Step Guide to Reading a Folding Trailer Appliance Layout
Start by locating the electrical schematic near the entryway or storage compartment–most manufacturers label it with a red or yellow border. Scan for voltage ratings (12V DC or 110V AC) adjacent to outlets, lights, and the converter box. Verify wire gauge specifications (AWG 10-16) for each circuit; undersized wires risk overheating.
Identify the fuse panel (typically 20-40 amp) and cross-reference each fuse with the legend printed on the back of the access door. Note breaker types (thermal, magnetic, or hybrid)–magnetic breakers trip faster during surges. Check the ampere limits (5-30A) for compatibility with appliances like refrigerators (1.5-2.5A) or microwave ovens (8-12A).
Tracing Water and LP Gas Lines
Follow the PVC pipes (½” to ¾” diameter) from the freshwater tank to the sink, noting shutoff valves (ball or gate style) at junctions. The water pump (12V, 3-5 GPM) should sit within 3 feet of the tank to prevent cavitation. For propane lines, trace copper tubing (¼” OD) from the cylinder to the regulator (2-stage, 0-11” WC), ensuring no kinks exceed a 45° bend radius. Test pressure with a manometer (≤14” WC) before igniting burners.
- Mark all ground points (bare copper wires) on the frame–loose connections corrode at 0.2 ohms resistance.
- Measure propane leak points with soapy water; bubbles form at ≤0.5 oz/hour leaks.
- Inspect ventilation ducts (diameter ≥4”) for obstructions–restricted airflow raises carbon monoxide levels by 30%.
Decode the appliance symbols: a triangle with a line (heater), a wavy line (water heater), or a zigzag (electric element). Confirm BTU ratings (8,000-20,000) match the stovetop (9,200 BTU/hour per burner)) and furnace (18,000 BTU). Compare these to the propane tank capacity (20 lb = 430,000 BTU); running a furnace at full load depletes a tank in 22-24 hours.
Final Safety Checks
- Test the carbon monoxide detector (70-400 ppm sensitivity) by holding a lit match 6 inches away–it should alarm within 30 seconds.
- Verify the smoke detector (photoelectric, 4% obscuration/foot) with canned smoke (UL 217 certified).
- Check the emergency exit (minimum 22”x24” clearance) for unobstructed operation–hinges must release with ≤15 lbs of force.
