Start with the spool assembly. Locate the drag washers–usually marked by a series of circular discs–positioned beneath the spool. If resistance feels uneven during retrieval, these washers likely require adjustment or replacement. Use a precision screwdriver (1.5mm flathead) to disassemble the side plate, taking care not to strip the threads on the retaining screw, commonly a #6-32 x 3/16″. Inspect the washers for grooves or deformation; replace with OEM specifications if wear exceeds 0.2mm.
The gear train demands particular attention. The main gear (typically 48-52 teeth, brass or stainless steel) meshes with the pinion gear (12-14 teeth, high-carbon steel). Misalignment here causes grinding. Check the gear engagement by rotating the handle slowly–audible clicks should occur at consistent intervals. If irregular, remove the handle nut (8mm socket) and access the anti-reverse plate. Clean the pawl spring (0.3mm stainless steel) with isopropyl alcohol; reapply lithium grease sparingly to avoid attracting debris.
For the bail wire system, focus on the roller bearing. A faulty bearing creates line twists. Rotate it manually–roughness or hesitation indicates failure. Remove the screw securing the bail arm (Phillips #1) and extract the roller assembly. Replace the bearing (inner diameter: 4mm, outer: 9mm) if play exceeds 0.05mm. The bail spring (0.4mm wire gauge) should snap back crisply when tested; replace if tension is weak.
Wire the handle assembly last. The crankshaft (6mm stainless steel) connects to the gear via a knurled nut–ensure it’s torqued to 8-10 Nm. If wobbling occurs, check the handle knob bearing (626ZZ) for radial play. Replace if rattling persists after lubrication. Finally, verify the clicker function; the ratchet teeth (1mm pitch) should engage sharply with minimal backlash–adjust tension via the set screw (1.2mm hex key).
Understanding the Schematic of a Fishing Mechanism
Locate the spool assembly first–it’s typically positioned near the handle side, secured by a drag washer and retaining clip. Check the clip for corrosion; if pitted, replace it immediately to prevent gear misalignment. The spool spindle should rotate freely without lateral play; apply marine-grade grease sparingly to the bearing surfaces if resistance is detected.
Gear Train and Handle Assembly Breakdown
Examine the main gear teeth for chipping–even minor damage disrupts smooth operation. The pinion gear, often brass or stainless steel, must mesh precisely with the main gear; adjust spacing with feeler gauges if slack exists. Handle knobs vary: cork or rubberized models degrade faster under UV exposure–opt for silicone-coated replacements if cracks form. The crankshaft should turn effortlessly; hesitation suggests bent components or dried lubricant.
Inspect the drag system’s friction plates next. Carbon-based washers last longer than felt but require cleaner disengagement; clean both types with isopropyl alcohol to remove salt buildup. The drag star’s serrations wear unevenly–swap it if threads strip or resistance feels inconsistent. Pawl mechanisms in anti-reverse models demand light oil only; over-lubrication causes drag slippage.
Ball bearings in the line roller and spool hub accumulate debris rapidly. Remove covers carefully–most snap-fit without screws–then flush bearings with compressed air before relubricating with Teflon-based grease. Avoid WD-40; it attracts grime. For older models, verify the frame screws; vibration loosens zinc-alloy fasteners–retighten to 0.8 Nm torque using a precision driver.

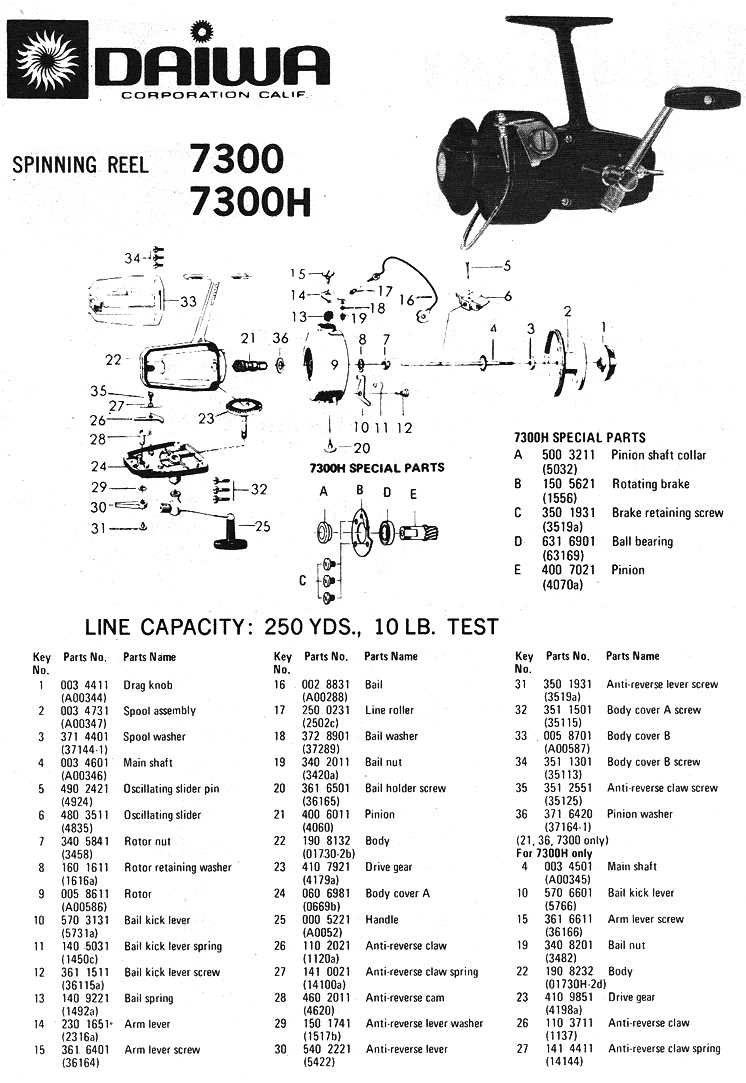

Refer to exploded-view schematics for specific component numbers when ordering replacements. Third-party replicas often lack OEM tolerances–prioritize parts from the original equipment database. Routine disassembly every 50 hours of use prevents catastrophic failure; track maintenance intervals by logging cast counts.

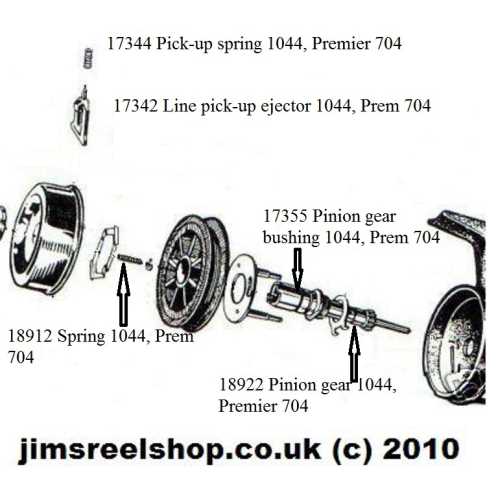

Identifying Key Components in a Fishing Mechanism Exploded View
Locate the spool assembly first–it sits at the core of the mechanism, typically held by a central screw or bolt marked with a diameter measurement (e.g., M6 or 8-32 threads). Check the spool’s flange alignment; misalignment causes line tangles. Look for wear on the drag washers beneath the spool, especially if made of felt or carbon fiber–they degrade with heat and friction.
Next, examine the gear train, starting with the main drive gear (often brass or aluminum) connected to the handle. Count the teeth–standard ratios are 5.2:1, 6.4:1, or 7.1:1–to confirm compatibility if replacing gears. The pinion gear (smaller, meshing with the main gear) must spin freely; apply lightweight grease if grinding is detected. Look for stripped teeth, a common failure point under stress.
The handle assembly includes the crank arm, knob, and usually a counterweight for balance. Remove the knob by unscrewing the retaining cap (often reverse-threaded) to access the bearing within. A corroded or dry bearing here causes stiffness; clean with acetone and relubricate with marine-grade grease. If the crank wobbles, check the set screw securing it to the drive shaft–vibration loosens it over time.
Focus on the anti-reverse mechanism, typically a one-way clutch or roller bearing housed near the foot. If the rotor spins backward when reeling, this component is faulty. Disassemble carefully–some models use a tiny spring-loaded pawl that’s easy to lose. Test by rotating the handle backward; a functional clutch should lock instantly without slipping.
Inspect the bail assembly (the wire arm flipping over the spool). The bail spring should snap shut crisply; a weak spring or bent bail wire causes line failures. Look for cracks in the bail arm’s plastic housing–cheaper models split under tension. The roller at the bail’s tip must rotate freely; dirt buildup here causes uneven line lay. Clean with a small brush and reapply synthetic oil.
- Line guide (roller or titanium ring)–check for grooves that fray line.
- Spider shaft (central post holding spool)–ensure no play; wiggle indicates worn bushings.
- Spool tension knob–adjust to match line diameter (e.g., 0.30mm vs. braid).
- Quick-release side plate–snaps securely; cracks here require replacement.
Finally, assess the frame for stress cracks near mounting points, especially in graphite models. Metal frames last longer but corrode in saltwater; rinse after each use. When reassembling, tighten screws in a star pattern to avoid warping plates. Store with the drag loosened to prevent compression on washers.
Step-by-Step Guide to Disassembling a Fishing Mechanism for Maintenance
Begin by placing the spool on a clean, flat surface with the handle facing downward. Use a screwdriver to remove the drag adjustment knob located on the side opposite the handle–turn counterclockwise to loosen it. Set the knob aside in a small container to avoid misplacement. This exposes the drag washers and internal components requiring inspection.
Next, detach the side plate by unscrewing the fasteners securing it. Most models have three or four screws; use a precision screwdriver to prevent stripping. Gently pry the plate away using a plastic tool to avoid damaging the housing. Inside, you’ll find the gear train–note the arrangement of gears (typically a pinion and main gear) for reassembly later. Lift out the spool assembly carefully, ensuring not to disturb the anti-reverse clutch mechanism beneath it.
Inspect the drag washers for wear or contamination. Replace them if they appear glazed, cracked, or coated with debris. Below the spool, locate the pawl spring and anti-reverse bearing–these should be free of grit. Use a fine brush to remove old grease from gears and bearings, then apply a light coat of waterproof lubricant to the pinion gear’s teeth. Avoid over-greasing, as excess can attract dirt.
| Component | Cleaning Tool | Lubricant | Frequency |
|---|---|---|---|
| Gear train | Soft brush, isopropyl alcohol | Waterproof marine grease | Every 3-6 months |
| Bearings | Lint-free cloth, cotton swab | Light oil (e.g., sewing machine oil) | Annually or if gritty |
| Drag washers | Warm soapy water | Silicone spray | After heavy use or saltwater exposure |
Check the levelwind system (if equipped) by sliding it off the rod rails. Clean the worm gear and friction roller with a cloth dampened in isopropyl alcohol–residue here causes inconsistent line lay. Reapply a thin film of grease to the worm gear before reinstalling. Verify that the levelwind moves smoothly across its track; stiffness indicates misalignment or debris.
Examine the bail assembly (for spinning variants) by flipping the bail arm upward and removing the roller. Clean the roller bearing with alcohol, ensuring no fibers or salt residue remain. Reassemble by pressing the bail spring back into its slot–misalignment here causes bail closure issues. For baitcasting models, focus on the centrifugal brake system: remove each brake block, clean with a cloth, and reset them to their factory tension if performance falters.
Reassemble in reverse order, starting with the spool and gear train. Secure the side plate screws evenly–over-tightening can warp the housing. Reattach the drag knob and test the mechanism by rotating the handle; it should turn smoothly without grinding. If resistance occurs, disassemble again to check for stray washers or misaligned gears. Store disassembled components on a magnetic tray or in labeled bags to prevent loss of small parts like springs or bearing clips.
