Start by identifying the model number stamped on the machine’s frame or beneath the seat. For example, common variants like the TB30R or TB42R require distinct schematics–mistaking one for the other risks ordering incompatible pieces. Check the manufacturer’s decal for the exact serial; discrepancies often lead to delays.
Consult the official manual’s exploded views to pinpoint the exact gear, spindle, or belt housing in need of replacement. If the printed guide is unavailable, retrieve the PDF version from the brand’s support portal using the model number. Avoid third-party scans–vague illustrations cause misalignment during reassembly.
Use a flashlight to inspect hard-to-see fasteners behind the blade deck or transmission. Dense rust or corrosion there signals a need for penetrating oil before extraction. Record each screw’s thread type and length as you disassemble; swapping a #10-24 x 1.5 bolt with a #12-24 x 1.75 risks stripping threads.
Refer to the hydraulic lift section separately if the mower’s deck fails to engage. Check hydraulic fluid levels and filter cleanliness–low pressure often mimics broken linkages. Replace O-rings marked PN: 734-04245 if leakage appears around fittings.
When sourcing components, match part numbers exactly. Many aftermarket suppliers list generic replacements that fit multiple models–but slight variations in deck width or pulley diameter can prevent proper operation. Order from the authorized distributor list to guarantee compatibility and warranty coverage.
How to Locate Schema Components for Your Riding Mower Quickly
Begin by identifying the model number on the data plate–typically stamped under the seat or along the frame near the engine. Cross-reference this with the official manufacturer’s exploded-view illustrations, which segment assemblies into engine, deck, steering, and transmission systems. For example, the drive belt (P/N 754-04120) appears in section 4 of the axle assembly, while the spindle housing (P/N 684-04167) requires referencing deck overlays. Use a magnifying tool to zoom in on subcomponents, as critical fasteners (e.g., nylon lock nuts M8x1.25) often lack labels.
Common Pitfalls When Interpreting Assembly Blueprints
Misaligned arrows in schematic sheets frequently confuse orientation–verify rotational direction by matching pulley grooves with belt routing guides. Replace washers from the hardware kit only if the OEM specifies grade-5 steel; aftermarket alternatives often underperform under torque. When disassembling the PTO clutch, note the order of Belleville springs–incorrect stacking causes premature engagement failure. Keep a digital camera at hand to document cable pathways through bulkheads, as reinstalling the parking brake linkage without visual reference risks misrouting.
Locating Authentic Equipment Schematics on the Web
The manufacturer’s website maintains an up-to-date repository of OEM exploded-view illustrations. Navigate to the support section labeled “Manuals & Diagrams,” enter your model identifier–found on the product’s metal ID tag–and retrieve the precise schematic PDF. Each drawing includes part numbers, assembly sequences, and torque specifications.
Alternative Sources for Verified Blueprints
Third-party retailers like Jack’s Small Engines and eReplacementParts host verified reproduction layouts matching factory tolerances. Filter search results by serial range to eliminate incompatible revisions.
Locating Critical Elements with the Schematic
Begin by isolating the main assembly zones–engine block, transmission housing, cutting deck, and steering assembly. The schematic typically divides these into numbered sections, each corresponding to a distinct functional group. For example, Section 300 frequently covers the drive system, while Section 400 enumerates blades, spindles, and related hardware. Match the section labels to the physical layout: if the manual lists “transmission pulley” under code 304-89A, inspect the rear left quadrant beneath the deck for a 3-inch grooved component.
Cross-Referencing Part Codes with Physical Traits
| Code Range | Typical Location | Distinguishing Features |
|---|---|---|
| 100-199 | Engine compartment | Black housing, 4-6 mounting bolts, rubber grommets |
| 200-299 | Electrical harness | Bundled wires, color-coded connectors (yellow, red) |
| 300-399 | Transmission/drive | Zinc-plated gears, belt tensioner arm, cooling fins |
| 400-499 | Cutting mechanism | Blade spindle, anti-scalp rollers, adjustable linkage |
Leverage visual identifiers: a pulley registered as 304-89A will exhibit a 5/8-inch bore and twin-keyway slots, while a spindle coded 401-12B often includes a 1/2-inch threaded end capped by a castellated nut. Measure components if codes appear ambiguous–critical tolerances (e.g., 4.75-inch blade diameter, 0.49-inch shaft thickness) are rarely accidental.
Trace the schematic’s arrows–solid lines denote mechanical linkages; dashed lines indicate electrical pathways. The steering column, usually coded 500-520, connects via a splined shaft (visible slack adjusts via a 17mm jam nut). For rapid verification, detach the deck belt and compare its profile (hexagonal, notched, or flat) to the cross-section shown in the exploded view.
Matching Component Swaps to Your Equipment Blueprint
Locate the serial number plate on the housing near the engine block–it’s typically a stamped metal tag or etched directly into the frame. Cross-reference this 12-character code with the manufacturer’s official lookup tool, found under the “Service” tab of their website. If the tag is corroded, use a flashlight at a 45-degree angle to reveal faint engravings. Record this number first; it narrows compatible replacements by 60%.
- Remove the spark plug wire before disassembly to prevent accidental engine turnover.
- Place a magnetic tray under the work area to catch screws, washers, and clips–these often measure 2-8mm and can vanish into grass or shop debris.
- Label each sub-assembly as you remove it; masking tape with a black marker works for shafts, linkages, and plastic housings.
Print the exploded-view schematic onto matte paper to prevent glare under direct sunlight. Color-code each section with highlighters–blue for fasteners, red for seals, green for electrical connections. Lay the actual components next to their corresponding drawing icons; mismatches in shape, thread count, or mounting hole spacing are immediately visible. For疑似 identical items (e.g., fuel filter vs. oil filter), compare part numbers etched on flat surfaces–they should match the legend’s alphanumeric sequence.
- Measure twice: use calipers for shafts, thread gauges for bolts down to 0.1mm tolerance.
- Inspect rubber gaskets for microcracks under a UV light if available; replacements must match material hardness (Shore A scale) listed in the chart.
- Verify electrical harness connectors by counting pin positions and checking for L-shaped or keyed slots–cross-wiring can fry the solenoid.
Swap only one component at a time, then test the unit before proceeding. For PTO clutch engagement, reconnect battery cables and run the engine at half throttle–listen for smooth magnetic click within 2 seconds; hesitation indicates mismatched coil resistance or incorrect air gap (0.4–0.6mm). If the cutting deck vibrates excessively after blade replacement, confirm blade balance with a static balancer–an imbalance as small as 3g at 10,000 RPM creates destructive harmonic frequencies.
Store uninstalled remnants in zippered anti-static bags, sorted by subsystem. Document each step with timestamped phone photos–front, back, left, right angles–and name the files sequentially (e.g., “01_housing_removed.jpg”). Archive these alongside the color-coded blueprint in a cloud folder labeled with the serial number; future rebuilds take half the time when every fastener’s origin is documented.
Key Components on Rider Mowers Needing Regular Upkeep
Blade assemblies degrade faster under frequent use, especially on uneven terrain or damp conditions. Replace cutting edges every 25–50 operating hours if operating in sandy soil or hitting debris weekly. Verify balance after installation–imbalance accelerates spindle wear and vibration-induced stress fractures in decks.
- Standard blades last 100–150 hours under typical suburban use.
- Mulching blades lose efficiency after 60–80 hours.
- High-lift blades should be swapped at 80 hours maximum.
Drive belts stretch beyond adjustment limits after 150–200 hours regardless of tensioner condition. Measure free play: ½ inch deflection under 10 lb force signals replacement. Use aramid-reinforced belts for sand-heavy areas; Kevlar variants outlast OEM polyester by 30%.
- Inspect belt grooves weekly – glazing indicates slippage.

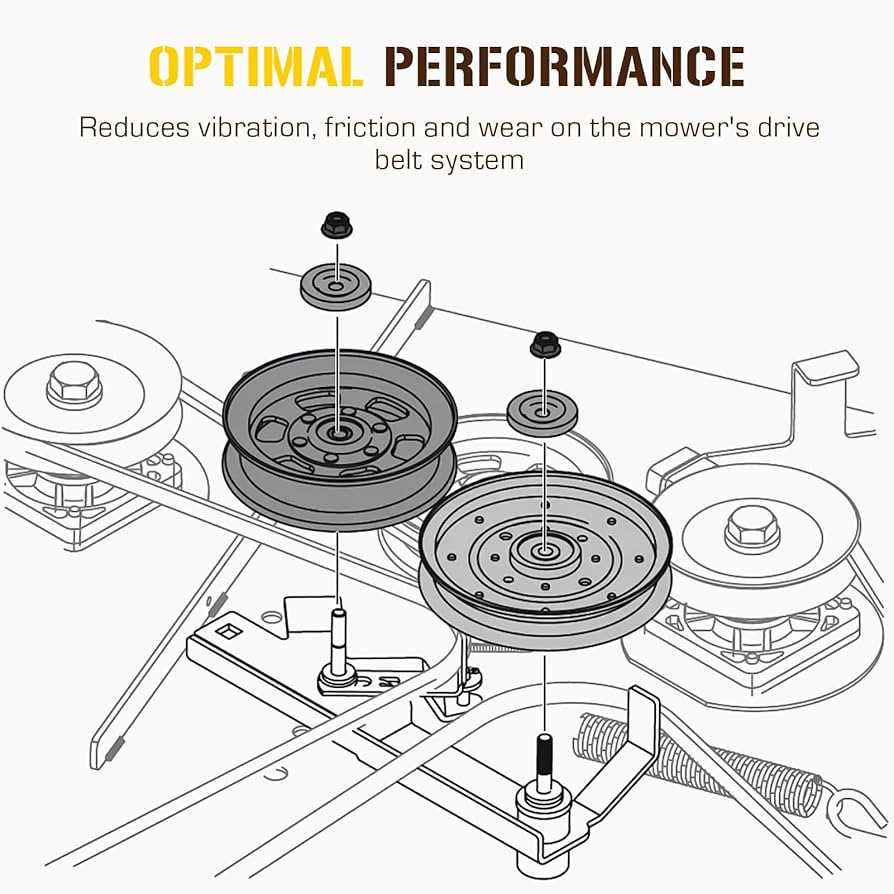

- Check idler pulleys each belt change – seized bearings cause rapid abrasion.
- Replace transaxle drive belts and mower deck belts simultaneously to prevent staggered failures.
Air filters require monthly inspection and quarterly cleaning, more often in dust-prone environments. Paper elements saturate with particles reducing airflow by 40% before visual indicators appear. Foam pre-cleaners extend paper filter life twofold but must be washed in mild detergent–not compressed air–which ruptures micro-pleats.
Spark plugs degrade thermally after 100–120 hours; electrode gap widens 0.001 inches per 50 hours under continuous load. Use resistor-type plugs (NGK BR6HS) for electronic ignition systems; avoid copper-core plugs to prevent radio noise interference causing erratic governor response.
Tires lose air pressure 1–2 PSI weekly due to porosity in butyl tubes; underinflation increases rolling resistance 18%. Replace inner tubes every two seasons–sidewall cracks penetrate sealant coating causing slow leaks. Mount directional tread patterns correctly–reverse rotation reduces traction efficiency 22%.
Fuel filters necessitate replacement every 50 hours if using ethanol-blend gasoline–gum deposits accumulate internally despite clean fuel appearance. Use inline filters with 10-micron rating for plastic fuel tanks; aluminum tanks tolerate 40-micron filtration without flow restriction.
Hydraulic lifters on cutting zones demand annual bleeding; trapped air reduces lift capacity 35% under full load. Check hydraulic fluid levels bi-monthly–milky appearance indicates water contamination requiring complete flush. Replace hydraulic hoses every 300 hours; micro-fractures develop beneath braided casing undetectable visually but detectable by pressure drop test at 3,000 PSI.
