Start by locating the model number on the device housing or within the user manual. This code–typically a combination of letters and digits–directs you to the exact schematic for your unit. Manufacturers like this brand segment their product lines by series, each with distinct internal layouts and compatible accessories. For example, Series 4000 models feature a stainless-steel blade assembly, while Series 5000 units integrate a swivel-head design with extended reach.
Refer to the exploded view illustration provided in the official service documentation. The diagram lists components by part number, allowing precise ordering of replacements. Critical elements include the cutting head (item 12), motor bracket (item 45), and lithium-ion battery pack (item 67). Note that certain components, such as gears or springs, require exact torque specifications during reassembly–deviation may cause premature wear or malfunction.
For third-party suppliers, cross-reference part numbers against the OEM replacement list. Branded alternates may fit but often lack durability testing. For instance, carbon-steel blades (aftermarket) underperform compared to the original hardened-steel variants, which maintain sharpness for up to 1,200 hours of use. When ordering, specify whether the component requires a left-handed or right-handed orientation–some models incorporate asymmetric designs for ergonomic grip.
If disassembling, document each step with photographs. Snap a close-up of the blade alignment notch, as incorrect positioning causes uneven cuts. Store small parts–washers, screws, and springs–in labeled containers to avoid misplacement. For lubrication, apply a food-grade mineral oil sparingly; synthetic oils degrade plastic casings over time. Avoid silicone-based lubricants near electrical contacts.
For technical support, consult the interactive repair database where schematics are paired with troubleshooting videos. Some models include self-diagnostic modes–pressing the power button five times in quick succession triggers an LED blink code, indicating specific failures (e.g., three blinks denote a faulty motor, five blinks signal a damaged battery connector).
Understanding Your Precision Grooming Tool’s Component Layout
Before attempting repairs or maintenance, locate the model number engraved on the underside of the device’s housing–typically near the charging port or battery compartment. This identifier is critical for sourcing accurate schematics. For most mid-range and premium models produced after 2018, manufacturers provide exploded-view illustrations in three formats: PDF downloads on official support portals, embedded interactive viewers on mobile apps, or printed fold-out cards included with purchase.

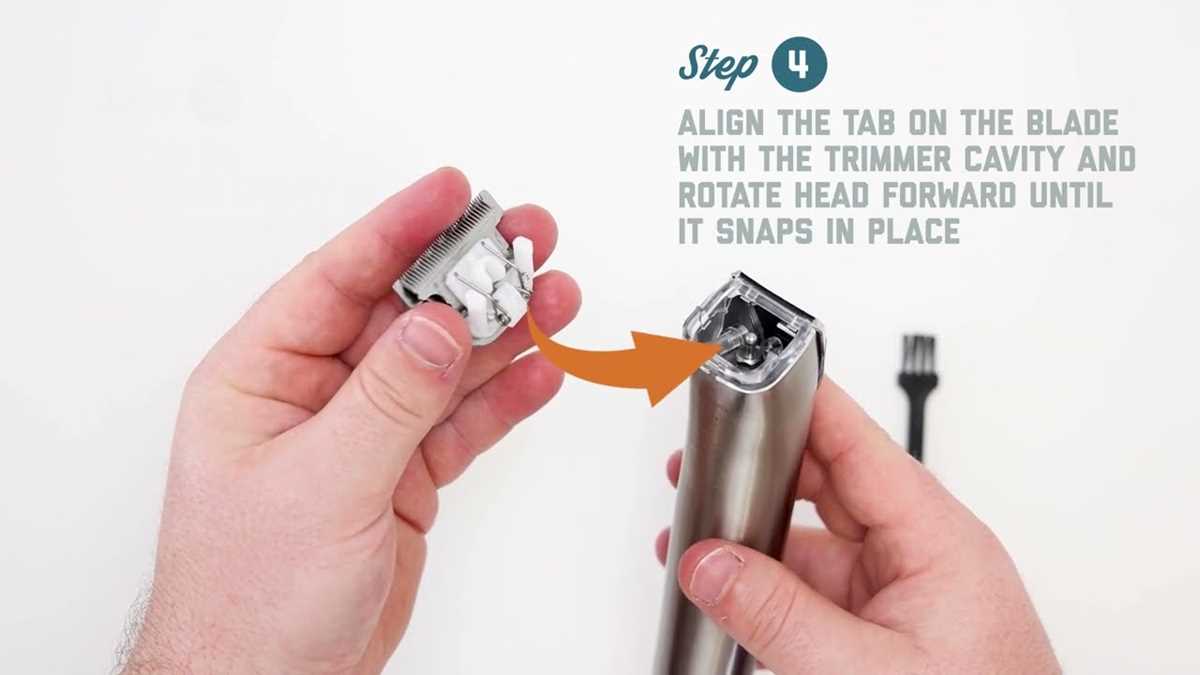

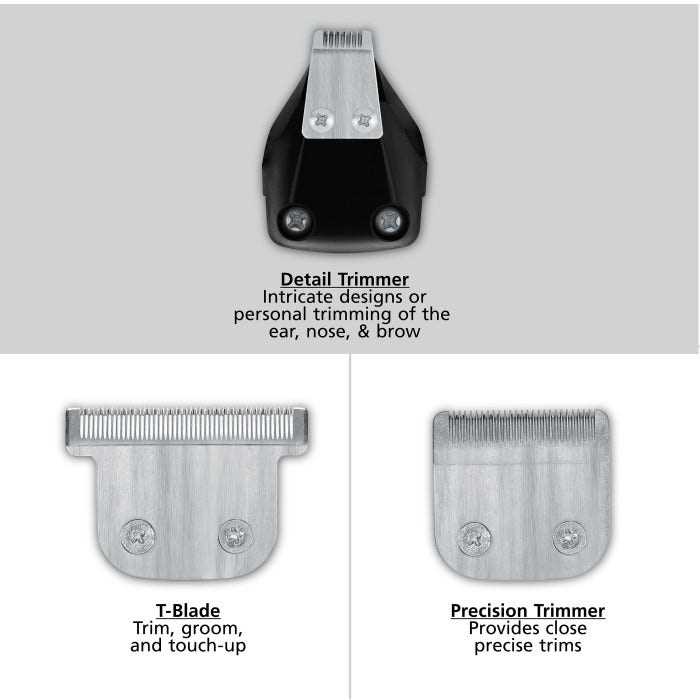

Identify the cutting assembly first. The blade set–comprising a stationary base and a moving cutter–is secured by two or three tiny screws, often under a plastic guard. Use a T5 torx driver for disassembly; standard Phillips heads strip easily. Note the orientation of lubrication channels; improper reassembly can lead to uneven wear or motor strain. If replacing blades, verify the cutting width: 25mm adapters suit shorter stubble, while 38mm versions handle coarser textures.
Battery replacement requires careful handling. Lithium-ion cells degrade after ~300 full cycles, exhibiting reduced runtime or failure to hold charge. Pry the rear panel gently with a plastic spudger to avoid damaging the charging contacts; metal tools risk short-circuiting internal circuitry. Match the replacement cell’s voltage (usually 3.7V) and capacity (typically 600-800mAh). Third-party batteries may void water-resistance certifications, so check IPX7 ratings if steam shower use is intended.
Common failure points and their indicators:
| Component | Symptom | Solution | Tool Required |
|---|---|---|---|
| Motor drive gear | Weak oscillation or buzzing | Realign or replace nylon gear | Precision tweezers, 2mm flathead |
| Charging coil | No power response | Solder connections or replace coil | Temperature-controlled soldering iron |
| Spring-loaded lever | Detachable head wobbles | Tighten retaining ring or replace spring | Needle-nose pliers |
| Rubber gasket | Water ingress warning | Clean with isopropyl alcohol or replace | Lint-free cloth |
Lubrication and Blade Alignment
Apply manufacturer-approved mineral oil sparingly–one drop per blade edge suffices. Over-lubrication attracts debris and accelerates corrosion. After oiling, run the device for 30 seconds to distribute the coating evenly. For alignment checks, retract the cutter to its lowest setting; gaps wider than 0.1mm between the stationary and moving blades require adjustment via the alignment screws embedded in the head assembly.
Storage components often degrade unnoticed. Nylon drive shafts warp under prolonged heat or moisture, leading to inconsistent trim patterns. Examine the gear housing annually; hair fragments and dead skin accumulate in crevices, increasing friction. Ultrasonic cleaners effectively remove particulate without disassembly, but submerge only the detachable head–not the motor enclosure–to prevent electrical damage.
Schematics for discontinued models (pre-2015) remain accessible through specialty forums or archived retailer manuals. These older units frequently use proprietary torque screws incompatible with modern driver kits; preserve original fasteners if full disassembly becomes necessary. For professional groomers, consider documenting component positions with macro photography before servicing–critical for reinstalling minuscule washers or silicone dampers that control vibration.
Decoding Critical Elements in a Precision Grooming Tool Breakdown Illustration
Begin by locating the cutting head assembly in the schematic–typically positioned at the top of the exploded layout. This unit includes the blade set, protective comb attachments, and a retention clip. Verify the alignment of the moving blade against the stationary one; misplacement here causes uneven trimming or motor strain. Replace blades if wear exceeds 0.5mm along the cutting edge, measured with calipers.
Inspect the motor housing next. Inside, you’ll find the armature, drive shaft, and eccentric gear–components that convert electrical energy into linear blade motion. Lubricate the gear with silicone-based grease every 30 operational hours; use no more than a rice-sized drop to prevent over-application. Abrasions on the eccentric gear’s teeth indicate improper meshing–replace if pitch deformation exceeds 5%.
Check the battery compartment for corrosion or swelling, especially in lithium-ion variants. Clean terminals with isopropyl alcohol (90%+) if resistance exceeds 0.2 ohms. For nickel-metal hydride models, discharge fully before storage to prevent memory effect. Observe the PCB for burnt traces or bloated capacitors–these signal failure points requiring solder rework.
- Vibration dampeners: Ensure rubber grommets between the chassis and internal framework retain elasticity. Hardened or cracked dampeners increase noise levels by ~15 dB.
- Spring retainer: Confirm the torsion spring presses the moving blade with 1.2–1.5 N of force; weaker tension results in skipped strokes.
- Chassis screws: Torque to 0.8 Nm–over-tightening warps plastic housings, causing misalignment.
Examine the power switch for debris accumulation. Remove buildup using compressed air at 45° angle, targeting the micro-gap between contacts. Arcing marks indicate pitting–replace the switch if resistance surpasses 3 ohms. For corded models, test the cable’s strain relief; fraying beyond 1mm mandates immediate replacement to avoid short circuits.
Finally, assess the lubrication schedule based on usage frequency. Light use (bi-weekly) demands bi-annual blade oil application; heavy use (daily) requires monthly maintenance. Store blades in a dry environment with humidity below 60% to inhibit oxidation. Cross-reference component codes (e.g., #3211-0070) against the manufacturer’s service manual–third-party substitutes may fit but degrade performance by up to 20%.
How to Pinpoint Specific Components Using Manufacturer’s Schematics
Locate the exploded view schematic in the user manual or official service guide–it’s typically found in the back sections under “maintenance” or “spare components.” Each element is labeled with a part number or reference code, often a mix of letters and digits, e.g., “M-45B” or “2468-AC.” Cross-reference these identifiers with the official supplier list to confirm compatibility before ordering.
Identify the malfunctioning section first–whether it’s the cutting head, motor housing, or battery compartment. In the schematic, zero in on the subsection that matches your issue. For instance, if the device fails to power on, focus on the wiring harness, battery contacts, or switch assembly, rather than the blade alignment.
Compare the schematic’s illustrations with the physical item in front of you. Look for visual discrepancies: missing screws, cracked casings, or misaligned gears. Schematics often include close-up details of minor elements like springs, washers, or O-rings–components that rarely fail but can cause operational hiccups if damaged.
Use a magnifying glass or digital zoom on your phone to examine the smallest pieces in the diagram. Tiny fasteners, tension clips, or electrical connectors are easy to overlook but critical for proper function. If the schematic doesn’t label them explicitly, note their position relative to larger, numbered parts.
Check for wear patterns on your device’s components that don’t match the schematic’s pristine drawings. A discolored gear, frayed wire, or stripped screw hole suggests the need for a replacement. Measure questionable areas with calipers if the schematic includes dimensions–common for blades, spacers, or motor mounts.
Download a high-resolution version of the schematic if available, as low-quality prints obscure fine details. Some manufacturers provide interactive versions online where you can click on a component to see its part number and availability. Bookmark these pages for quick future reference.
If the schematic lacks clarity, search for a video teardown of the same model. Visual walkthroughs often highlight components the schematic omits, like adhesive strips or tamper-proof screws. Pause the video at key frames to cross-check with your physical item.
Keep a notebook or spreadsheet to track identified issues and corresponding part numbers. Group replacements by category (e.g., electrical, mechanical) to streamline ordering. Verify lead times and return policies before purchasing–some supplies have long waitlists, while aftermarket alternatives may void warranties.
