Begin repairs by locating the engine assembly breakdown–part number 530069693 covers the cylinder (26mm bore), piston rings, and wrist pin. Replace these as a set if compression falls below 90 psi during testing. For fuel system issues, inspect the carburetor kit (530039183), which includes reeds, gaskets, and the diaphragm. Clean passages with 0.3mm wire if idle speed fluctuates ±200 RPM.
Chain tensioners require precise adjustment–use the bar adjuster screw (marked P33-ADJ-STD) to maintain 1/8″ slack at midpoint with gloves on. Replace the drive sprocket (530069995) every third chain sharpening cycle or when tooth deformation exceeds 0.5mm. For kickback protection, install a low-profile chain (952809803) with 0.050″ gauge; pairing it with the original Oregon bar (72LGX050X) ensures a 0.043″ nose radius match.
Electrical failures trace to the ignition coil (530029447)–test resistance between lead and ground (6-12 kΩ at 20°C). Replace if spark weakens or misfires occur above 3,000 RPM. Air filtration relies on the pre-filter (530029134) and main pleated element (530029727); clean with compressed air at 40 psi, never solvents. For oil system clogs, flush the reservoir with ISO 32 bar-and-chain oil, then replace the pump gear (530030081) if flow drops below 8 mL/min at 9,000 RPM.
Handle assembly repairs focus on the front grip (530070066)–tighten mounting bolts to 12 Nm torque and check vibration dampeners (530039977) for cracks. Fasteners include metric threads: M8×1.25 for the bar clamp (18 Nm) and M6×1 for side panel screws (6 Nm). Always match OEM specifications–aftermarket parts labeled “compatible” may alter torque tolerances by ±15%, risking component failure under load.
Visual Breakdown of Your Chainsaw Model: A Hands-On Reference
Identify the spark plug by locating the small black housing on the engine’s right side–marked with a tiny metal tab. Replace it every 25 hours of use; use NGK BPMR7A or equivalent. The air filter sits behind a plastic latch above the carburetor; snap it open, remove the foam piece, and tap debris off rather than washing–water degrades the material. If the filter tears, install a revised OEM part #530059227.
Power Head Disassembly: Critical Fasteners
Remove the three 8mm bolts securing the top cover–label each bolt with painter’s tape to track placement. The cylinder head lifts off after loosening two 10mm bolts; use a torque wrench set to 18 Nm on reassembly to prevent warping. The piston rings require cleanliness–wipe grooves with a brass brush, never compressed air. The crankcase halves separate after removing six 6mm screws; note the dowel pin locations to avoid misalignment upon reassembly.
Replace the clutch drum (#530071226) if grooves exceed 0.5mm depth–align the chain drive link before tightening the sprocket nut to 25 Nm. The flywheel nuts fasten with left-hand threads; secure the flywheel with a strap wrench when loosening to prevent crankshaft damage. The starter cord automatic rewind mechanism requires periodic lubrication–apply grease to the pawl springs every third maintenance cycle.
Finding the Authorized Schematic for Your Chainsaw Model
Begin with the manufacturer’s support portal: visit Husqvarna’s official site, select “Support” > “Manuals & Resources,” then filter by product category for outdoor power equipment. Enter the exact model code stamped on the unit’s housing–typically near the engine block or under the rear handle. This archive houses exploded-view illustrations specific to each trim, including OEM part numbers, torque specs, and compatibility notes.
Alternative Sources for Detailed Breakdowns
- Dealer portals: Local service centers maintain sealed databases with vector-based schematics. Request access by providing the serial decal digits; dealers can generate a PDF on demand.
- Third-party aggregators: PartsTree and eReplacementParts archive interactive diagrams with clickable components linking to inventory. Verify accuracy by cross-referencing the first few digits of the OEM prefix–look for “HUSQ-” or “530-” identifiers.
- Industry forums: Search “chainsaw exploded view [model identifier]” on ArboristSite or Heavy Equipment Forums. Members often attach high-res scans from service manuals.
After retrieving the schematic, isolate the assembly segment relevant to your repair–air filter housing, clutch drum, or fuel system–and cross-check the corresponding part numbers against the unit’s decal. Some 2012–2018 production runs feature minor revisions; always match the last three alphanumeric characters to confirm compatibility before ordering from suppliers.
Core Elements of the Pro Series 14-Inch Chainsaw Assembly
Replace the spark plug every 25 operating hours or at the start of a new season to maintain optimal ignition performance. Use NGK BPMR7A or an equivalent resistor-type plug to prevent electrical interference with nearby devices. Torque to 15–20 N·m; overtightening risks stripping the cylinder head threads.
Clean the air filter after every 5 hours of cutting, more frequently in dusty environments. Paper filters should be tapped gently to dislodge debris; foam types can be washed in warm soapy water and air-dried thoroughly before reinstallation. Replace filters showing cracks, tears, or excessive wear to prevent carburetor contamination.
| Component | Material | Replacement Interval | Compatibility Notes |
|---|---|---|---|
| Drive sprocket | Hardened steel | 50 hours / annual | Must match chain pitch (3/8″ LP) |
| Clutch assembly | Forged steel & friction pads | 100 hours | Inspect for glazed pads; replace if engagement is sluggish |
| Bar oil pump | Aluminum housing | Seasonal check | Adjust flow rate based on bar length; 14″ bars require minimum 5 ml/min |
Inspect the chain brake mechanism monthly. Test functionality by engaging the front handguard while the engine runs at idle–it should halt the chain instantly. If the chain coasts, either the band brake is worn or the clutch drum requires cleaning. Replace the band if thickness drops below 1.5 mm.
Check bar rails for uneven wear or burrs before each use. File down high spots with a flat file and ensure groove depth remains uniform across the bar’s length. Rotate the bar 180° every 10 hours to promote even wear and extend service life. Replace bars showing excessive bending or grooving deeper than 0.5 mm.
Drain and replace the two-stroke fuel mix if storage exceeds 30 days. Use a 50:1 gasoline-to-oil ratio with ISO-L-EGD or JASO FD-rated oil. Stale fuel causes gumming in the carburetor, leading to hard starts–add fuel stabilizer for prolonged storage. Clean the fuel filter if flow restriction is suspected; a clogged filter starves the engine at high RPM.
Calibrate the carburetor seasonal adjustments. Begin with the low-speed screw at ¾ turns open, then fine-tune while idling until the chain remains stationary. Turn the high-speed screw clockwise until RPM peaks and drops slightly, then back off ¼ turn. Incorrect settings result in poor acceleration or piston seizure; always verify with a tachometer if available.
How to Replace Key Components on Your 3314 Chainsaw Model
Replace the Air Filter: Detach the cover screws using a 10mm socket. Lift the housing to expose the filter. Remove the old foam or paper element and inspect the intake for debris. Clean the compartment with compressed air if needed. Insert the new filter, ensuring it sits flush. Reattach the cover, tightening screws in a cross pattern to 8-10 ft-lbs.
Swap the Spark Plug: Disconnect the ignition wire by pulling the rubber boot. Use a 19mm spark plug socket to unscrew the old plug. Check the electrode gap on the replacement–adjust to 0.025 inches if necessary. Thread the new plug by hand first to avoid cross-threading, then tighten to 15 ft-lbs. Reconnect the wire firmly.
Install a New Chain: Loosen the bar nuts with a 13mm wrench. Slide the bar away from the engine to release the old chain. Lay the new chain over the bar, ensuring drive links engage the sprocket. Align the bar’s adjustment pin with the tensioner hole. Tighten nuts finger-loose, then adjust tension until the chain snaps back 1/8 inch when pulled. Finalize torque to 20 ft-lbs.

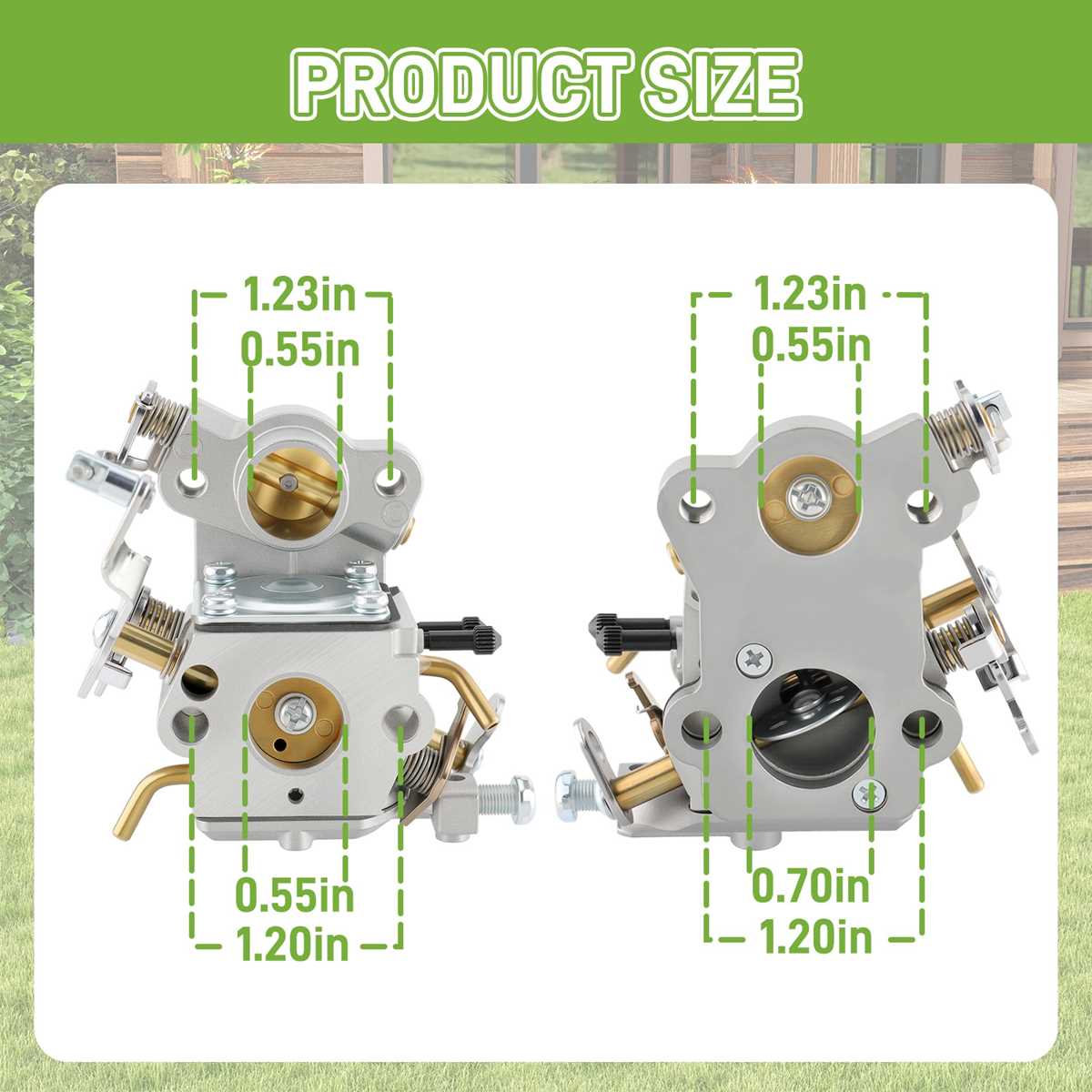

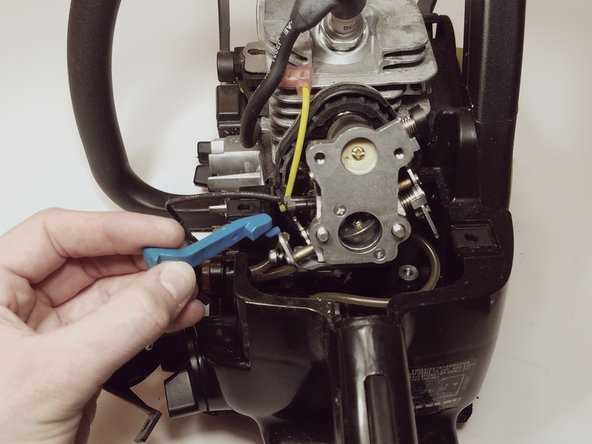

Rebuild the Carburetor: Remove the air filter housing and fuel lines using needle-nose pliers. Note the position of each jet and gasket. Disassemble the carburetor carefully, keeping parts in order. Soak metal components in carb cleaner for 10 minutes, then rinse with water. Replace diaphragms if brittle. Reassemble, ensuring gaskets seal completely. Reconnect fuel lines and filter housing before testing.
Fix a Primer Bulb: Pry off the bulb’s retaining ring with a flathead screwdriver. Pull the old bulb straight out, noting the orientation of the molded nipple. Press the new bulb into the housing, aligning the nipple with the fuel line. Snap the retaining ring back into place. Press the bulb several times to prime the system before startup.
Identifying and Resolving Component Issues with Exploded Views
Locate the exploded view schematic for your equipment model before disassembly. Cross-reference each removed component with its designated position in the illustration–numbers adjacent to fasteners, housings, or brackets often correspond to the bill of materials list. If a screw, gasket, or linkage appears missing during reassembly, verify its presence in the visual breakdown; small elements like washers or clips are frequently overlooked and may have fallen into crevices or tool trays during maintenance.
Compare the physical arrangement of components to the schematic’s orientation. Rotational or mirrored placements can deceive–confirm alignment by matching unique shapes or attachment points. A carburetor linkage, for example, must seat precisely into its mounting boss; slight angular deviations will prevent proper engagement and may cause operational failure. Trace each connection path visually along the diagram’s lines to ensure continuity.
Inspect for superfluous or incorrect elements introduced during prior servicing. Previous mismatches often leave behind extra screws, spacers, or seals that do not belong. Weigh every bolt against its depicted counterpart–length, threading, and head style should align exactly. Mismatched hardware can compromise structural integrity or interfere with moving assemblies, prompting premature wear or seizure.
Utilize color-coded highlights or annotations on printed schematics to mark verified components. Digital copies allow zooming into sub-assemblies where tiny springs or seals might hide. If a part remains unaccounted for after exhaustive checks, segregate all disassembled pieces and methodically recount them against the visual inventory–neglecting even a single O-ring can disrupt pressure seals in fuel or cooling systems.
Test-fit provisional replacements if original components are damaged or doubtfully authentic. Measure dimensions with calipers for precision–aftermarket substitutes may exhibit subtle variances in diameter, pitch, or material composition that disrupt intended function. A piston ring kit, for instance, must conform to exact tolerances to avoid scoring cylinders or causing compression loss. Scrutinize edge geometries, spline counts, and snap-fit features against the diagram’s depiction.
Document discrepancies immediately in service logs or photographs. Annotate missing or incompatible parts with timestamps and contextual notes–this record accelerates future troubleshooting and prevents recurring errors. If an engine cover refuses proper sealing despite correct fastener torque, revisit the schematic to verify spacer presence; omission here often manifests as persistent oil leaks or airborne debris ingress.
Engage peer review if uncertainty persists. A second technician may recognize overlooked details–focused scrutiny of nozzle assemblies, reed valves, or throttle linkage pivots frequently reveals obscured or misoriented elements. Confirm final reassembly by cycling mechanisms manually before operational testing; binding or resistance typically signals unresolved component misalignment or omitted shims.
