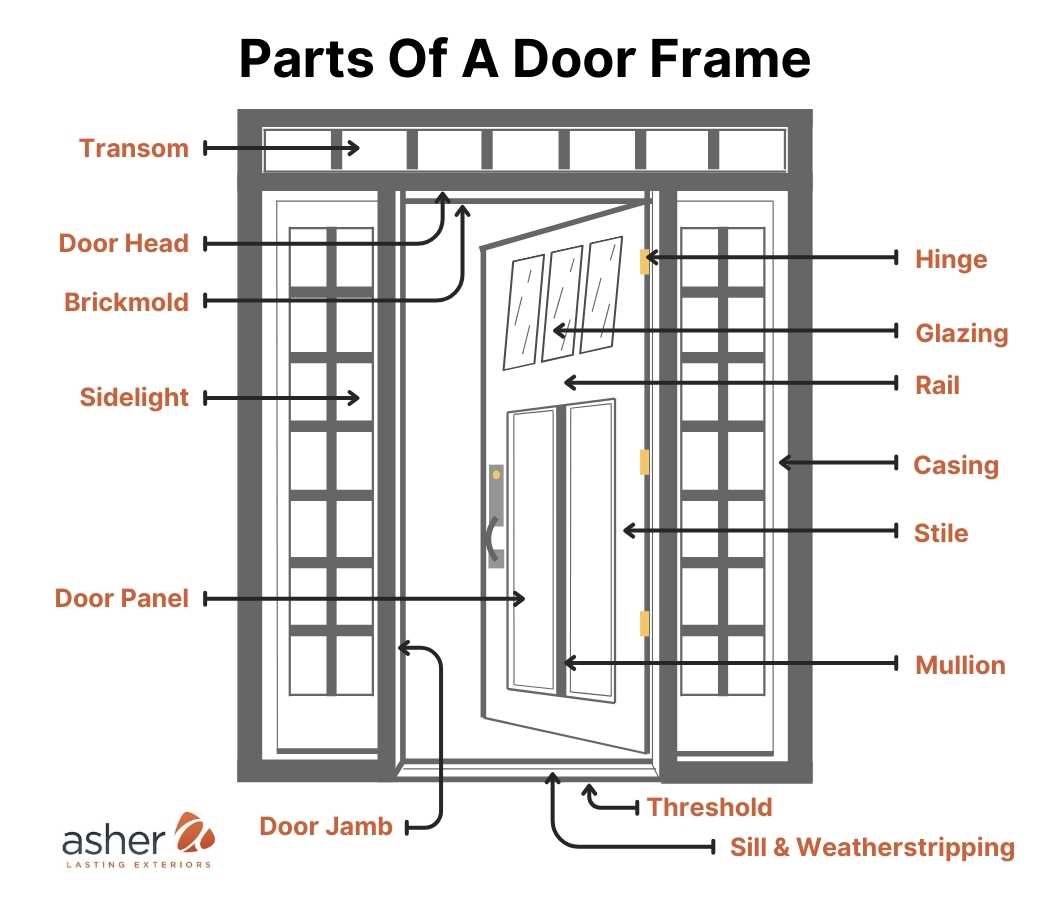

Begin by identifying the frame assembly in any access point–this includes the head jamb (top horizontal beam), side jambs (vertical supports), and the sill or threshold at the base. The head jamb often houses weatherproofing seals, while side jambs may integrate hinges or latch plates. The sill’s slope is critical for water runoff, especially in exterior applications.
Check the panel structure–whether solid, hollow-core, or insulated–to assess durability and insulation properties. For hinged units, examine the knuckle mechanism: ball-bearing hinges reduce friction for frequent use, while concealed hinges improve aesthetics. Sliding systems require track alignment and rollers; nylon-coated rollers last longer than metal ones.
For locking mechanisms, prioritize deadbolts with hardened steel inserts to resist drilling. Latchsets should have adjustable strike plates to compensate for misalignment. If the unit includes glass inserts, verify tempered or laminated safety glass to meet building codes. Weatherstripping placement–along edges and between panels–prevents drafts; neoprene seals outlast foam equivalents.
Inspect the hardware finishing–satin nickel resists corrosion in humid climates, while oil-rubbed bronze conceals fingerprints. For fire-rated barriers, confirm intumescent strips expand at 175°C (350°F) to seal gaps. Diagrams should label fire labels, hinge spacing, and clearance tolerances (typically 2–5mm for smooth operation).
Key Structural Elements of a Entryway Schematic
Identify the stile first–vertical frames forming the core support. The lock stile (halt side) houses the latch mechanism, while the hinge stile secures pivot points. For solid wood constructions, ensure stiles exceed 45mm in thickness to prevent warping. Steel-reinforced variants typically require 1.2mm gauge minimum for durability in high-traffic areas.
Examine the rail system next–the horizontal segments intersecting stiles. The top rail bears the brunt of impacts; opt for mortise-and-tenon joints in wooden designs or continuous welds for metal. The bottom rail (threshold) should sit flush with flooring–use a 5mm tapered edge to prevent tripping hazards. For exterior applications, a thermal break channel reduces heat transfer by up to 30%.
Hardware Interface Zones
Focus on the panel recesses: depressions between rails and stiles that house inserts. For fire-rated units, use mineral wool inserts with a minimum 4-hour resistance rating. Acoustic models demand mass-loaded vinyl sandwiched between dual MDF layers–achieves STC 45+ when sealed with neoprene gaskets. Avoid single-glazed panels in noise-sensitive areas; opt for laminated glass with PVB interlayer instead.
Prioritize seal integration along moving edges. Compression seals on the meeting stile should deflect no less than 3mm under full closure. Adjust hinge preload to maintain 2-3mm gap between the frame and moving surface–prevents binding while optimizing airtightness. For automated systems, integrate microswitches within the head jamb to trigger hold-open functions during power failures.
Critical Elements to Highlight in a Gateway Section View
Begin by marking the strike plate–the metal bracket receiving the latch. Position it precisely to avoid misalignment, ensuring the latch engages fully without binding. Include the mortise depth (typically 1″–1.5″ for residential units) and note whether the plate requires beveling for a smooth closure. If the assembly includes a deadbolt, distinguish it from the latch mechanism by labeling the bolt throw (minimum 1″ for security-grade setups) and the backset (standard 2.375″ or 2.75″).
Identify the hinge leaf configuration next. Specify whether it’s a full-mortise, half-mortise, or surface-mounted variant, as this dictates installation requirements. For heavy-duty applications, highlight the hinge pin diameter (¼” for light use, ⅜” for commercial) and the knuckle count (three or five, affecting load distribution). Label the setback–the distance from the edge to the hinge barrel (usually ⅛”–3/16″)–to prevent interference with weatherstripping or jamb edges.
Core Structural Details
- Jamb legs: Measure thickness (4.5″–6.9″ for solid wood, 6.625″–9.25″ for insulated units) and note the presence of kerf grooves for weatherproofing seals. Indicate if the jamb is split (for retrofitting) or one-piece.
- Head and sill: Mark the sill angle (typically 7°–10° for water runoff) and any thermal breaks in aluminum or fiberglass constructs. For doors with sidelites, specify the mullion width (3″–6″) and whether it’s structural (load-bearing) or decorative.
- Threshold: Differentiate adjustable (for uneven floors) from fixed types, and note the threshold rise (½”–¾” for accessibility compliance). Label drainage channels if present, especially in exterior assemblies.
For insulation and soundproofing, detail the core material–solid wood, polystyrene, polyurethane, or honeycomb composites–and its R-value (3.0–6.0 for energy-efficient models). Where applicable, indicate veneer layers (e.g., ⅛” hardwood over MDF) and adhesive type (urea-formaldehyde vs. water-based). If the unit includes fire-rating, specify the intumescent strips (1–2″ width) and their placement along the perimeter.
Conclude with hardware integration points: pre-drill diameters for handlesets (usually 2⅛”), reinforcement plates for cylindrical locks, and anti-splinter fittings for fiberglass or steel skins. For sliding or pocket configurations, label the track mounting height (typically flush with the header) and roller adjustment screws. Use distinct shading or hatch patterns to separate metallic components (hinges, screws) from organic (wood, sealants) to enhance readability.
Locating Key Components in Entryway Fittings
Check the swing mechanics first–hinges typically sit on the same side as the frame’s pivot edge, grouped in sets of two or three. Thicker gauges indicate heavier slabs, while loose or squeaky joints suggest worn ball bearings or missing lubrication. Modern designs may include concealed pivots, often mistaken for magnetic seals; trace the top cap to the pivot’s base plate for confirmation.
Inspect the latch assembly where the entry meets the jamb. A standard bevelled bolt protrudes 1/2 inch when engaged; measure its throw to assess wear. Deadbolts sit above or adjacent, distinguished by a rectangular faceplate and a minimum 1-inch projection. Smart locks often integrate fingerprint scanners or keypads here–verify their electrical connections if unresponsive.
- Lever handles: should rotate 45–90 degrees with
- Knobs: test for wobble–excessive play indicates stripped rose screws or worn internal cams.
- Rosettes: decorative plates covering mounting screws; remove to access hidden fasteners.
Examine the strike plate on the frame. Pre-drilled holes aligned with the latch confirm proper installation; off-center strikes cause binding. Adjustable models feature elongated slots–fine-tune alignment before securing screws. For reinforced units, seek heavy-duty plates with 3-inch screws anchoring into wall studs.
Weatherstripping runs along the stop molding–look for compression gaps around the periphery. Brush seals seal gaps under 1/8 inch, while bulb-style gaskets handle irregular surfaces. Peel-and-stick foam deteriorates within 3–5 years; replace if brittle or cracking. Magnetic seals (common in steel slabs) lose effectiveness when the assembly’s magnetism weakens.
Count tracking devices, if equipped. Closers mount atop the slab with arms attached to the header; verify hydraulic fluid leaks at the piston. Floor springs embed into thresholds–inspect for debris blocking the swing path. Sliding systems use roller guides along the header; replace if wheels squeak or show flat spots.
Identify rare components:
- Dummy trim: fixed handles for double-entry symmetry; never connected to latch mechanisms.
- Lip strikes: extended plates for outward-swinging configurations, protecting jamb edges.
- Security studs: metal projections preventing forced entry by stopping slab lift.
Disassemble the trim to reveal screws securing the slab to the frame. Hidden fasteners often reside behind hinge covers or escutcheon plates; pry gently with a flathead. Once exposed, label each screw–lengths vary by 1/4 inch increments to prevent misalignment during reassembly. For pre-hung units, check the header’s hinge reinforcement plate; missing screws here compromise structural integrity.
Optimal Building Materials for Entrance Components and Their Lifespan
Solid hardwood, such as oak or mahogany, remains the most durable option for the main panel, withstanding 30–50 years of daily use when properly sealed and maintained. Softwoods like pine or fir, while more affordable, degrade within 10–15 years under the same conditions due to susceptibility to warping, moisture absorption, and insect damage. For exterior-facing surfaces, marine-grade plywood or fiberglass-reinforced composites offer 20–25 years of resilience against humidity and temperature fluctuations without delamination. Avoid particleboard or MDF in high-traffic or moisture-prone areas–these swell and disintegrate within 5–7 years.
Frame and Structural Integrity
Steel framing, particularly galvanized or stainless varieties, provides the longest service life (50+ years) for jambs and headers, resisting corrosion even in coastal climates. Aluminum, though lighter, corrodes non-uniformly within 20–25 years unless anodized or powder-coated. Wooden frames, especially those made from pressure-treated lumber (e.g., cedar or redwood), endure 25–30 years but require annual sealing to prevent rot. For commercial-grade installations, reinforced concrete or pultruded fiberglass profiles offer unmatched longevity (75+ years) but demand precise alignment during installation to avoid misfitting.
Hinges should be selected based on load capacity–solid brass or stainless steel withstands 40+ years of operation, while coated steel or zinc alloys corrode within 10–15 years, particularly in humid or salty environments. Ball-bearing mechanisms outperform plain bearings, reducing wear by 40% over a decade. Self-lubricating nylon bushings extend hinge life by 5–7 years but may deform under loads exceeding 136 kg (300 lbs). For concealed applications, cup hinges with adjustable tension prevent sagging for 25–30 years, though they require periodic tightening.
Threshold materials must balance durability and weather resistance. Aluminum thresholds last 25–30 years but may develop sharp edges over time, posing safety risks. PVC composites soften at temperatures above 60°C (140°F) and degrade within 15 years, while solid wood thresholds treated with copper azole or ACQ rot in 10–12 years if not resealed biannually. For high-traffic areas, bronze or brass thresholds offer 50+ years of service but require polishing to prevent oxidation. Neoprene gaskets, used in combination, compress and rebound effectively for 15–20 years before hardening.
Locksets and hardware durability varies by mechanism–mortise locks with hardened steel internals last 30–40 years, whereas cylindrical locks, especially those with die-cast zinc components, fail within 10–15 years due to wear on spring-loaded parts. Keyed entry systems using brass or nickel-silver plating resist tarnishing for 25 years, while chrome-plated alternatives corrode in 8–12 years. Smart locks with electronic keypads demand sealed, corrosion-resistant casings (e.g., PVD-coated stainless steel) to prevent circuit failure within 5–7 years in wet climates. Always pair high-quality hardware with shimmed strike plates to distribute force evenly and prevent latch misalignment.
