Begin with the deck assembly. Most models use a 3/8-inch steel plate, reinforced with 1-inch tubular framing. Check the blade mounts–common failure points include cracked welds or stripped threads. Replace with grade 8 bolts (M12 x 1.75 thread pitch) if corrosion exceeds 20% of the bolt diameter.
The spindle housing requires periodic greasing. Use NLGI #2 lithium complex every 50 operating hours. If play exceeds 0.5mm, inspect the bearings–standard 6206 sealed units fit most 60-inch cutters. Seal kits (part #RC-SEAL-20) prevent debris ingress under 2500 PSI loads.
Hydraulic-driven models rely on gear pumps rated for 3000 RPM. Monitor case pressure (target: 1800–2200 PSI). Filter clogs (screen: 100 microns) reduce efficiency by 35%. Replace O-rings (Buna-N, -409 size) during oil changes–temperature swings degrade durability.
For trailing units, inspect the PTO shaft. Universal joints fail at 500–700 hours. Use slip clutch plates (20-tooth, heat-treated 4140 steel) to prevent driveline damage. Secure the shield with SS316 bolts–vibration loosens standard hardware.
Frame wear occurs at the tongue hitch. Measure tolerances: replace if gaps exceed 3mm. Reinforce with 1/4-inch gussets–mild steel suffices for loads under 2 tons. For belts, match 3V-836 profiles; tension to 1.5% deflection (use a 10-lb force gauge).

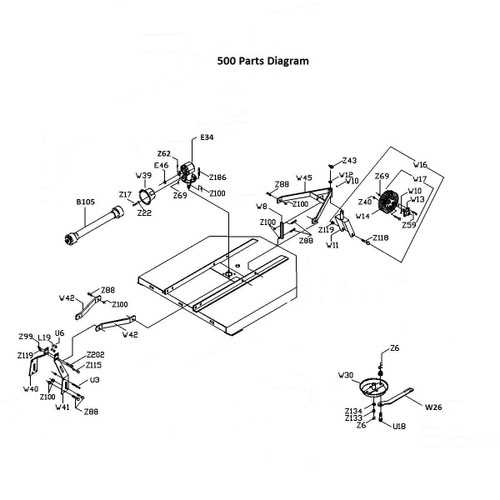

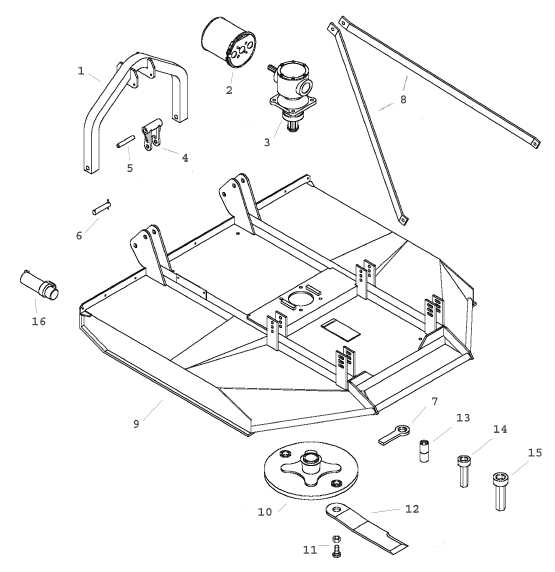

Schematic for Commercial-Grade Rotary Cutter Components
Locate the spindle assembly in the deck’s underside–it houses the blade bearings, seals, and pulley. Models with stamped decks (e.g., QT60/QT72) use a bolt-on spindle (PN 74905), while fabricated decks (e.g., FZ16/FZ20) integrate a welded spindle tube (PN 74906). Replace bearings every 200 hours if operated in sandy or rocky terrain; use 203-SFF for standard duty or 3204-2RS for heavy-duty applications. Verify pulley alignment with a straightedge–misalignment accelerates belt wear by 30-45%.
Reference the hydraulic schematic for drive system repairs:
- Pump block (PN 77501) connects via ⅜” JIC fittings–torque to 25 ft-lbs.
- Motor displacement: 16 cc/rev (FZ16) or 20 cc/rev (FZ20); swashplate angle adjusts speed.
- Check valves (PN 77520) fail at 1,500 psi; replace if bypass occurs during forward/reverse shifts.
- Filter micron rating: 10µ (standard), 5µ (EXTREME duty); change every 150 hours or when ΔP exceeds 20 psi.
- Drain hydraulic reservoir (8 quarts capacity) via ½” NPT drain plug.
- Fluid spec: ISO 46 HM (synthetic) or AW32 mineral oil; avoid automotive ATF.
- Bleed system by running unit 30 seconds in forward, then reverse–repeat until cavitation noise ceases.
Deck Adjustment Specifications
Cutting height range: 1.5″ to 5″ (0.4″ increments). Adjust using:
- 3-point lift: ⅝” jam nuts; torque to 40 ft-lbs.
- Suspension arms: grease zerks (PN 72310) every 50 hours–use NLGI #2 lithium.
- Anti-scalp rollers (PN 72315): rotate freely; replace if groove depth exceeds 0.08″.
Locating Manufacturer-Approved Equipment Schematics for Mid-Sized Cutting Machines
Visit Bush Hog’s official support portal directly for OEM schematics. The site hosts downloadable PDFs organized by model number–enter yours in the search bar to retrieve the exact assembly breakdown. Most documents include exploded views of blades, spindles, drive systems, and hydraulic components, with part numbers listed for ordering. If your model predates 2015, check the “Legacy Products” section under the same link.
- Dealer networks offer in-person access: locate a certified service center via the interactive map. Authorized shops maintain physical or digital archives of older schematics not always published online.
- Manufacturing year-specific versions exist–verify your unit’s serial plate (typically on the frame near the engine) before downloading to avoid mismatches.
- Third-party aggregation sites like PartsTree or Jack’s Small Engines replicate some diagrams but cross-reference with the OEM portal to confirm accuracy.
Alternative Sources for Hard-to-Find Documentation
YT channels run by authorized technicians occasionally post walkthroughs–search for “[model number] + disassembly” and filter uploads from the last 12 months. Thumbnail previews often show key schematics before the video plays. Forums like TractorByNet or LawnMowerForum archive user-uploaded scans; request specific year ranges in the model’s subforum thread if missing.
- Local agricultural extension offices stock printed manuals for commercial-grade cutters–call ahead with exact specs.
- Salvage yards specializing in industrial landscaping gear (search “[your region] + equipment dismantlers”) let you photograph schematics from intact units before purchase.
- Contact Bush Hog’s customer service at 1-251-238-3999; reference your serial number–they email high-resolution copies not available publicly.
Essential Elements Highlighted in Cutting Deck Schematic Visuals
Inspect the spindle assembly first–it anchors the rotary cutter and bears rotational stress. Replace worn bearings immediately; delayed maintenance risks blade detachment. Schematic overlays mark spindle housing seals–check for degradation every 50 operating hours. Lubricate Zerk fittings quarterly with marine-grade grease to prevent moisture ingress.
Blade impact plates appear on diagrams as reinforced strips along inner deck walls. Verify their thickness using calipers; minimum 3mm steel ensures debris deflection. If grooves exceed 1.5mm depth, flip or weld-reinforce the plates rather than risk projectile failure. Diagrams often differentiate front and rear plates–prioritize rear replacements as they endure higher torque.
Anti-scalp rollers are labeled as cylindrical attachments beneath the deck perimeter. Confirm wheel alignment by rolling the unit–sideways play indicates bearing failure. Some schematics separate adjustable and fixed types; adjustable units require tension checks after every terrain change. Replace rollers when tread wears below 5mm to maintain consistent cutting height.
Idler pulleys appear as small tensioners adjacent to the drive belt path. Rotate each by hand–grinding noises signal bearing seizure. Misaligned pulleys accelerate belt wear; verify parallelism with a straightedge tool. Schematics specify pulley diameters–match replacements precisely to maintain gear ratios.
Deck skirts typically consist of curved panels bolted to the underside frame. Rust perforation here compromises suction; wire-brush and epoxy-coat affected areas. Diagrams often color-code skirt material–galvanized steel lasts longer than painted variants. Secure loose bolts with thread-locking compound, not standard washers.
Discharge chutes feature on most schematics as detachable ducts. Measure chute length against diagram specs–oversized chutes disrupt airflow, causing clippings buildup. Clear debris from chute nozzles weekly; clogged exits reduce cutting efficiency by 18–22% according to field tests.
Mandrel covers shield blade spindles from water and clippings. Diagram callouts show gasket locations–replace cracked seals immediately to prevent spindle corrosion. Some models incorporate baffles inside the cover; ensure these remain straight to guide airflow correctly.
Cut height adjustment linkages connect pedals or levers to deck hangers. Lubricate pivot points with PTFE spray every 30 hours. Diagrams usually highlight linkage bushings–inspect for oval wear, replacing when play exceeds 2mm to prevent uneven cutting. Misadjusted linkages can increase fuel consumption by 9% per incorrect notch.
Identifying Compatible Components Using Equipment Schematics
Locate the model number plate on your cutting machine–typically found beneath the seat, on the frame near the engine, or along the rear deck edge. Cross-reference this number with the manufacturer’s official exploded-view illustrations, which group components by functional subassemblies (e.g., cutting deck, transmission, steering linkages). Each subassembly in the schematic carries unique alphanumeric designators; use these to avoid mismatching sizes or torque specifications.
Measure critical dimensions before ordering replacements. For example, spindle housings often differ by 1/4-inch increments, while pulley widths vary between 1.5 and 2.25 inches–verify these against the schematic’s callouts. If the illustration lacks measurements, check the parts list adjacent to the drawing for part-specific tolerances, such as 0.015-inch bearing clearances or 0.5-mm blade balancing gaps. Record dimensions directly on the printed diagram for quick validation.
Prioritize sourcing components from vendors who supply OEM-matched items–look for branding etched or stamped on gears, shafts, and hydraulic pumps. Third-party suppliers frequently remanufacture wear items like drive belts or bearings, but these may lack the original heat treatment or polymer formulation. Cross-check polymer grades (e.g., PA66-GF30 for blade mounts) listed in the parts legend against vendor specifications to prevent premature cracking.
| Component Type | Key Identifier | Common Pitfall |
|---|---|---|
| Deck spindles | Spline count (10, 12, or 15) | Assuming all 12-spline units interchange |
| Hydrostatic pumps | Displacement (cc/rev) | Ignoring relief valve settings |
| Steering rods | End fitting type (ball vs. threaded) | Mismatched link lengths causing toe-in errors |
Use an LCD magnifier with built-in scale to inspect small fasteners and seals–common schematics omit minor items like splash shields or grease fittings, which vary between production runs. Compare fastener thread pitch (typically 1/4″-20 or M6) and head type (flanged vs. flat) against the diagram’s notes. For hydraulics, verify hose barb angles; 45-degree and 90-degree connectors require distinct O-rings, often not cross-compatible.
When replacing electrical components, match connector pinouts exactly–aftermarket ignition switches or solenoid assemblies may reverse polarity or use incompatible gauge wire. Schematics usually denote wire colors alongside splice points; use a multimeter to confirm continuity before installation if color coding differs. For chips or controllers, cross-reference firmware revisions–older models may lack temperature compensation algorithms present in updated designs.
Store exploded-view illustrations as laminated, A3-sized copies in your workshop, organized by equipment serial number range. Highlight superseded part numbers in red for quick identification of non-retail components (e.g., obsolete rubber tracks replaced by segmented polyurethane). If schematics are unavailable, trace linkages and belts directly on kraft paper using a grease pencil, labeling each point with potential substitute part numbers based on physical attributes.
For wear-prone items like blades or skid shoes, note the material grade–AR400 steel resists abrasion better than mild steel, but its hardness (40-45 HRC) dictates specialized sharpening tools. Verify blade mounting hole patterns; staggered 3-hole arrangements require matched hardware torque sequences to prevent uneven lift. If replacing cutting decks, measure the overall width and side-discharge chute geometry–small deviations (e.g., 56″ vs. 60″) affect grass trajectory and suction efficiency.
