Begin troubleshooting by locating the rear access panel–typically secured with four screws–and removing it to reveal the internal mechanism. The heating element, situated at the base, is the most frequently replaced part due to wear; verify its continuity with a multimeter before ordering replacements. Upper heating coils, if present, should be checked similarly, noting the resistance values specified in the technical manual (usually between 20-40 ohms for functional units).
When inspecting the control board, examine the solder joints for cracks or discoloration, particularly around the relay switches. A cracked joint often indicates failure; resoldering with 60/40 lead-free solder may restore function temporarily, but a full board replacement is recommended for long-term reliability. The thermal fuse, mounted near the heat source, must read as a closed circuit under normal conditions–any deviation confirms a necessary repair.
Door latch assemblies require precise alignment; if misaligned, the safety interlock may prevent operation. Remove the outer door panel by prying the retaining clips with a flathead screwdriver, then adjust the latch mechanism using a 1/8-inch hex key. Bearings in convection fan motors often wear after prolonged use–listen for grinding noises or excessive vibration, which signal the need for lubrication or replacement. The motor shaft should spin freely by hand when disconnected from power.
For wiring issues, trace each connector from the control module to its corresponding component, noting any frayed or melted insulation. The ribbon cable linking the keypad to the main board is prone to damage; apply electrical tape to secure loose strands, but prepare for a full cable swap if corrosion is visible. Always disconnect power at the circuit breaker before handling live components to avoid electrical hazards.
Replacement components must match the original specifications exactly–check the model number stamped on the appliance’s interior frame (near the serial plate) and cross-reference it with the manufacturer’s parts catalog. Third-party suppliers may offer alternatives, but compatibility with voltage and cycle settings is critical. Keep a non-contact voltage tester on hand to confirm power is fully disconnected before proceeding with any repairs.
Locating Replacement Components for Your Premium Baking Appliance
Start by identifying the model number on the inner door frame or side panel–this 8-12 digit code unlocks exact component listings. Manufacturer-authorized retailers organize schematics by assembly groups: heating elements (upper/lower bake, broil), thermal sensors, door latch assemblies, and control boards. Cross-reference your model with the official service manual’s exploded view pages 12-18 for precise part numbers before ordering.
For rapid assessment, isolate malfunction symptoms first:
- Uneven cooking: Verify resistance values (25-50 ohms) across bake/broil elements using a multimeter; replace if readings exceed ±5 ohms.
- Door seal failure: Inspect gasket continuity by closing a dollar bill in the door–if sliding occurs, replace gasket (P/N 3181943).
- Error code F2-E0: Requires control board (P/N W10851016) reset via 3-minute power disconnect; if persistent, replace board.
Critical components demand torque precision during reinstallation:
- Upper bake element (P/N WPW10312919): Secure with 10 lb-in torque; misalignment causes premature failure.
- Door hinge assembly (P/N W10518973): Lubricate pivot points with food-grade silicone before mounting to prevent squeaking.
- Thermistor (P/N WB23X10007): Position exactly 1.5″ from back wall to ensure accurate temperature feedback.
Non-OEM alternatives exist but carry risks–aftermarket gaskets may warp at temperatures >450°F, and cheap heating coils deplete 30% faster. Stick to approved suppliers (listed in the technical documentation) for parts carrying a 12-month warranty. When replacing mechanical switches, calibrate temperature settings afterward using an oven thermometer to validate ±15°F accuracy.
For complex disassembly, note fastener locations in advance:
- Rear panel screws: 3x #10 Phillips (1.25″ length).
- Inner chassis clips: 4x spring-loaded, requiring 90° rotation to release.
- Control knob threads: Left-hand pitch–rotate clockwise to remove.
Store removed components on static-free surfaces; electrostatic discharge can compromise electronic modules. Use a labeled container for screws under 1/4″ to avoid misplacement. Before powering on post-repair, run a self-clean cycle to burn off residual packaging oils from new elements–failure to do so may trigger smoke alarms and invalidate warranties.
Locating Genuine Appliance Schematic Illustrations for Your Model
Direct access to manufacturer-approved exploded views exists through the brand’s authorized support portal at whirlpoolcorp.com/support. Enter your unit’s full model number–typically found on a metallic plate inside the door jamb or behind the warming drawer–to retrieve the exact technical breakdown. Third-party repositories like appliancepartspros.com and partselect.com host identical schematics under license, cross-referencing your serial for instant PDF downloads.
Local service centers affiliated with the manufacturer maintain physical archives of printed schematics for discontinued variants; verify eligibility by calling ahead with your model’s suffix identifiers before visiting.
Locating Key Components in High-End Cooking Appliances
Begin by inspecting the bake element–typically a coiled heating unit at the base of the cavity, often failing after 8–12 years of use. Look for discoloration, blistering, or breaks in the metal sheath; these signal imminent failure. For convection models, the fan assembly behind the rear panel circulates air and frequently accumulates grease buildup, requiring cleaning every 6–12 months or replacement if the motor seizes. Gasket seals around the door degrade over time, compromising heat retention; test for gaps by sliding a thin sheet of paper along the seal–if it slips easily, order a new gasket (model-specific, usually 4–6 feet in length). The igniter in gas variants glows bright orange during operation; if it dims or fails to ignite after 30–45 seconds, it’s likely faulty and needs swapping. Keep the model number handy (found on a label inside the door jamb or rear panel) to cross-reference components with genuine manufacturer parts–third-party alternatives may void warranty or misalign.
Hidden Wear Points to Check
The thermal fuse, a small cylindrical device mounted near the control board, cuts power if temperatures exceed safe limits–its failure renders the appliance inoperable. Test for continuity with a multimeter; if open, replace the fuse (typically rated at 220–250°C). Door hinges loosen with repeated use, causing misalignment; tighten screws or replace springs if the door doesn’t latch securely. Light sockets corrode from moisture exposure–opt for halogen or LED bulbs resistant to heat (up to 300W equivalent) instead of standard incandescent fixtures. For touchpad controls, uneven responsiveness or unlit buttons indicate membrane failure; spraying compressed air beneath the buttons can temporarily restore function, but replacement of the entire control panel is often required. Always disconnect power before servicing any high-voltage components.
Step-by-Step Guide to Pinpointing Components with Visual Schematics

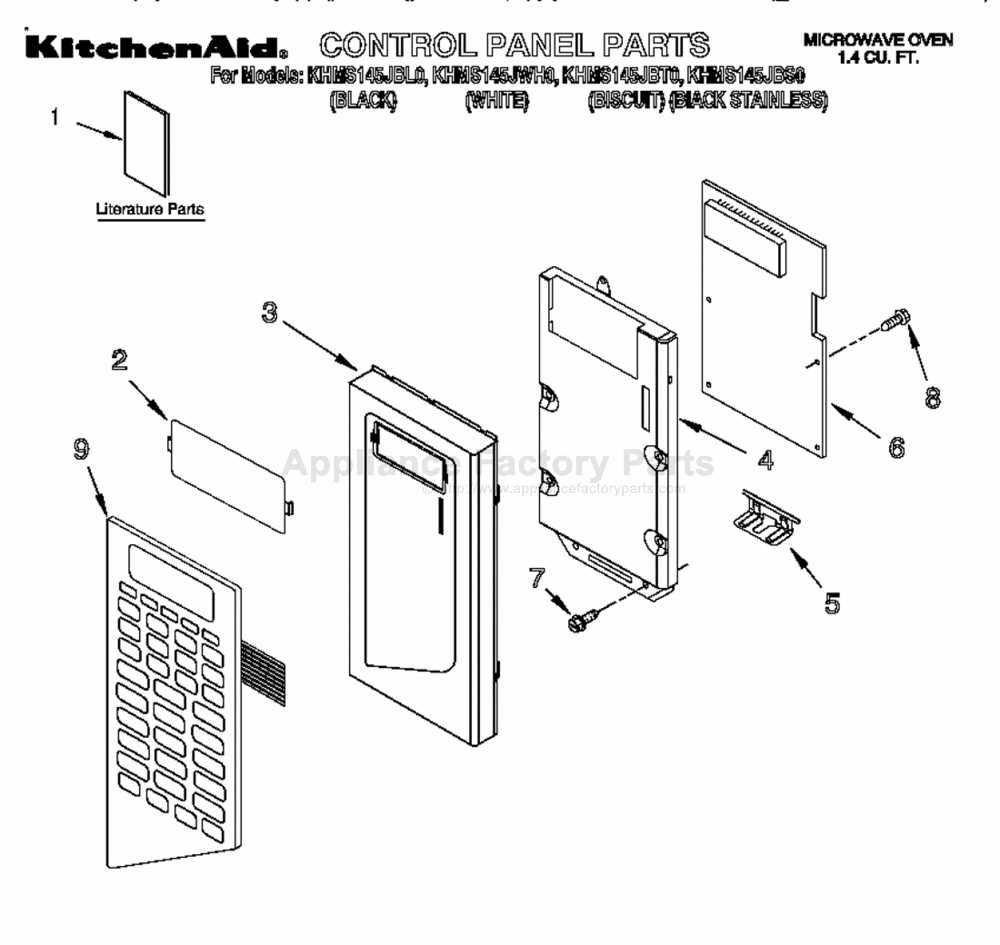

Locate the technical illustration corresponding to your appliance model–typically found in the manual under “Exploded Views” or “Component Breakdown.” Numbered callouts match the legend, where each entry lists the item description, part code, and position in the assembly. For example, if replacing the bake element (often labeled #4050 or #4060), trace the dotted lines from the heating coil illustration to its label in the margin. Cross-reference this code with the manufacturer’s parts catalog to confirm material specs and compatibility with your model variant.
Isolating Hard-to-Find Elements
For internal mechanisms like the thermal fuse (#31500) or door latch assembly (#70200), identify adjacent landmarks first. The fuse sits beneath the upper back panel, adjacent to the control board–follow the wiring harness in the schematic to distinguish it from similar shapes. Door components require removing the inner glass panel; the latch assembly appears as a hooked housing in the front-right quadrant of door blueprints. Double-check measurements in the legend–most assemblies specify clearance requirements during reinstallation.
How to Match Appliance Component Codes to Sellers
Locate the serial plate inside the unit’s cavity–typically mounted on the left wall or beneath the cooktop. Scan for a six-to-eight-digit alphanumeric string preceded by a model identifier (e.g., “KSBP” or “KG”). This string is the exact reference every vendor’s database requires. Without it, listings may return dozens of incompatible substitutes.
Open the illustrated breakdown and highlight each component’s printed code–usually stamped next to its depiction. Cross-reference these codes against three retailer filters: “Exact Number Only,” “Factory Approved,” and “Cross-Reference Listings.” Ignore any result that lacks the identical alphanumeric pattern; substitutions labeled “universal” frequently fail during assembly.
| Retailer Field Label | Drop-down Filter Value | Action |
|---|---|---|
| Model Lookup | Exact Number Only | Paste full alphanumeric string |
| Part Category | Factory Approved | Select only OEM-certified |
| Cross-Reference | Enable | Check returned matches against diagram code |
Bookmark the following retailer search URLs; each query box accepts the identical code format without reformatting:
Compare the returned item’s thumbnail against the diagram depiction. Look for precise flange cut-outs, terminal orientation, and connector quantity–mismatches as small as 1 mm will prevent correct installation. Add any matched item to cart immediately; listings frequently expire within hours due to stock fluctuations.
Decoding Common Label Variations
Manufacturers occasionally abbreviate codes on stickers while diagrams display full sequences. Translate these variations directly:
- “T120” becomes “THERM120WB”
- “IGNTR” equals “IGNITER-ASSY”
- “MOTR-DR” reads “MOTOR-DOOR”
Input the complete diagram version into the retailer’s search field–shortened versions often yield incorrect inventory results.
