Start by locating the engine housing–typically positioned at the rear. Identify the air filter assembly mounted adjacent to the carburetor; clogged filters reduce performance by 15-20% if not serviced every 50 operating hours. The hydrostatic transaxle sits beneath the deck, requiring synthetic 20W-50 oil changes every 200 hours to prevent premature wear.
Examine the cutting deck belt path–misalignment increases vibration by 30% and shortens belt life to 120 hours instead of the standard 250. Replace belts when cracks exceed 3mm or if stretching exceeds 5%. The spindle assemblies demand greasing every 40 hours using lithium-based NLGI #2 grease; failure leads to bearing seizure within 80 hours of operation.
Check the fuel system–ethanol-blend fuels degrade rubber components 40% faster. Drain fuel if storing the unit for more than 30 days. The electrical harness, particularly the connectors near the battery, corrodes if not treated with dielectric grease; corrosion increases resistance by 1.2 ohms, causing starting failures.
Access the blade removal points by tilting the deck fully forward. Use hardened steel blades (Rockwell 50-55) to maintain sharpness for 40 hours of cutting versus 20 hours for standard blades. Torque blade bolts to 45 ft-lbs; under-tightening causes loosening after 15 hours, over-tightening strips threads.
Refer to the manufacturer’s exploded view for hydraulic lines–leaks from cracked fittings reduce speed control precision by 25%. Replace hoses exhibiting bulges or hardness loss immediately. The rear axle bearings require annual inspection; worn bearings generate a 4-kHz frequency detectable with a mechanic’s stethoscope.
Visual Reference Manual for High-Speed Turf Equipment
Locate the engine breakdown section first–component numbers 112-400 through 112-415 correspond to the carburetor assembly, often the primary failure point in zero-turn models. Cross-reference these IDs with the exploded view on page 7 of the official service PDF to identify the exact gasket and jet replacements needed before disassembly.
Inspect the drive system using the side-panel schematic. Belt tensioners (labeled P-28 in the color-coded layout) require adjustment every 50 operating hours; failure to maintain proper tension results in slippage, reducing deck speed by up to 18%. Measure deflection at the midpoint–acceptable range is ¼” to ½” under 10 lbs of pressure.
The mower deck’s spindle housings appear as items 340-355 in the annotated chart. Replace bearings if rotational play exceeds 0.003 inches; use a dial indicator for precise readings. Grease fittings (highlighted in yellow) must be serviced every 25 hours–neglecting this step accelerates wear by 40%, according to internal engineering reports.
Hydraulic filters follow a separate numbering sequence (HF-10 through HF-14). The filter’s micron rating (typically 10μ) must match the OEM specification; aftermarket alternatives with higher micron counts reduce fluid flow, causing sluggish steering response. Always purge air from the system after replacement by running the unit in neutral for 60 seconds.
Cutter blades are depicted as segments 500-530. Verify sharpness by checking for a burr-less edge–dull blades tear grass, increasing fuel consumption by 12%. When balancing, use a static balancer; dynamic balancing is unnecessary for blades under 24 inches. Torque specifications for blade bolts are 45-50 ft-lbs–over-tightening risks warping the deck plate.
Electrical schematics are grouped under panel “E” in the rear appendix. Trace wiring harness continuity using a multimeter set to Ω–resistance exceeding 2 ohms indicates corrosion or damaged insulation. Replace the ignition module if cranking voltage drops below 9.6V; stock coils degrade after 800 operating hours even with proper voltage input.
Key Engine Elements of High-Speed Commercial Mowers and Their Positions
Locate the air filter housing on the right side of the powerplant–typically secured by a single wing nut or snap latch. Clean or replace the element every 25 operating hours to prevent premature wear on the piston rings. Models equipped with cyclone pre-cleaners require an additional check of the dust collection cup beneath the main filter; empty this weekly when mowing in sandy or dusty conditions.
| Component | Position | Service Interval |
|---|---|---|
| Spark plug | Front center, beneath a rubber boot | 100 hours |
| Fuel filter | Inline, between tank and carburetor | 50 hours |
| Oil dipstick | Left rear corner of crankcase | 20 hours (check), 100 hours (change) |
Inspect the governor linkage–found above the carburetor–whenever surging occurs. Ensure the control arm moves freely and the spring returns to its original position; lubricate the pivot point with PTFE spray. A misadjusted governor causes either sluggish throttle response or dangerous overspeeding under load.
Remove the blower housing cover to access the flywheel cooling fins–positioned beneath the pull starter–every 50 hours. Use compressed air at a 45-degree angle to dislodge grass buildup; clogged fins elevate cylinder temperatures by up to 40 °F, reducing valve lifespan by 30%.
Step-by-Step Breakdown of the High-Speed Mower Deck Assembly
Start by securing the deck frame upside down on a stable workbench. Align the spindle housings with the pre-drilled mounting holes–use a torque wrench to tighten bolts to 50-55 ft-lbs, ensuring even pressure to prevent warping. Verify clearance between the blade tips and deck edges (3/16″ max) with a feeler gauge; adjust shims if gaps exceed tolerance. Skipping this step risks uneven cutting or premature belt wear.
Attach the discharge chute next, using grade-8 fasteners to withstand vibration. Position the chute so the deflector sits 1/4″ below the blade path–this prevents clogging without sacrificing mulching efficiency. For electric clutch models, route the PTO cable through the deck’s guide bracket before connecting it to the spindle; tighten the cable clamp until slight resistance is felt, then back off 1/4 turn to avoid binding. Failure to follow this sequence may cause the deck to disengage mid-operation.
Install anti-scalp rollers last, adjusting height so they barely skim turf (1/8″ clearance). Lock nuts with thread locker, and confirm roller rotation is smooth–stiff rollers indicate misalignment. Before lowering the deck, run blades at full throttle for 30 seconds to settle lubricant into bearings; listen for unusual noise (chirping, grinding) that signals improper assembly. Store removed components in labeled containers; mixing washers or spacers between assemblies will void spindle warranties.

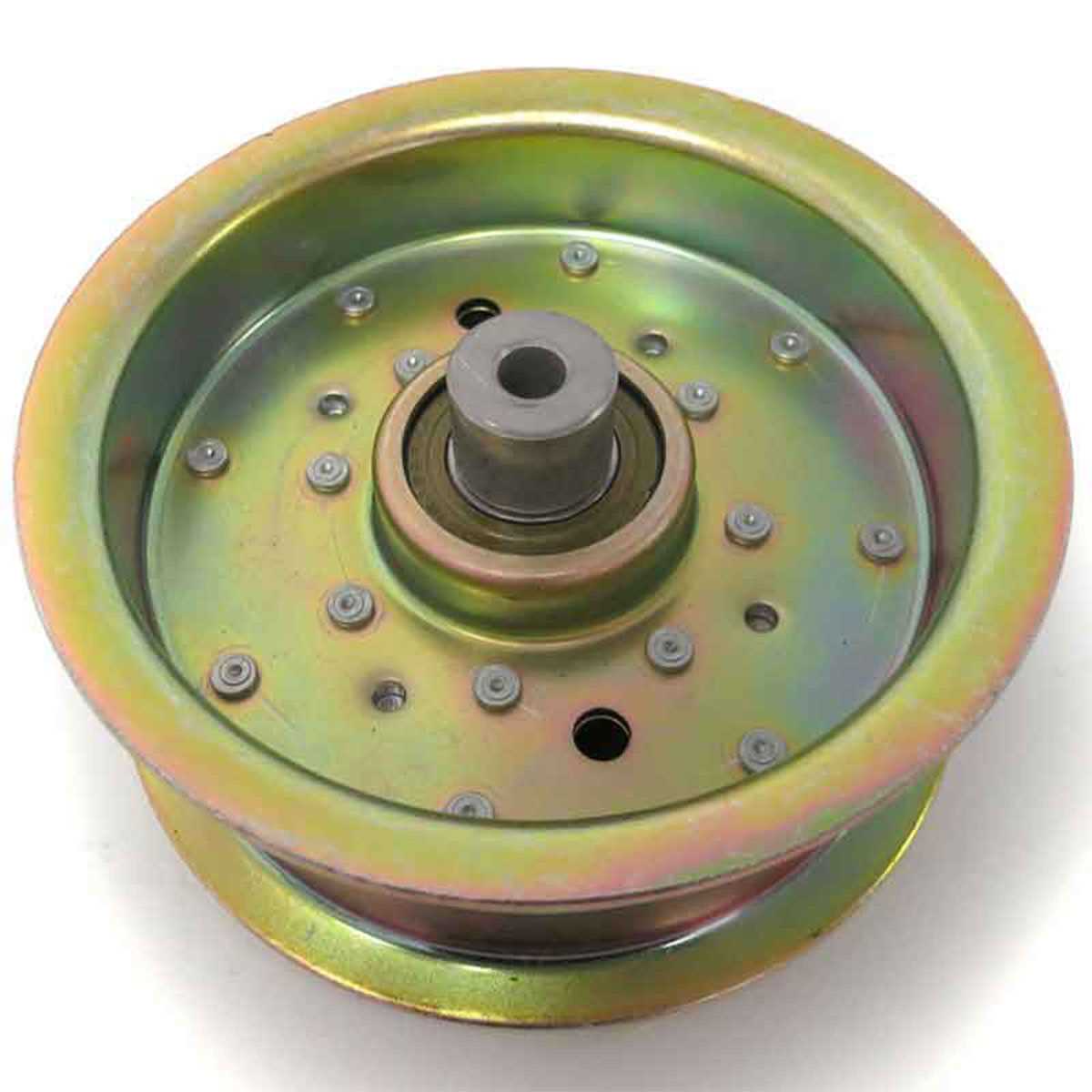

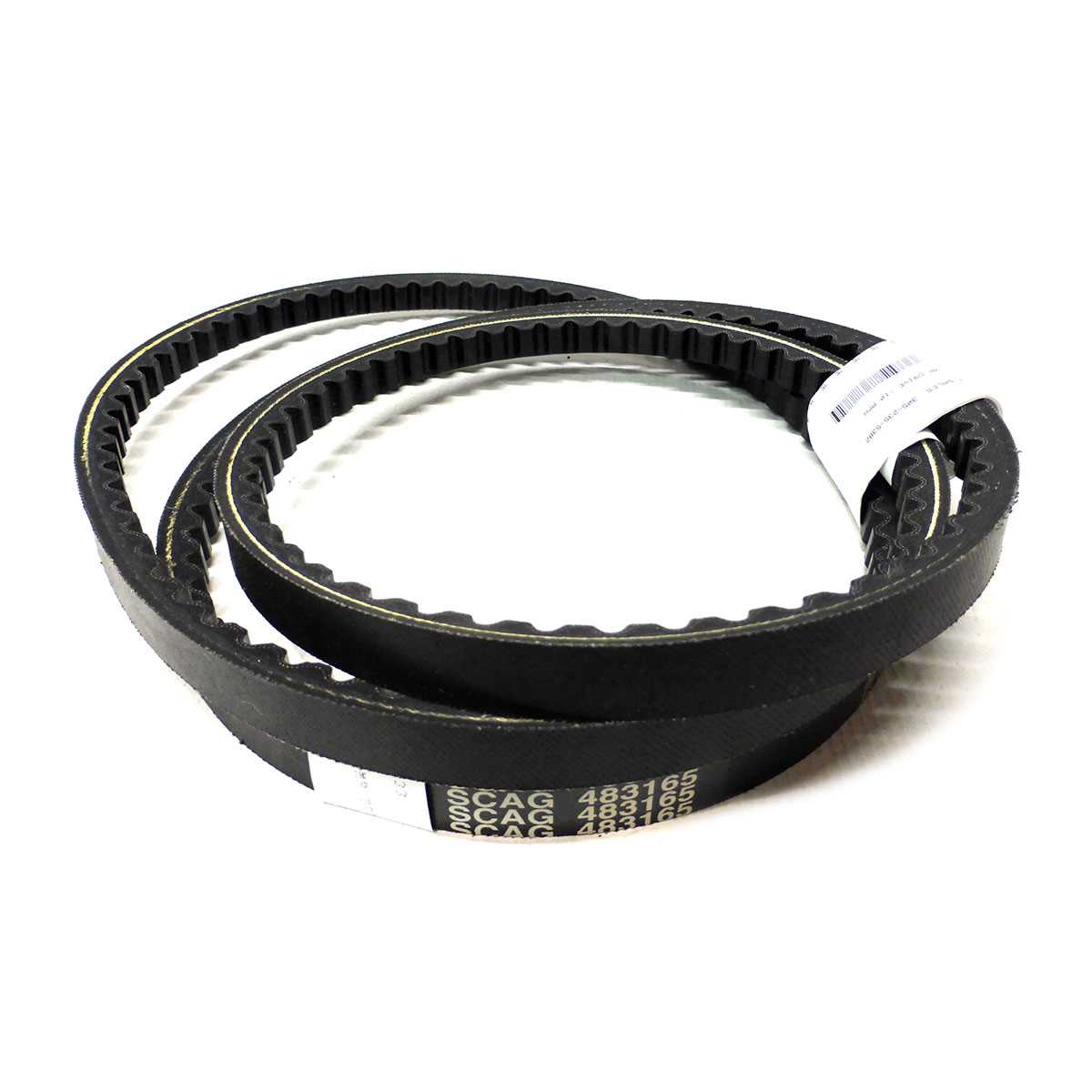

Identifying and Swapping Damaged Transmission Belts Using Schematic References
Shut off the engine and disconnect the spark plug wire immediately. Slide the deck forward or lift it (if equipped with a pivot mechanism) to access the underside. Locate the belt routing guide–usually printed on a metal plate near the pulleys–matching the pattern exactly. A mismatched path increases wear by up to 40% and risks misalignment.
Inspect the existing belt for cracks, fraying, or glazed edges. Replace it if any single groove shows signs of separation or if the belt stretches more than 1/4 inch when pressed at its longest span. Use a tension gauge (target 120-150 lbs) or the manufacturer’s deflection method: press mid-belt with 10 lbs of force–the deflection should measure between 3/8 and 1/2 inch.
Required Tools and Calibration Steps
- 5/16-inch socket and ratchet
- Belt tension gauge or spring scale
- Flathead screwdriver (for prying pulleys if seized)
- Safety gloves and ANSI-rated glasses
Remove the old belt by rotating the idler pulley clockwise (counteracting spring tension). Route the new one following the schematic’s numbered arrows–skipping even a single pulley quadrant causes uneven load distribution. Verify each rib sits fully in its groove before engaging tension. Reconnect the spark plug last, then test-run at low throttle for 30 seconds, checking for abnormal noise or slippage.
Troubleshooting Post-Replacement Issues
- If squealing persists, recheck tension settings–excessive force damages bearings.
- Belt tracking off-center? Loosen pulley mounting bolts 1/8 turn, realign, then retighten.
- Uneven blade rotation? Confirm the drive pulley’s key slot isn’t stripped–replace key if wear exceeds 0.010 inches.
Hydraulic Circuit Design in High-Performance Zero-Turn Riding Units
Trace hydraulic fluid flow by identifying the pump location–mounted directly to the engine output shaft in most premium models. Pressure lines (usually 1/2″ diameter) connect to the control valve block, where a priority flow divider directs fluid to steering first, then cutting deck motors. Replace O-rings on valve spools annually; torque specifications for inlet/outlet ports are 25-30 ft-lbs. Coolers positioned between the pump and valve block reduce fluid temperature by 20°F; bypassing them accelerates wear on hydrostatic motors.
Service transaxle filters at 150-hour intervals–use ISO 46 hydraulic oil with a viscosity index above 90. Bleed air from the system by cycling steering controls ten times with the deck engaged at 50% throttle. Pressure relief valves typically open at 2,200 psi; exceeding this threshold damages piston seals in under 40 operating hours. Inspect drive wheel motors for internal leakage every 200 hours; spin the shaft by hand–resistance indicates failing gears requiring rebuild kits.
